Dunkerque Logistics Campus 21

DUNKERQUE LOGISTICS CAMPUS 21 Loon-Plage - France Approx. 63,500 SQM

Strategically located logistics hub

Strategic location

04

Accessibility

07

Layout plan

08

Port of Dunkirk

10

Technical specifications

12

Dunkerque Logistics Campus 21

CONTENT

STRATEGIC LOCATION Ideally located in the “Grand Port Maritime de Dunkerque”, in the Hauts-de-France region, we are developing 63,500 sqm of warehouse space for waterbound logistics and (semi-)industrial activities. The state-of-the-art logistics campus is situated nearby an important container terminal (used by various shipping companies) in an ever expanding port that will also be connected by barge to Paris by 2027.

©Dunkerque-Port

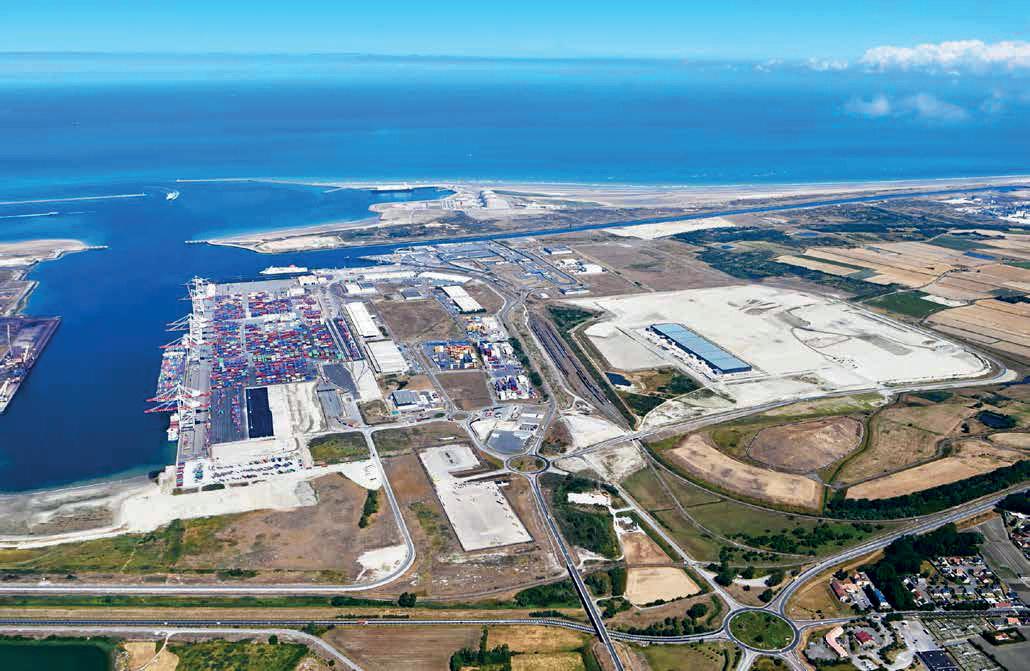

The port of Dunkirk is the third largest port of France (after Marseille and Le Havre). A large number of multinationals has already set up along the busiest shipping route in the world (600 ships a day).

04

Dunkerque Logistics Campus 21 enjoys all the benefits of a prime multimodal location.

DUNKERQUE LOGISTICS CAMPUS 21 Zeebrugge 80 km Antwerp 160 km 885 km Berlin

Amsterdam 335 km

200 km London

THE NETHERLANDS

UNITED KINGDOM

E313

Dunkirk BELGIUM

GERMANY HAM

Luxembourg 400 km Brussels 170 km

Paris 310 km

FRANCE

The logistics campus offers the unique advantage of being very close to several connecting roads (A16 and A26), railway roads and the deep sea port of Dunkirk.

05

The ‘blue banana’ is the centrally located European megalopolis that connects several European major cities.

A dense urban corridor in Europe Blue Banana: corridor of strong urbanisation in Europe

Warsaw Hamburg Dublin

Cork

Hull Amsterdam Rotterdam Antwerp VLISSINGEN Dusseldorf London Ghent 100 200 300 400 Lille 1-2 Liege A V E Frankfurt Paris

RA

2-3

GE

RA

NG

Berlin Prague km

Munich E

1 D

AY

3-4

Bern 4-5

hr

Zurich

DE

LI

VE

RY

Vienna

Ljubljana

Milan

Bordeaux Rome

Dunkerque Logistics Campus 21 is the perfect hub for all your logistics needs. It is located right in the heart of the centralEuropean logistics flow and offers optimal connections with the European hinterland, reaching 80 million of consumers within a range of 350 km.

06

ACCESSIBILITY Dunkirk offers a wide range of transport modes. Obviously, the deep sea port and the container terminal are very important for the supply and transport of containers. The nearby motorway and the rail connection provide direct access to the European cargo network.

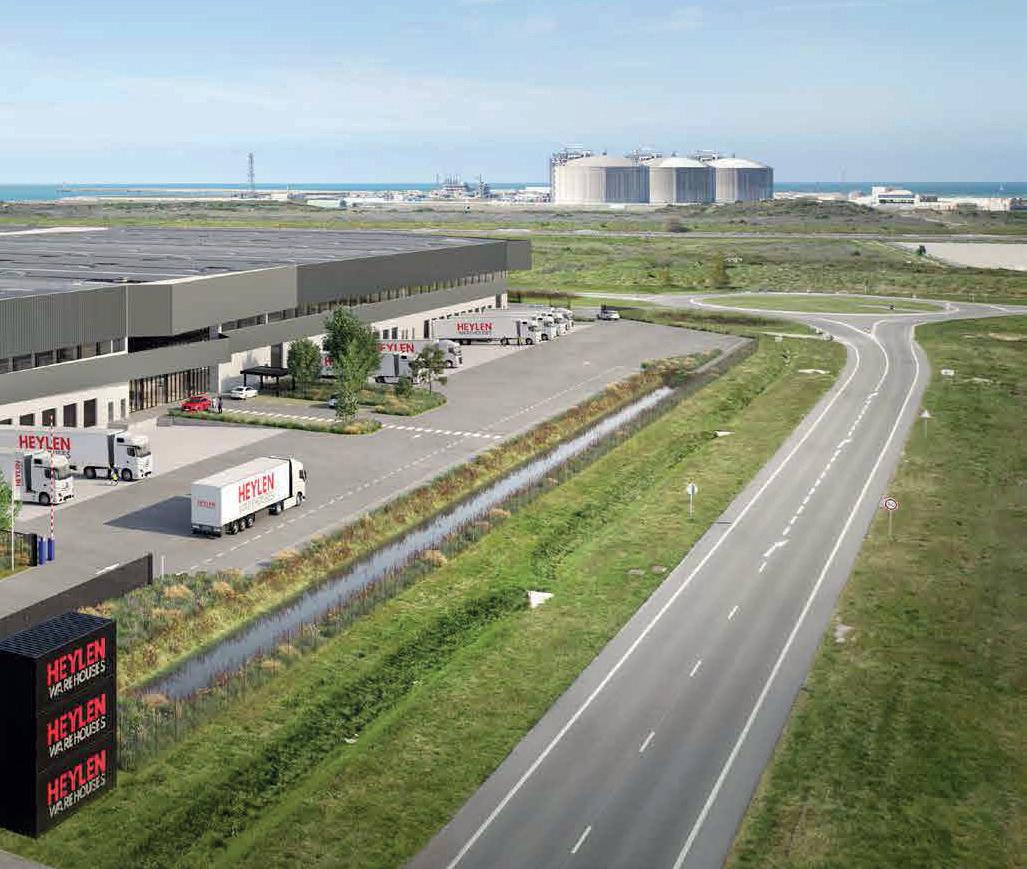

The complex is easily accessible via the A16 motorway between Dunkirk and Calais.

Another important connecting road is the A26, which is only a couple of minutes away from the new logistics hub.

Giratoire des Océans Giratoire des Dunes

UK FERRY TERMINAL DFDS

EXISTING LOGISTICS ZONE

HEYLEN 10 ca

TERMINALS DLI

Darse de la Manche

IRELAND FERRY TERMINAL DFDS

Giratoire du Petit Denna

Que

CONTAINERS TERMINAL TDF

re

land

de F

Giratoire des Amériques

Giratoire des Continents

RD

1 60

LOON-PLAGE

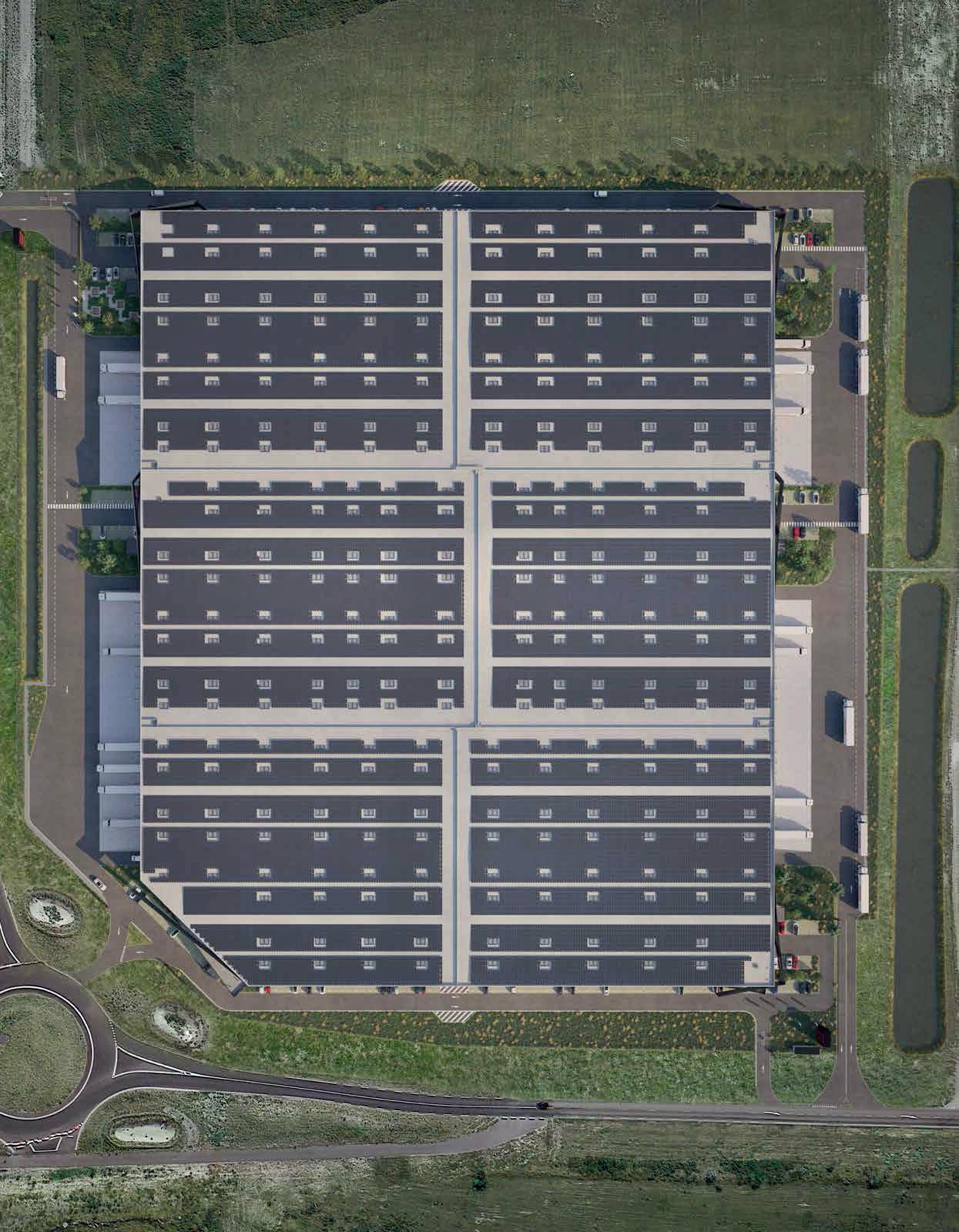

LAYOUT PLAN

UNIT 1

UNIT 2

UNIT 3

WAREHOUSE

WAREHOUSE

WAREHOUSE

9,880 SQM

11,265 SQM

10,597 SQM

Office

Office

Office

TBD

TBD

TBD

UNIT4

UNIT 5

UNIT 6

WAREHOUSE

WAREHOUSE

WAREHOUSE

10,597 SQM

9,873 SQM

10,597 SQM

Office

Office

Office

TBD

TBD

TBD

08

3

4

2

5

UNIT 7

1

UNIT 8

WAREHOUSE

WAREHOUSE

11,944 SQM

12,233 SQM

MEZZANINE

MEZZANINE

2,386 SQM

2,2222 SQM

OFFICE

OFFICE

BUILT-TO-SUIT

BUILT-TO-SUIT

09

6

GRAND PORT MARITIME DE DUNKERQUE

10

11

The presence of the motorway, railway line and sea-port guarantee speedy and flexible transport options.

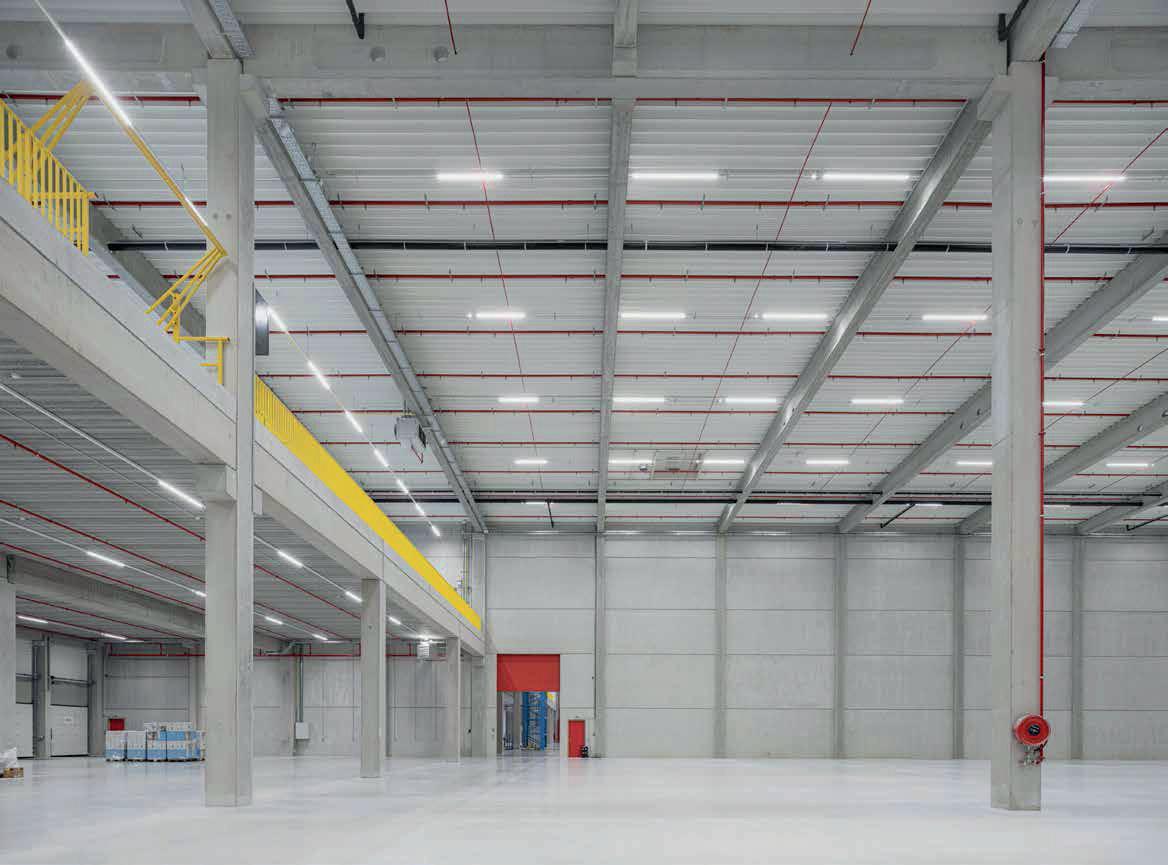

TECHNICAL SPECIFICATIONS* MEZZANINE

WAREHOUSE •

Clear height: 11.8 m (creating 15-20% more pallet space)

•

Span & column grid suitable for both small and wide aisles

•

1 dock door per 1,000 sqm

•

Dock equipped with dockleveller (60kN dynamic load), shelter and bumpers

•

Mezzanine with a depth of 24 m above expedition area. Floor load of 10kN / sqm

•

Windows for natural light

OFFICE •

Offices on ground floor and mezzanine level with an open floor plan. High-end VRF-system for cooling and heating

•

1 ground level access door (4 m x 6 m) per unit

•

Floor load: 50kN/m2

•

LED lighting, 500 Lux at worktable level

•

Maximum point load pallet racking: 90kN / leg

•

High-end finishes

•

Flatness tolerance according to DIN18202 Table 3, Zeile 4

SITE

•

Insulated concrete plinth with a height of 2,5 m

•

Certified automatic sprinkler installation (ESFR roof sprinklers)

•

Fire hose and hydrants in compliance with local regulations and building code

•

Fire alarm and evacuation system in compliance with the rules and code

•

Heating (12°) and ventilation system

•

Lighting: energy efficient LED, 250 Lux

•

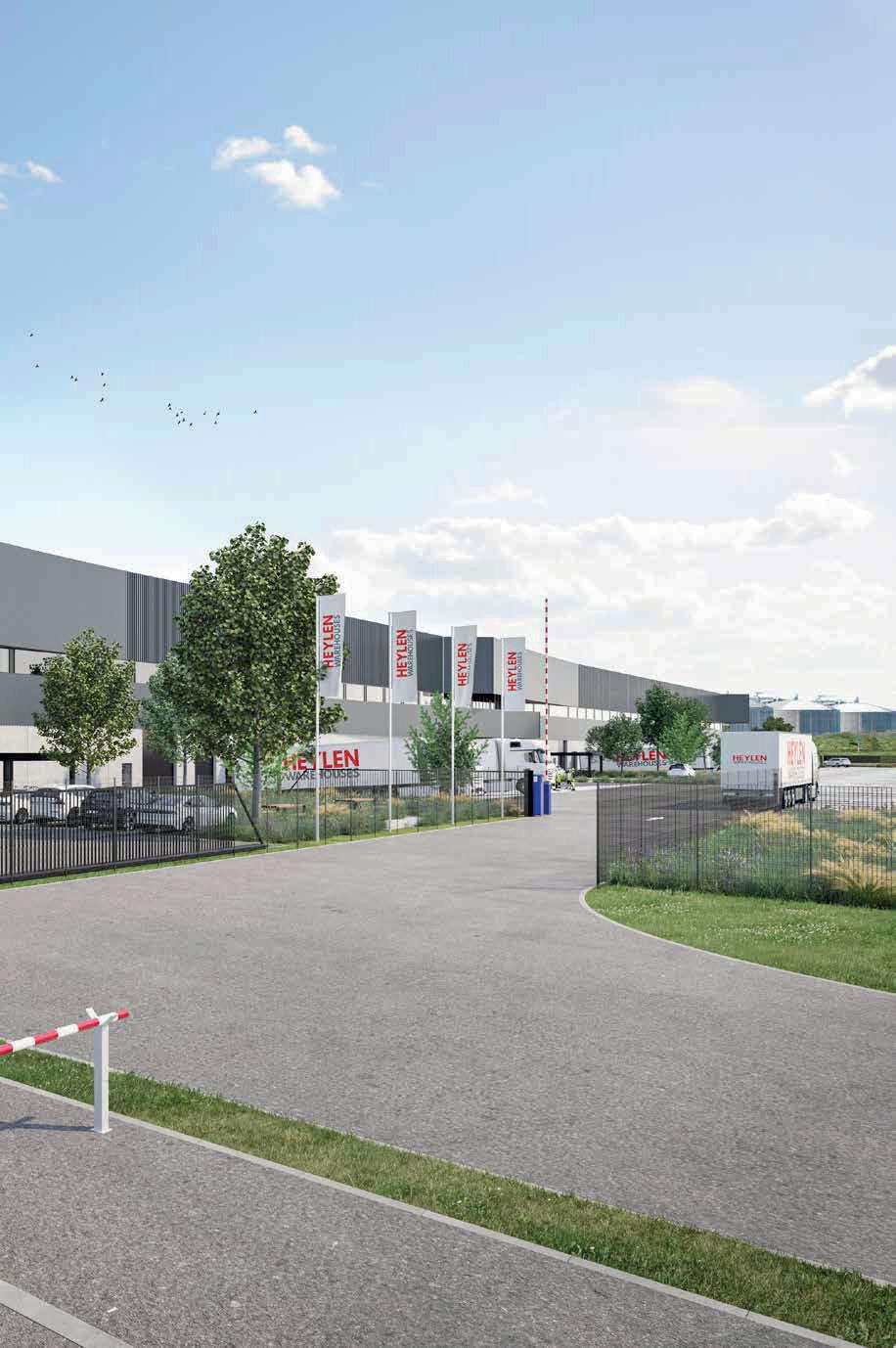

Perimeter fencing with automated entrance gate

•

Loading area 40 m deep, designed for heavy loads

•

Exterior lighting for loading area, circulation road and parking yards

•

Parking yards

* We usually deliver our commercial buildings in accordance with the standard specifications of Heylen Warehouses.

However, a built-to-suit that deviates from the Heylen Standard is also possible.

12

Our state-of-the-art warehouses are outstandingly multifunctional.

By applying superior standards and a longterm vision, we develop a promising future for the logistics industry in Europe.
