Fastener Loctite® Application & Torque Instructions

ITEM DESCRIPTION NO. ITEM DESCRIPTION NO.

DGHS, DML & DSD Deck Assemblies Items # 1 & 2 apply to all deck models EXCEPT DSD52 and DSD62.

1 Apply Loctite® Threadlocker # 242 (Blue) to P/N F211 (1/4-20 x 7/8 Hex Bolt, used on Gearbox Connector Tubes) prior to assembly. Torque to 90 in-lb (10.2 N·m). 2 Torque P/N F018 (5/8-18 Hex Nut, used on underside of blades) to 60 ft-lb (81.4 N·m). DO NOT apply Loctite® . DSD52 & DSD62 Deck Assemblies

3 Apply Loctite® Threadlocker # 242 (Blue) to P/N F114 (5/16-18 x 5/8 SQH Set Screw, used on Drive Pulley) prior to assembly. Torque to 190 in-lb (21.5 N·m). 4 Apply Loctite® Threadlocker # 242 (Blue) to P/N F076 (3/8-16 x 5/8 SQH Set Screw, used on U-Joint Shaft Assy,

T-Scope) prior to assembly. Torque to 400 in-lb (45.2 N·m). 5 Torque P/N F339 (5/16-18 x 3/4 Self-Tapping Bolt, used on Mount Braket & PTO Guard) to 200 in-lb (22.6 N·m).

DO NOT apply Loctite® . 6 Apply Loctite® Threadlocker # 242 (Blue) to P/N F226 (5/16-18 x 7/8 Hex Bolt, used on Right Angle Gearbox) prior to assembly. Torque to 18 ft-lb (24.4 N·m).

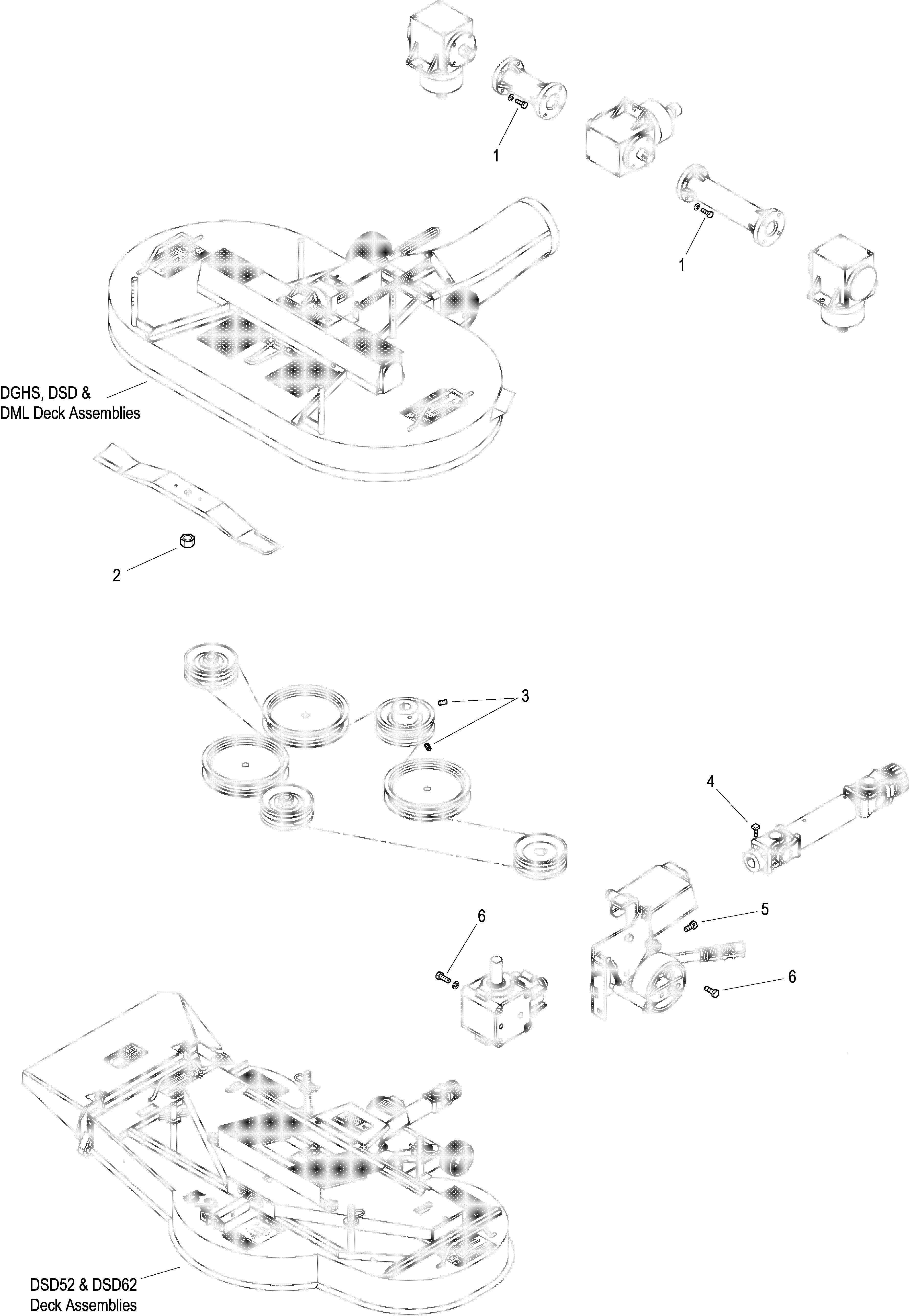

NOTE: Models DGHS48 and DSD52 are shown here. Refer to individual deck assemblies for exact locations and quantities of items listed above.
