Overheat Diagnosis

Clear Hose Setup (Pump)

Install the large clear hose and large PVC pipe, from the list above, as depicted in figure 1 below.

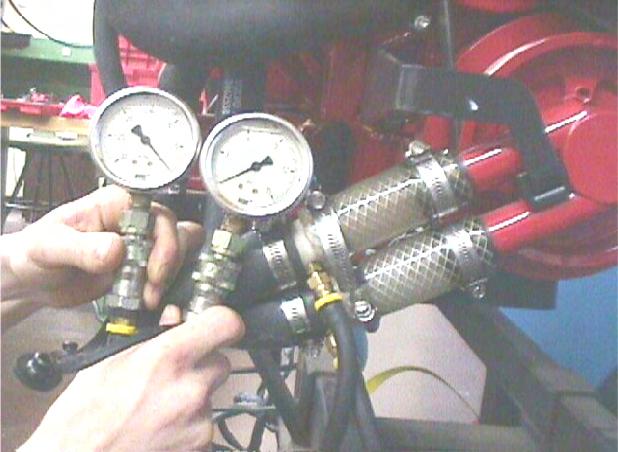

Figure 1 Installing Clear Hose at Raw Water Pump

This installation will allow the technician to see either water flow or air going into the pump or coming out of the pump. The gauges are used to see if there is proper pressure in the system.
