4.11 Engine rpm sensor

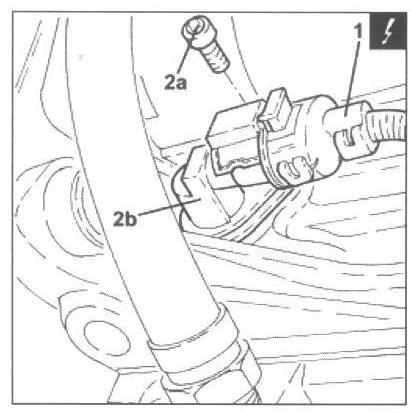

Make sure that the ignition key is in the OFF position, then disconnect the battery terminal (-). Disconnect the electrical connection from the engine rpm sensor (1).

Undo the bolt (2 a) and remove the rpm sensor (2b).

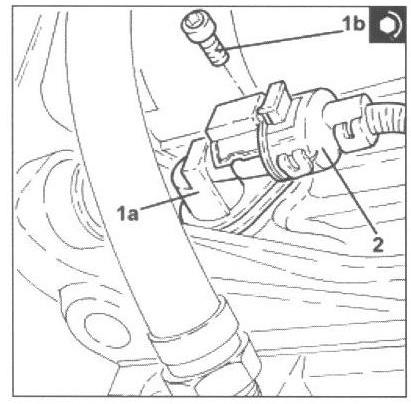

Position the engine rpm sensor (1 a) in its housing and secure it tightening the bolt (1b) to the recommended torque .

Rpm sensor

Bolt M6 (daNm) 0.6 ÷ 1.0 (engine block side)

Connect the electrical connection for the engine rpm sensor. Connect the negative battery terminal (-) .
