4.3 Engine flywheel

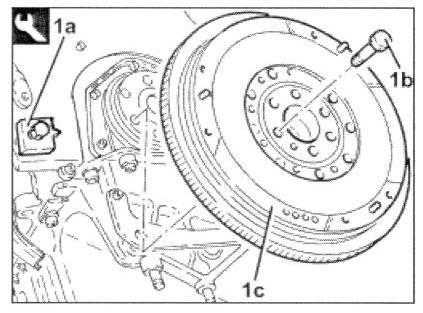

With the flywheel lock (1 a) fitted, undo the bolts (1b) and remove the flywheel (1c). The bolts fixing, the flywheel have been treated with a special agent; therefore they should be replaced each time they are removed.

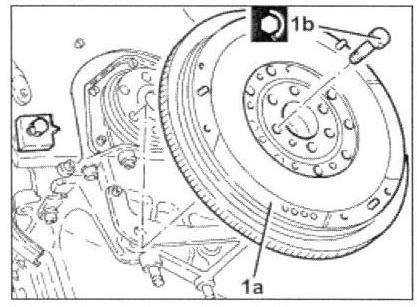

Place the flywheel (1 a) in its housing and secure it tightening the new bolts (1b) to the recommended torque.

Engine flywheel

Bolt M12 (daNm) 16.0
