Checking coolant level Checking and cleaning the raw

4 Maintenance

Checking coolant level

Daily, before starting.

VD01169

4 Checking coolant level

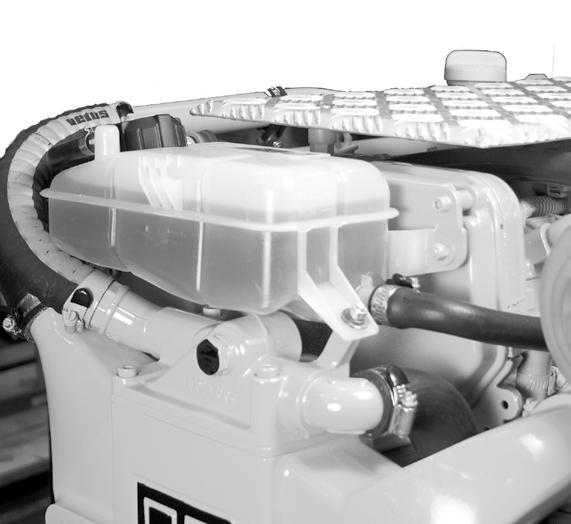

Check the coolant level in the expansion tank. The level must be checked when the engine is cold.

The coolant level must be between the markings MIN and MAX. Top up if necessary. Remove the cap from the expansion tank.

VD01173

Warning

Never open the cap of the expansion tank when the engine is at operating temperature.

VD01174

5 Topping up coolant

The internal cooling system can be filled with a mixture of anti-freeze (40 %) and tap water (60 %) or with a special coolant. For specification, see page 119.

Caution

Never fill the cooling system with sea water or brackish water.
