Removing the Internal Microphone and Web Camera

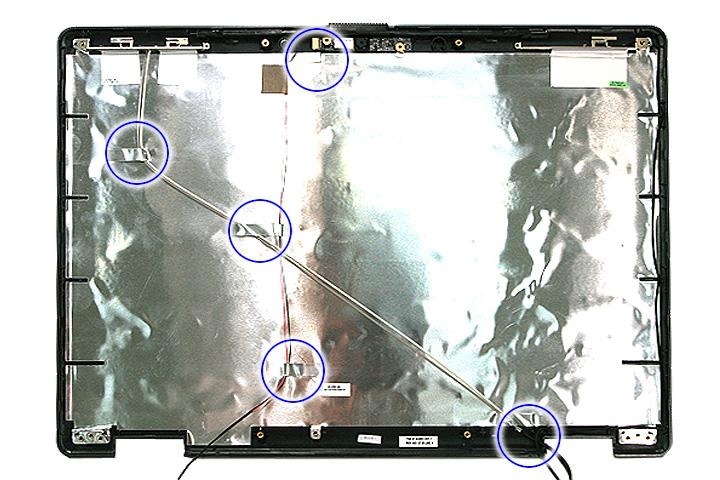

10. Release the antenna cables from the latches.

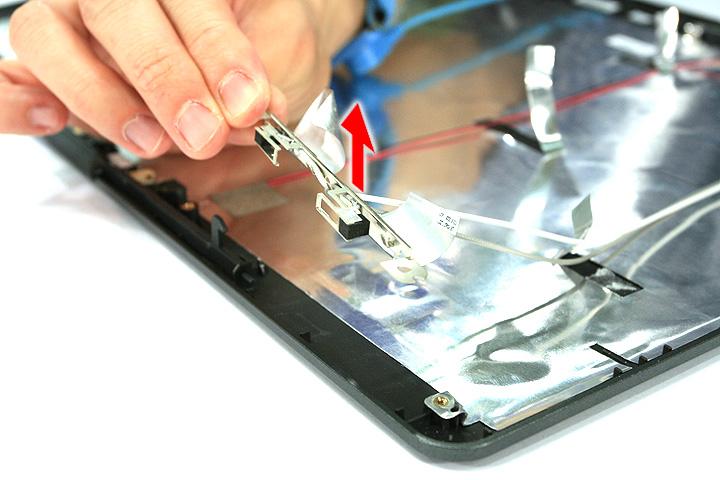

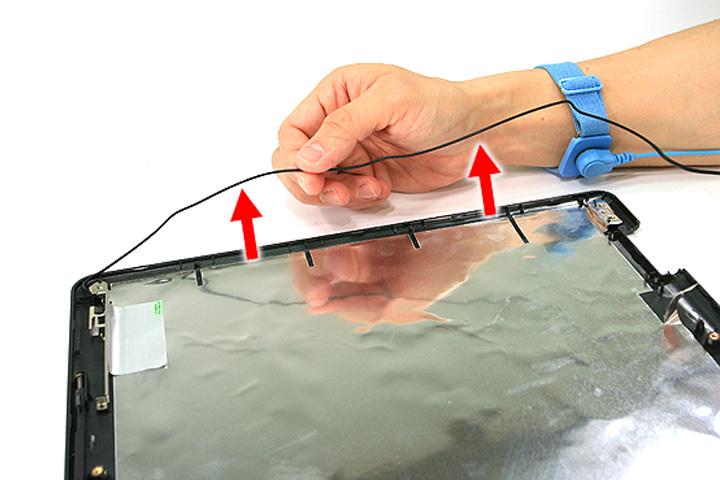

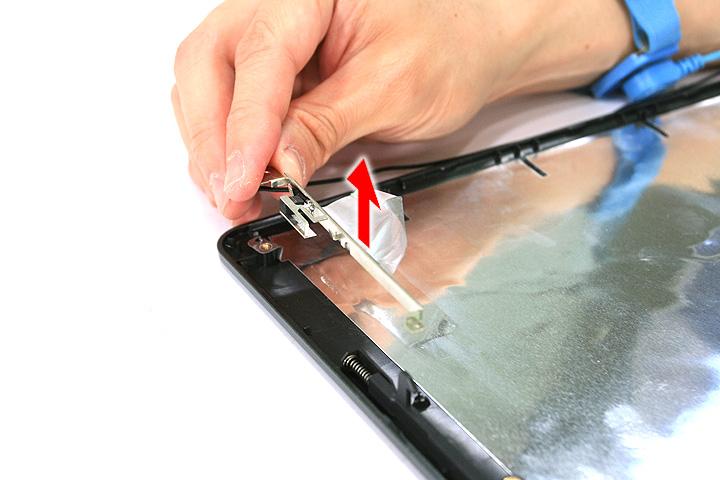

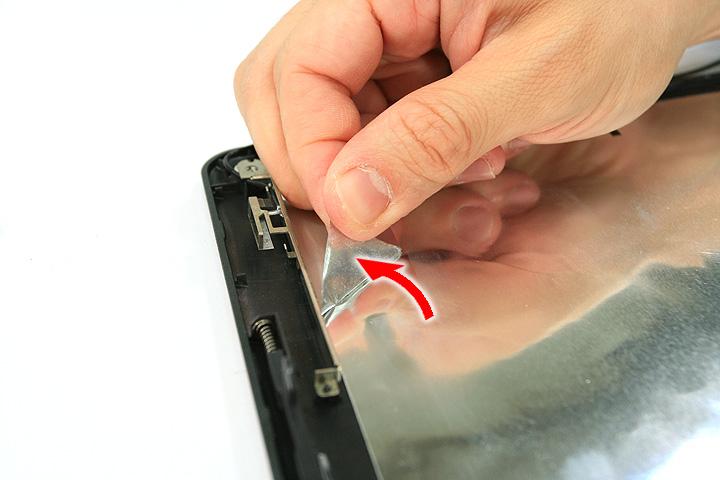

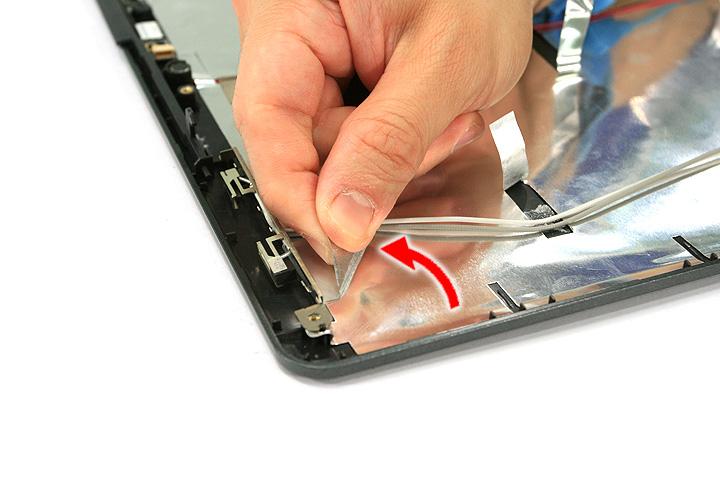

11. Remove the tapes together with the antenna cables from the back cover.

1. See “Removing the Battery Pack” on page 62. 2. See “Removing the Lower Cover” on page 64. 3. See “Removing the WLAN Board Modules” on page 68. 4. See “Removing the Middle Cover and the Power Board” on page 78. 5. See “Removing the LCD Module” on page 81. 6. See “Removing the LCD Bezel” on page 97.

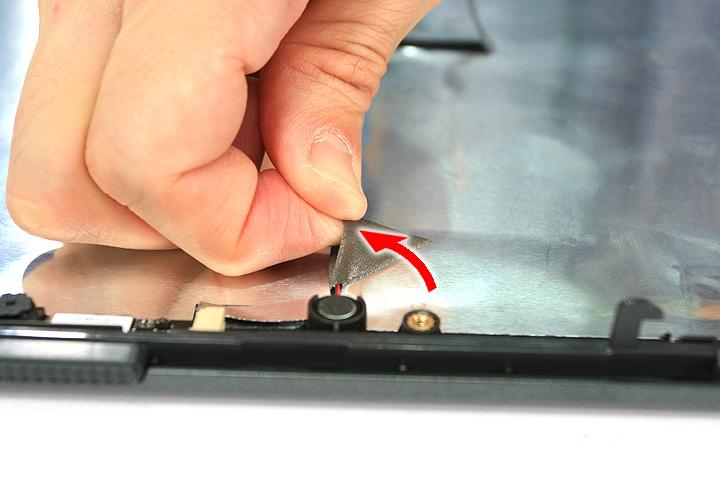

7. See “Removing the LCD module with the Brackets” on page 98. 8. See “Removing the Left and Right Hinge” on page 101. 9. See “Removing the Antennas” on page 101. 10. Remove the tape holding the internal microphone in place.

11. Remove the internal microphone from the back cover.

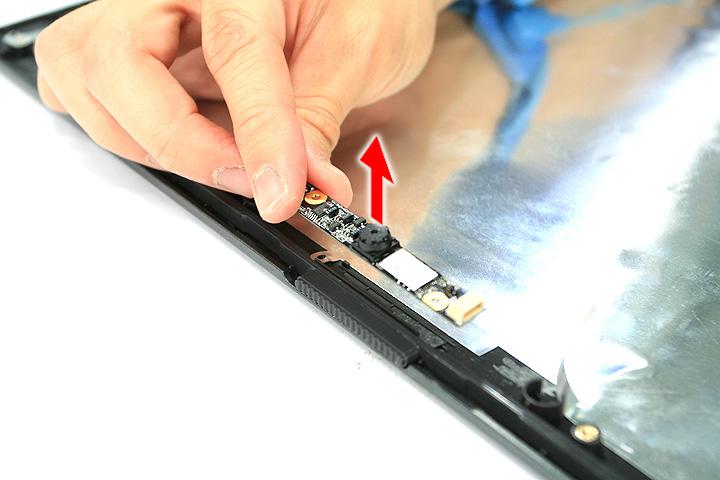

12. Remove the Web camera from the back cover.

Troubleshooting

Use the following procedure as a guide for computer problems. NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses. 1. Obtain the failing symptoms in as much detail as possible. 2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation. 3. Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified)

Power failure. (The power indicator does not go on or stay on.) POST does not complete. No beep or error codes are indicated.

POST detects an error and displayed messages on screen. Other symptoms (i.e. LCD display problems or others). Symptoms cannot be re-created (intermittent problems).

Go To

“Power System Check” on page 107.

“Power-On Self-Test (POST) Error Message” on page 110 “Undetermined Problems” on page 124 “Error Message List” on page 111

“Power-On Self-Test (POST) Error Message” on page 110 Use the customer-reported symptoms and go to “Power-On Self-Test (POST) Error Message” on page 110 “Intermittent Problems” on page 123 “Undetermined Problems” on page 124
