Removing the Inverter Board and FPC Cable

Step Size (Quantity) Color Torque

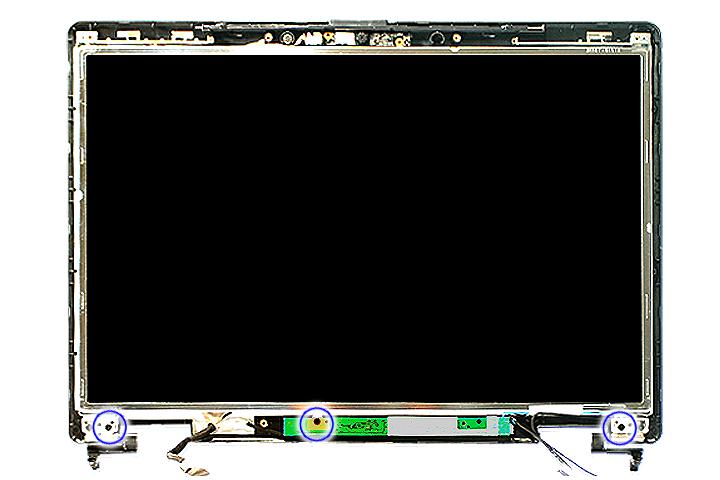

1~3 M2.5 x L6 (3) Black 3.0 kgf-cm

9. Detach the LCD with the brackets from the back cover.

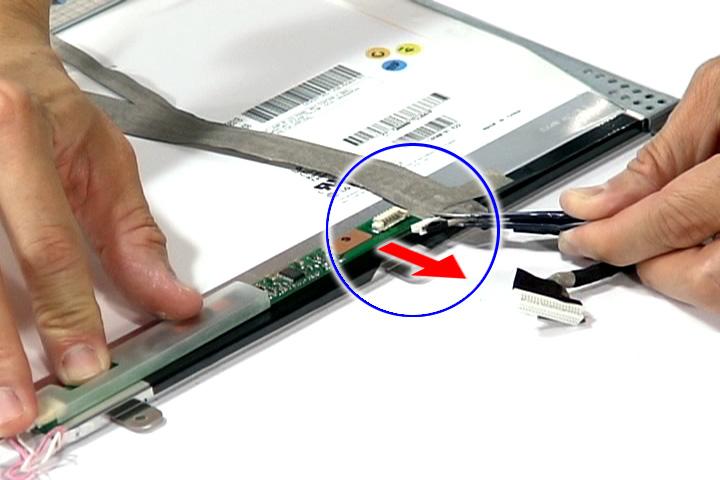

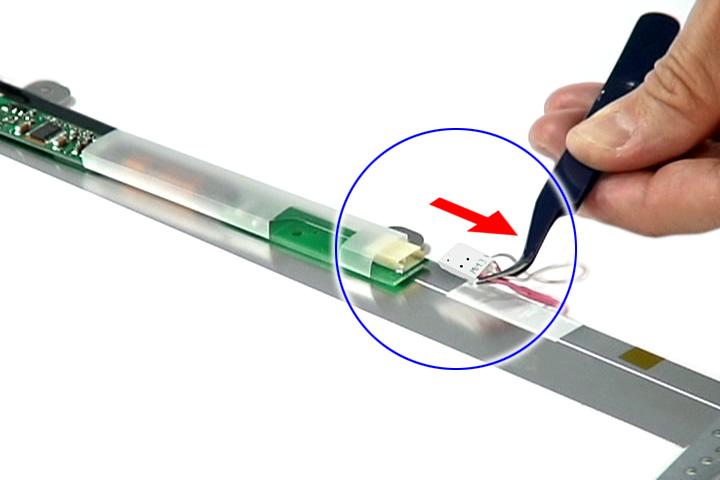

1. See “Removing the Battery Pack” on page 62. 2. See “Removing the Lower Cover” on page 64. 3. See “Removing the WLAN Board Modules” on page 68. 4. See “Removing the Middle Cover and the Power Board” on page 78. 5. See “Removing the LCD Module” on page 81. 6. See “Removing the LCD Bezel” on page 97. 7. See “Removing the LCD module with the Brackets” on page 98. 8. Disconnect the inverter board cable from its connector, then disconnect the 2P cable on the inverter board to remove it.
