LCD Disassembly
1. Remove the eight LCD screw pads. 2. Remove the eight screws securing the LCD bezel.

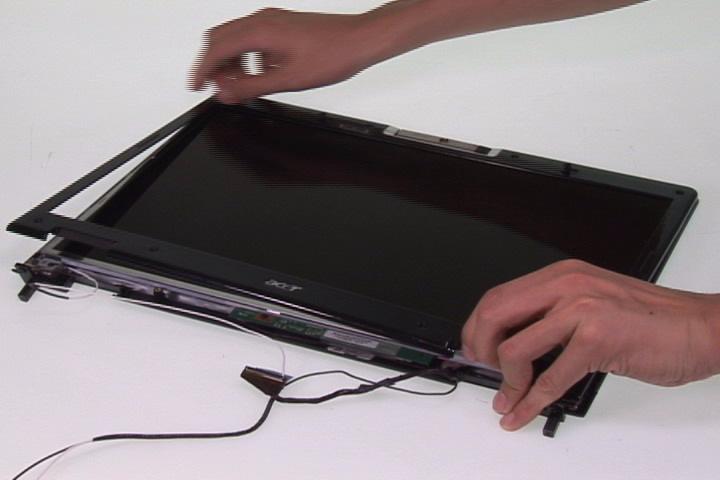

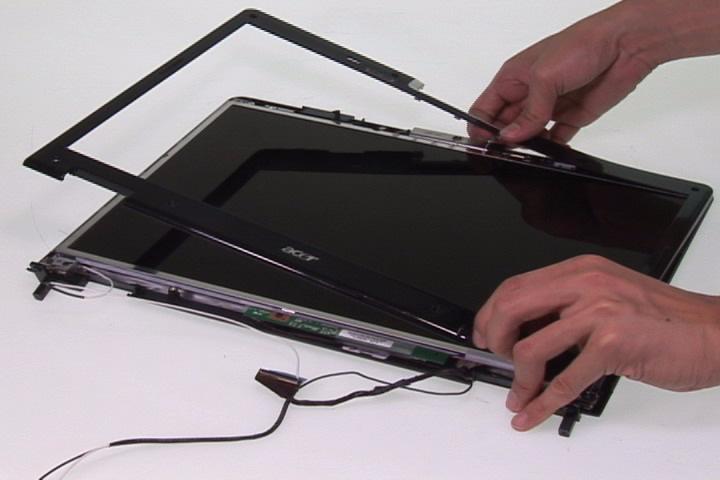

3. Remove the LCD bezel.

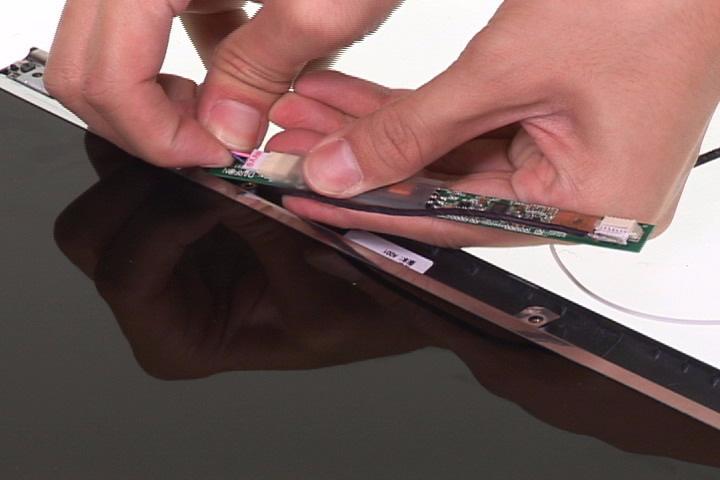

4. Remove the screw securing the inverter board. 5. Turn the inverter board over, disconnect the LVDS cable and LCD cable from the inverter board. 6. Remove the inverter board.

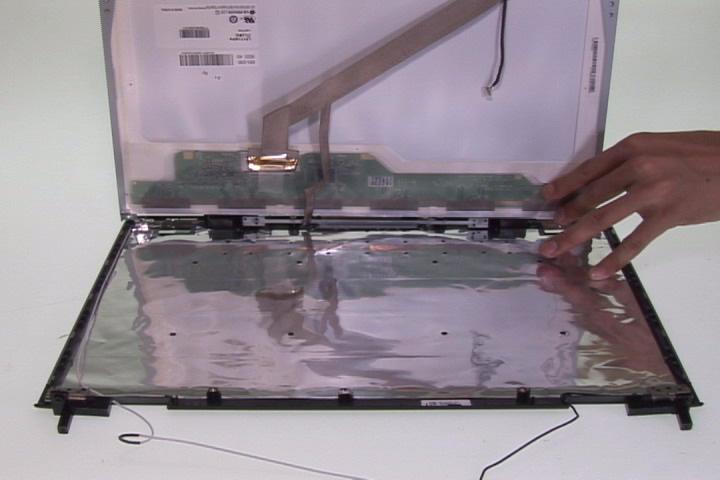

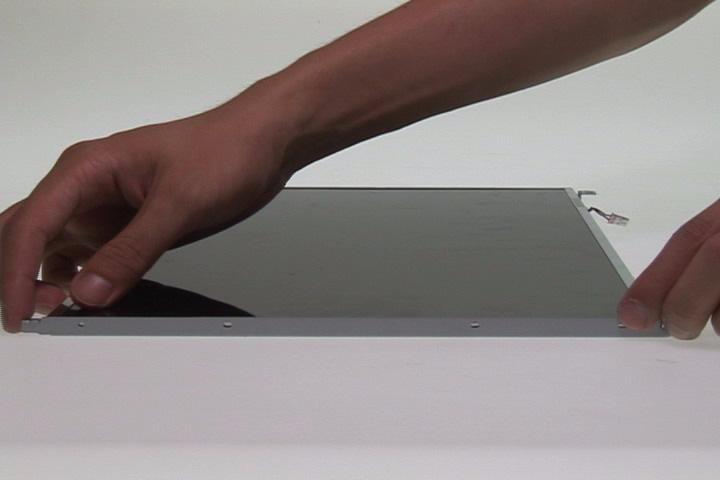

7. Remove the four screws securing the LCD panel and LCD hinge. 8. Lift up the LCD panel, tear off the tape on the LCD cable and disconnect the LCD cable. 9. Remove the LCD panel.

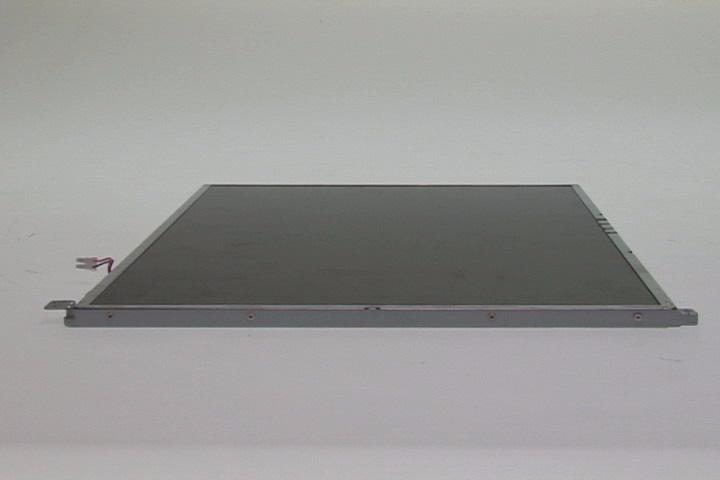

10. Remove the four screws securing the left LCD bracket.

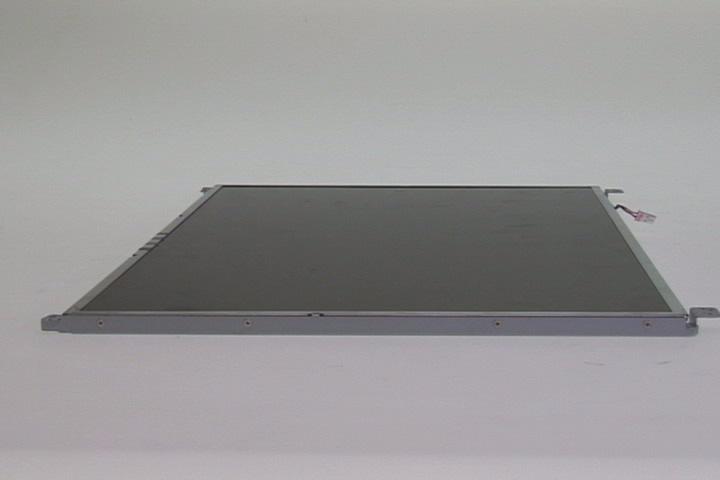

12. Remove the four screws securing the right LCD bracket. 13. Remove the right LCD bracket.

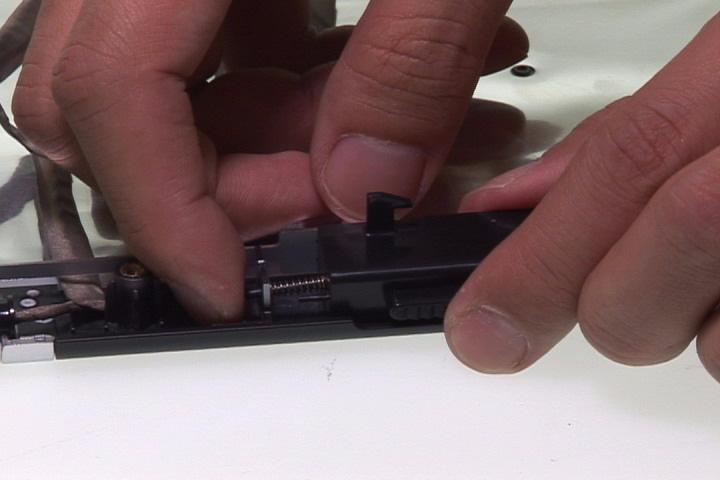

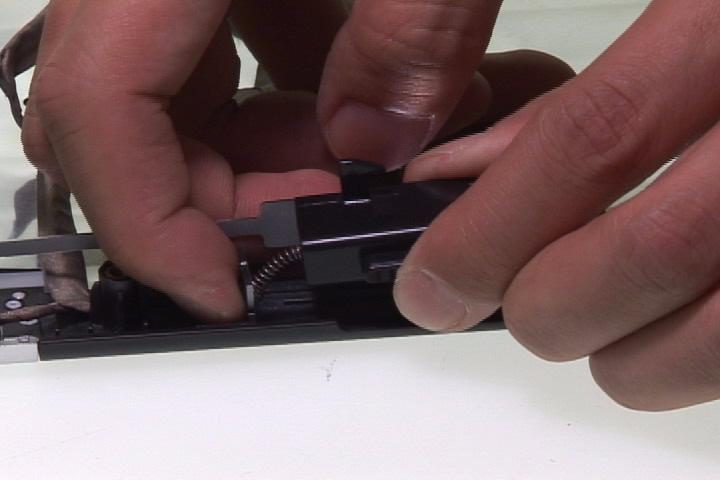

14. Release the spring and remove the left and the right latches from the LCD cover.

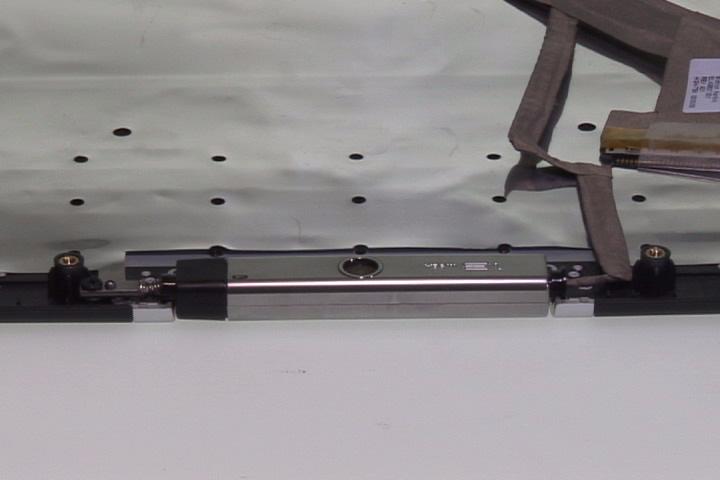

15. Remove the screw securing the CCD module. 16. Remove the CCD module from the LCD cover.

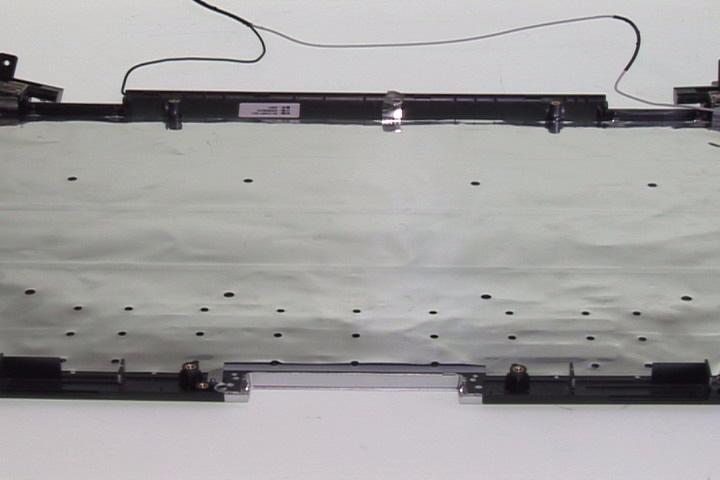

17. Remove the left and right LCD hinge. 18. Remove the two screws securing the antenna bracket. 19. Remove the antenna from the LCD cover.
