Removing the LCD Bezel

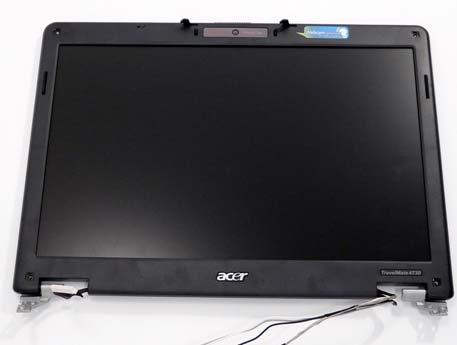

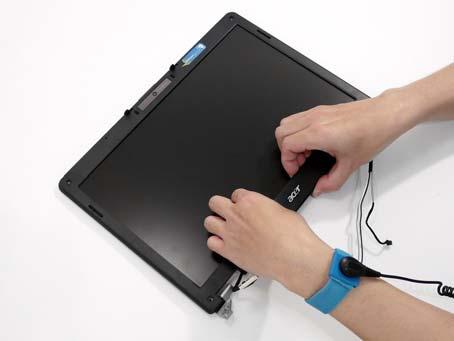

1. Remove the LCD module. See “Removing the LCD Module” on page 65. 2. Remove the two upper and two lower bezel screw caps. Remove the four securing screws from the LCD module.

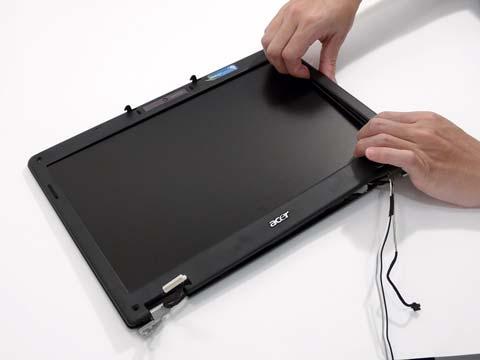

3. Lift up the bezel, topside first, and remove it from the LCD Module.

Step

Size

LCD Bezel M2.5*5 (NL) 4

Quantity Screw Type
