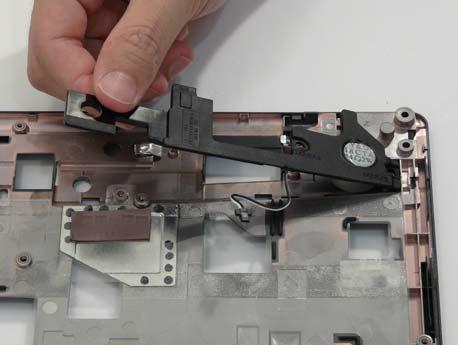

Removing the Left Speaker Module

IMPORTANT:The Touch Pad cannot be removed individually. To replace the Touch Pad, replace the entire Upper Cover.

1. See “Removing the Upper Cover” on page 67. 2. Peel back the adhesive strip to expose the speaker cabling.

3. Remove the two securing screws.

Step

Left Speaker Module

Size

M2.5*3 (NL) 2

Quantity Screw Type

4. Grasp both ends of the mylar cover and carefully pull back to expose the speaker cable.
