Removing the Touch Pad Bracket

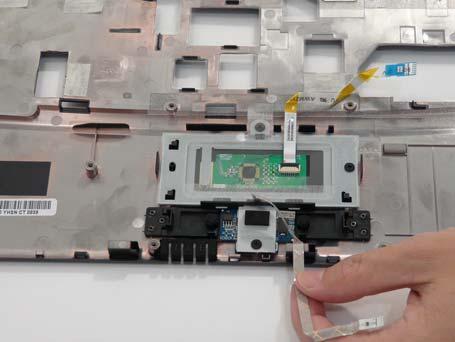

1. See “Removing the Upper Cover” on page 67. 2. Peel back the Finger Print Reader FFC to expose the Touch Pad connector.

3. Disconnect the Touch Pad FFC from the Touch Pad board.

4. Lift up the covering and remove the securing screw.

Step

Size

Touch Pad Bracket M2.5*3 (NL) 2

Quantity Screw Type
