Removing the Finger Print Reader

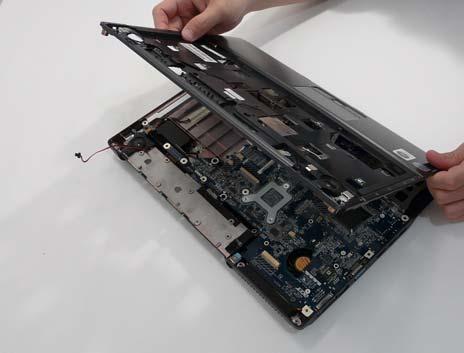

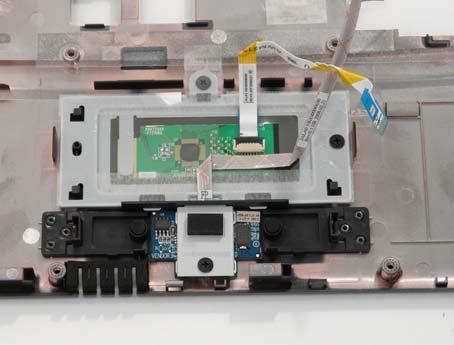

1. See “Removing the Upper Cover” on page 67. 2. Remove the securing screw from the Finger Print Reader board, and ensure the FFC is free of the upper cover.

Step

Size

finger print reader M2.5*3 (NL) 1

Quantity Screw Type

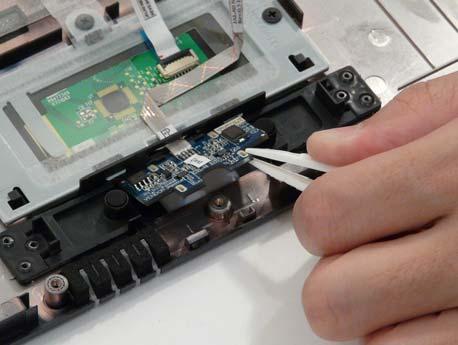

3. Remove the board bracket from the Upper Cover.

IMPORTANT:Do not throw away the Bracket Pad. Remove and replace on new bracket.

Bracket Pad

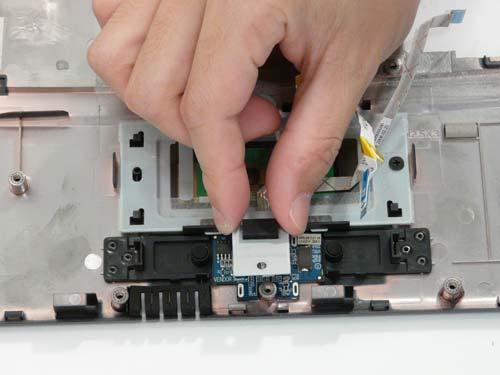

4. Using your fingers, gently lift the Finger Print Reader board from the Upper Cover.

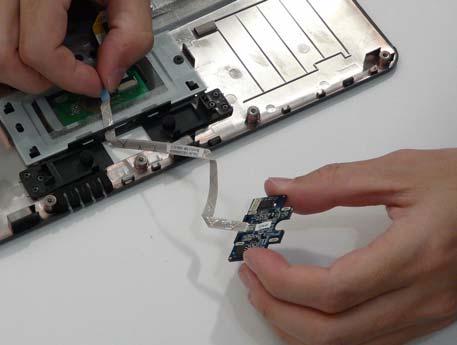

5. Pull the Finger Print Reader FFC through the touchpad bracket taking care not to fray the cable.
