Removing the Optical Drive Module

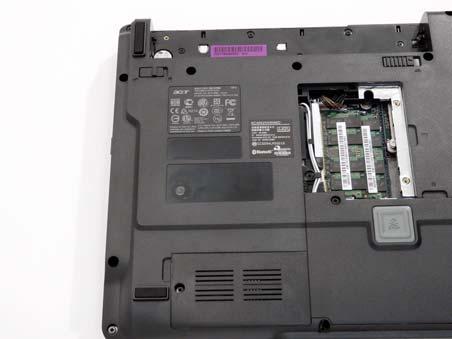

1. See “Removing the Battery Pack” on page 46. 2. Remove the Memory cover. See “Removing the Lower Covers” on page 49. 3. Remove the screw securing the ODD module.

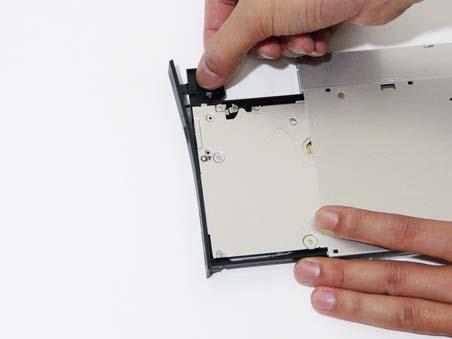

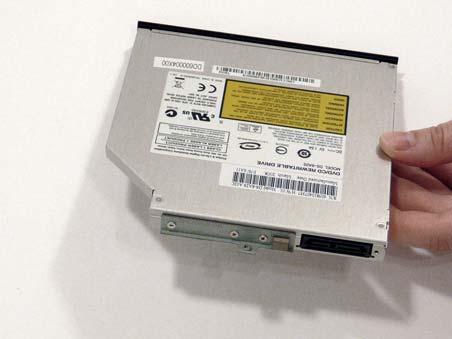

4. Using a screw driver, push the ODD module through the chassis and pull to remove it from the main unit.

Step

Size

ODD Module M2.5*5(NL) 1

Quantity Screw Type

Step

Size

ODD Bracket M2*3 (NL) 3

Quantity Screw Type

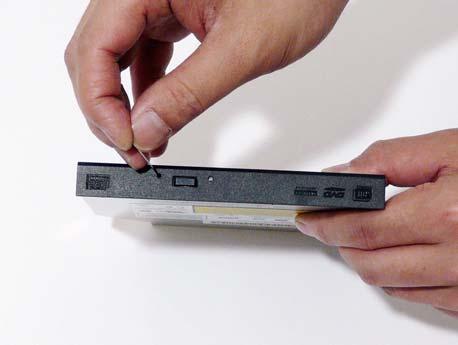

6. Insert a pin in the eject hole of the ODD to eject the ODD tray.

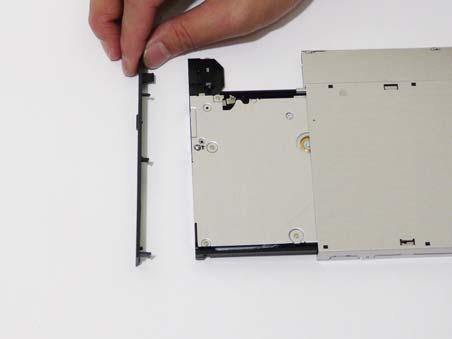

7. Press down on the locking catch to release the ODD cover and remove.
