Chpater 5 Jumper and Connector Locations

8. You will see the screen displaying “PASS” when the system has buit NAPP Master hard disc drive.

Jumper and Connector Locations

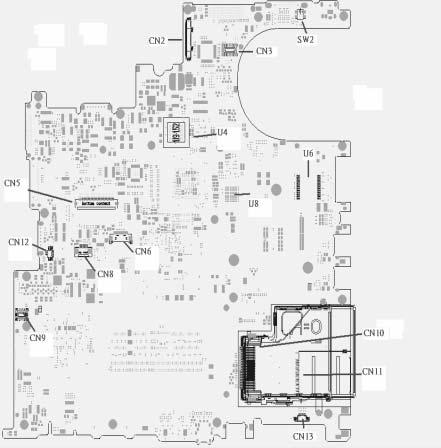

Top View

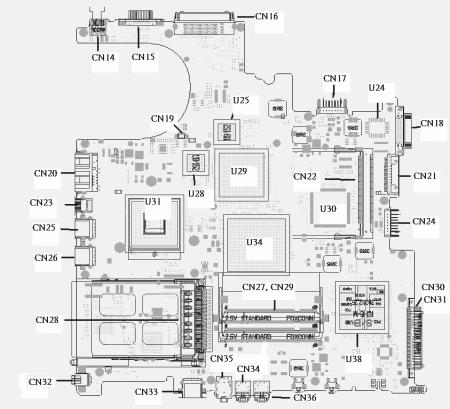

ITEM DESCRIPTION ITEM DESCRIPTION

CN2 LCD Connector CN14 DC JACK CN3 LED board connector CN15 CRT connector SW2 Lid switch CN16 Docking connector CN10 express card connector CN17 Battery connector CN11 4 IN 1 connector CN18 Fix ODD connector CN13 Speaker connector CN21 Swap ODD connector CN9 MD board connector CN24 2nd Battery connector CN12 INT MIC connector CN30 PATA HDD connector CN5 Keyboard connector CN31 SATA HDD connector CN6 BT connector CN36 Line IN connector CN8 TP connector CN34 MIC IN connector

U4 VGA RAM CN35 Line out/SPDIF connector

U8 VGA RAM CN33 USB connector

U6 LAN transformer CN32 1394 connector CN28 PCMCIA connector CN26 USB connector CN25 USB connector CN23 S video connector CN20 RJ45/RJ11 connector CN19 Fan connector CN22 MINI PCI connector U31 CPU U30 EC U29 VGA Chp U34 North Bridge U38 South Bridge U25 VGA RAM U28 VGA RAM U24 BIOS ROM
