Chpater 5 Jumper and Connector Locations

Jumper and Connector Locations

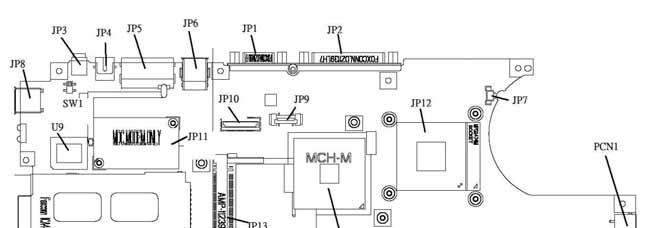

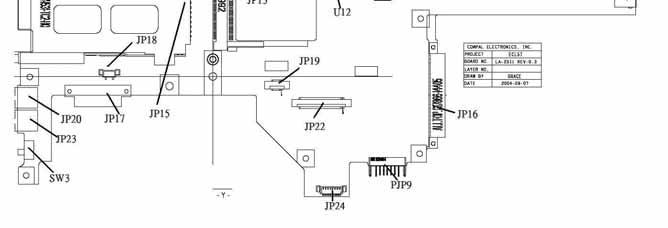

Top View

Item Description Item Description

JP1 CRT CONN JP17 ODD CONN JP2 Parallel Port JP18 SPK CONN JP3 IEEE1394 CONN JP19 TP/B CONN JP4 TV-OUT CONN JP20 MIC JACK JP5 RJ11/RJ45 CONN JP22 K/B CONN JP6 USB CONN X 2 JP23 PHONE JACK JP7 CPU FAN CONN JP16 HDD CONN JP8 USB CONN SW1 LID SWITCH JP9 POWER/B CONN SW3 KILL SWITCH JP10 LVDS CONN U12 NB JP11 MBC CONN PCN1 AC JACK JP12 CPU Socket PJP9 BATT COMM JP13 MINIPCI CONN JP24 LED/B CONN JP15 CraBus CONN

Item Description Item Description JP25 SO-DIMM Socket U45 SIO Controller JP26 SO-DIMM Socket U29 IEEE1394 Controller U35 CarBus Controller U37 EC

No. Function 1 NONE Function 2 LCD BACKLIGHT OFF Function 3 STAND BY Function 4 HIBERNATE

SW3 Settings(Kill Switch)

No. On Wireless On Bluetooth On Off Wireless Off Bluetooth Off Setting

Setting
