Disassembling the Main Unit into Upper Case and Lower Case

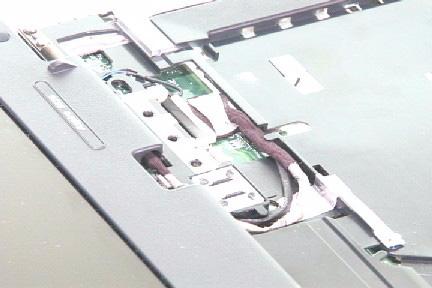

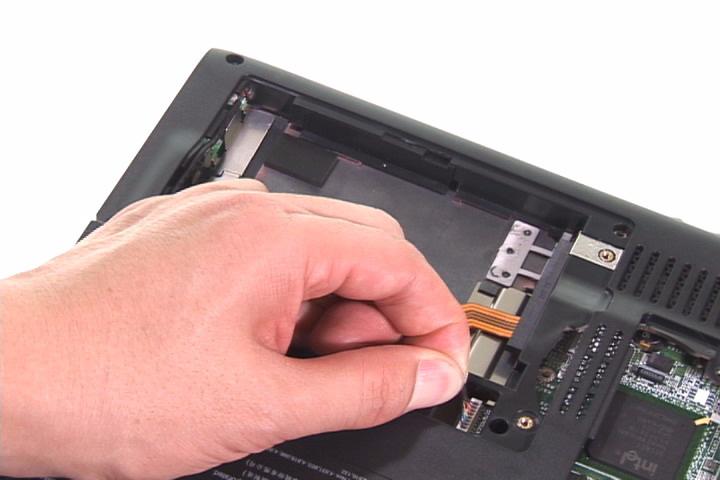

1. Remove the screw securing the Bluetooth module. 2. Remove the Bluetooth connector from the mainboard.

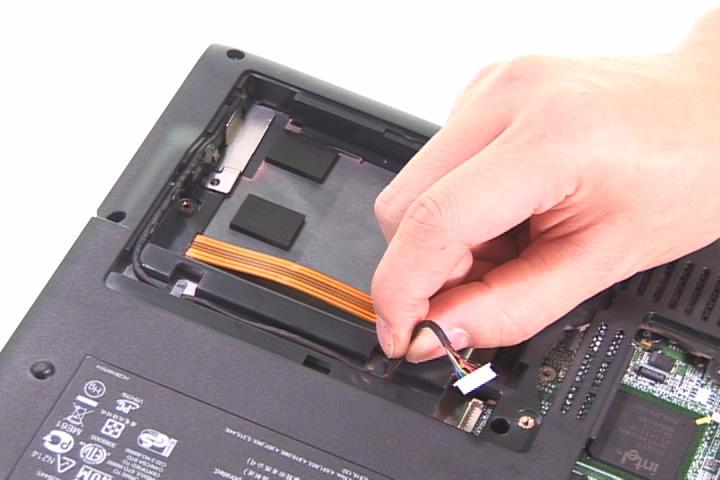

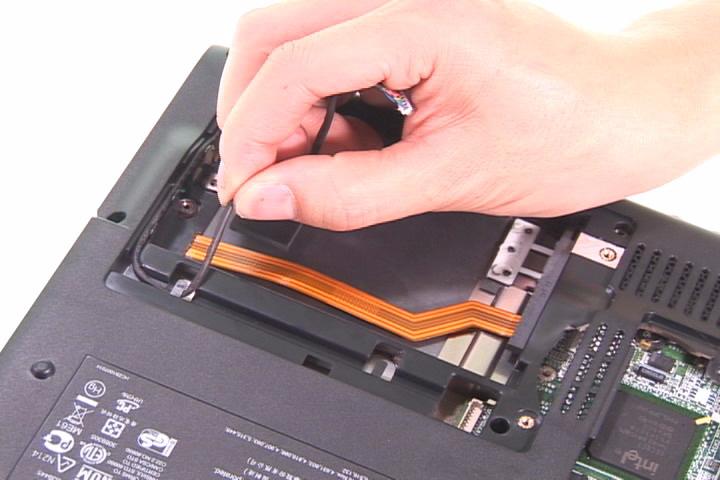

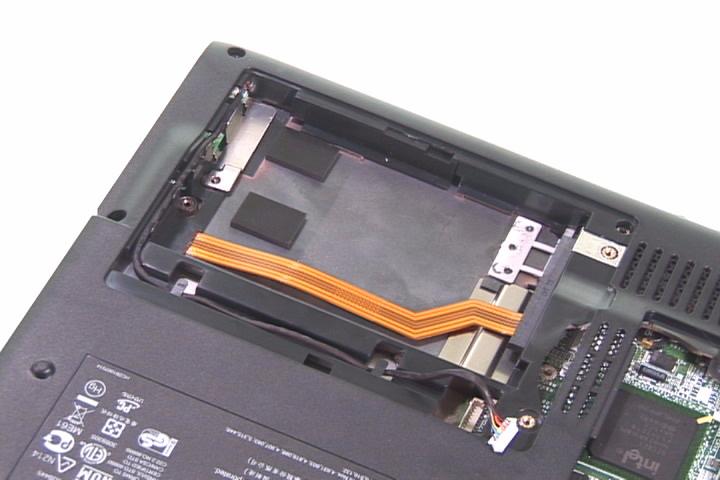

3. Remove the Bluetooth cable from the Bluetooth wire groove.

4. Remove the Bluetooth module from the main unit.

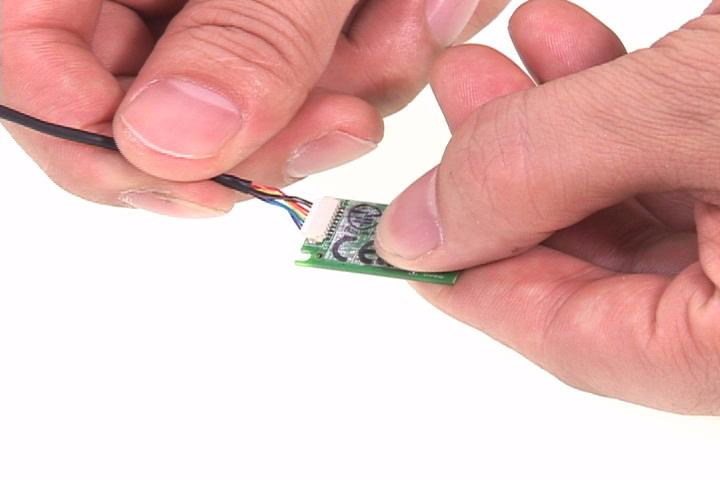

5. Remove the two screws securing the Bluetooth bracket. 6. Remove the Bluetooth module from the Bluetooth bracket. 7. Disconnect the Bluetooth cable from the Bluetooth module.

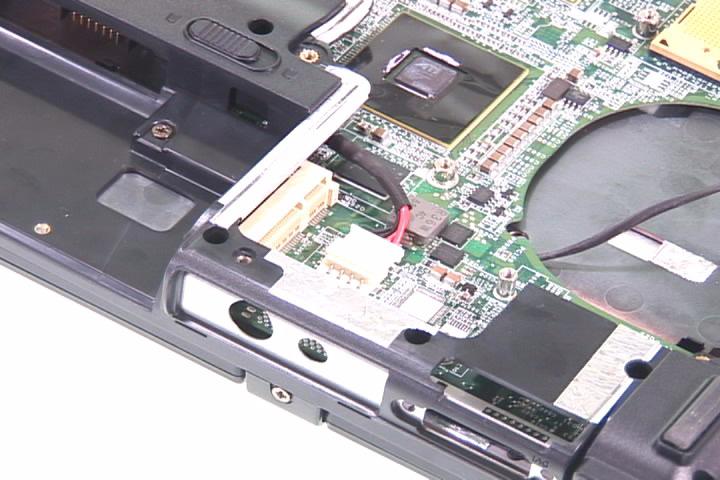

1. Disconnect the power cable from the mainboard.

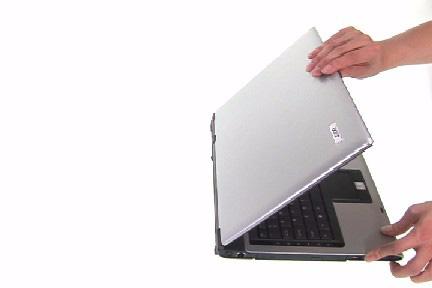

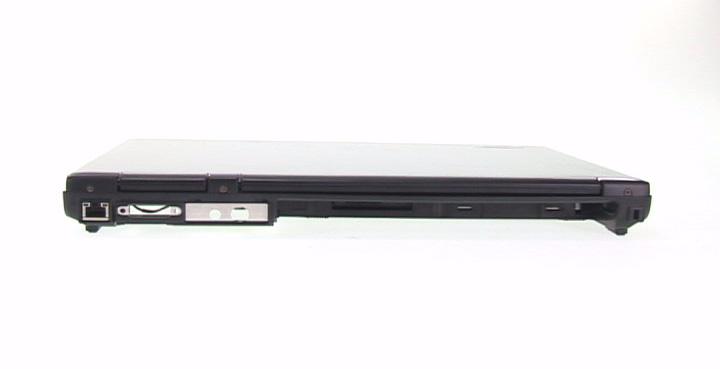

1. Remove the three screws securing the middle cover on the rear panel. 2. Open the notebook.

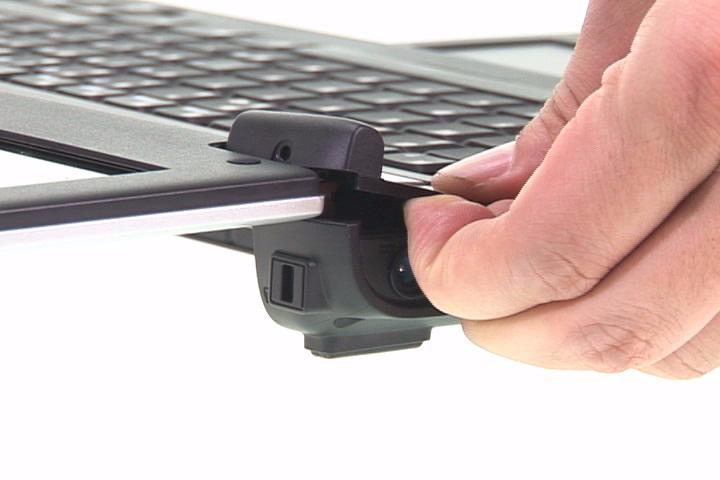

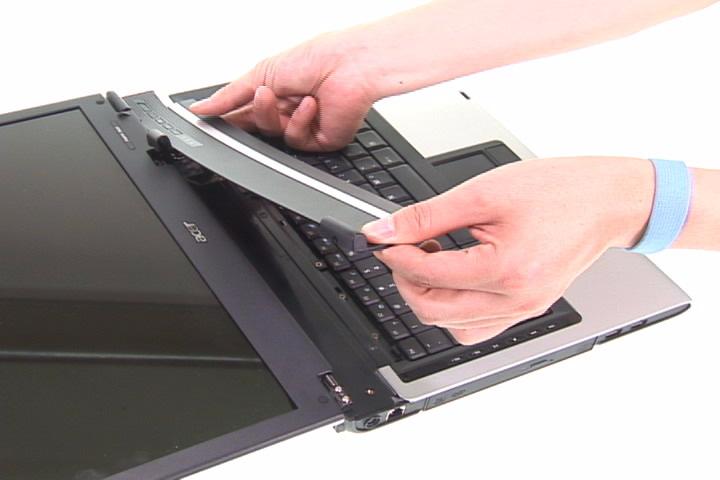

3. Release the clasp of middle cover and remove the middle cover from the main unit.

4. Remove the two screws securing the keyboard. 5. Turn the keyboard over.

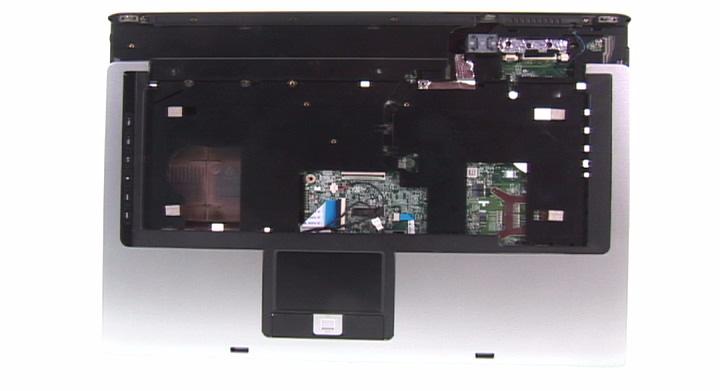

6. Unlatch the keyboard FFC latch and remove the keyboard from the main unit.

8. Remove the two screws on left and right hinges. 9. Remove the LCD module from the main unit and be careful to pull the antenna out.

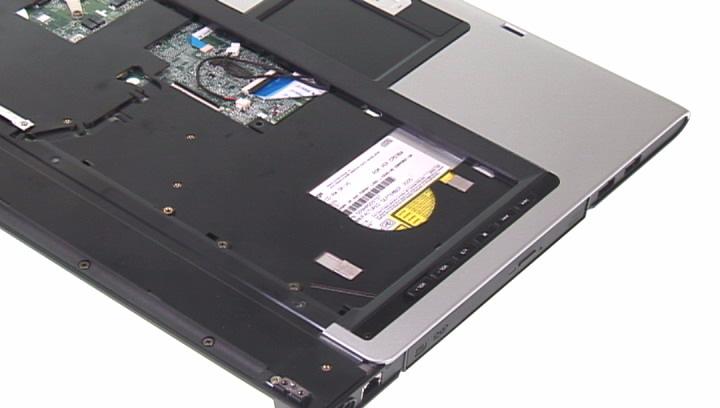

10. Remove the screw securing the ODD module. 11. Push the ODD module out of the main unit.

12. Remove the five screws securing the upper case. 13. Remove the 22 screws securing the lower case.
