Introduction MACHINE IDENTIFICATION AND SERIAL NUMBERS

Please record all serial numbers related to this machine below and have ready before calling for assistance.

Machine Serial Number Plate Location–Cab

The machine serial number plate is located inside the cab behind the operator's seat.

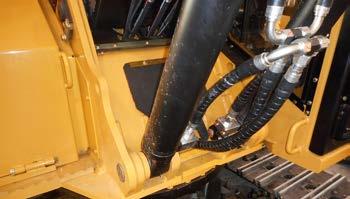

Machine Serial Number Stamp Location–Upper Frame

The machine serial number is also stamped on the top side of the upper frame between the base end hoist cylinder lugs.

Machine Model Number: _________________________

Machine Serial Number: _________________________

Model Year: ___________________________________

Tigercat X870D/LX870D Feller Buncher

Engine Identification Label Location–Older Location

The engine identification label is located on top of the engine beside the oil fill cap.

Engine Serial Number Plate Location– Older Location

The engine serial number is also stamped on the side of the engine, below the exhaust manifold.

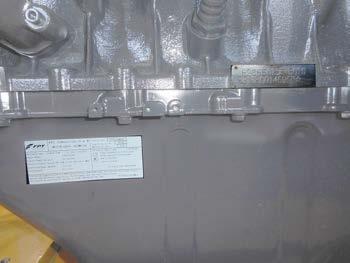

Engine Serial Number Plate Location– New Location Engine Identification Label Location–New Location

Engine Serial Number: __________________________
