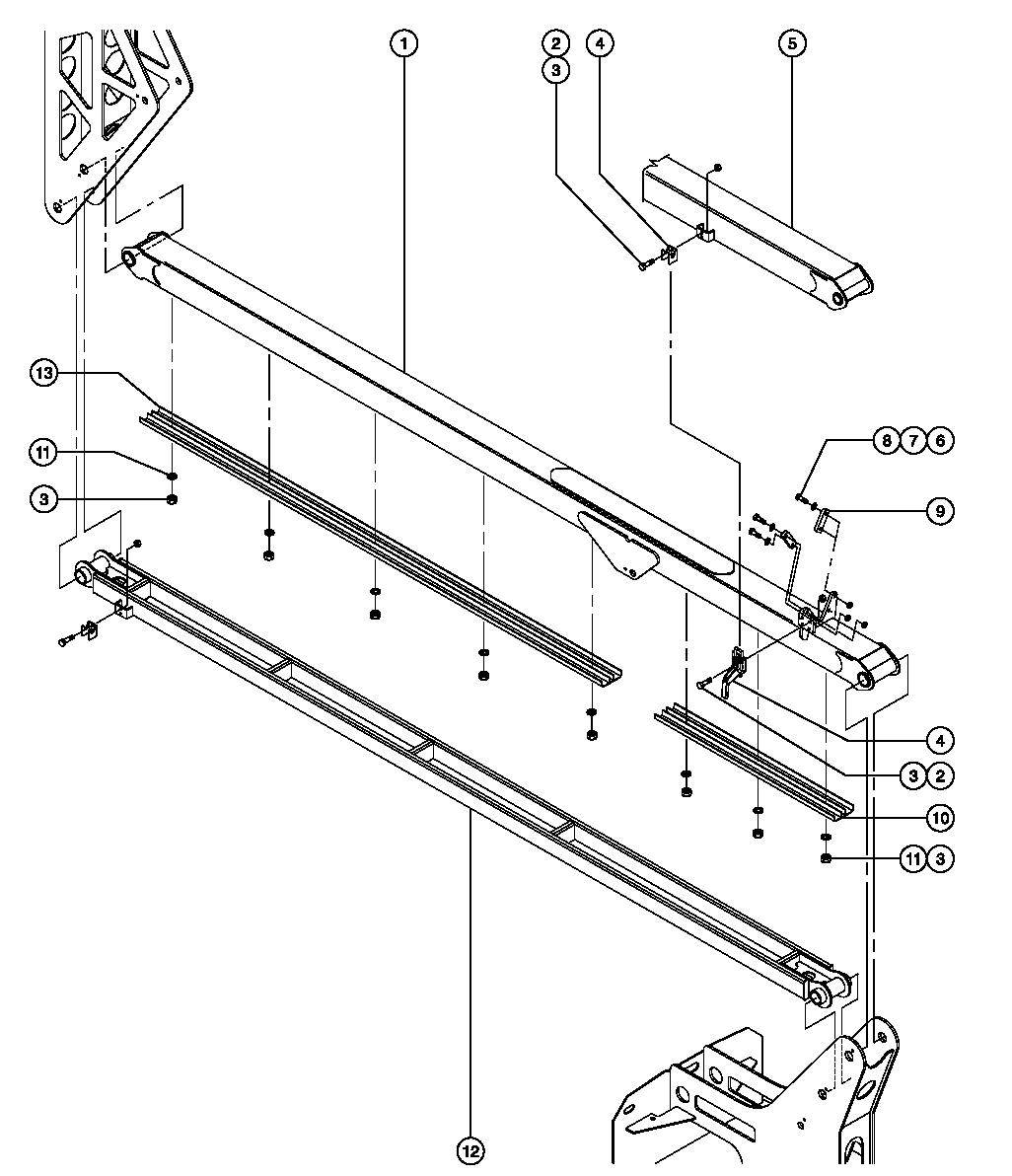

401.1 Secondary Boom - View 1

Item

1 2 3 4 5 6 7 8 9 10 11 12 13

Part No.

52153GT 49379GT 25368GT 43456GT 52280GT 25548GT 22700GT 22736GT 41807GT 43461GT 22699GT 52154GT 43462GT

Description Qty.

SECONDARY BOOM ASSY,TMZ34.......1 SCREW,HHC,M8 X 1.25 X 25................6 NUT,NYLOCK,M8X1.25........................14 CLAMP,TOGGLE,MAST HOLD DOWN...1 PRIMARY BOOM ASSY.TMZ-34/19.......1 SCREW,HHC,M10 X 40MM,GRD8.........4 WASHER,LOCK,M10..............................4 NUT,NYLOCK,M10X1.50........................4 WEAR PAD, ALIGNMENT......................2 EXTRUSION,CABLE GUARD,TMZ34.....1 WASHER,FLAT,M10,ZINC PLTD............8 SECONDARY LINKAGE ASSY,TMZ34....1 EXTRUSION,CABLE GUARD,TMZ34.....1
