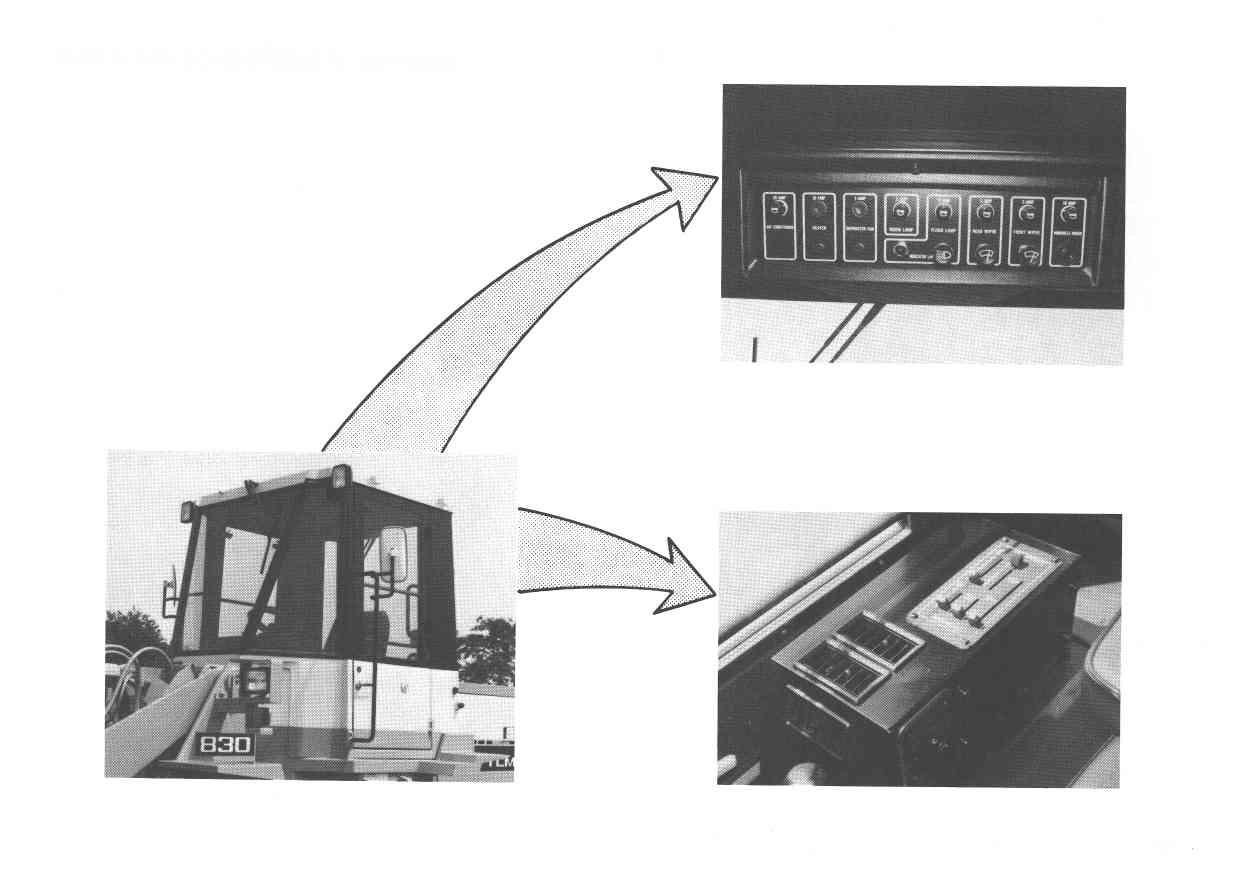

CAB＆AIRCONDmONER（OPTION）

OPEMNGANDCLOSfNGOFDOOR

When opening the door from outside， lower on the outside doorlever．When openingthedoorfrominside，USethesame PrOCedure．

This button is used to release the door beinglockedinopenstate．

To unlock（release）the door，PreSS the button．Andthenthedoorcanbeclosed．

Tolockthe［eftsidedoor，lnSertthedoor keyintothekeyslotfromoutsideandturn clockwise．The right side doorislocked by s＝ding to theleft the knoblocated neartheinside doorlever．

Thereis a pocketinside the door．Keep the machine registration and this manual init．

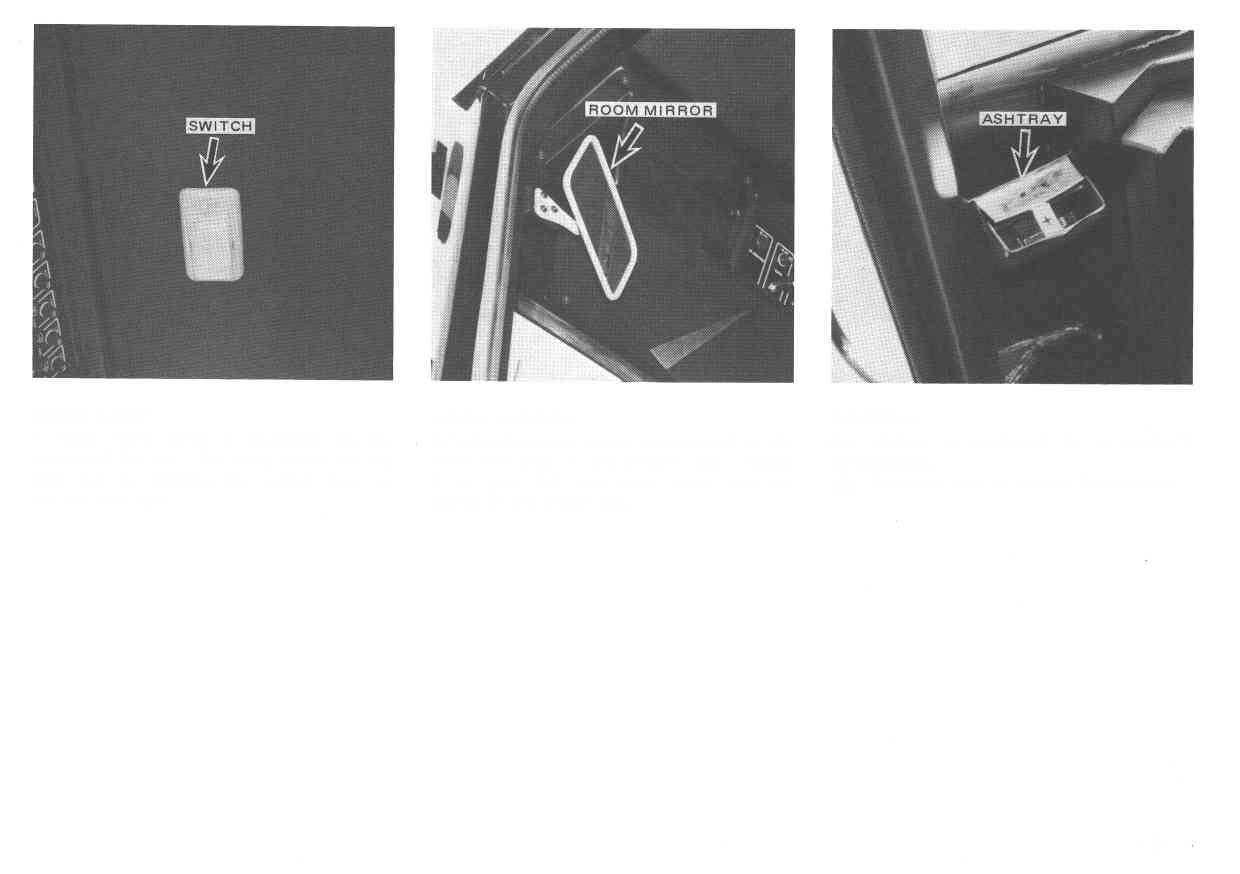

Alarge roomIampis equlPPed on the CeiIingofthecab．Thelampcomesonand goes out by shifting the switch［ever to theleftandright．

Alarge－SizeroommirrorisequIPPedonthe frontleft side of thedriver’scab．Adjust it to galn fu［Irear view when you are Seatedinthedriverseat．

ASHTRAY

An ashtrayis equipped for a smoker’s COnVenlenCe．

▲Takeduecaretopreventfirehazards．

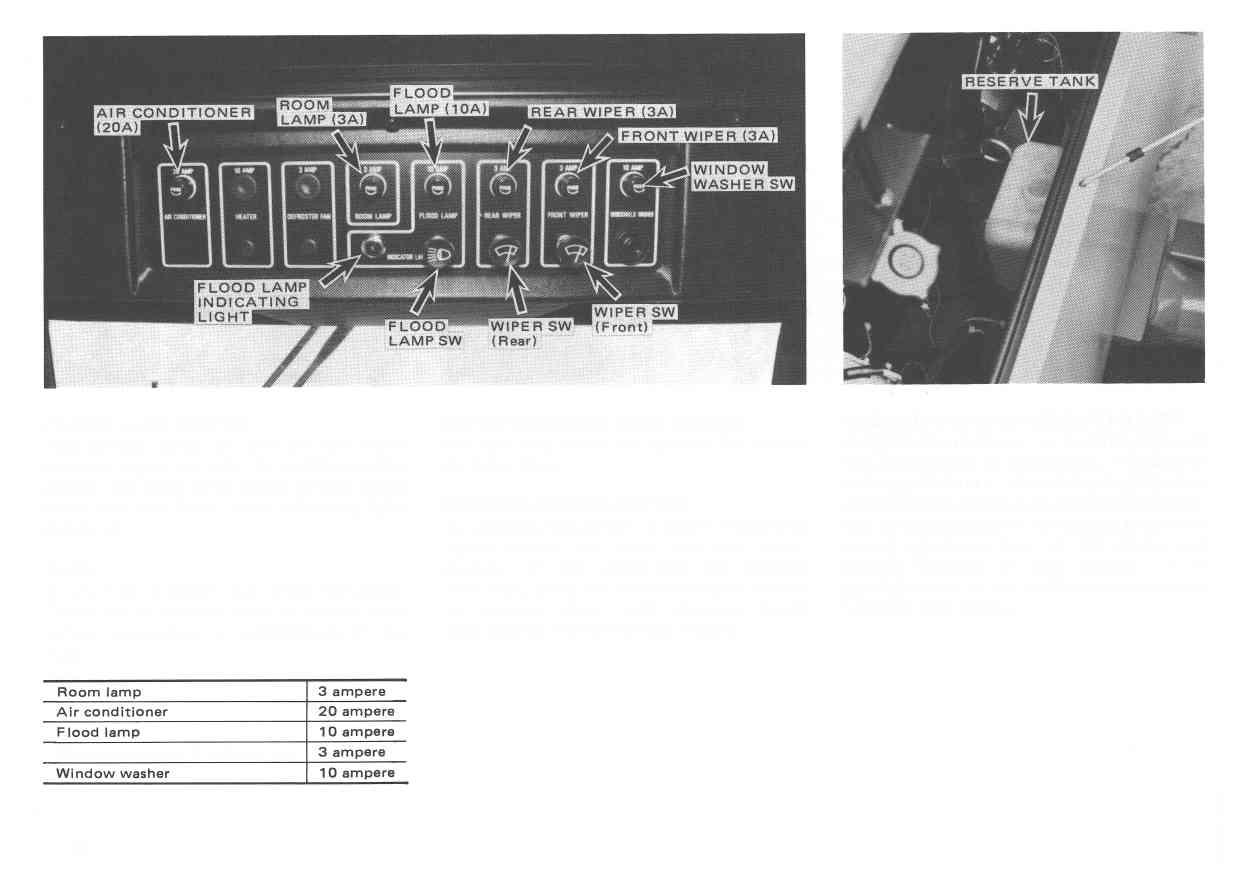

FLOOD LAMP SWlTCH

This switch turns on and off the flood lampontopofthecab．Bypu＝ngoutthe switch，thefloodlampcomesonandatthe same time the fJoodlampindicatinglight COmeS On．

FUSE lf any fuseis blown out，Check thecause・ Check for a burnout bulb or broken wire before proceeding to rep）acement of the fuse．

Ro【Im18MP コ■n「Perl〕 Alrl：Ond】t】on8r 引hm叫帽柑

Flロ0虻18日lP 1D■mPl】rO Windshieldwipers（frontandrear） ユ∂「nPl】叩

V】】nd（】WW月Sht汀 1【18mP8r8

W［PERSWITCHES（frontandrear）

Pull out the switch to operate the wipers On rahydays．

WlNDOW WASHER SWlTCH

By pressingtheswitch，

Iiquid covers the front and rear wind－ shields．1f the windshields are cIouded with dust，PreSSthewindowwasherswitch to dampen them with cleanIng［lquid thenoperatethewindshieldwipers・

CLEANlNG

LlOUlD RESERVE TANK

A quicklevelcheckis possible because the reserve tankis translucent．1fthelevel islow′add water．UseofcleaningJiquidis Preferableforeasierdustremovingpurpose， Use ofcleaningliquidcontainingantifreeze would eliminate fear of－the hoses and nozz［es freezingin cold season．Itis good practiceto putantifreezeinc暮eanlng liquidincoIdseason．

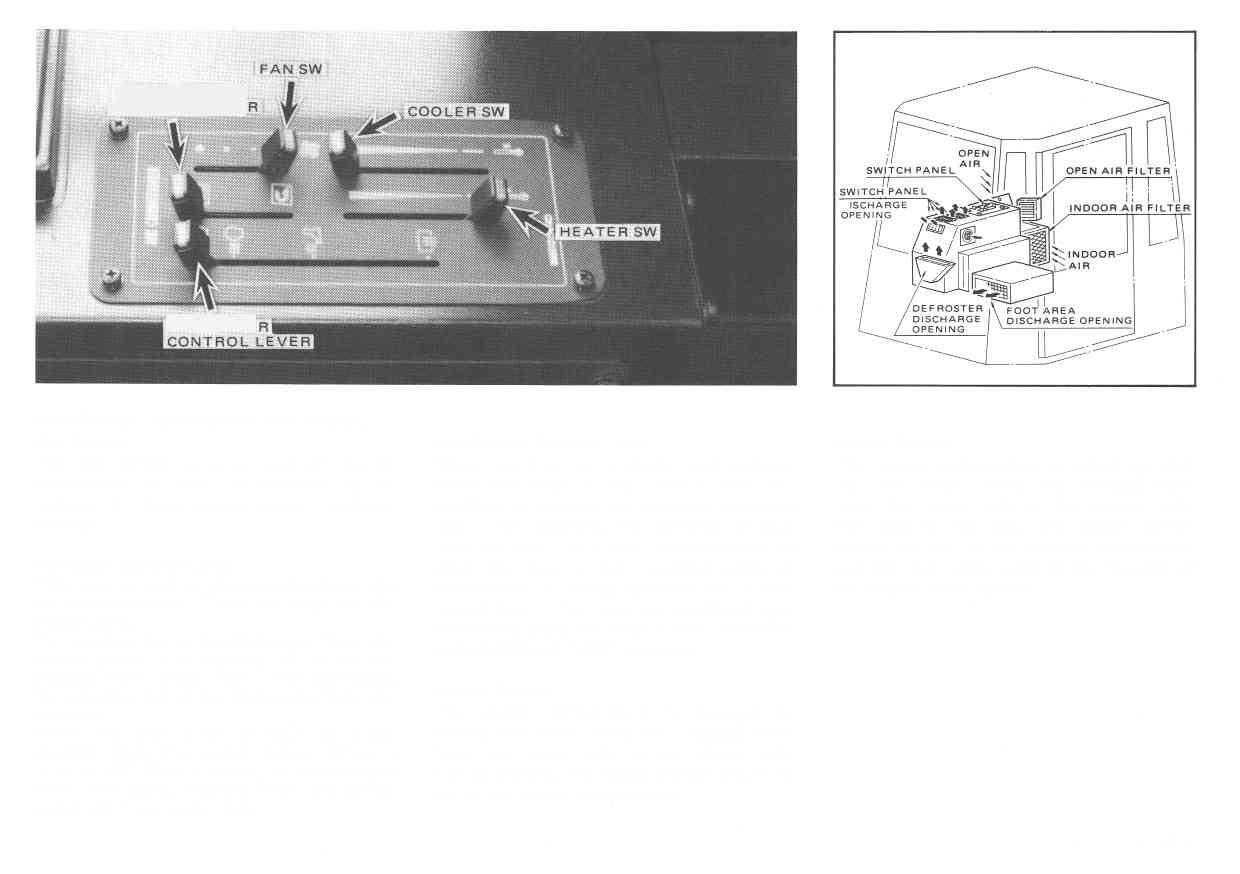

AIR CONDlTlONlNG SWlTCH PANEL

FanSwit¢h

The fan switch turns on and off the air COnditioner as wellas controIsits air VOlumein three stages（weak，medium， StrOng）．

DefrosterControILever

Thisleverisused tochangese］ectivelythe air discharge part．Therearethreeairdis－ Chargeparts．

ForcooIIng，letairbedischargedfromthe SWitch panel．For heating，let air be dis－ Charged from under foot．For defrosting thewindow．letair bedischargedfromthe defroster．

When theIeveris set to＝ヒ0，airisdis一

F。

from two parts，namely from the switch Panelandfromunderfoot．

VentilationControILever

When workingin a dusty environment， Place theleverin the L10PEN AIRIN’’ POSition toincrease the pressureinsidethe Cab．This prevents the entrance of dust into the cab．1tis also recommended to Place theleverin this position while air COnditioneris being operated for a pro－ longed hour．For rapidairconditioningor defrosting，PfacetheIeverintheL’lNDOOR A［RCIRCULAT10N’’position．

Cooler Switch

The preset temperatureislowered by Sliding the knobaIongthe ＝＝≡弓彗mark from the acute side to the obtuse side． Foraircooling．theheaterswitchshouldbe SettOthelovvesttemperature．

Heater Switch

The preset temperatureis raised by slid－ ing the knob a10ng the ＝＝＝＝：：：＝mark from the acute side to the obtuse side． For heating the cab，the cooler switch ShouJd be set to the highest temperature and the hot water cock at the fan side of theengineroomopened．
