Rear wheels

INTRODUCTION

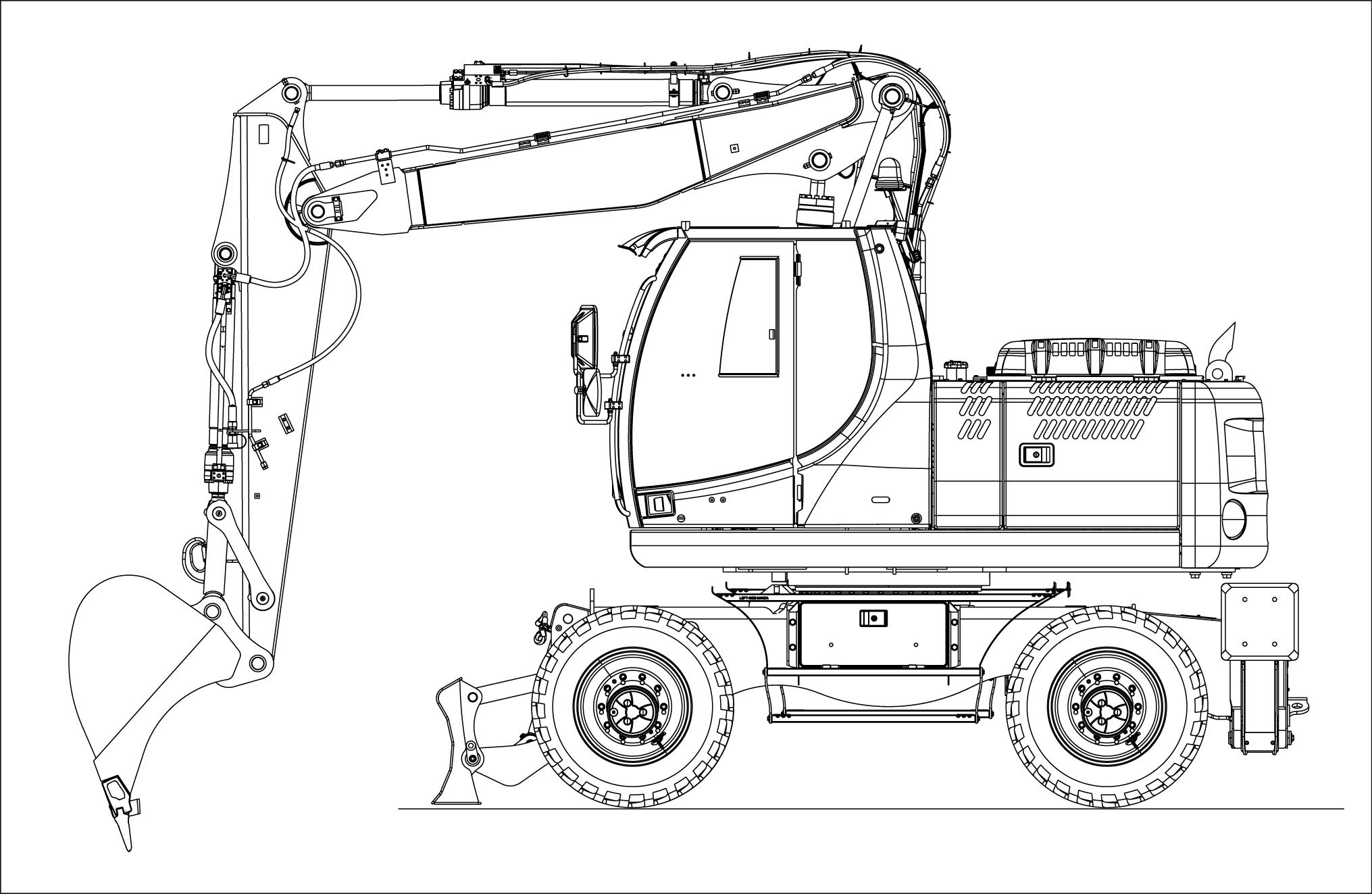

The wheeled excavators WE150B are operation hydraulic machines. They essentially consist a wheeled undercarriage which a slewing bearing is mounted, which is coupled the upper frame. The upper frame supports the front attachment, the engine, the hydraulic components, the cab, the fuel tank and the counterweight. When the operator activates the controls (electrohydraulic control levers and pedals), the hydraulic pumps rotated the engine suck oil from the tank and convey it the control valve; the control valve, in turn, sends it the relevant users. A cooling system keeps the hydraulic fluid a normal operating temperature.

SMIL12WEX0000FB 1

INTENDED USE

This Excavator , with standard equipment and authorized attachments, is intended used for below ground level digging and general earth moving purpose such trenching, truck loading, material rehandling, and ditch cleaning. the machine is used for lifting objects, make sure that the machine is properly equipped and follow the instructions and safety precautions in this manual.

PROHIBITED USAGE

parts attachments should fitted this machine, which have not been released NEW HOLLAND CONSTRUCTION . They might fect machine operation, safety the user other people, stability wear characteristics the machine. They may also void the homologation approval obtained for your country and compliance with EC directives. NOTICE: NOT use this machine for any purpose in any manner other than described in the manual, decals, other product safety information provided with the machine. These materials define the machine’ s intended use.

Using the excavator and its equipment for dif ferent operations, such as, for example, towing, transporting and lifting people, is considered inappropriate and is prohibited.

Product identification

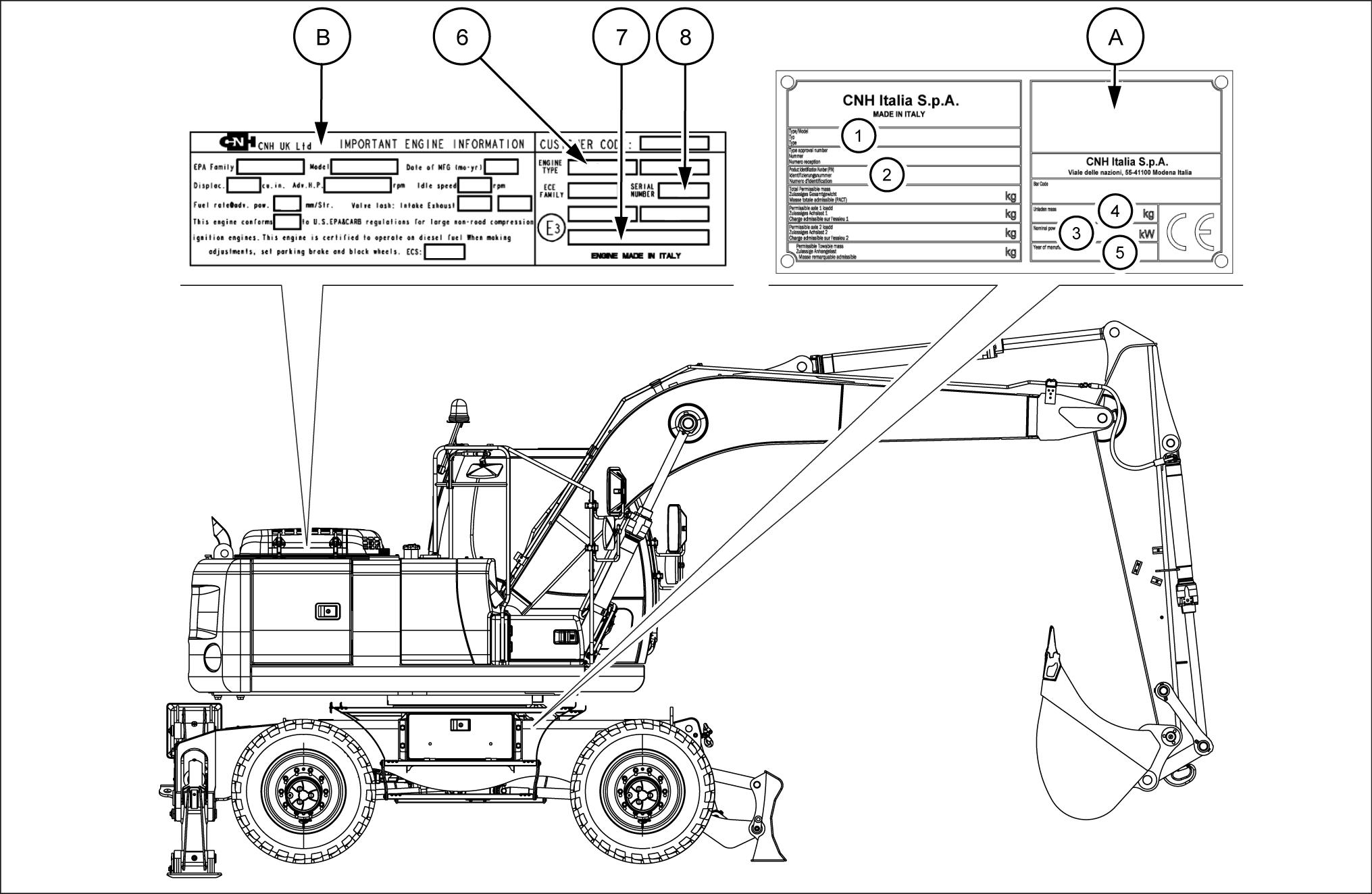

IDENTIFICA TION TA WE150B

SMIL WEX0013FB 1

A Machine identification plate B Engine identification plate 1 Model and category (Hydraulic Excavator) 6 Engine type 2 Machine serial number 7 Engine emission stage approval number 3 Nominal Power 8 Engine serial number 4 Unladen Mass 5 Y ear Manufacture

AFTER SALES SER VICE

For maintenance work which cannot easily carried out the Owner , please contact your Dealer where you will find trained personnel, suitable tools and equipment, and genuine spare parts. Service personnel and technicians will glad provide you with all explanations and suggestions you may need and carry out all required specialized repair work in case machine unsatisfactory operation.

ARE P ARTS

To ensure a perfect performance the machine, use exclusively genuine spare parts. To order them, it is necessary specify:

• machine model and product identification number • engine type and serial number • part number the component being ordered
