Piston Ring - Measure

Prior operation: Connecting rod and piston - Disassemble (10.105)

Check the thickness the piston ring (2) with a micrometer (1) .

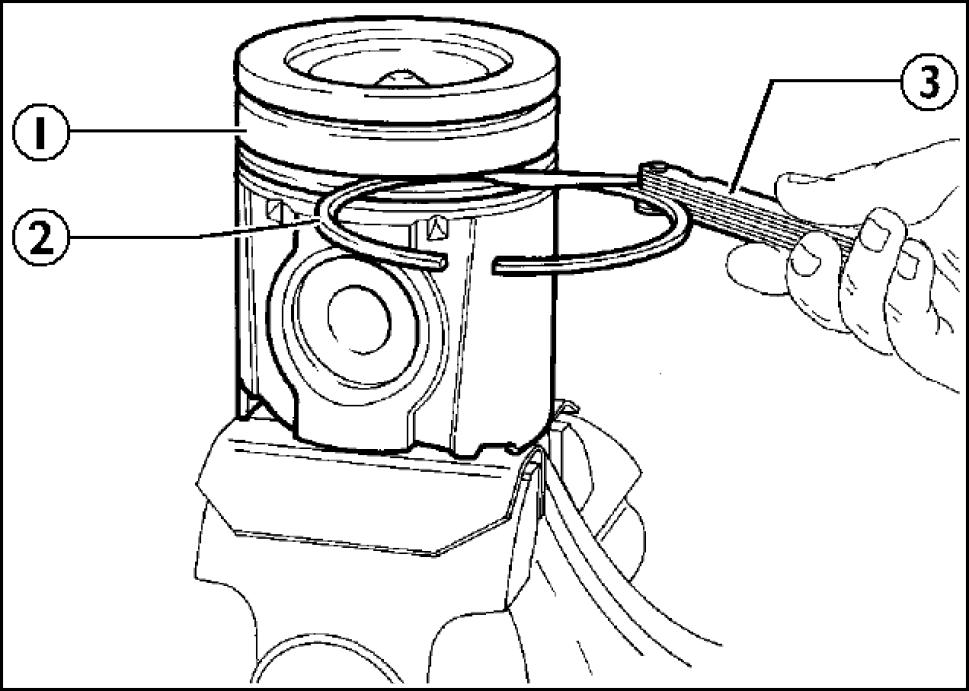

Check the clearance between the rings (2) and their landings the piston (1) with a feeler gauge (3) .

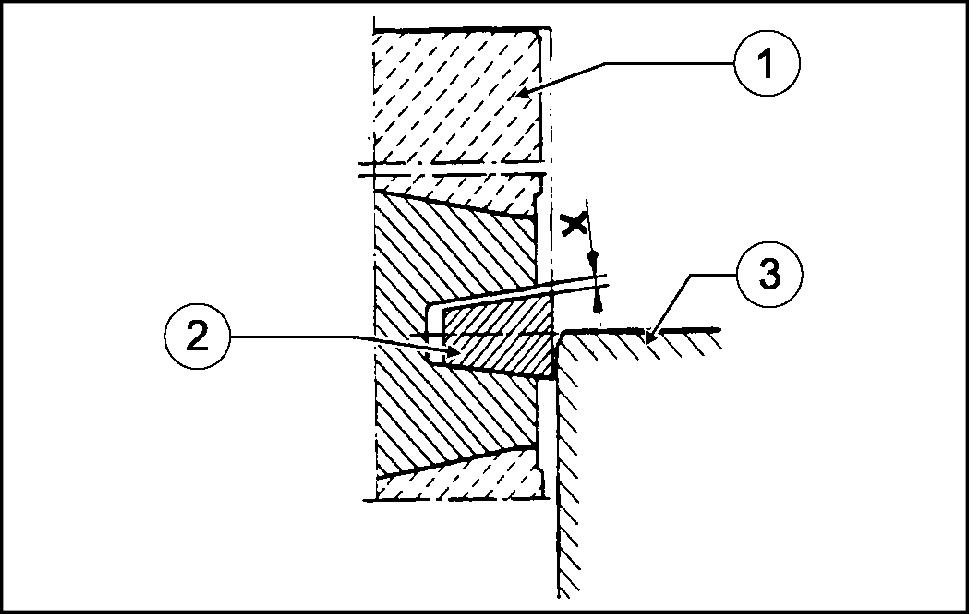

The ring (2) the first landing has a "V" shape. The clearance (X) between the ring and landing is measured setting the piston (1) with the ring in the cylinder liner (3) that the ring is exposed half way out the cylinder liner .

PIST ONRING2 1

PIST ONRING3 2

BAPH04APH129ASA 3
