Product identification

Y our machine is a hydraulic excavator . consists undercarriage fitted with tracks and a swing bearing which supports the upper - structure frame. The upper - structure frame supports the attachment the front end the machine, plus the engine, hydraulics, and the cab / canopy . When the operator works the controls, the engine - driven pump delivers hydraulic fluid the control valves. The control valves distribute the hydraulic fluid the various cylinders and hydraulic motors employed. A cooling system maintains the hydraulic fluid normal operating temperature.

SMIL16MEX0472EA 1

When ordering parts, obtaining information, seeking assistance, always supply your NEW HOLLAND CONSTRUCTION dealer with the type and Product Identification Number (PIN) your machine accessories.

W rite the following in the spaces below: • Machine T ype • Machine PIN • Machine year manufacture • Serial numbers hydraulic and mechanical components

Machine

The machine Product Identification Number (PIN) plate (A) is located in the front part the upper–structure frame.

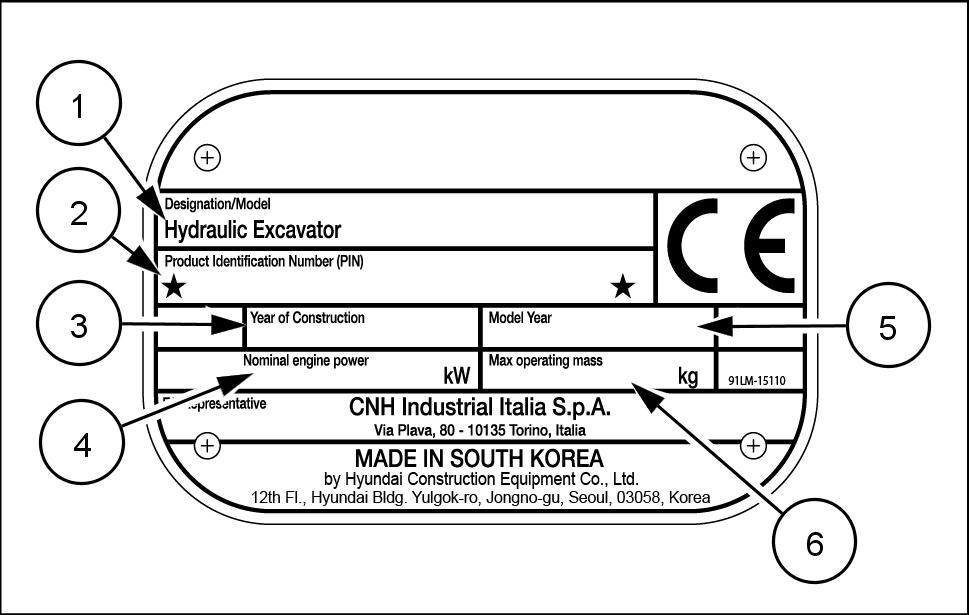

(1) Designation / Model Hydraulic Excavator_____________________________ (2) Product Identification Number (PIN)______________ (3) Y ear construction___________________________ (4) Nominal engine power_________________________ (5) Model year_________________________________ (6) Max operating mass__________________________

SMIL16MEX0473AA 2
