7.23.3 Start interlock limit switch – Check

Preconditions

☑ Engine is stopped and starting disabled.

Note: Being in OFF-position, the limit switch initiates start interlock, i.e. the engine cannot be started. Start interlock limit switch – Check

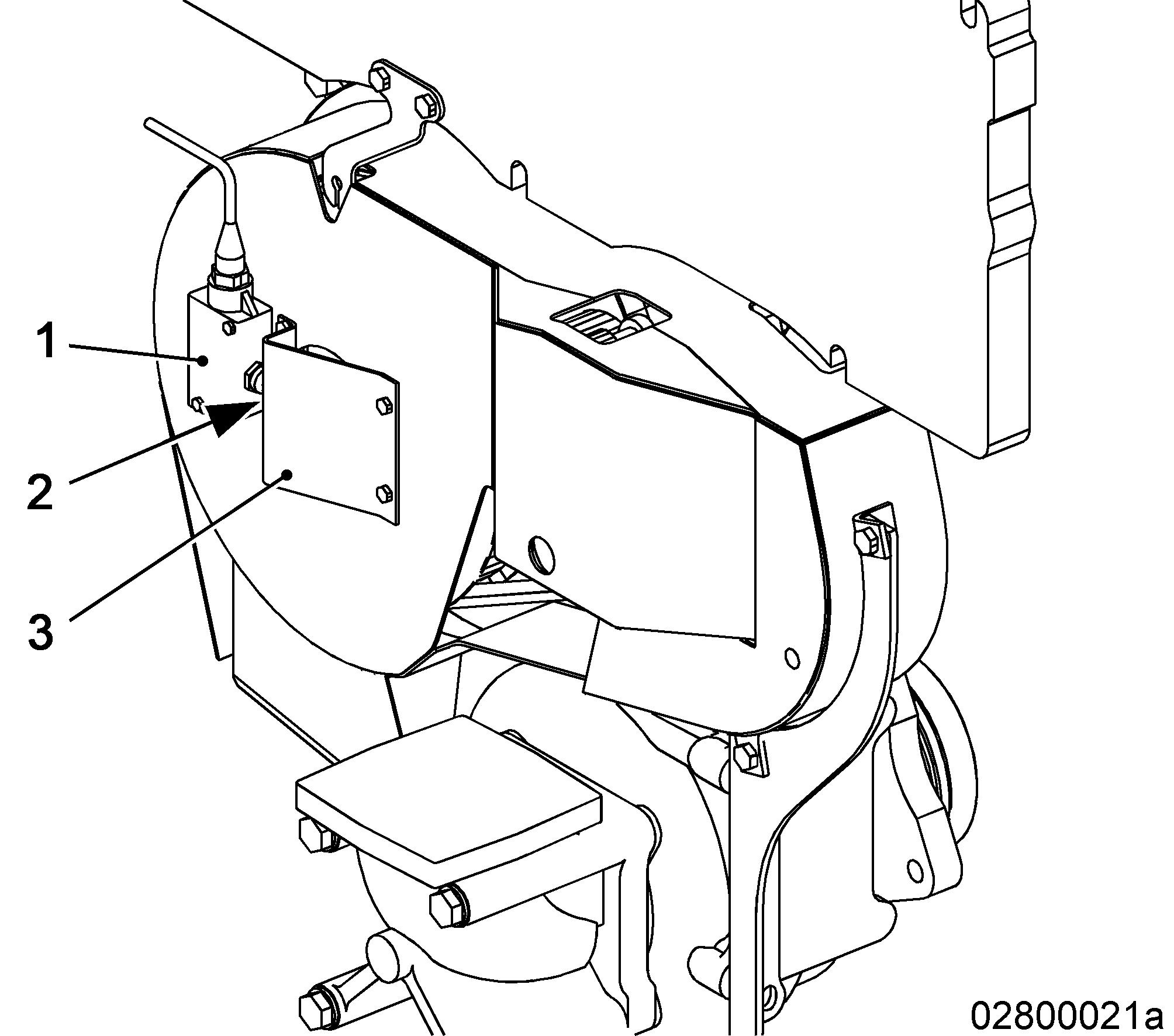

1. Check if switch housing (1) and cover plate (3) are mounted and the switch (2) is in ONposition. 2. If switch housing (1) and/or cover plate (3) is/are not mounted: • Secure cover plate (3) with screws. • Then install switch housing (1) with screws, ensuring that the switch (2) is actuated by the cover plate (3). 3. If switch housing (1) and cover plate (3) are mounted, but switch (2) is in OFF-position: • Make certain that the cover plate (3) at the side of the switch (2) is not distorted. • Loosen switch housing (1) and fit it with screws in a position providing that the switch (2) is ON. • If this is not feasible, contact Service.
