LUBRICATION/FILTERS/FLUIDS

Diesel Fuel Specifications

Use a good grade of Number Two Diesel Fuel in your Diesel Engine. Do not use other types of fuel. The use of other fuels will result in loss of engine power and high fuel consumption.

NOTE: When the temperature is very cold, the use of a mixture of Number one and number Two Diesel Fuel is permitted for a short period of time. See your fuel Dealer for winter fuel requirements in your area.

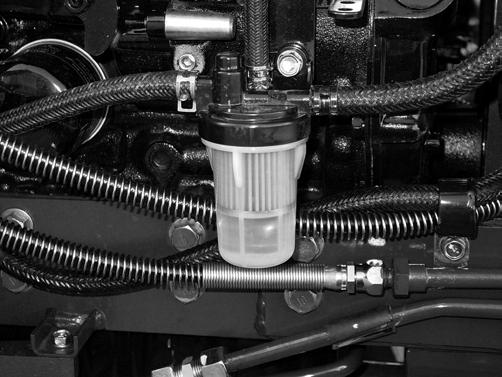

Fuel Filter Element Replacement

To replace the filter element, use following procedure:

STEP 1

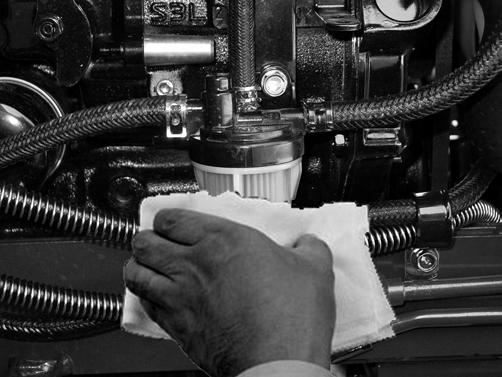

Clean the outside of the filter body and cup to prevent dirt or foreign materials from entering into the system.

STEP 2

Filter Cup

STEP 3

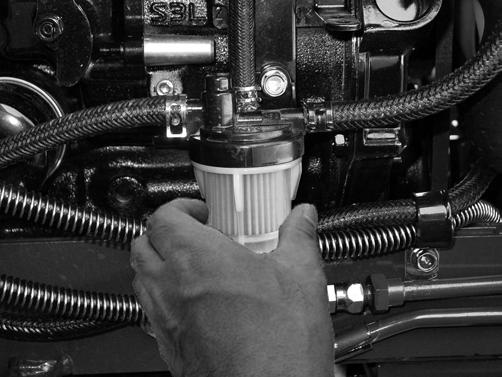

Loosen the filter cup. Remove filter cup. Remove old filter element and clean inside of filter cup.

Install new filter element. Assemble filter cup and retaining nut to filter body. NOTE: Be sure O-ring is in place on the filter body and filter cup.

STEP 4

Clean off the fuel from the engine. Start the engine to check for fuel leaks around the filter, lines and fittings.

NOTE: If the engine does not have power with a full load after you have done the filter service and removed the air from the system, see your Dealer to find and correct the cause.
