INSTRUMENTS AND CONTROLS

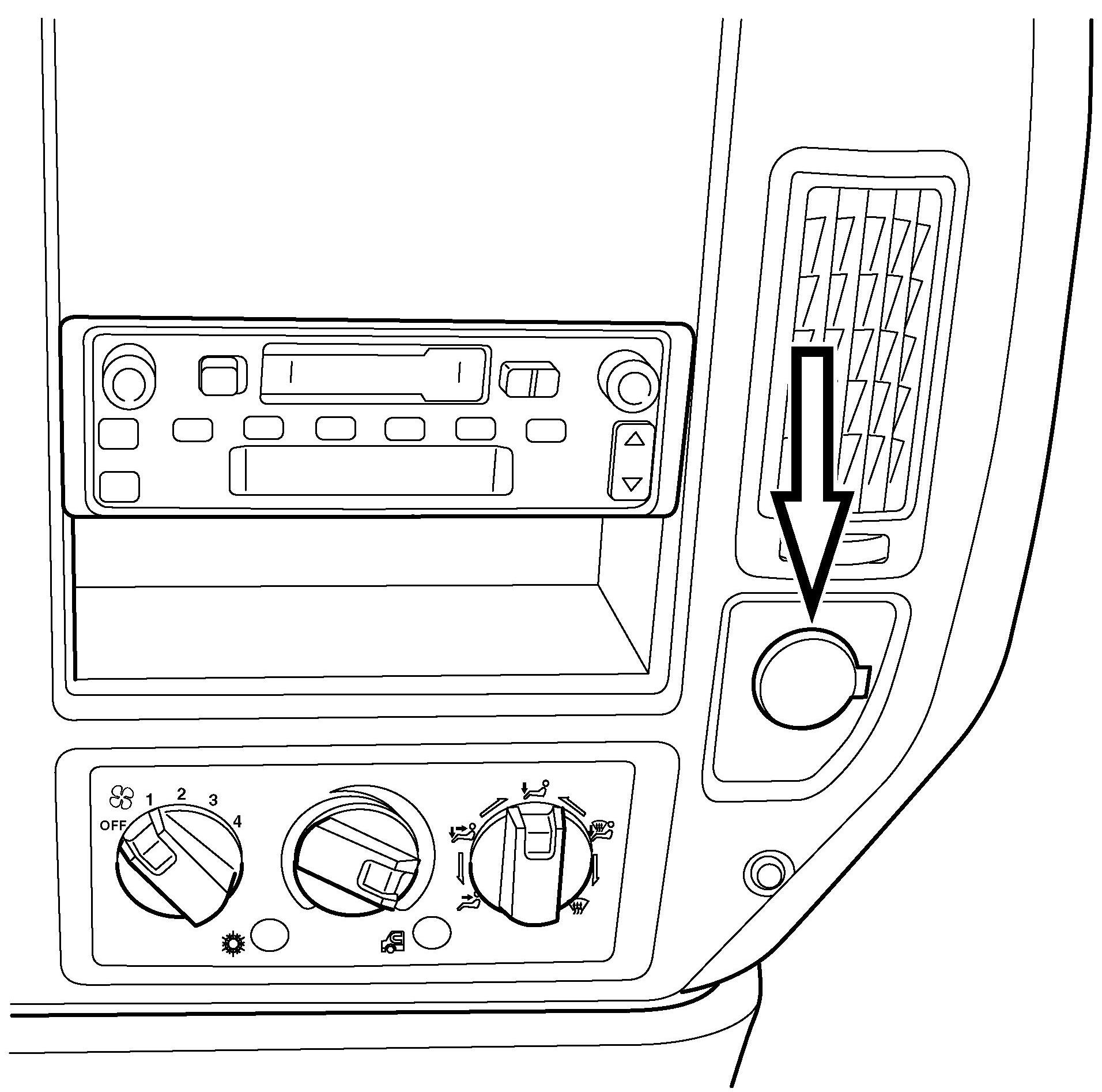

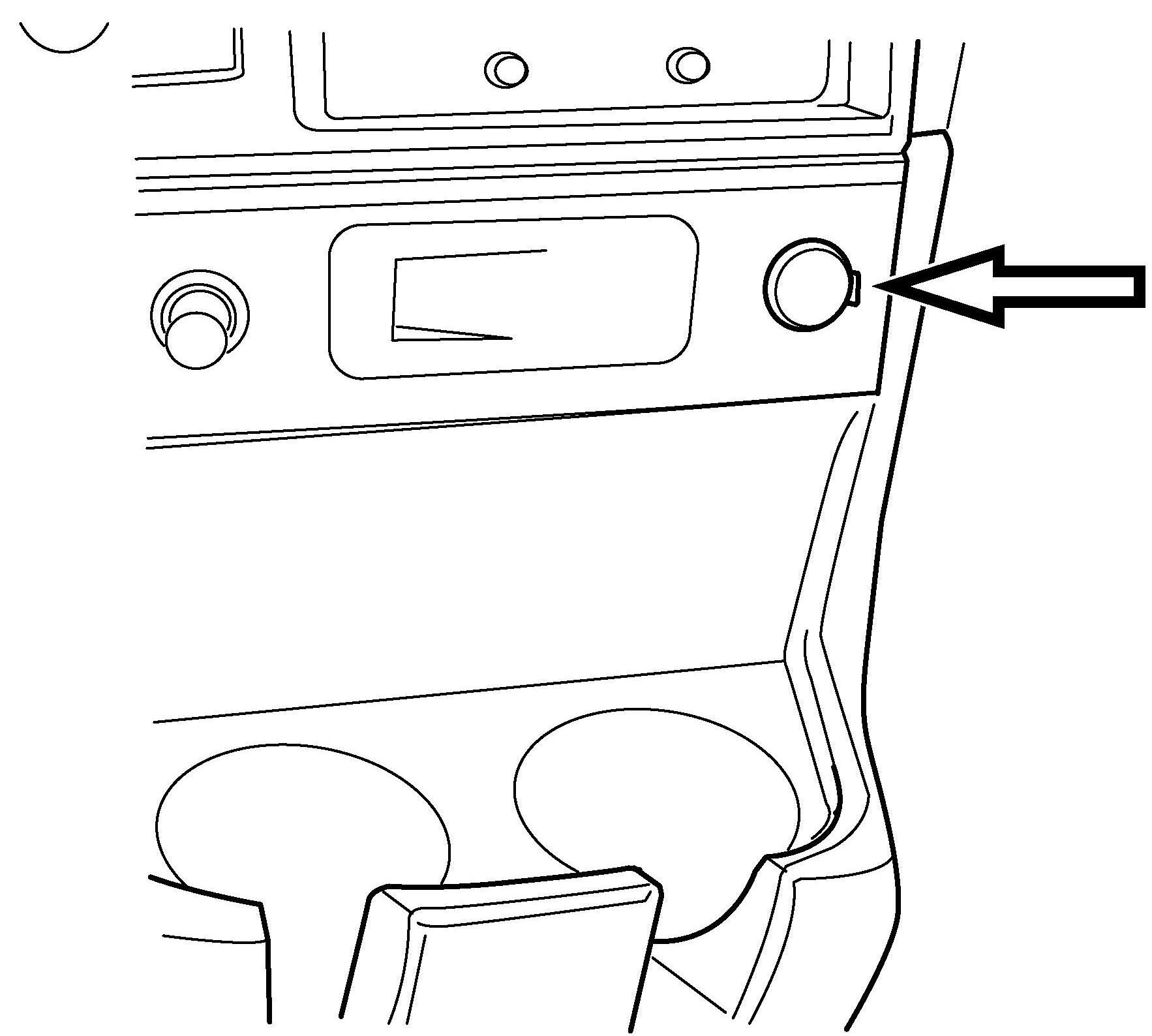

Accessory Power Outlets

Additional - volt accessory power outlets are located next the driver the "E" panel. These cigar light - type outlets supply volts fused (20A) power when the ignition switch turned the ignition accessory position.

Caution

Maximum amperage for all power r eceptacles cab NOT exceed maximum amperage equipment damage may r

Instruments And Controls

Radio Power Jack (+) Located Dashboard (Red)

This avolt, switched battery connection. used power the s radio. protected a - amp circuit breaker and supplies power when the key the ACCESSOR Y position position.

Radio Power Jack (+) Located Dashboard (Black)

This a ground connection. used a power return ( connection for the s radio. C0029240 C0029241
