HOOD OPERA TION

Opening the Hood

T o open the release the locking tabs each side the

With the hood the locked position, pull outward the plastic handle and disengage the locking tab from the hood latch.

Swing the rubber strap and out the way

Repeat this procedure the other side the hood.

Note: When the hood opened, the safety latch will drop down into the locked

C0029924

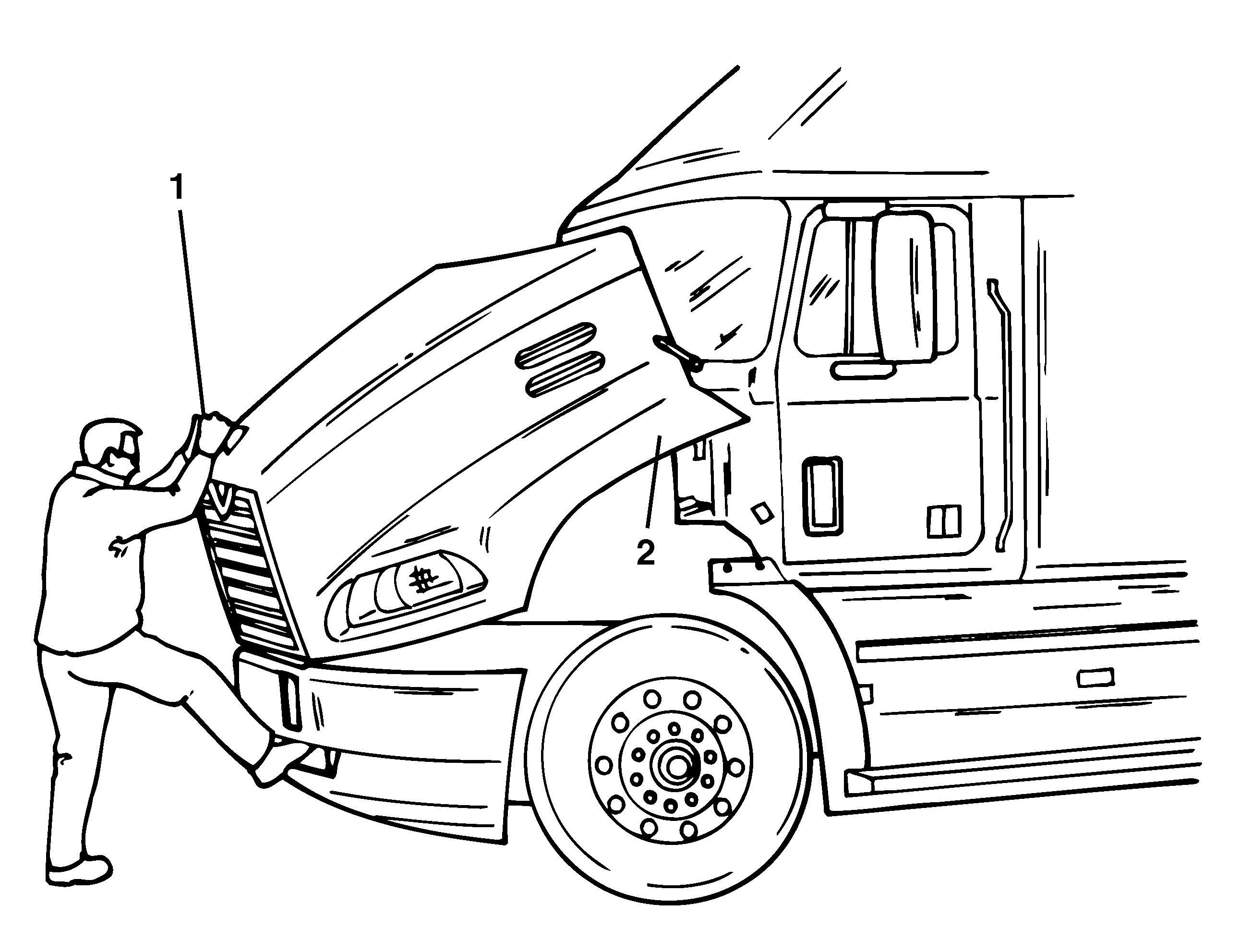

Using the Bulldog a pull the hood raise over the Y may put one foot the bumper necessary

Pull steadily the hood until comes over the center and stops fully open.

W Arning

NEVER take both feet off the ound tilt the hood. Keep least one foot the ound avoid a slip fall. difficult for you raise the hood, get the help someone who can lift the r ear the hood.

W Arning

Little effort r equir open close the hood. NEVER take both feet off the ound tilt the hood. Keep least one foot the ound avoid a slip fall.

Closing the Hood

Note: Remember remove all rags and test equipment from the engine compartment before closing the hood.

W Arning

Befor e closing the hood, sur e one the way the hood’ s descent.

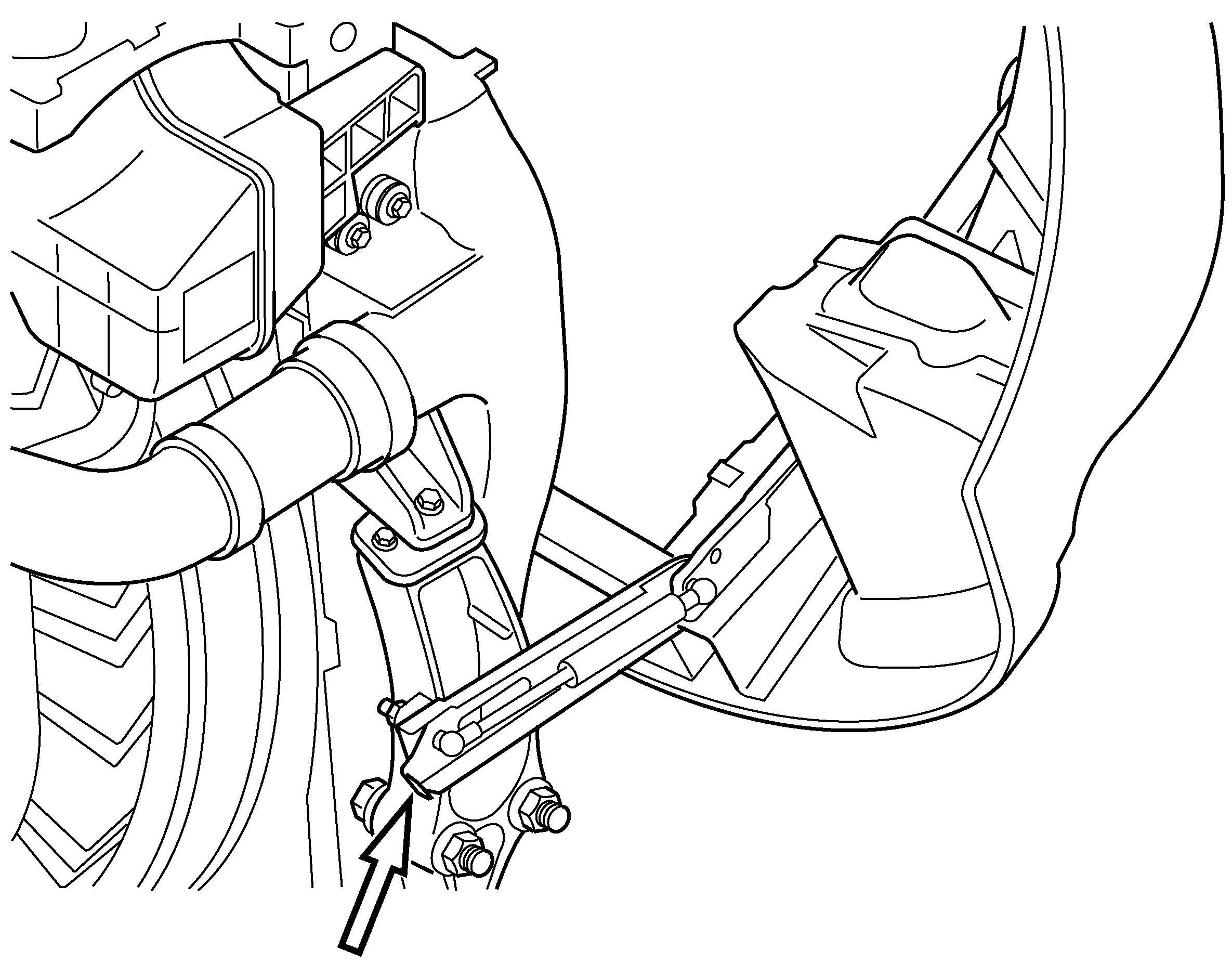

Note: The safety latch must released (reset) before the hood will close. (See arrow

C0029317

Locking the Hood

T o lock the hood, secure the rubber hold - down straps each side the hood. With the hood set the rubber strap position and force the locking discs into the hood

Push inward the plastic handle lock the rubber strap place.

Repeat this procedure the other side the

Caution

sur e the hood latched secur ely . the latch not completely engaged, the hood could open during operation and cause vehicle damage.
