INSTRUMENTS AND CONTROLS

Daytime running lights fer additional safety when driving low light conditions when the operator may not normally turn the headlights Having headlights all times makes the vehicle easier spot bad weather , dusk shade when there DRL fers the ability for drivers give a courtesy flash a signal when safe merge into another lane the highway T urning DRL f temporarily for slowly rolling through weigh stations when waiting line receive bill and weighing tickets

When the operator presses the DRL override switch, the headlamps will out b e l o w the DRL speed threshold and flash a b o v e the DRL speed threshold for a designated period time (customer programmable VCADS). also possible toggle the headlamps back necessary .

• Engine Brake Switch – Used activate the engine Refer the OPERA TION section this handbook for more information.

• Fan Control Manual Override Switch – Allows the operator manually control the engine cooling

• 5th Wheel Slide Switch – Locks and releases a sliding 5th wheel using air pressure; this allows the 5th wheel properly positioned. The indicator lamp will illuminate when the 5th wheel unlocked. Prior model year 2001, was necessary use the trailer Hand Brake Control Lever activate the 5th wheel slide function. This feature has been changed make the air slide switch independent the hand brake control, thereby preventing unexpected 5th wheel slide.

• Inside/Outside Air Switch – Allows the operator choose whether outside air the air fed into the air cleaner

• Load Light Switch – Push top the switch turn light on. Push bottom switch turn light

• Mirror Defrost – Push the top activate mirror

Instruments And Controls

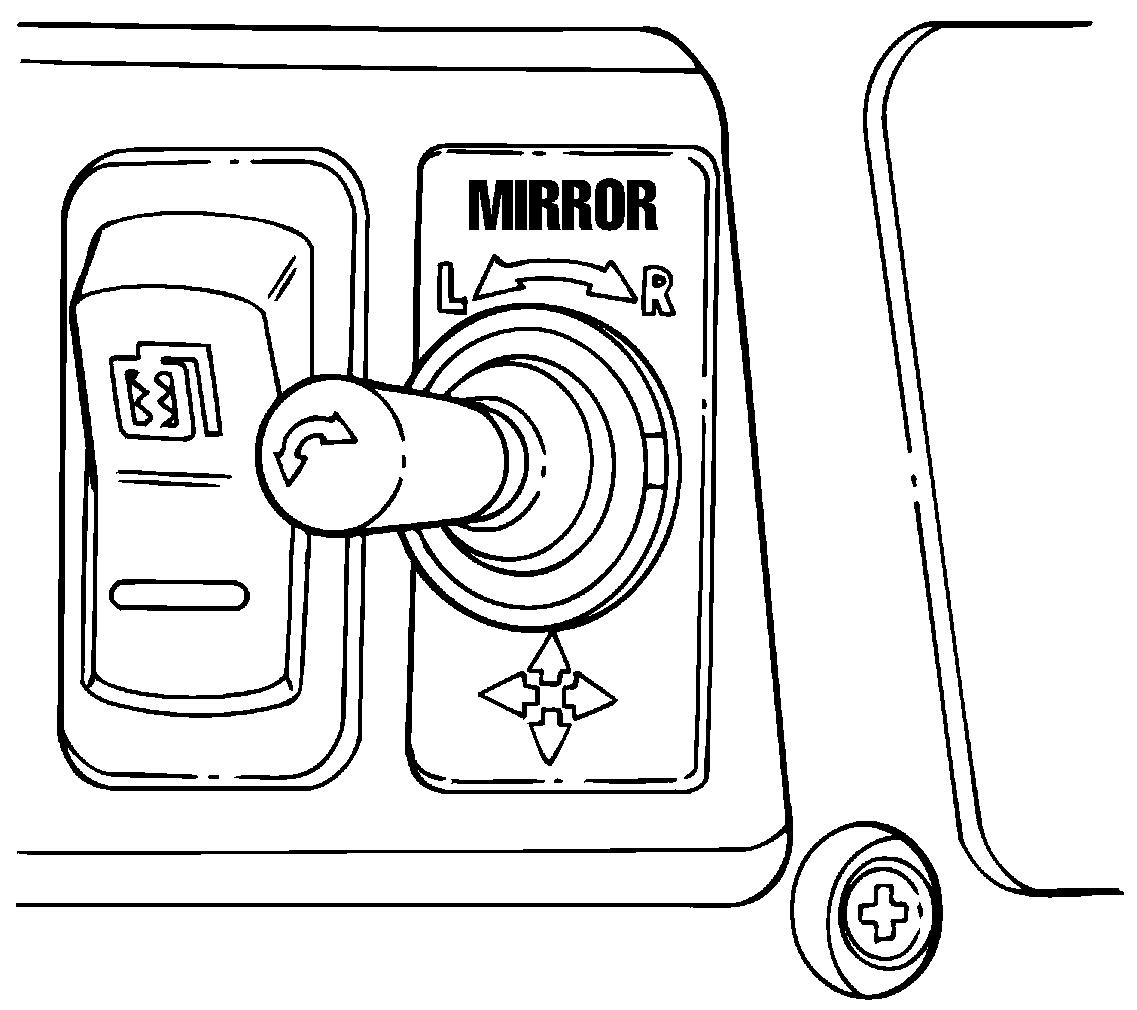

• Motorized - Mirror Joy Stick – This control designed like a stick." ROT A the stick the right control the right mirror ROT A the stick the left control the left mirror PUSH the stick up, left correctly position the selected mirror

C0029215

• Power Divider Lockout Switch – See "Inter - Axle Power Divider Lockout (If the OPERA TION section this manual.

• Power T ake - Off Control Switch Push the top turn the O Push the bottom turn

• Push Axle Up/Down Switch The operator controls the raise and lower functions with the instrument panel - mounted auxiliary axle switch(es), and axle loading controlled the air regulators which are located inside the cab between the driver and the rider seats. There one regulator for each axle.

Note: T o prevent frame damage, the auxiliary axle(s) will automatically raise when the transmission shifted into

C0029216

Instruments And Controls

• QUAL COMM Panic Button your vehicle equipped with this refer the QUAL COMM literature provided with the

• Right - Hand Only Door Lock — Push the top lock the right - hand door .

• Right - Hand Only W indow Lift Push the top the button raise the right - hand window . Push bottom button lower right - hand window .

• Shutdown Override Switch Pressing this switch shortly after the vehicle sounds the engine shutdown allows additional seconds The process can repeated several times safely park the

Caution

Continuously overriding the shutdown system may r esult sever e engine

• Snow Plow Lamps Switch Push the top the button turn the snow plow lamps

• Spin Light Switch — Push the top the button activate the rotating beacon light. Push the bottom turn light

• Strobe Switch Push the top the button turn the strobe light on. Push the bottom the button turn light

• T elma Rear Axle Mounted Retarder Indicator Lamp (If Equipped) The T elma does not have a disable always and will operate dif ferent levels depending application service The indicator will show you the level you are retarding the vehicle: 80%

Note: The T elma retarder disabled there ABS C0029217

• V ent Fan Switch Push button turn vent fan on. Push button down turn vent fan

• W indshield Defrost Switch Push button and release defrost front
