WHEEL 99 - ARM & AXLE
PL/RL / DISC COULTER - AUTO-RESET BEAM
PosNo. Part No. Qty. Description Remark
30 KK086175 ARM WITH AXLE 20" L LOWERED

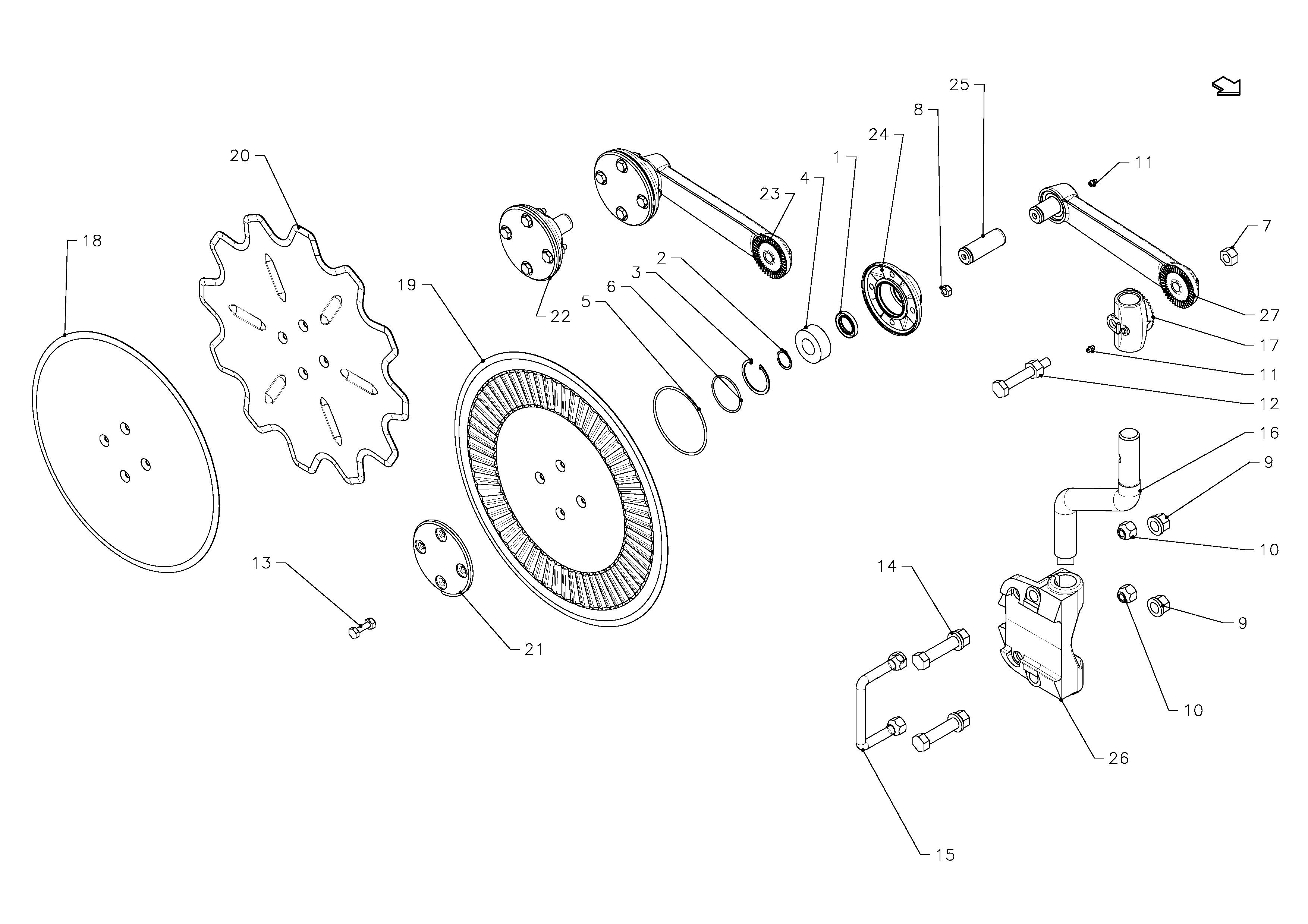

PL/RL / DISC COULTER 99 - AUTO RESET BEAM
SPMKK000024
PL/RL / DISC COULTER 99 - AUTO RESET BEAM
PosNo. Part No. Qty. Description Remark
1 KG00017500 RADIAL SHAFT SEAL - A 30X47X7 2 KG01108862 CIRCLIP-A 30 X 1.5 3 KG01129800 CIRCLIP-B 62 X 2 4 KK010572 TWO ROW ANGLE CONTACT BALL-BEARING 3206B 5 KK011750 O-RING D124.5X3 70 SHORE 6 KK011866 O-RING D67X3 70 SHORE 7 KK015825 NUT M16 8 KK016004 LOCK NUT M10 METAL LOCKING 9 KK016012 FLANGE NUT M20 10 KK016031 CONE NUT M16 KEY27 H25 11 KK029920 GREASE NIPPLE M8X1 STRAIGHT 12 KK032702 HEX BOLT M16X110 13 KK035114 HEX BOLT M10X40 W/LOCK NUT 14 KK035175 HEX BOLT M20X100 W/FLANGE NUT 15 KK066175R U-BOLT 16 KK076063 STEM FOR DISC COULTER 17 KK076400R SUPPORT 18 KK076406R DISC 18" 19 KK076407R DISC COULTER 20 20 KK076410R DISC COULTER 20 NOTCHED 21 KK076499R REINFORCMENT PLATE 22 KK086087R REP. SET FOR BEARING HOUSE KK076097 23 KK086091 ARM WITH BEARING AND AXLE 18" & 20" 24 KK086100 BEARING HOUSING DISC COULTER 25 KK086101R AXLE FOR DISC COULTER 26 KK086103R DISC COULTER BRACKET E-BEAM CASTED 27 KK086167 ARM WITH AXLE 18" & 20"
PL/RL / DISC COULTER - SHEAR BOLT BEAM
SPMKK000054
PL/RL / DISC COULTER - SHEAR BOLT BEAM
PosNo. Part No. Qty. Description Remark
1 KG00017500 RADIAL SHAFT SEAL - A 30X47X7 2 KG01108862 CIRCLIP-A 30 X 1.5 3 KG01129800 CIRCLIP-B 62 X 2 4 KK010572 TWO ROW ANGLE CONTACT BALL-BEARING 3206B 5 KK011750 O-RING D124.5X3 70 SHORE 6 KK011866 O-RING D67X3 70 SHORE 7 KK012960 WASHER D20-D40X4 8 KK015825 NUT M16 9 KK016004 LOCK NUT M10 METAL LOCKING 10 KK029920 GREASE NIPPLE M8X1 STRAIGHT 11 KK032702 HEX BOLT M16X110 12 KK032775 HEX BOLT M16X75 10.9 13 KK032785 HEX BOLT M16X85 10.9 14 KK032840 HEX BOLT M20X40 10.9 15 KK032850 HEX BOLT M20X50 10.9 16 KK035114 HEX BOLT M10X40 W/LOCK NUT 17 KK066178 ECCENTRIC FOR DISC COULTER BRACKET 18 KK074930 BRACKET TUBE FOR DISC COULTER 19 KK074931 BRACKET FOR DISC COULTER 20 KK074936 THREADED PIECE FOR DISC.COULT. ARM 21 KK074937 CONNECTING PIECE 22 KK074938 CONNECTING PIECE 23 KK074939 EXTENTION FOR DISC COULTER 24 KK076400R SUPPORT 25 KK076406R DISC 18" 26 KK076407R DISC COULTER 20 26 KK076294R DISC 22" 27 KK076409R DISC 18" NOTCHED 27 KK076410R DISC COULTER 20 NOTCHED 27 KK076295R DISC COULTER 22" NOTCHED 28 KK076499R REINFORCMENT PLATE 29 KK076515 SUPPORT 30 KK076527R AXLE F. DISC COULTER MOD 92 31 KK086087R REP. SET FOR BEARING HOUSE KK076097 32 KK086091 ARM WITH BEARING AND AXLE 18" & 20" 32 KK086166 ARM WITH BEARING AND AXLE 22" 33 KK086100 BEARING HOUSING DISC COULTER 34 KK086101R AXLE FOR DISC COULTER 35 KK086167 ARM WITH AXLE 18" & 20" 35 KK086168 ARM WITH AXLE 22"

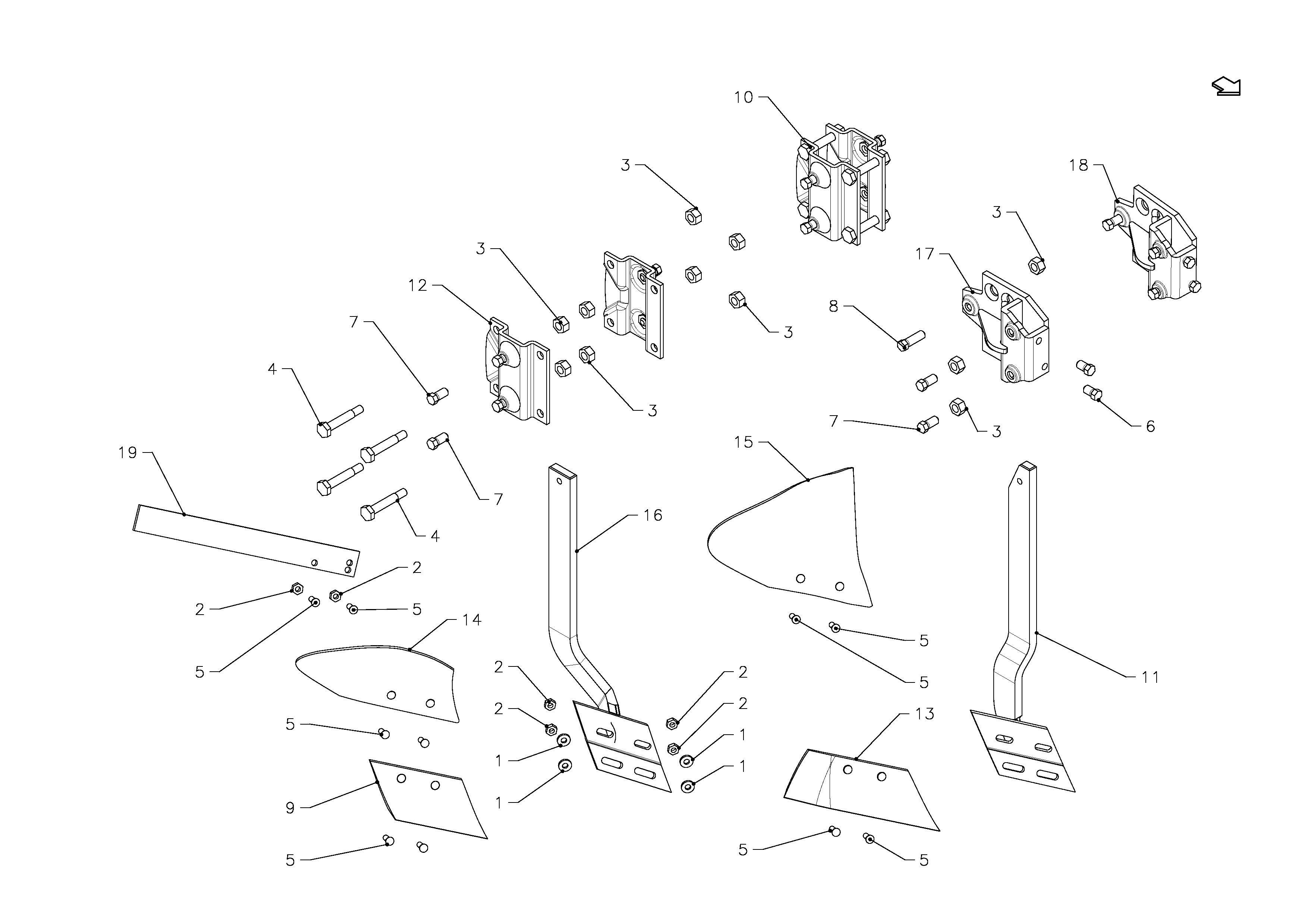

PL/RL / SKIMMER
SPMKK000152
PL/RL / SKIMMER
PosNo. Part No. Qty. Description Remark
1 KK012906 WASHER D11-D25X3.5 2 KK015813 NUT M10 GALV. 3 KK015825 NUT M16 4 KK032795 HEX BOLT M16X95 10.9 5 KK033006 OVAL SCREW M10X30 6 KK034225 SET SCREW M16X25 7 KK034228 SET SCREW M16X32 GALV. 8 KK034250 SET SCREW M16 X 50 GALV. 9 KK056873R SHARE 9 KK066873R SHARE SHARE W/SCREW 10 KK060657 BRACKET FOR SKIMMER CLP. 11 KK066811 ARM FOR SKIMMER R H=700 11 KK066812 ARM FOR SKIMMER L H=700 11 KK076858 ARM FOR SKIMMER R H=750 11 KK076859 ARM FOR SKIMMER L H=750 12 KK066860 BRACKET 13 KK066868R SHARE R. 13 KK066869R SHARE L. 14 KK066880R MOULDBOARD 14 KK066881R MOULDBOARD 14 KK076943 PLASTIC MOULDBOARD SKIMMER RIGHT 14 KK076944 PLASTIC MOULDBOARD SKIMMER LEFT 15 KK076812R MOULDBOARD R. 16 KK076817 SKIMMERARM RIGHT H=700 16 KK076818 SKIMMERARM LEFT H=700 16 KK076825 SKIMMERARM RIGHT H=800 16 KK076826 SKIMMERARM LEFT H=800 17 KK076829 SKIMMER BRACKET WELD.VD-VD LIGHT 18 KK076872 BRACKET FOR SKIMMER ASSEMBLED 19 KK086801 EXTENSION PIECE SKIMMER

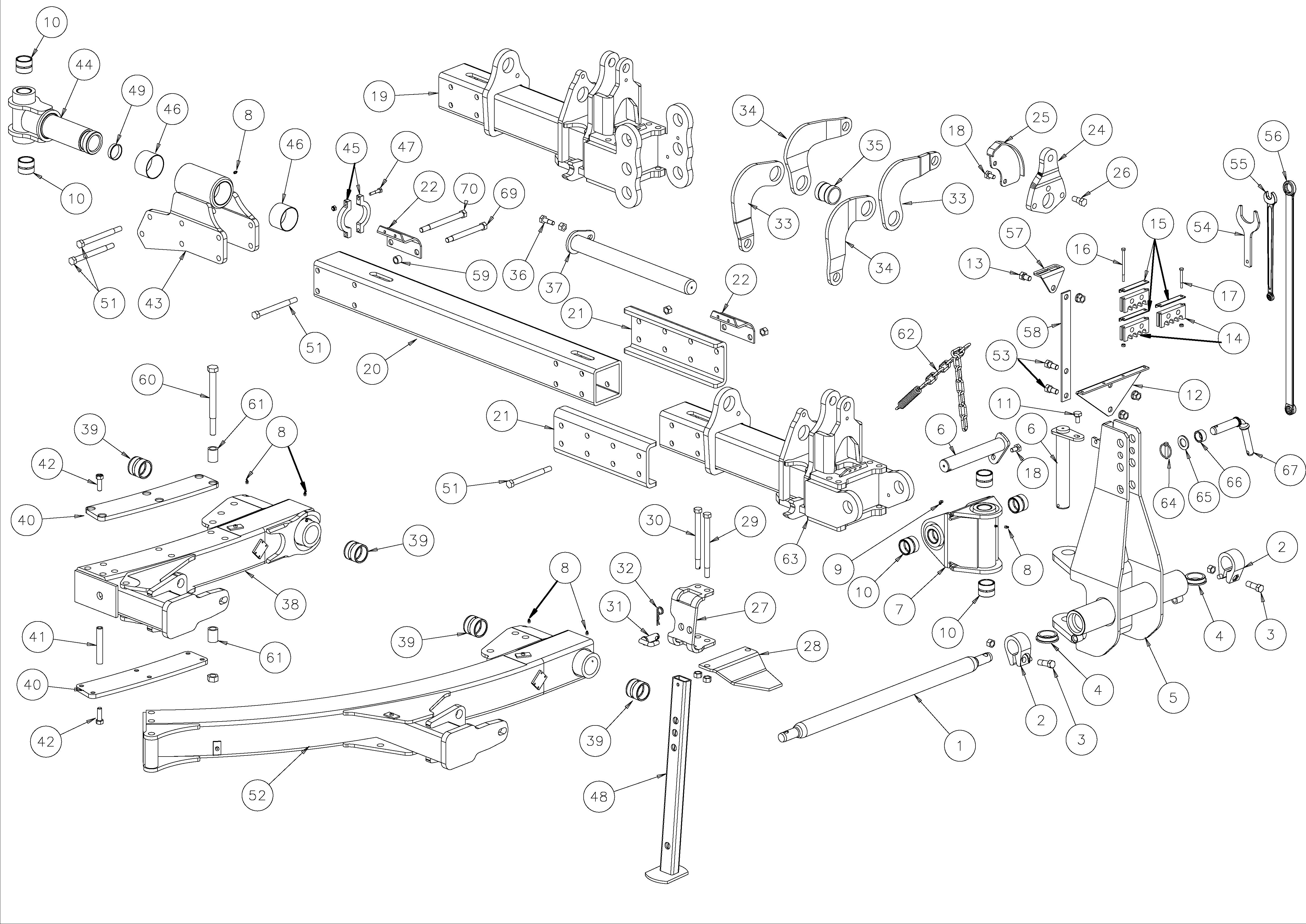

PL/RL / FRONT
882
PL/RL / FRONT
PosNo. Part No. Qty. Description Remark
1 KK064321 CROSS-SHAFT D60 CAT 3 L=965 1 KK074389 CROSS-SHAFT CAT.4 D60X965 2 KK064360 STOP RING D60 3 KK032860 HEX BOLT M20X60 10.9 4 KK064317R BUSHING FOR CROSS SHAFT 5 KK081150 HEADSTOCK 6 KK078898 AXLE W/LOCKPLATE D50X305 7 KK079765 UNIVERSAL JOINT W BUSHINGS PXRX 8 KK029920 GREASE NIPPLE M8X1 STRAIGHT 9 KK029927 GREASE NIPPLE M8X1 45 DG 10 KK011682 SLIDE BEARING D50-D62X50 11 KK032730 HEX BOLT M16X30 10.9 12 KK062505 CLAMP FOR HOSE-BRACKET 13 KK035235 HEX BOLT M20X30 W/FLANGE NUT 14 KK012185 HOSE HOLDER 2 TUBE RUBBER 15 KK062506 CLAMP-PIECE FOR HOSE-BRACKET 16 KK032403 HEX BOLT M8X130 DIN 931 17 KK032475 HEX BOLT M8X75 18 KK032725 HEX BOLT M16X27 10.9 19 KK077191 TOWING PIECE ( Before 01.10.00 ) 19 KK080080 TOWING DEVICE PGRG ( From 01.10.00, serial no. PL229 and RL138 ) (Adj. high) 20 KK077080 TOWING TUBE PLRL 100 6 FURROW 20 KK077081 TOWING TUBE PLRL 100 7 FURROW 20 KK077082 TOWING TUBE PLRL 100 8 FURROW 20 KK082137 DRAGROER 9 SKJ. PL100 ( From 15.09.00 ) 21 KK078564 CONNECTION PLATE 22 KK081098 PLATE FOR HOSES 23 KK032820 HEX BOLT M20X200 10.9 24 KK077266 BRACKET 25 KK077267 SLIDE 26 KK032845 HEX BOLT M20X45 10.9 27 KK077230 HOLDER FOR MACHINE STAND 28 KK081044 SUPPORT FOR HEADSTOCK ( Before 01.10.00 ) ( Replaced by pos. 62 ) 29 KK032843 HEX BOLT M20X250 10.9 30 KK032837 HEX BOLT M20X230 W/HOLE 31 KK077231 LOCK BOLT 32 KK029770 SPRING PIN D4 NS5125 33 KK077281 PRESS ARM 34 KK077280 PRESS ARM 35 KK078550 BUSHING D60-D66X70
PL/RL / FRONT
882
PL/RL / FRONT
PosNo. Part No. Qty. Description Remark
36 KK032750 HEX BOLT M16X50 10.9 37 KK077137 AXLE W-LOCKPLATE D60X625-D17X75 ( Before 01.06.99 ) 37 KK078546 AXLE W/LOCK PLATE D60X595 ( From 01.06.99 ) 38 KK077208 TURNING ARM W/BUSHINGS 39 KK011691R STEEL BUSHING D60XD72X60 40 KK077170 WEARING PLATE 41 KK077171 BRACKET FOR BUSHING 42 KK035088 COUNTERSUNK SCREW M16X50 43 KK077209 BEARING W/BUSHINGS PL100 44 KK077200 CARDAN-JOINT W/BUSHINGS 45 KK079153 LOCK FOR AXLE 46 KK011668 SLIDE BEARING PM 9060 DX 47 KK035109 HEX BOLT M10X50 W/LOCK NUT 48 KK077286 MACHINE STAND 49 KK010967 PLASTIC PLUG DBI NO.87 63.5 MM 51 KK032821 HEX BOLT M20X210 10.9 52 KK077030 TURNING ARM ASSEMBLED ( 6 furrows ) 52 KK077031 TURNING ARM ASSEMBLED ( 7 furrows ) 52 KK077207 TURNING ARM ASSEMBLED ( 8 furrows ) 52 KK077039 TURNING ARM ASSEMBLED ( 9 furrows ) 53 KK035236 HEX BOLT M20X40 W/FLANGE NUT 54 KK010655 SPANNER FOR TURNOVER CYLINDER 55 KK010606 SPANNER NV27-19 L450 56 KK010650 UNIVERSAL SPANNER NV 27-36 57 KK062500R SPANNER BRACKET 58 KK062458 BRACKET FOR SPANNER HOLDER 59 KK010148 BUSHING D20.5-D28X20 60 KK032926 HEX BOLT M24X265 10.9 61 KK071734 BUSHING D26-D38X50 62 KK082177 CHAIN W SPRING ( From 01.10.00, serial no. PL229 and RL138 ) 63 KK080568 TOWONG PIECE PAINTED ( From 01.05.04 ) 64 KK010700 PIN D12 NS 555 65 KK012942 WASHER D32.5-D55X4.58 66 KK010158 BUSHING D44.5XD32.5X23 67 KK010293 TOP LINK U-BOLT CAT.II & III HEADST.200 69 KK032822 HEX BOLT M20X190 THREAD L=25 70 KK032828 HEX BOLT M20X220

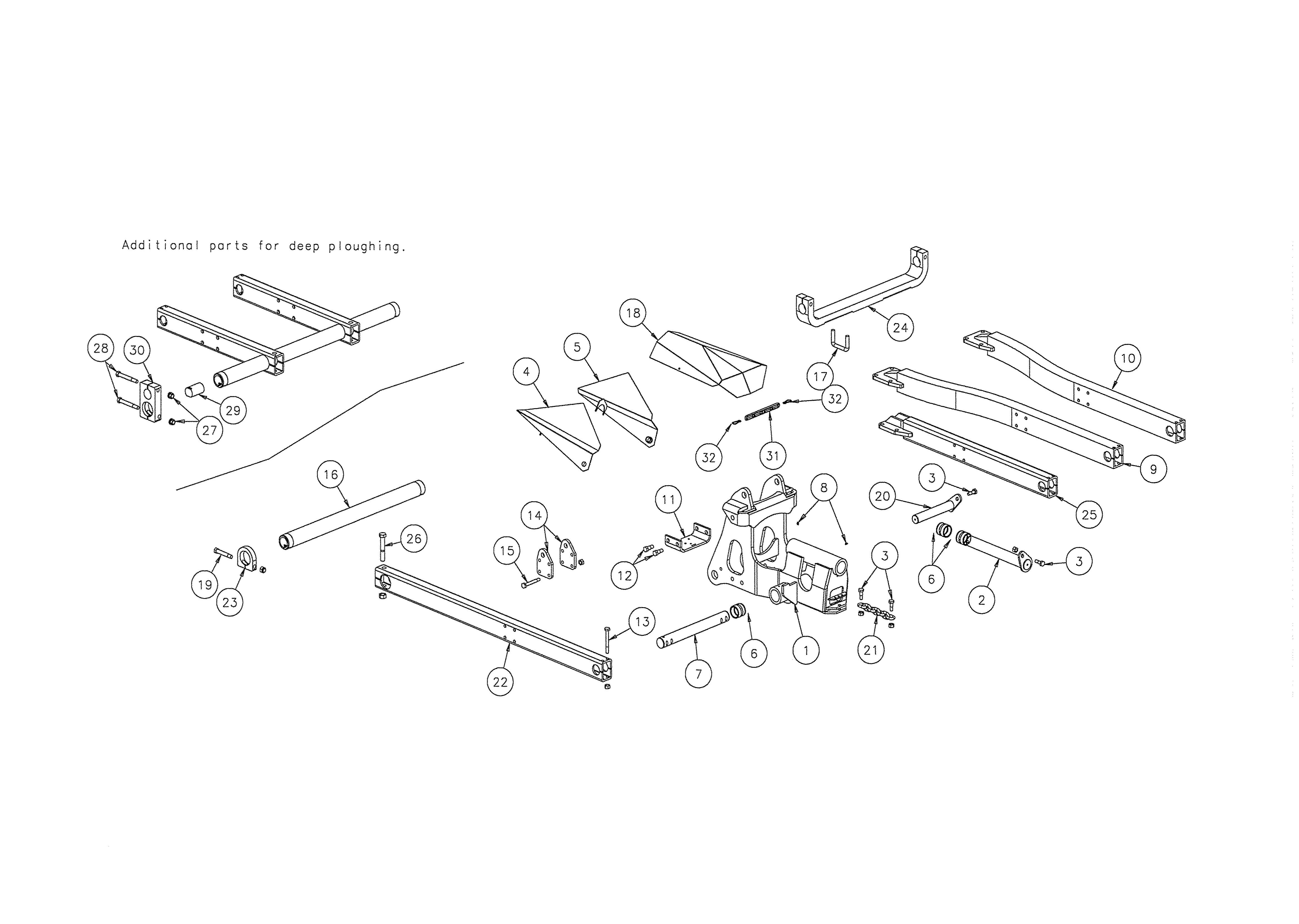

PL/RL / FRONT FRAME
884

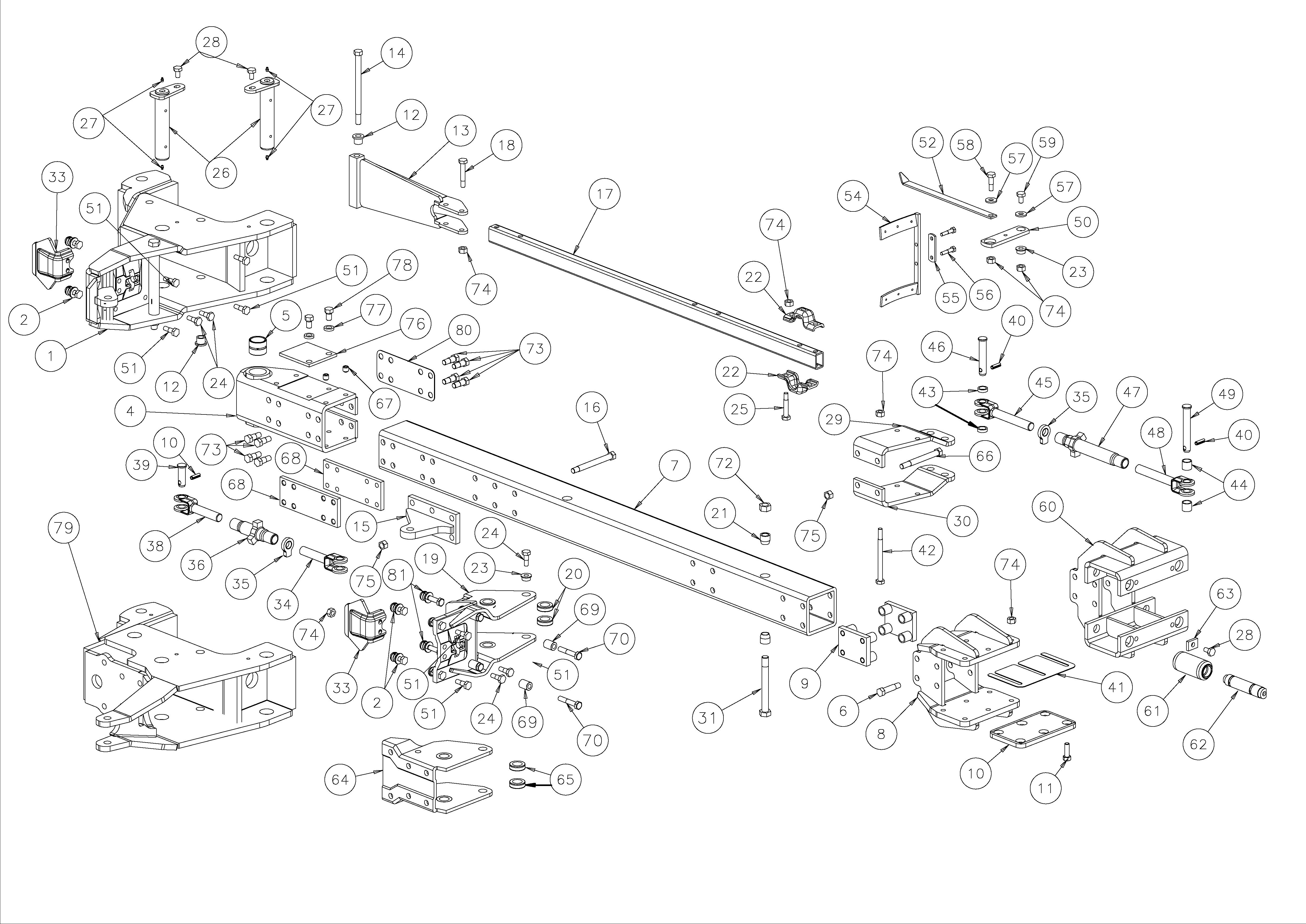

PL/RL / FRONT FRAME
PosNo. Part No. Qty. Description Remark
1 KK077102 MAIN FRAM FIX W/BALLS (ill. 1-2) 2 KK071256 2 BALLS M16X50 4 KK077104 MAIN FRAME FIX W/BUSHINGS (Before 01.06.00) 4 KK082100 FIXING DEVICE CPL. ( From 01.06.00 ) 5 KK011682 SLIDE BEARING D50-D62X50 6 KK032885 HEX BOLT M20X85 10.9 7 KK077110 MAIN FRAME FORWARD PL 100 6 FURROW 7 KK077111 MAIN FRAME FORWARD PL100 7 FURROW 7 KK077112 MAIN FRAME FORWARD PL100 8 FURROW 7 KK082135 MAIN FRAME FORWARD PL100 9 FURROW ( From 15.09.00 ) 8 KK077130 SLIDE BRACKET ( From 01.10.00, serial nr. PL229 and RL138 ) 9 KK077017 THREADED PLATE WITH BUSHINGS 10 KK077133 WEARING PLATE 11 KK035088 COUNTERSUNK SCREW M16X50 12 KK075880 SLIDE BEARING W/ FLANGE D20.25X27-D30/22 13 KK088866 FIX FOR PARALLELL STAY 14 KK035239 HEX BOLT M20X290 W/FLANGE NUT 15 KK077167 CYLINDER BRACKET 16 KK032822 HEX BOLT M20X190 THREAD L=25 17 KK077115 PARALLEL ROD PLRL 100 6FURROW 17 KK077116 PARALLEL ROD PLRL 100 7FURROW 17 KK077117 PARALLEL ROD PLRL 8 FURROW 17 KK082136 PARALLEL ROD FRONT PLRL 9 FURROW ( From 15.09.00 ) 18 KK032795 HEX BOLT M16X95 10.9 19 KK088897 BEAM HOLDER WITH BALLS ( for PL plough ) 20 KK075881 SLIDE BEARING W/FLANGE D35.25X16-D45/12 ( Before 01.04.98 ) 20 KK011632 SLIDE BEARING D35.35-D55.5X16 ( From 01.04.98 ) 21 KK075887 CONE D35X33 BEAM HOLDER ES-P ( Before 01.04.98 ) 21 KK074913 CONE D24-D35X33 ( From 01.04.98 ) 22 KK075872 BRACKET FOR PARALLEL ROD 23 KK071664 SLIDE BEARING W/FLANGE D16.25X16-D30/13 24 KK032745 HEX BOLT M16X45 10.9 25 KK032795 HEX BOLT M16X95 10.9 26 KK071608 AXLE W-LOCK PLATE D50X244 27 KK029920 GREASE NIPPLE M8X1 STRAIGHT 28 KK032725 HEX BOLT M16X27 10.9 29 KK077248 BRACKET FOR STAY UPPER 29 KK077058 BRACKET FOR STAY UPPER ( Before 01.11.99 ) 30 KK077249 BRACKET FOR STAY LOWER 30 KK077059 BRACKET F.STAY LOWER ( Before 01.11.99 ) © Kverneland Group PL467, < Mach. ID <= RL161-> Page number: 11
PL/RL / FRONT FRAME
884
PL/RL / FRONT FRAME
PosNo. Part No. Qty. Description Remark
31 KK035219 HEX BOLT M20X220 W/ NUT ( Before 01.04.98 ) 31 KK035197 HEX BOLT M24X210 W/LOCK NUT ( From 01.04.98 ) 33 KK061637R STEERING PLATE 34 KK351172 SCREW M30X3.5 R THREADS 35 KK351148 COUNTER NUT M30X3,5 36 KK351170 TUBE FOR TURNBUCKLE M30X3.5 L210 38 KK351173 SCREW M30X3.5 L THREADS 38 KK361120 TURNBUCKLE 390-520 ( ill. 34, 35, 36 and 38 ) 39 KK010315 BOLT W/ HEAD D25.3X60 40 KG01195400 TENSION PIN 12X40 41 KK077128R PLATE 42 KK032720 HEX BOLT M16X200 43 KK010008 BUSHING D25.7-D35X10 ( Before 01.11.99 ) 44 KK124157 BUSHING D27.3-D33.8X24 ( Before 01.11.99 ) 44 KK010153 BUSHING D27.3-D33.8X30 ( From 01.11.99 ) 45 KK351139 SCREW M30X3.5 R THREADS ( Before 01.11.99 ) ( From 01.11.99, pos. 34, KK 35 11 72 ) 46 KK010319 BOLT W/ HEAD D25.3X120 ( Before 01.11.99 ) 47 KK351144 TUBE FOR TURNBUCLE M30X3.5 L340 ( Before 01.11.99 ) ( From 01.11.99, pos. 36, KK 35 11 70 ) 48 KK351140 SCREW M30X3.5 L THREADS ( Before 01.11.99 ) ( From 01.11.99, pos. 38, KK 35 11 73 ) 48 KK361116 TURNBUCKLE 520-720 ill. 35, 45, 47 and 48 ) ( Before 01.11.99 ) 48 KK361120 TURNBUCKLE 390-520 ( ill. 34, 35, 36 and 38 ) ( From 01.11.99 ) 49 KK010335 BOLT W/HEAD D25.3X155 ( Before 01.11.99, pos. 39, KK 01 03 15 ) 50 KK075905 BRACKET FOR INDICATOR (M20/M24) ( Before 01.04.98 ) 50 KK074919 BRACKET FOR INDICATOR ( From 01.04.98 ) 51 KK032754 2 BOLTS FOR BALLS M16X50 52 KK075904 INDICATOR 54 KK075906 HOLDER FOR INDICATOR ASSEMBLED 55 KK075903 PLATE FOR SCALE 56 KK032655 HEX BOLT M12 X 55 57 KK012922 WASHER D17-D40X4.58 58 KK032725 HEX BOLT M16X27 10.9 59 KK032755 HEX BOLT M16X55 10.9 60 KK077060 SLIDE GUIDANCE OL ( Before 01.10.00, serial no. PL229 and RL138 ) 61 KK077063 TUBE WITH BUSHING OL ( Before 01.10.00, serial no. PL229 and RL138 ) 62 KK077065 AXLE D37.5X194 OL ( Before 01.10.00, serial no. PL229 and RL138 ) 63 KK077067 LOCKWASHER ( Before 01.10.00, serial no. PL229 and RL138 ) 64 KK074902 BEAM SUPPORT W/BUSHINGS LS ( for RL plough ) 65 KK011632 SLIDE BEARING D35.35-D55.5X16 66 KK032818 HEX BOLT M20X180 10.9 67 KK032151 THREADED PIN M20X20 W. HEX HOLE DIN 916
PL/RL / FRONT FRAME
884
PL/RL / FRONT FRAME
PosNo. Part No. Qty. Description Remark
68 KK082127 THREADED PLATE 69 KK010168 BUSHING D16.25XD30X41 70 KK032794 2 BOLTS FOR BALLS M16X90 72 KK015841 NUT M24 GALV. 73 KK032850 HEX BOLT M20X50 10.9 74 KK015825 NUT M16 75 KK015830 NUT M20 76 KK077057 SUPPORT PLATE 77 KK012963 WASHER D21-D35X7.5 78 KK032830 HEX BOLT M20X30 10.9 79 KK077295 MAIN FRAME FIX 80 KK077025 SHEET PLATE 81 KK071259 2 BALLS M16X90 WITH LOCTITE

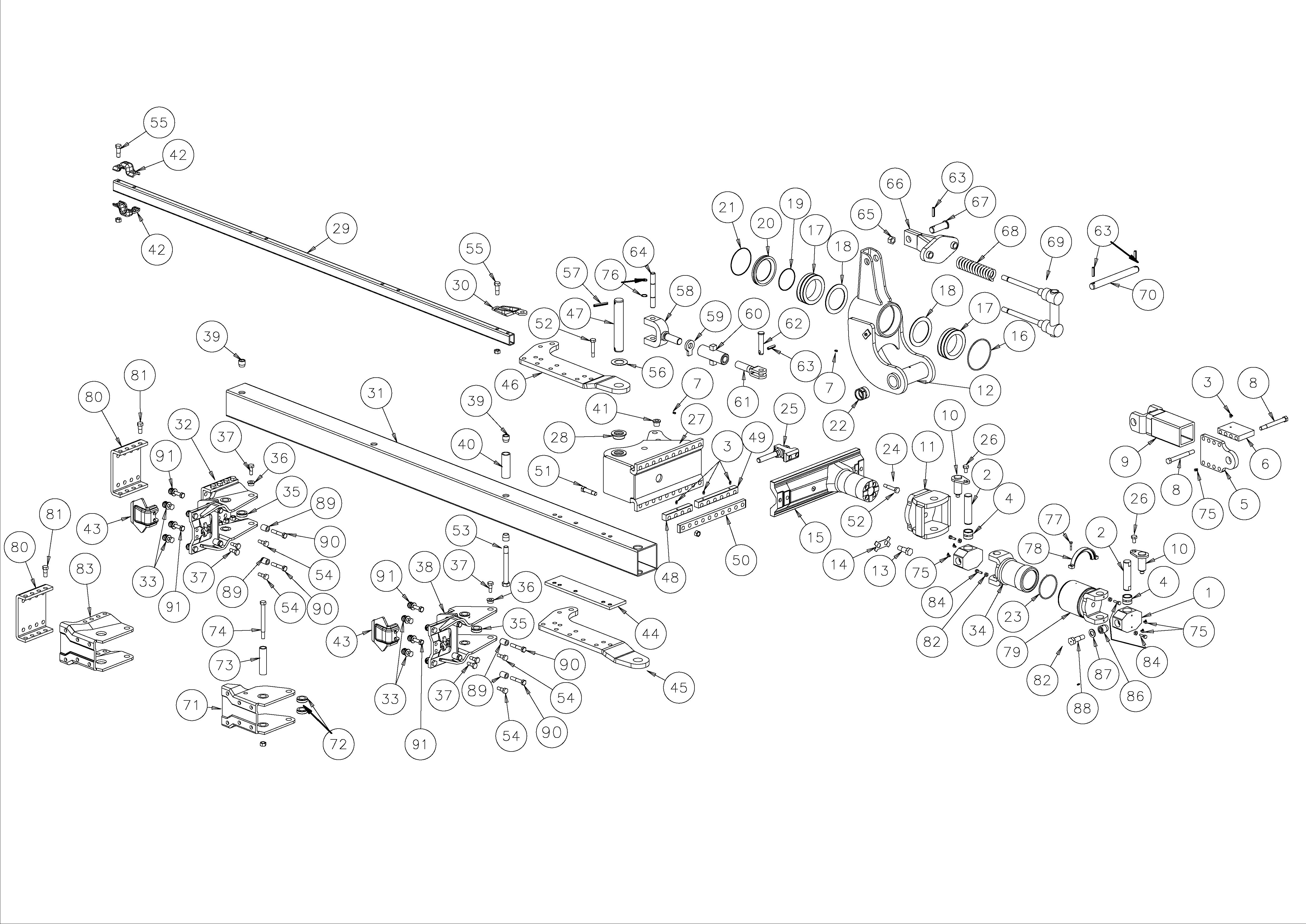

PL/RL / REAR FRAME
885
PL/RL / REAR FRAME
PosNo. Part No. Qty. Description Remark
1 KK077202 BRICK W/BUSHINGS ( Before 01.06.00 ) 1 KK081135 PIECE W CONE PL ( From 01.06.00 ) 2 KK077212 AXLE W/HOLE D40X164-D20.5/82 ( Before 01.06.00 ) 2 KK081134 AXLE D40X164 ( From 01.06.00 ) 3 KK029922 GREASE NIPPLE M8X1 90 DG ( Before 01.04.99 for slides ) 3 KK029927 GREASE NIPPLE M8X1 45 DG ( From 01.04.99 for slides ) 4 KK011683 SLIDE BEARING D40-D50X40 5 KK077214 SLIDE PLATE CARDAN JOINT 6 KK077213 SPACER FOR LINK 7 KK029920 GREASE NIPPLE M8X1 STRAIGHT 8 KK032818 HEX BOLT M20X180 10.9 9 KK077216 SLIDE TUBE CROSS LINK 10 KK077210 AXLE WITH LOCK PLATE ( Before 01.06.00 ) 11 KK077195 FIX REAR FOR CARDAN-JOINT 12 KK077165 HEADSTOCK REAR SECTION 13 KK030970 HEX BOLT M24X70 14 KK072526 LOCKPLATE FOR HEADSTCK 160 15 KK077108 SHAFT WITH REAR BRACKET 15 KK072421 MAIN SHAFT H=200 16 KK011895 O-RING D170X5 80 SHORE VITON 17 KK010566 ROLLER-BEARING NA4924 120X165X45 18 KK012979 WASHER D121-D164.8X4 19 KK011890 O-RING D120X3 70SHORE 20 KK071904 SEAL RING 21 KK011891 O-RING D150X3 70 SHORE 22 KK011698 SLIDE BEARING D50-D62X50 23 KK011896 O-RING D130X5 90 SHORE ( From 01.06.99 ) 24 KK032850 HEX BOLT M20X50 10.9 25 KK077236 SCREW FOR SIDE ADJUSTMENT 26 KK032725 HEX BOLT M16X27 10.9 ( Before 01.06.00 ) 27 KK077201 MAIN SUPPORT W/BUSHING 28 KK011601R BEARING LINER W/ LUBRICATION GROOVE 29 KK077118 REAR PARALLEL ROD PLRL 100 30 KK075871 BRACKET FOR PARALLEL ROD 31 KK077113 BAKRE MAIN FRAME PLRL 100 32 KK075807 REAR BEAM HOLDER W/BALLS ( for PL ) ( Before 01.06.99 ) 32 KK074762 BEAM/WHEEL SUPPORT W/BUSHING AND BALL ES ( for PL ) ( From 01.06.99 ) 32 KK074744 BEAM/WHEEL SUPPORT W/BUSH&BALL ES ( for PL ) ( From 01.11.00 ) 33 KK071256 2 BALLS M16X50 34 KK077032 CARDAN JOINT INNER ( From 01.06.99 ) © Kverneland Group PL467, < Mach. ID <= RL161-> Page number: 12
PL/RL / REAR FRAME
885
PL/RL / REAR FRAME
PosNo. Part No. Qty. Description Remark
35 KK075881 SLIDE BEARING W/FLANGE D35.25X16-D45/12 ( Before 01.04.98 ) 35 KK011632 SLIDE BEARING D35.35-D55.5X16 ( From 01.04.98 ) 36 KK071664 SLIDE BEARING W/FLANGE D16.25X16-D30/13 37 KK032745 HEX BOLT M16X45 10.9 38 KK088897 BEAM HOLDER WITH BALLS ( for PL ) 39 KK075887 CONE D35X33 BEAM HOLDER ES-P ( Before 01.04.98 ) 39 KK074913 CONE D24-D35X33 ( From 01.04.98 ) 40 KK075889 BUSHING D34.5-D44.5X135 41 KK075880 SLIDE BEARING W/ FLANGE D20.25X27-D30/22 42 KK075872 BRACKET FOR PARALLEL ROD 43 KK061637R STEERING PLATE 44 KK075869 BAR. LOWER 45 KK077271 PLATE LOWER 46 KK077270 PLATE UPPER 47 KK077269 BOLT D45-D12.2X270-D12.2 48 KK072617 SLIDE RAIL INNER 4H D20 49 KK072618 SLIDE RAIL INNER 6H D20 50 KK071942 SLIDE RAIL OUTER 10 HOLES D20.5 51 KK032885 HEX BOLT M20X85 10.9 52 KK032855 HEX BOLT M20X55 10.9 53 KK035219 HEX BOLT M20X220 W/ NUT ( Before 01.04.98 ) 53 KK035197 HEX BOLT M24X210 W/LOCK NUT ( From 01.04.98 ) 54 KK032754 2 BOLTS FOR BALLS M16X50 55 KK032795 HEX BOLT M16X95 10.9 56 KK012971 WASHER D50.1-D87X2 57 KK011052 ROLL PIN D12X80 GALV. 58 KK077257 CLEVIS SPECIAL W/BOLT ( Before 01.06.99 ) 58 KK081161 CLEVIS W THREAD M36 ( From 01.06.99 ) 59 KK351148 COUNTER NUT M30X3,5 ( Before 01.06.99 ) 59 KK351192 COUNTER NUT M36X4 ( From 01.06.99 ) 60 KK351170 TUBE FOR TURNBUCKLE M30X3.5 L210 ( Before 01.06.99 ) 60 KK081165 TUBE FOR TURNBUCKLE SPECIAL ( From 01.06.99 ) 61 KK351173 SCREW M30X3.5 L THREADS ( Before 01.06.99 ) 61 KK081163 SCREW W CLEVIS L M36 ( From 01.06.99 ) 62 KK010318 BOLT W/HEAD D25.3X103 63 KK011021 ROLL PIN D12X50 GALV. 64 KK126095 BOLT W-HEAD D25X212 ( Before 01.06.99 ) 64 KK077282 BOLT W/ CIRCLIP D25.4X186 ( From 01.06.99 ) 65 KK015841 NUT M24 GALV. 66 KK077085 TOPLINK
PL/RL / REAR FRAME
885
PL/RL / REAR FRAME
PosNo. Part No. Qty. Description Remark
67 KK071794 BOLT W/HEAD D35X90 68 KK076023 PRESS SPRING D12-D52X260 69 KK077050 SPRING-STAY 70 KK077055 BOLT D35-D12.2/318/D12.2 71 KK074902 BEAM SUPPORT W/BUSHINGS LS ( for RL ) 72 KK011632 SLIDE BEARING D35.35-D55.5X16 73 KK074912 BUSHING D28-D40X151 74 KK032820 HEX BOLT M20X200 10.9 75 KK029922 GREASE NIPPLE M8X1 90 DG 76 KK011277 CIRCLIP 25X1.2 NS5143 GALV. ( From 01.06.99 ) 77 KK032440 HEX BOLT M8 X 40 8.8 ( From 01.06.99 ) 78 KK077038 HOLDER FOR O-RING ( From 01.06.99 ) 79 KK077035 CARDAN JOINT OUTER ( From 01.06.99 ) 80 KK081369R PLATE FOR WHEEL ( From 15.08.00 ) 81 KK032845 HEX BOLT M20X45 10.9 ( From 15.08.00 ) 82 KK029918 GREASE NIPPLE M6 ( From 01.06.00 ) 83 KK074903 BEAM SUPPORT REAR W/BUSHINGS LS ( for RL ) ( Before 01.06.99 ) 83 KK074763 BEAM/WHEEL SUPPORT W/BUSHING LS ( for RL ) ( From 01.06.99 ) 83 KK074765 BEAM/WHEEL SUPPORT W/BUSHING LS ( for RL ) ( From 15.08.00 ) 84 KK033535 HEX BOLT M10X35 8.8 FULL THR. GALV ( From 01.06.00 ) 85 KK015813 NUT M10 GALV. ( From 01.06.00 ) 86 KK081136 CONE D24XD40X43 ( From 01.06.00 ) 87 KK013005 WASHER D25-D44X4 ( From 01.06.00 ) 88 KK081137 SCREW M24X80 SPESIAL ( From 01.06.00 ) 89 KK010168 BUSHING D16.25XD30X41 90 KK032794 2 BOLTS FOR BALLS M16X90 91 KK071259 2 BALLS M16X90 WITH LOCTITE Not ill. KK077256 STAY SPECIAL ASSEMBLED ( pos. 59 - 61 ) ( Before 01.06.99 ) Not ill. KK081160 TURNBUCKLE CPL SPECIAL PL ( pos. 59 - 61 ) ( From 01.06.99 ) Not ill. KK077107 CARDAN JOINT ASSEMBLED ( pos. 5, 6 and 9 ) ( Before 01.06.99 ) Not ill. KK081100 CARDAN JOINT CPL ( pos. 23, 34 and 79 ) ( From 01.06.99 )
PL/RL / TRUCK
883
PL/RL / TRUCK
PosNo. Part No. Qty. Description Remark
1 KK077106 WHEEL WAGON WITH BEARING 2 KK071650 AXLE W-LOCKPLATE D60X478 3 KK032750 HEX BOLT M16X50 10.9 4 KK077252 MUDGUARD RIGHT 5 KK077251 MUDGUARD LEFT 6 KK011691R STEEL BUSHING D60XD72X60 7 KK077272 AXLE D60X560 8 KK029920 GREASE NIPPLE M8X1 STRAIGHT 9 KK077275 WHEEL ARM RIGHT ( = KK 08 11 90 x 2 ) ( Before 01.04.98 ) 10 KK077276 WHEEL ARM LEFT ( = KK 08 11 90 x 2 ) ( Before 01.04.98 ) 11 KK077283 VALVE/ HOSE HOLDER 12 KK032850 HEX BOLT M20X50 10.9 13 KK032716 HEX BOLT M16X140 14 KK077274 CYLINDER BRACKET 15 KK032705 HEX BOLT M16X125 16 KK081193 TUBE D56XD86X1160 ( From 01.06.99 ) 16 KK081198 TUBE D56XD86X1020 RL ( From 01.06.99 ) 17 KK195415 U-BOLT M20-4SQ80-101 ( Before 01.06.99 ) 18 KK077250 MUDGUARD TOPLINK 19 KK035179 HEX BOLT M20X120 W/ FLANGE NUT 20 KK078898 AXLE W/LOCKPLATE D50X305 21 KK077172 SHORT LINK CHAIN 22 KK081192 ARM FOR WHEEL STRAIGHT ( From 01.06.99 ) 22 KK081197 ARM FOR WHEEL RL ( From 01.06.99 ) 23 KK081194 FIXING CLAMP FOR WHEEL BOOM ( From 01.06.99 ) 24 KK077150 WHEEL BRACKET ( Before 01.06.99 ) 24 KK081270 SUPPORT FOR WHEELS PM ( Before 01.06.99 ) 25 KK081190 ARM WELDED FOR WHEEL STRAIGHT ( From 01.04.98 - 01.06.99 ) 25 KK077291 WHEEL ARM ( From 01.04.98 - 01.06.99 ) 26 KK032908 HEX BOLT M24X150 10.9 27 KK016012 FLANGE NUT M20 ( From 01.04.02 ) 28 KK032816 HEX BOLT M20X150 10.9 ( From 01.04.02 ) 29 KK088058 AXLE DEEP PLOUGHING KIT ( From 01.04.02 ) 30 KK088057 PLATE FOR DEEP PLOUGHING KIT ( From 01.04.02 ) 31 KK354026 RUBBER BAND 32 AC661262 CARABINE HOOK Not ill. KK088056 DEEP PLOUGHING KIT PL/RL ( From 01.04.02 )

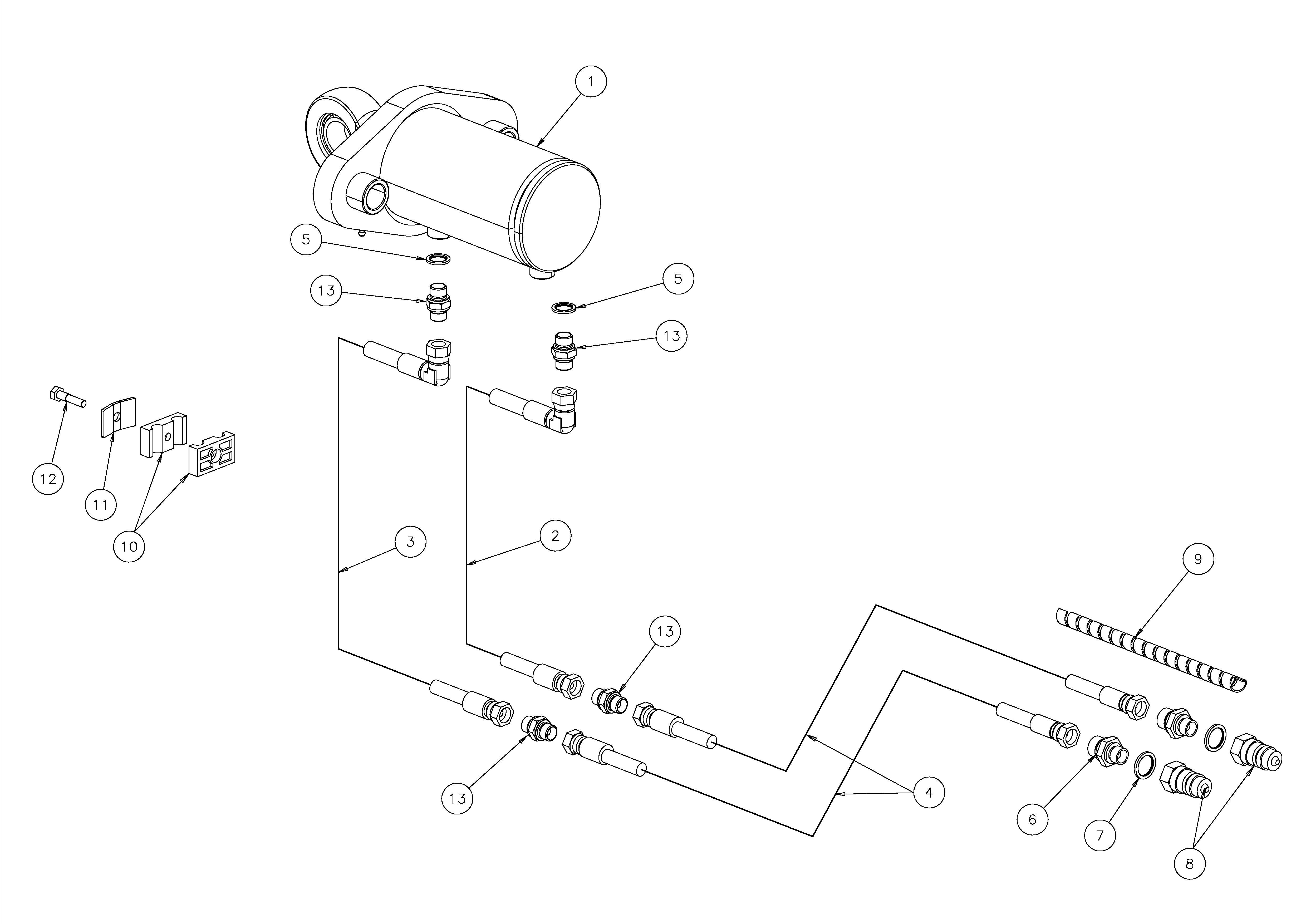

PL/RL / HYDRAULICS TURN-OVER
846
PL/RL / HYDRAULICS TURN-OVER
PosNo. Part No. Qty. Description Remark
1 KK011059 ROLL PIN D10X60 GALV. 2 KK011277 CIRCLIP 25X1.2 NS5143 GALV. 3 KK011585 SEAL RING R 3/8(INNER D17) 4 KK012059 BANJO BOLT G3/8X31 4 KK012084 BANJOBOLT 3/8X31 D2.0 RESTRICTOR ( for PM/RM when using Packomat ) 4 KK012085 BANJOBOLT 3/8X31 D2.5 RESTRICTOR ( for PL/RL when using Packomat ) 5 KK012062 BANJO G3/8- SHORT-H=17 6 KK012068 PLASTIC PART TUBE CLAMP 7 KK012069 COVER 8 KK077264 BOLT W/ GROOVE D25X73 9 KK012307 BANJO BOLT3/8X31 WITH 3/8OUTLET 10 KK012548 BANJO G3/8 WITH ADJUSTABLE END 11 KK012655 HOSE 3/8X 350 R-SV/R-SV 12 KK012158 QUICK COUPLING 1/2-3/8 W-COUPL. 13 KK078583 BOLT D35-D10.2/113/D10.2 14 KK079724 AXLE W 2 HOLES D35X88 15 KK352779 CYLINDER D100-D50X697+400 for PL/RL; Before 15.05.99; see plate no. 1025 15 KK353813 CYL. D100-D50X697+400 W.STOP NUT for PL/RL; 15.05.99 - 01.10.00; see plate no. 1084 15 KK353834 CYL. D100-D50X697+400 W.STOP NUT ( for PL/RL ) ( From 01.10.00 ) ( Before 01.06.04 ) ( see plate no. 1145 ) 15 KK354600 SYL.D100/D50X697+400 W/STOP FOR PL/RL; 01.06.04 - 15.02.06; see plate no. 1283 15 KK354712 CYLINDER D100-D50X697+400 FOR PL/RL; FROM 15.02.06 15 KK352787 CYLINDER D75-D50X697+400 ( for PM/RM ) ( see plate no. 1025 ) ( before 01.07.04 ) 15 KK354523 CYLINDER D75/D50 X 697 + 400 ( for PM/RM ) ( from 01.07.04 ) ( see plate no. 1284 ) 16 KK353706 CYL.D75-D35X520+200 OFFSET 90 DEG ( optional equipment for PM/RM ) ( Before 01.10.00 ) ( see plate no. 890 ) 16 KK352777 CYLINDER D80-D40X510+240 From 01.10.00, ( serial no. PL229, RL138, PM179 and RM131 ) to 01.07.04 ( see plate no. 1104 ) 16 KK354524 CYLINDER D80/D40 X 510 + 240 ( From 01.07.04 ) 17 KK032335 HEX BOLT M6 X 35 PARTLY THREAD 18 KK012723 VALVE R3/8 WITH HANDLE 20 KK012339 VALVE 4/2 HAWE ( optional equipment for PM/RM ) 21 KK011541 HOSE 3/8X700 R-SV/90-SV ( optional equipment for PM/RM ) 22 KK012773 HOSE 3/8X1300 R-SV/R-SV ( optional equipment for PM/RM ) 23 KK012778 HOSE 3/8X1000 R-SV/R-SV ( optional equipment for PM/RM ) 24 KK012796 HOSE 3/8X5000 R-SV/R-SV 25 KK012522 PLASTIC TUBE CLAMP CF2-2TUBE D18 26 KK012324 COVER TUBE CLAMP 27 KK032465 HEX BOLT M8 X 65 28 KK012261 COUPLING 3/8-3/8
PL/RL / HYDRAULICS TURN-OVER
846
PL/RL / HYDRAULICS TURN-OVER
PosNo. Part No. Qty. Description Remark
29 KK015811 NUT M8 30 KK077682 BALL FOR VALVE 31 KK012060 COUPLING 3/8-1/2 U/INNER 32 KK011565 SEAL RING R 1/2 ( INNER D21) 33 KK012570 DOUBLE BANJO 3/8-3/8 H=17 34 KK012551 BANJO BOLT 3/8X31 WITH FILTER 35 KK013518 COUPLING 1/4X3/8 BSP FEMALE 36 KK013522 HOSE D6X1800 NITRIK 37 KK012700 CLAMP FOR 1/4HOSE - D20 38 KK012730 90 DEG MALE-FEMALE ADJUSTABLE ADAPTOR 39 KK012980 WASHER D25.5-D35X0.5 40 KK352246 SPACER D70-D50X35 41 KK082171 AXLE WITH LOCK ( From 01.10.00, serial no. PL229, RL138, PM179 and RM131 )
42 KK067016R BOLT Ø25 FOR CLEVIS 43 KK011037 ROLL PIN D10X40 GALV.

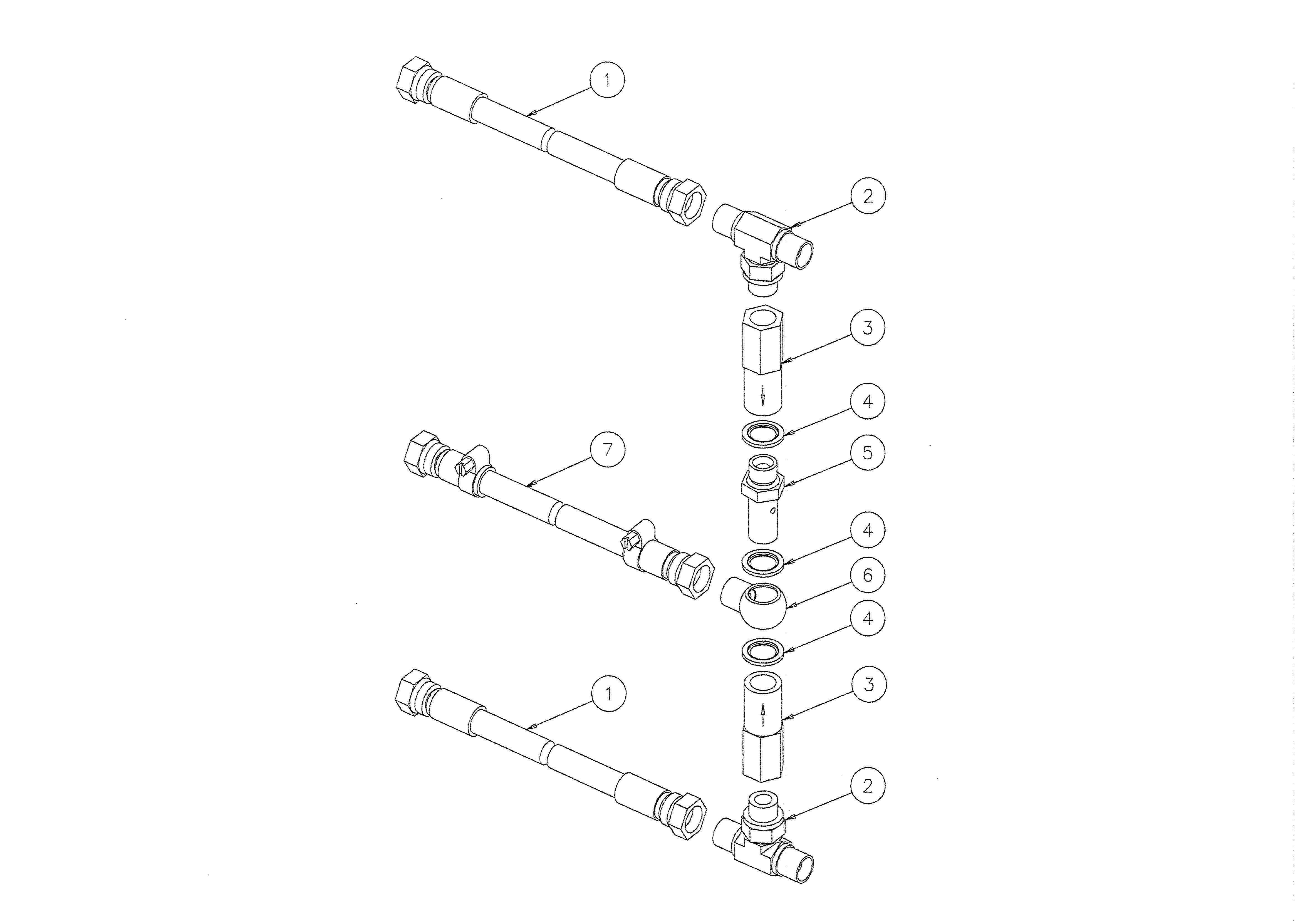

PL/RL / RELIEF VALVE KIT
1266
PL/RL / RELIEF VALVE KIT
PosNo. Part No. Qty. Description Remark
1 KK012655 HOSE 3/8X 350 R-SV/R-SV 2 KK012325 T-COUPLING 3X3/8 COUNTER NUT 7414 3 KK013517 PRESS. RELIEVE VALVE 250 BAR G3/8 4 KK011585 SEAL RING R 3/8(INNER D17) 5 KK012307 BANJO BOLT3/8X31 WITH 3/8OUTLET 6 KK012062 BANJO G3/8- SHORT-H=17 7 KK013519 HOSE D6X1000 NITRIK

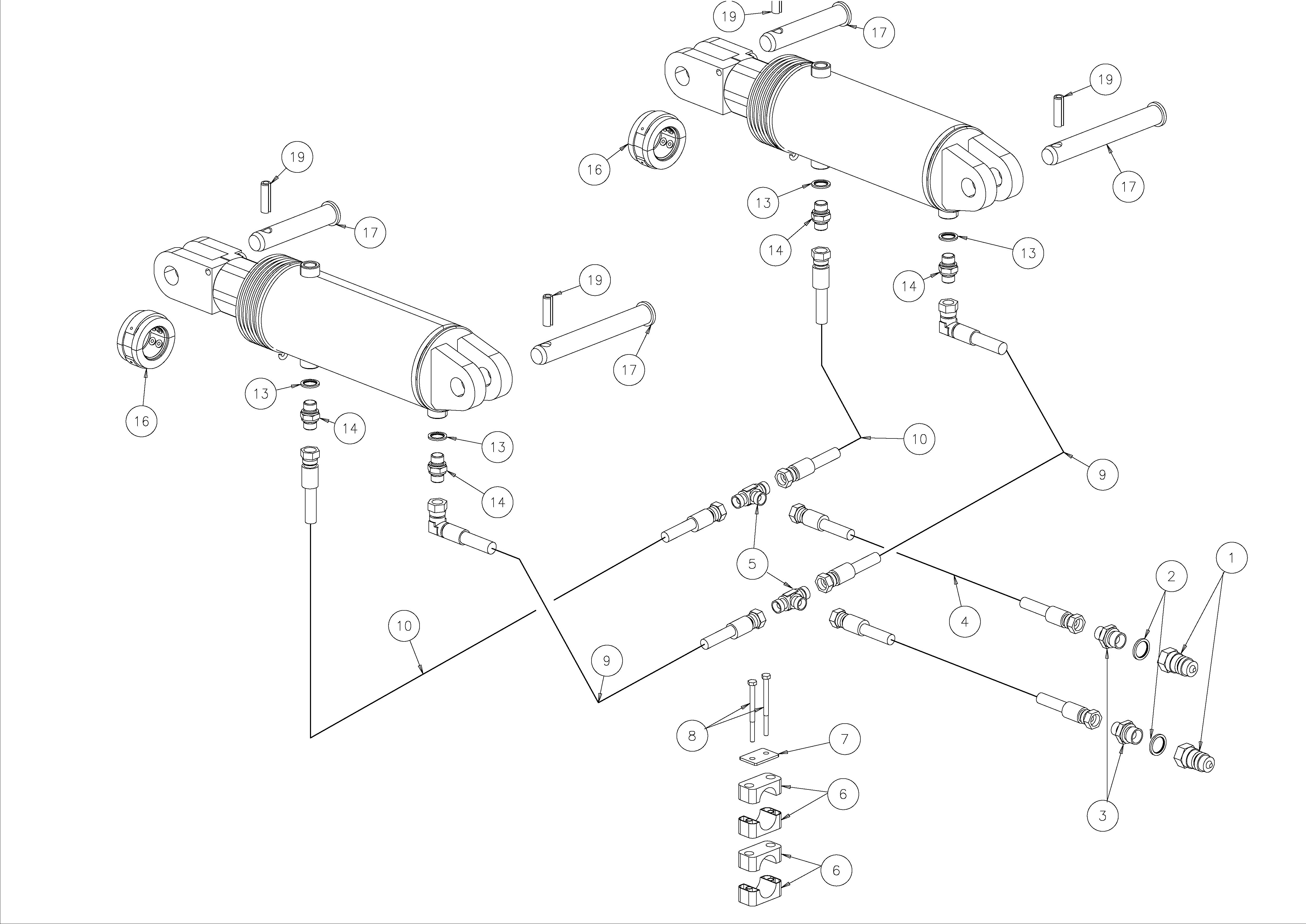

PL/RL / HYDRAULICS WHEEL LIFTING
602
PL/RL / HYDRAULICS WHEEL LIFTING
PosNo. Part No. Qty. Description Remark
1 KK012158 QUICK COUPLING 1/2-3/8 W-COUPL. 2 KK011565 SEAL RING R 1/2 ( INNER D21) 3 KK012060 COUPLING 3/8-1/2 U/INNER 4 KK012779 HOSE 3/8X7000 R-SV/R-SV 4 KK012780 HOSE 3/8X8000 R-SV/R-SV 4 KK012781 HOSE 3/8X9000 R-SV/R-SV 5 KK012120 T-COUPLING 3X3/8 OUTS.THREAD 6 KK012068 PLASTIC PART TUBE CLAMP 7 KK012069 COVER 8 KK032380 HEX BOLT M6 X 80 9 KK012656 SLANGE 3/8X 350 R-SV/90-SV 10 KK012208 HOSE 3/8X500 R-SV/90-SV 13 KK011585 SEAL RING R 3/8(INNER D17) 14 KK012261 COUPLING 3/8-3/8 15 KK353370 CYLINDER D100-D40X510+215 ( see plate no. 1026 ) ( Before 01.06.00 ) 15 KK353837 CYL D100-D40X520+200 W.STOP&BELLOW ( see plate no. 1129 ) ( From 01.06.00 ) ( Before 01.08.04 ) 15 KK354526 CYLINDER D100/D40 X520 + 200 ( see plate no. 1290 ) ( From 01.08.04 ) 16 KK352238 SPACER D70-D40X35 ALU ( Before 01.03.98 ) 16 KK352247 SPACER D70-D40X35 ( From 01.03.98 ) 17 KK010319 BOLT W/ HEAD D25.3X120 18 KK010337 BOLT W/HEAD D25.3X180 19 KG01195400 TENSION PIN 12X40
PL/RL / HYDRAULICS TOP LINK
1017
PL/RL / HYDRAULICS TOP LINK
PosNo. Part No. Qty. Description Remark
1 KK352782 CYLINDER D100-D40X320+117 ( before 01.01.05; see plate no. 1022 ) 1 KK354722 CYL D100-D40X320+117 ( from 01.01.05; see plate 1311 2 KK011538 HOSE 3/8X1000 R-SV/90-SV 3 KK012212 HOSE 3/8X900 R-SV/90-SV 4 KK012781 HOSE 3/8X9000 R-SV/R-SV 5 KK011585 SEAL RING R 3/8(INNER D17) 6 KK012060 COUPLING 3/8-1/2 U/INNER 7 KK011565 SEAL RING R 1/2 ( INNER D21) 8 KK012158 QUICK COUPLING 1/2-3/8 W-COUPL. 9 KK011596 HOSE WRAPPER D12.5X250 10 KK012522 PLASTIC TUBE CLAMP CF2-2TUBE D18 11 KK012324 COVER TUBE CLAMP 12 KK032435 HEX BOLT 8 X 35 PARTLY THREAD 12 KK032470 HEX BOLT M8X70 13 KK012261 COUPLING 3/8-3/8

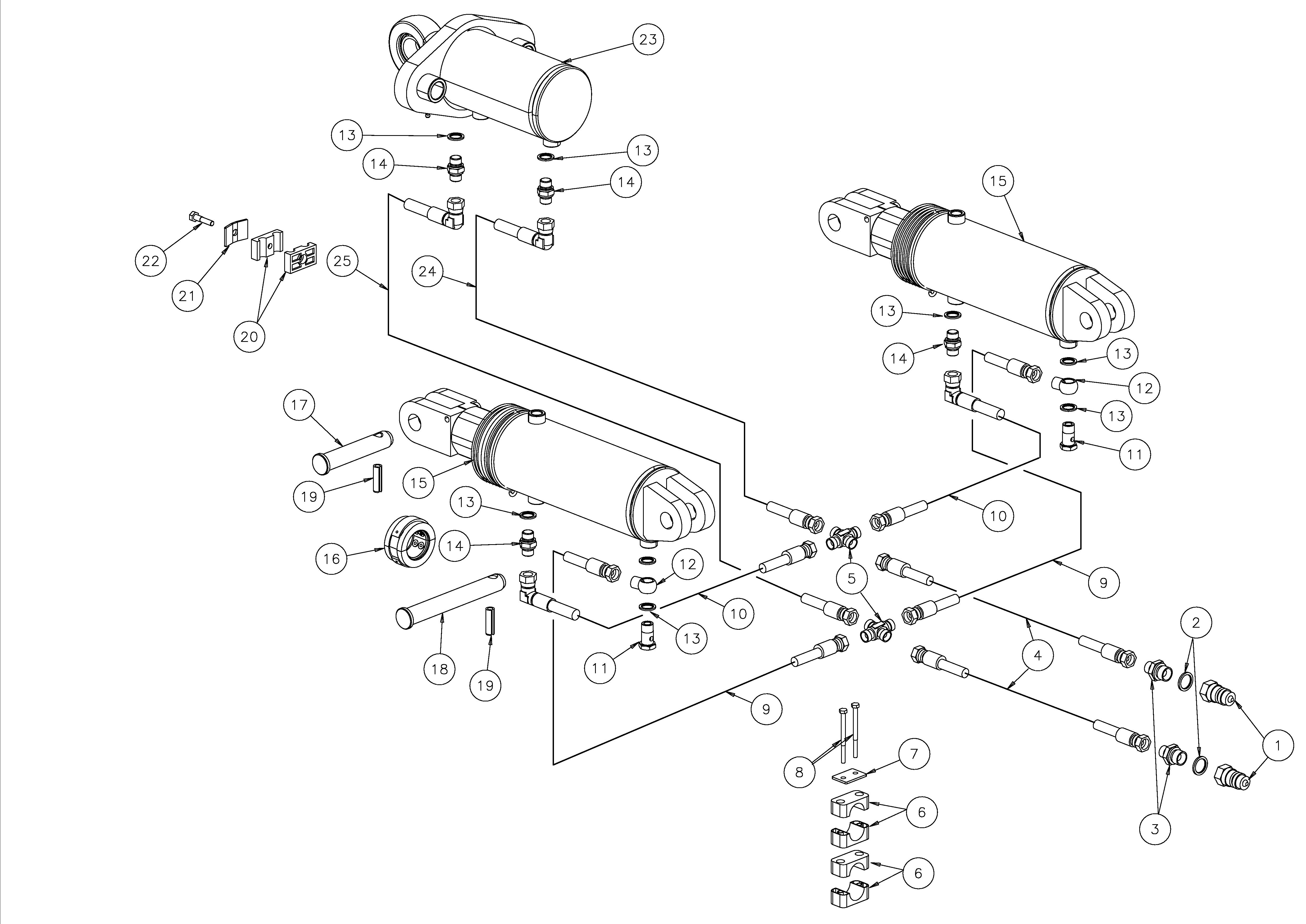

1090
PosNo. Part No. Qty. Description Remark
1 KK012158 QUICK COUPLING 1/2-3/8 W-COUPL. 2 KK011565 SEAL RING R 1/2 ( INNER D21) 3 KK012060 COUPLING 3/8-1/2 U/INNER 4 KK012779 HOSE 3/8X7000 R-SV/R-SV 4 KK012780 HOSE 3/8X8000 R-SV/R-SV 4 KK012781 HOSE 3/8X9000 R-SV/R-SV 5 KK012123 K-COUPLING 4X3/8 OUTS. THREAD 6 KK012068 PLASTIC PART TUBE CLAMP 7 KK012069 COVER 8 KK032380 HEX BOLT M6 X 80 9 KK012652 HOSE 1/4 X 400 R-SV/90-SV 10 KK012670 HOSE 1/4X500 R-SV/R-SV 11 KK012059 BANJO BOLT G3/8X31 12 KK012062 BANJO G3/8- SHORT-H=17 13 KK011585 SEAL RING R 3/8(INNER D17) 14 KK012261 COUPLING 3/8-3/8 15 KK353370 CYLINDER D100-D40X510+215 ( see plate no. 1026 ) ( Before 01.06.00 ) 15 KK353837 CYL D100-D40X520+200 W.STOP&BELLOW ( see plate no. 1129 ) ( From 01.06.00 ) ( Before 01.08.04 ) 15 KK354526 CYLINDER D100/D40 X520 + 200 ( see plate no. 1290 ) ( From 01.08.04 ) 16 KK352238 SPACER D70-D40X35 ALU ( Before 01.03.98 ) 16 KK352247 SPACER D70-D40X35 ( From 01.03.98 ) 17 KK010319 BOLT W/ HEAD D25.3X120 18 KK010337 BOLT W/HEAD D25.3X180 19 KG01195400 TENSION PIN 12X40 20 KK012522 PLASTIC TUBE CLAMP CF2-2TUBE D18 21 KK012324 COVER TUBE CLAMP 22 KK032435 HEX BOLT 8 X 35 PARTLY THREAD 22 KK032470 HEX BOLT M8X70 23 KK352782 CYLINDER D100-D40X320+117 ( see plate no. 1022 ) ( Before 01.01.05 ) 23 KK354722 CYL D100-D40X320+117 ( see plate no. 1311; From 01.01.05 ) 24 KK011538 HOSE 3/8X1000 R-SV/90-SV 25 KK012212 HOSE 3/8X900 R-SV/90-SV

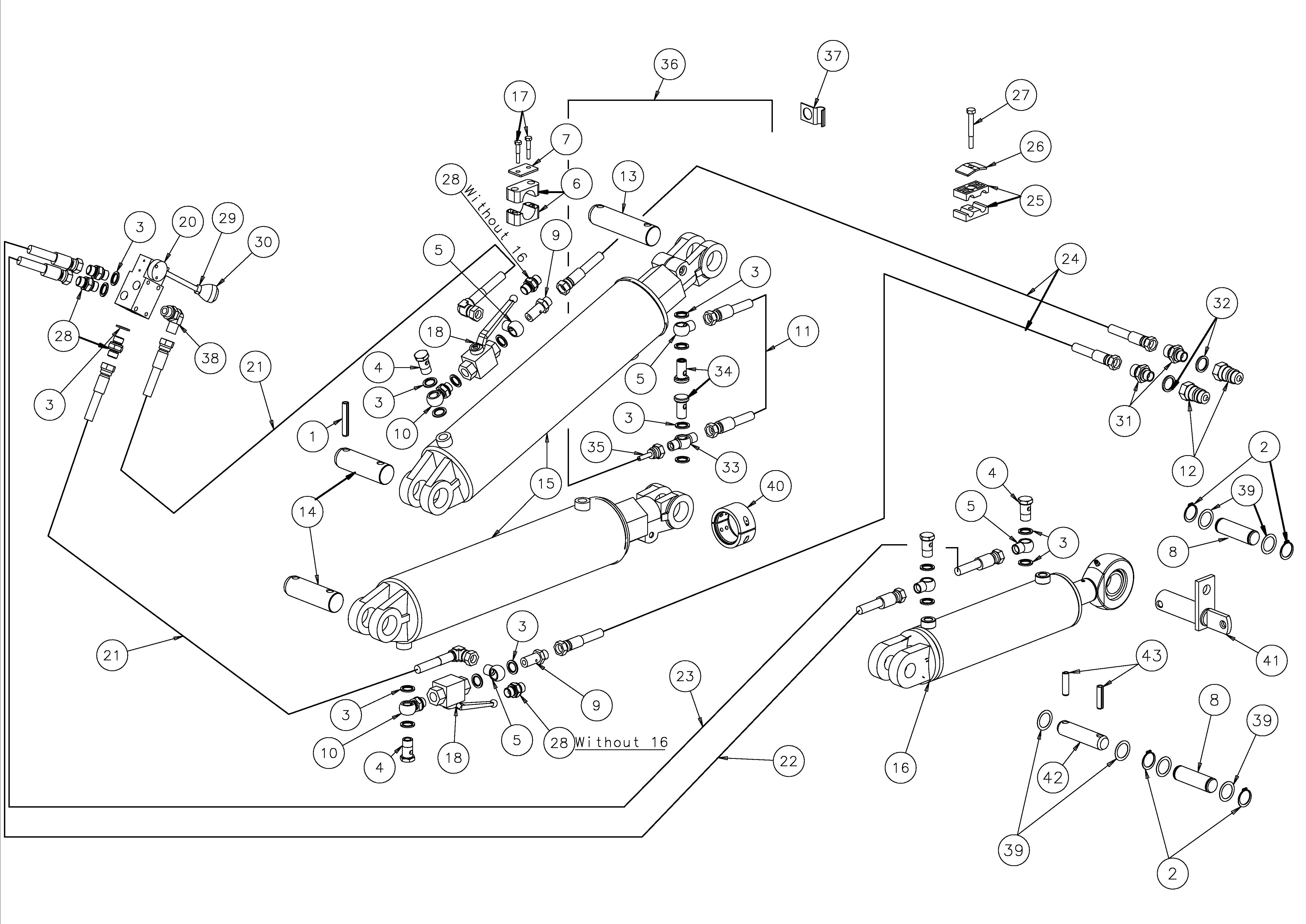

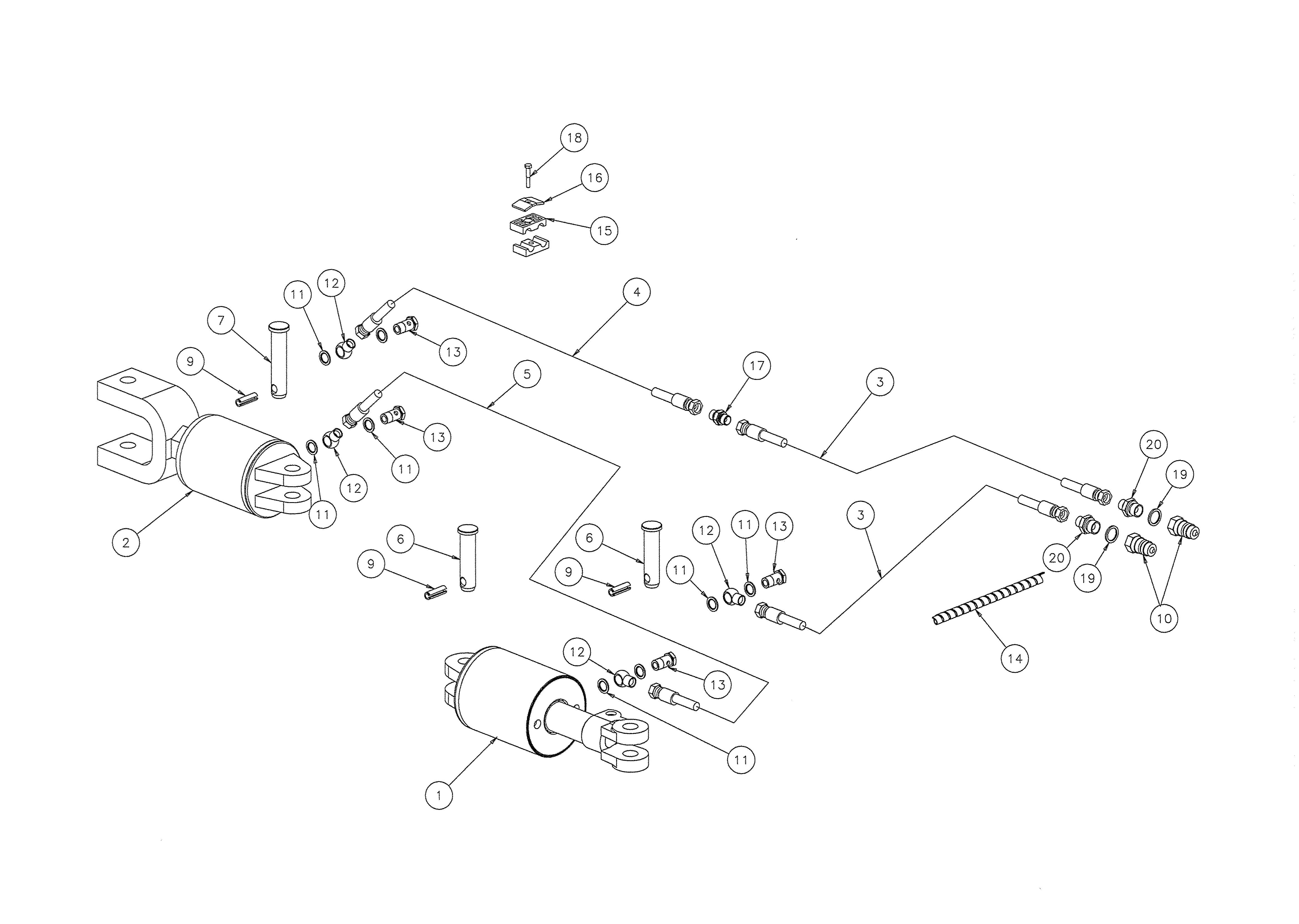

PL/RL / HYDRAULICS FURROW ADJUSTMENT
1018
PL/RL / HYDRAULICS FURROW ADJUSTMENT
PosNo. Part No. Qty. Description Remark
1 KK353535 CYLINDER D125-D50X354+73 ( see plate no. 1024 ) ( Before 01.02.04 ) 1 KK354516 SYLINDER ( see plate no. 1288 ) ( From 01.02.04 ) 2 KK353536 CYLINDER D125-D50X354+73 ( see plate no. 1023 ) ( Before 01.02.04 ) 2 KK354517 SYLINDER ( see plate no. 1289 ) ( From 01.02.04 ) 3 KK012781 HOSE 3/8X9000 R-SV/R-SV 4 KK012363 HOSE 3/8X2000 R-SV/R-SV 5 KK012659 HOSE 3/8X4200 R-SV/90-SV 6 KK010332 BOLT W/HEAD D25.3X85 7 KK010318 BOLT W/HEAD D25.3X103 9 KG01195400 TENSION PIN 12X40 10 KK012158 QUICK COUPLING 1/2-3/8 W-COUPL. 11 KK011585 SEAL RING R 3/8(INNER D17) 12 KK012062 BANJO G3/8- SHORT-H=17 13 KK012059 BANJO BOLT G3/8X31 14 KK011596 HOSE WRAPPER D12.5X250 15 KK012522 PLASTIC TUBE CLAMP CF2-2TUBE D18 16 KK012324 COVER TUBE CLAMP 17 KK012261 COUPLING 3/8-3/8 18 KK032435 HEX BOLT 8 X 35 PARTLY THREAD 18 KK032470 HEX BOLT M8X70 19 KK011565 SEAL RING R 1/2 ( INNER D21) 20 KK012060 COUPLING 3/8-1/2 U/INNER

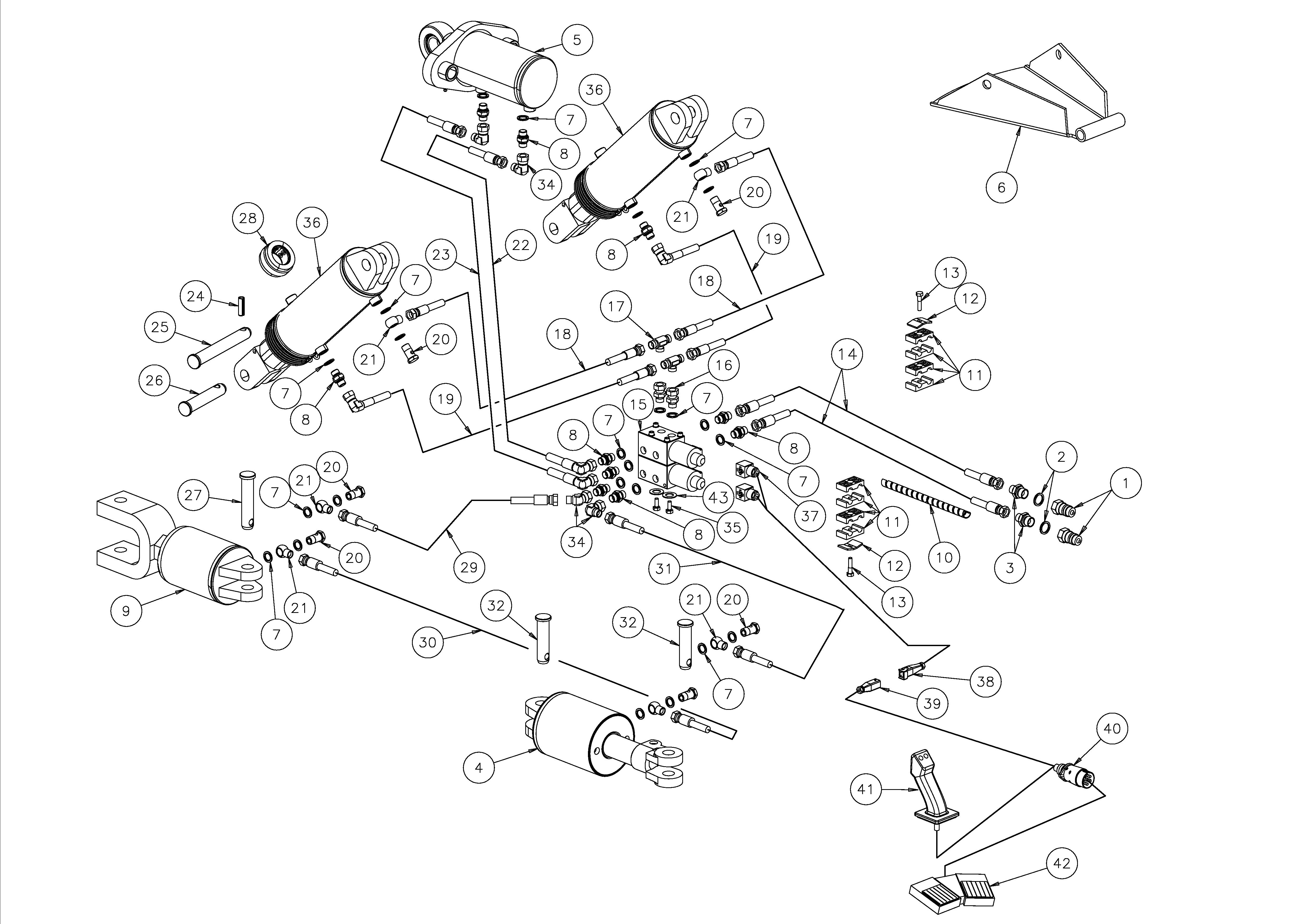

PL/RL / HYDRAULICS LIFTING + TOP LINK + FURROW ADJUSTMENT
888
PL/RL / HYDRAULICS LIFTING + TOP LINK + FURROW ADJUSTMENT
PosNo. Part No. Qty. Description Remark
1 KK012158 QUICK COUPLING 1/2-3/8 W-COUPL. 2 KK011565 SEAL RING R 1/2 ( INNER D21) 3 KK012060 COUPLING 3/8-1/2 U/INNER 4 KK353535 CYLINDER D125-D50X354+73 ( see plate no. 1024 ) ( Before 01.02.04 ) 4 KK354516 SYLINDER ( see plate no. 1288 ) ( From 01.02.04 ) 5 KK352782 CYLINDER D100-D40X320+117 ( see plate no. 1022 ) ( Before 01.01.05 ) 5 KK354722 CYL D100-D40X320+117 ( see plate no. 1311 ) ( From 01.01.05 ) 6 KK077226 FIX FOR HOSE ( Before 01.01.98 ) 7 KK011585 SEAL RING R 3/8(INNER D17) 8 KK012261 COUPLING 3/8-3/8 9 KK353536 CYLINDER D125-D50X354+73 ( see plate no. 1023 ) ( Before 01.02.04 ) 9 KK354517 SYLINDER ( see plate no. 1289 ) ( From 01.02.04 ) 10 KK011596 HOSE WRAPPER D12.5X250 11 KK012522 PLASTIC TUBE CLAMP CF2-2TUBE D18 12 KK012324 COVER TUBE CLAMP 13 KK032435 HEX BOLT 8 X 35 PARTLY THREAD 13 KK032465 HEX BOLT M8 X 65 14 KK012779 HOSE 3/8X7000 R-SV/R-SV 14 KK012780 HOSE 3/8X8000 R-SV/R-SV 14 KK012781 HOSE 3/8X9000 R-SV/R-SV 14 KK012778 HOSE 3/8X1000 R-SV/R-SV ( together with kk 01 27 81 when using 9 furrow ) 15 KK012543 EL-VALVE 2-BLOCKS 16 KK012319 COUPLING 3/8SWIVEL-3/8 OUTS. 17 KK012120 T-COUPLING 3X3/8 OUTS.THREAD 18 KK012670 HOSE 1/4X500 R-SV/R-SV 19 KK012652 HOSE 1/4 X 400 R-SV/90-SV 20 KK012059 BANJO BOLT G3/8X31 21 KK012062 BANJO G3/8- SHORT-H=17 22 KK012212 HOSE 3/8X900 R-SV/90-SV 23 KK011538 HOSE 3/8X1000 R-SV/90-SV 24 KG01195400 TENSION PIN 12X40 25 KK010337 BOLT W/HEAD D25.3X180 26 KK010319 BOLT W/ HEAD D25.3X120 27 KK010318 BOLT W/HEAD D25.3X103 28 KK352238 SPACER D70-D40X35 ALU ( Before 01.03.98 ) 28 KK352247 SPACER D70-D40X35 ( From 01.03.98 ) 29 KK012363 HOSE 3/8X2000 R-SV/R-SV 30 KK012659 HOSE 3/8X4200 R-SV/90-SV 31 KK012795 HOSE 3/8X2500 R-SV/R-SV 32 KK010332 BOLT W/HEAD D25.3X85
PL/RL / HYDRAULICS LIFTING + TOP LINK + FURROW ADJUSTMENT
888
PL/RL / HYDRAULICS LIFTING + TOP LINK + FURROW ADJUSTMENT
PosNo. Part No. Qty. Description Remark
33 KK012526 45 DEG ANGLE 3/8SV/3/8OUTW. 34 KK012056 90 DEG MALE-FEMALE G3/8 ADAPTOR 35 KK033420 HEX BOLT M8X20 FULL THREAD GALV. 36 KK353370 CYLINDER D100-D40X510+215 ( see plate no. 1026 ) ( Before 01.06.00 ) 36 KK353837 CYL D100-D40X520+200 W.STOP&BELLOW ( see plate no. 1129 ) ( From 01.06.00 ) 36 KK354526 CYLINDER D100/D40 X520 + 200 ( see plate no. 1290 ) ( From 01.08.04 ) 37 KK012505 COIL PLUG 38 KK012554 SOCKET 2+J WITH SECURITY CLIP STAK20 ( female ) 39 KK012555 PLUGG 2+J. STAS20 ( male ) 40 KK012517 JOYSTICK WITH 2 SWITCHES 41 KK012503 PLUG 7-PINS FOR TRAILER 42 KK013571 EL-FOOT PEDAL KIT HEGRA EL.6289 SB 43 KK012994 WASHER D8.4XD16X1.6 GALV. Not ill. KK012536 EL.-CONTR. KPL/8-WAY VTL ( =KK 01 35 63 + KK 01 35 60 ) Not ill. KK012533 EL.-CONTR. KPL/8-WAY VTL ( =KK 01 35 63 + KK 01 35 70 ) Not ill. KK013563 EL-PARTS PLRL ( 2 x pos 37 and 38 ) Not ill. KK013570 FOOT PEDAL + EL-PARTS TRACTOR SIDE ( pos 42 + 40 + 39 ) Not ill. KK013560 JOYSTICK+ EL-PARTS TRACTOR SIDE ( pos 41 + 40 + 39 )

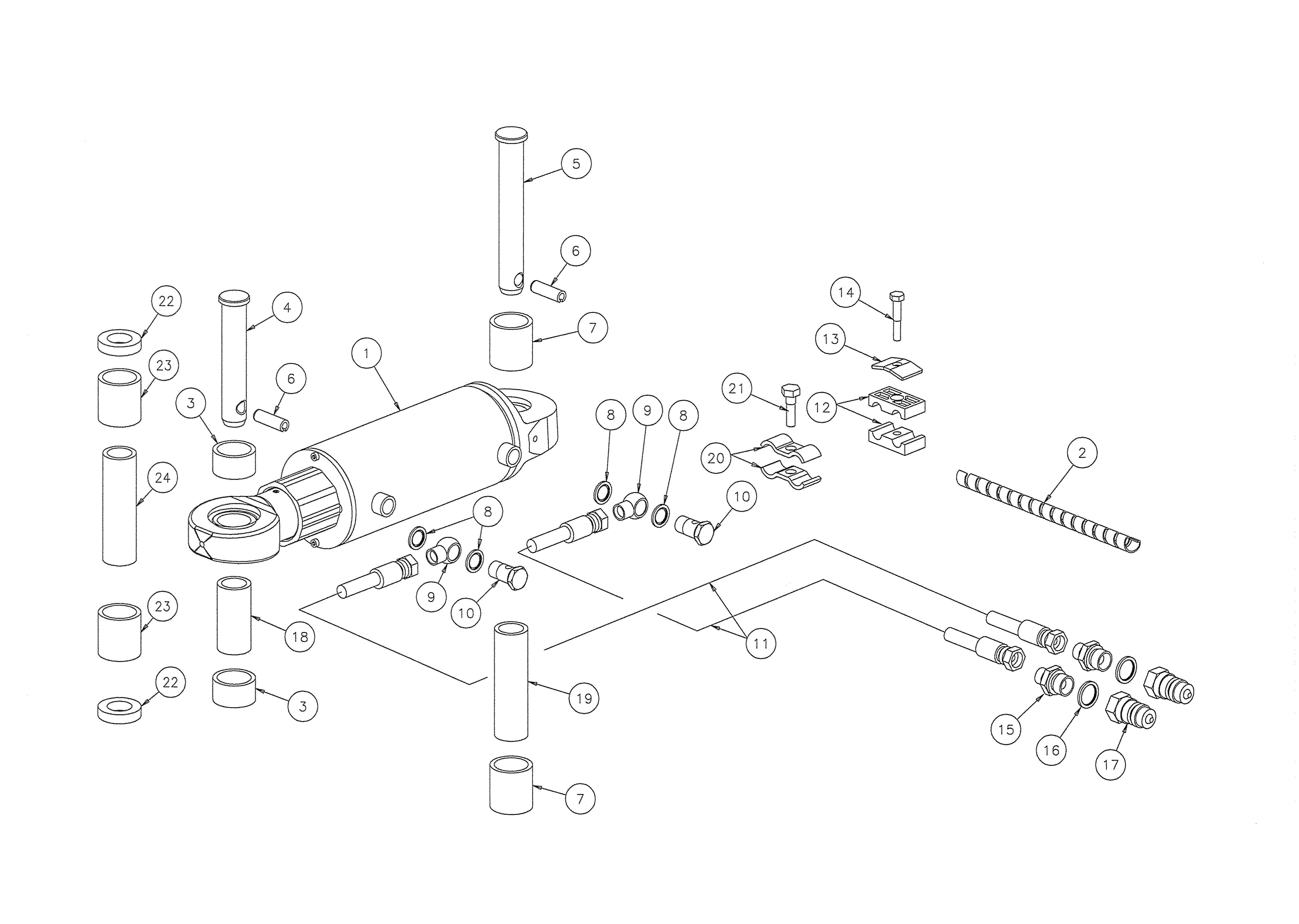

1199
PosNo. Part No. Qty. Description Remark
1 KK353580 CYL.D90-D35X385+150 ( see plate no. 1063 ) 2 KK011596 HOSE WRAPPER D12.5X250 3 KK077029 BUSHING D35.5-D40X24 ( for PL/RL ) 3 KK077027 BUSHING ( for PM/RM ) 4 KK010319 BOLT W/ HEAD D25.3X120 ( for PL/RL ) 4 KK010335 BOLT W/HEAD D25.3X155 ( for PM/RM ) 4 KK126095 BOLT W-HEAD D25X212 ( for PM, from 05.03.04 ) 5 KK010335 BOLT W/HEAD D25.3X155 6 KG01195400 TENSION PIN 12X40 7 KK077027 BUSHING 8 KK011585 SEAL RING R 3/8(INNER D17) 9 KK012062 BANJO G3/8- SHORT-H=17 10 KK012059 BANJO BOLT G3/8X31 11 KK011512 HOSE 3/8X4500 R-SV/R-SV 12 KK012522 PLASTIC TUBE CLAMP CF2-2TUBE D18 13 KK012324 COVER TUBE CLAMP 14 KK032445 HEX BOLT M8 X 45 15 KK012060 COUPLING 3/8-1/2 U/INNER 16 KK011565 SEAL RING R 1/2 ( INNER D21) 17 KK012158 QUICK COUPLING 1/2-3/8 W-COUPL. 18 KK077028 BUSHING D26-D35X73 ( for PL/RL ) 18 KK077026 BUSHING D26-D35X118 ( for PM/RM ) 19 KK077026 BUSHING D26-D35X118 20 KK061942 CLAMP FOR 2 HOSES. STEEL 21 KK033535 HEX BOLT M10X35 8.8 FULL THR. GALV 22 KK013000 WASHER D26-D45X10 ( for PM, from 05.03.04 ) 23 KK077027 BUSHING ( for PM, from 05.03.04 ) 24 KK077026 BUSHING D26-D35X118 ( for PM, from 05.03.04 )

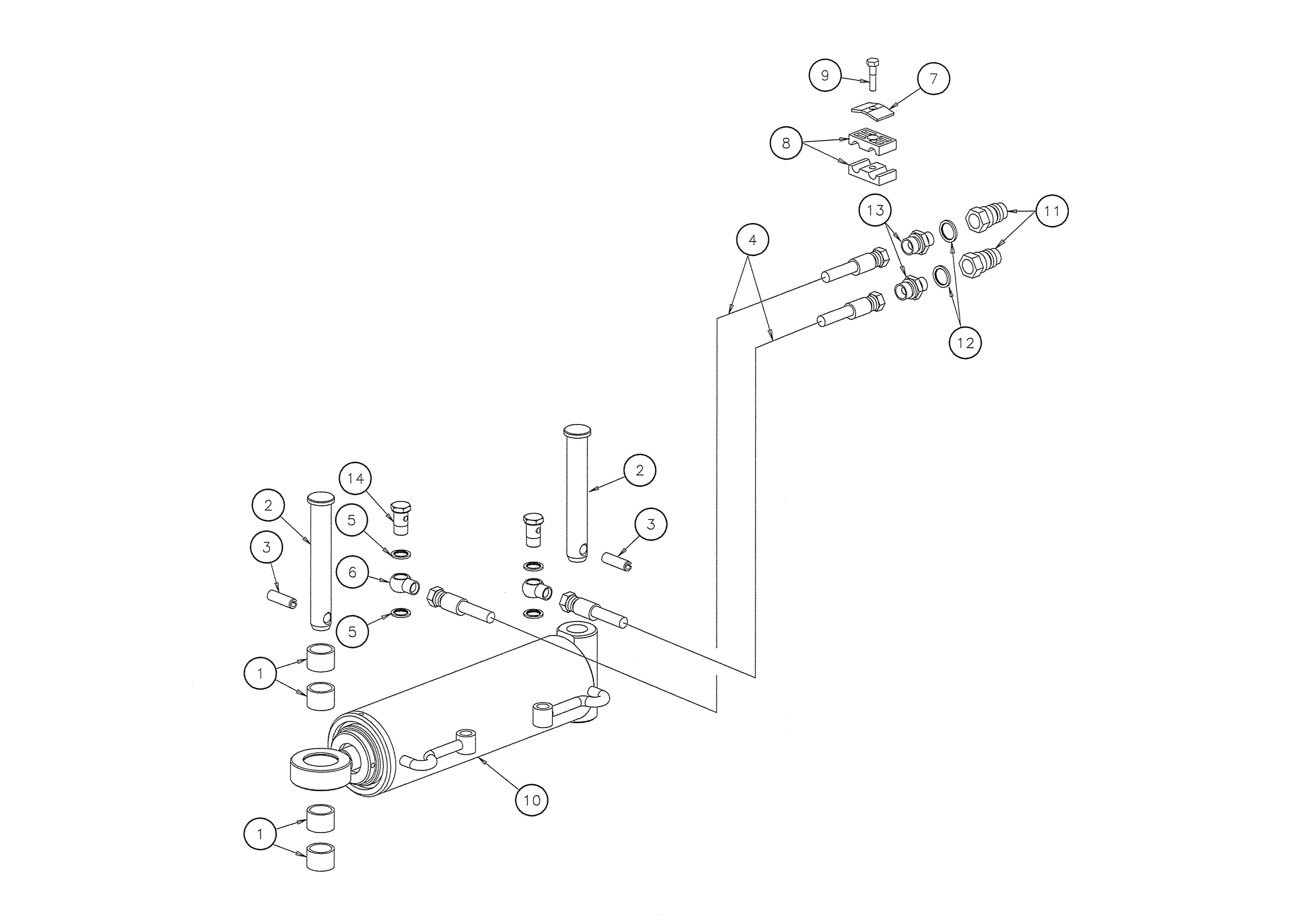

1020
PosNo. Part No. Qty. Description Remark
1 KK124157 BUSHING D27.3-D33.8X24 ( From 01.08.00 ) 2 KK010335 BOLT W/HEAD D25.3X155 3 KG01195400 TENSION PIN 12X40 4 KK011523 HOSE 3/8X4500 R-SV/90-SV 5 KK011585 SEAL RING R 3/8(INNER D17) 6 KK012062 BANJO G3/8- SHORT-H=17 7 KK012324 COVER TUBE CLAMP 8 KK012522 PLASTIC TUBE CLAMP CF2-2TUBE D18 9 KK032445 HEX BOLT M8 X 45 10 KK353534 TELESCOP CYL.D95-D60X445+585 ( see plate no. 1027 ) ( Before 01.08.00 ) 10 KK353634 TELESCOPE CYL.D95-D60X457+585 ( see plate no. 1169 ) ( From 01.08.00 ) 11 KK012158 QUICK COUPLING 1/2-3/8 W-COUPL. 12 KK011565 SEAL RING R 1/2 ( INNER D21) 13 KK012060 COUPLING 3/8-1/2 U/INNER 14 KK012059 BANJO BOLT G3/8X31

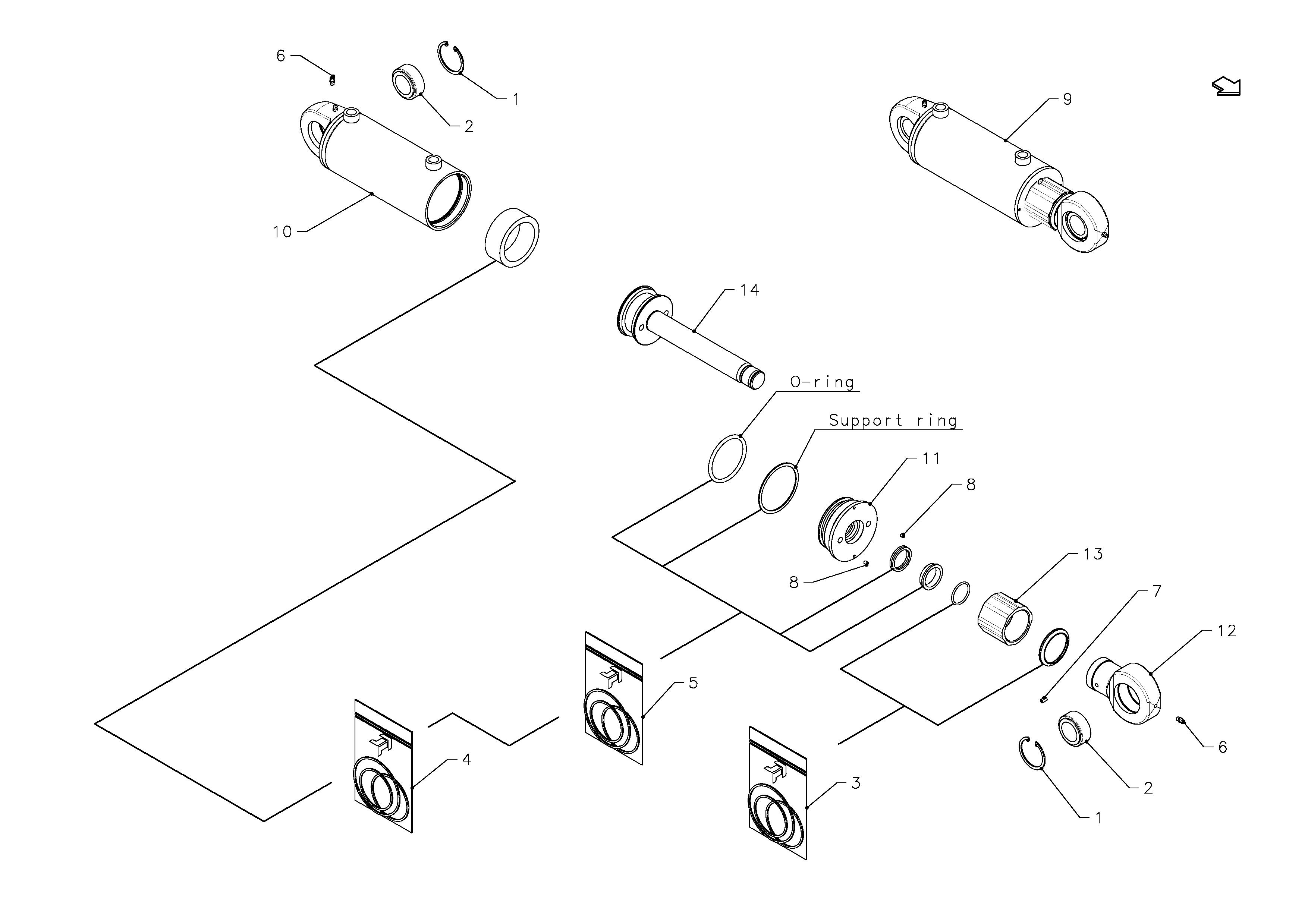

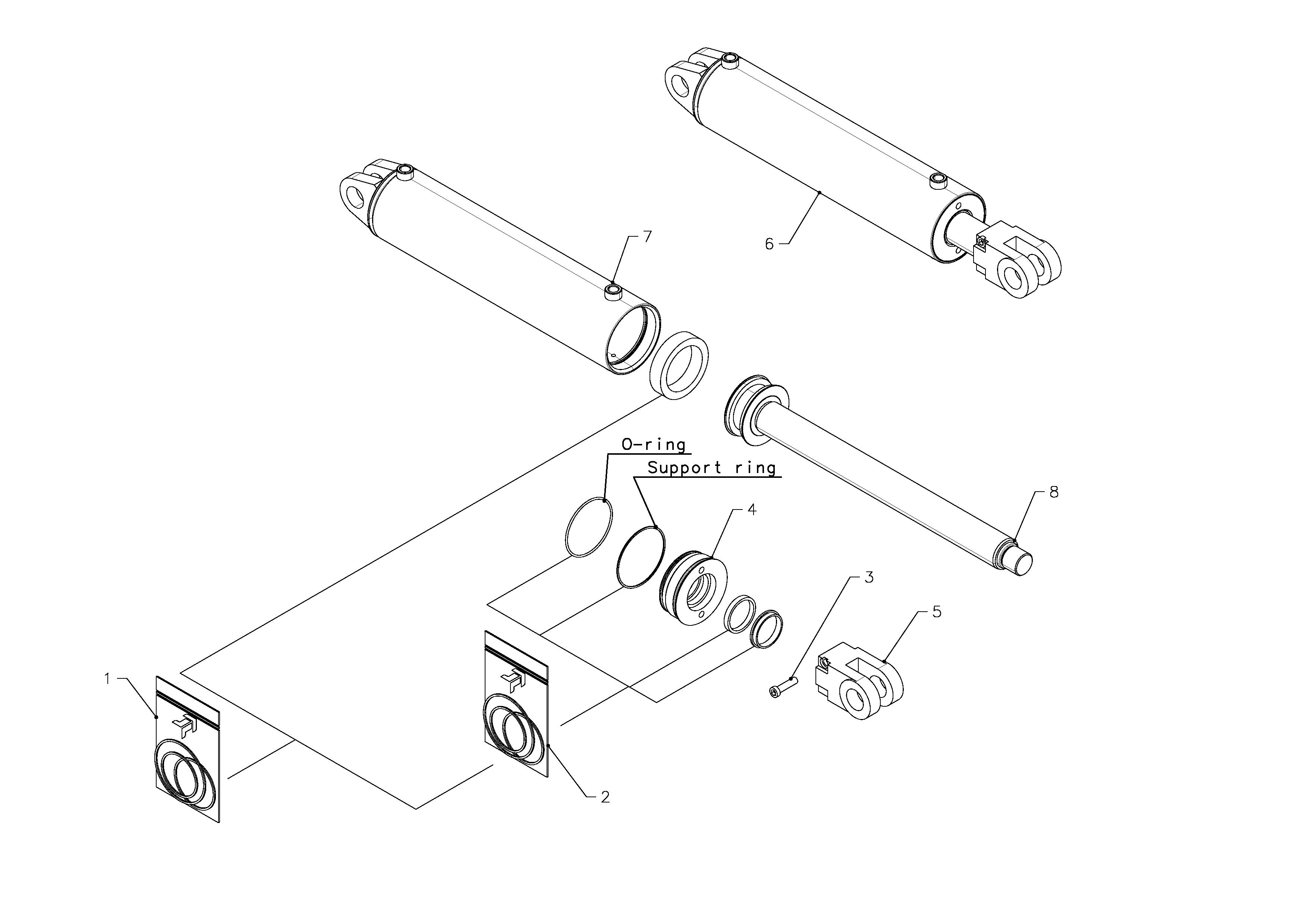

PL/RL / CYLINDER D100-D50X697+400
SPMKK000062
PL/RL / CYLINDER D100-D50X697+400
PosNo. Part No. Qty. Description Remark
1 KK016592 SEAL KIT D100-D50 2 KK016601 SEAL KIT D100-D50 3 KK032040 CHEESE HEAD SCREW W.INNER HEX M10X40 4 KK353559R FRONT GABLE Ø 100/50 F.353537 5 KK354586R CLEVIS M36X2 D35,1 6 KK354711 CYLINDER D100-D50X697+400 7 KK354760R CYLINDER TUBE D100X400 8 KK354761R PISTON ROD W PISTON D100-D50X400

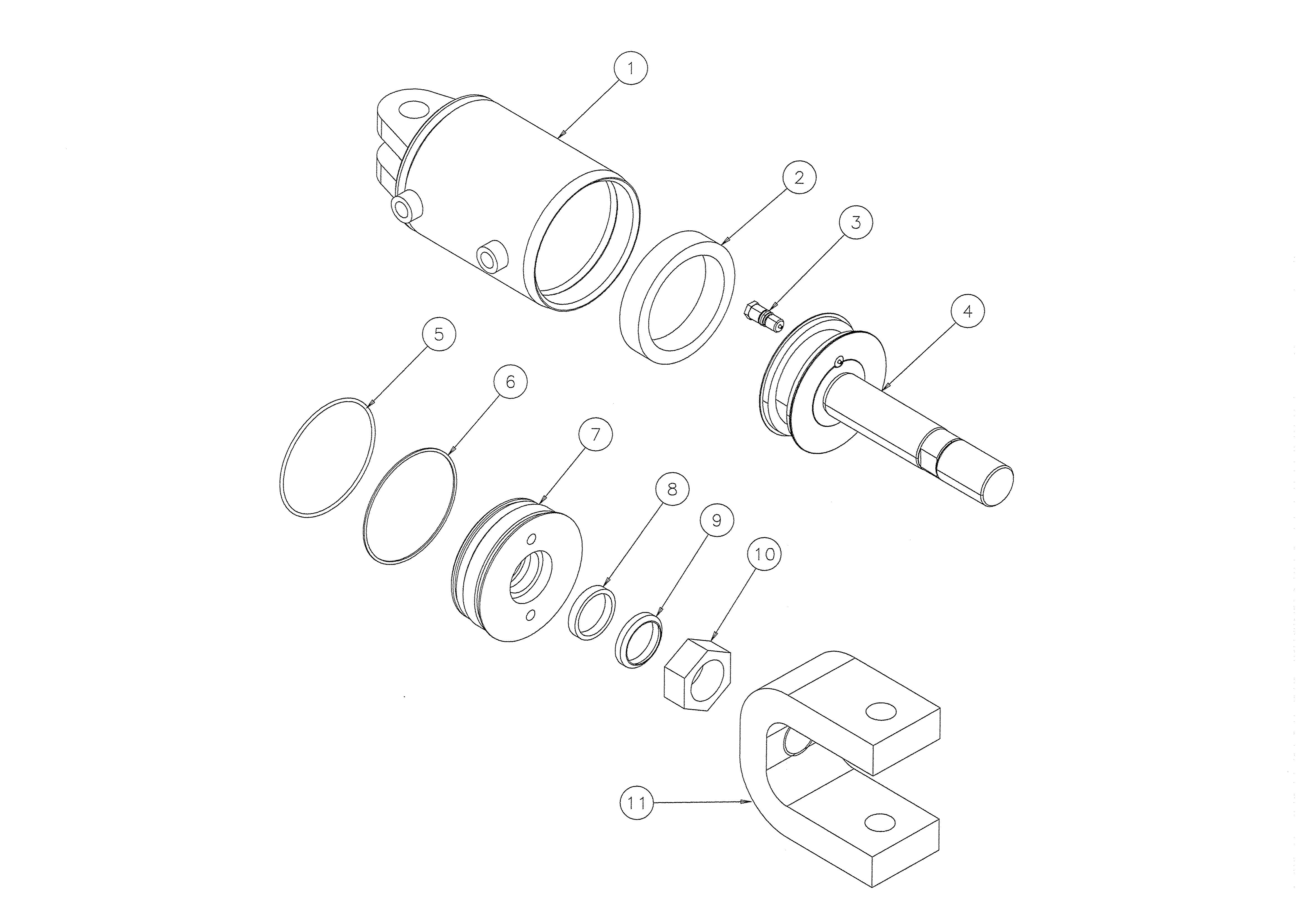

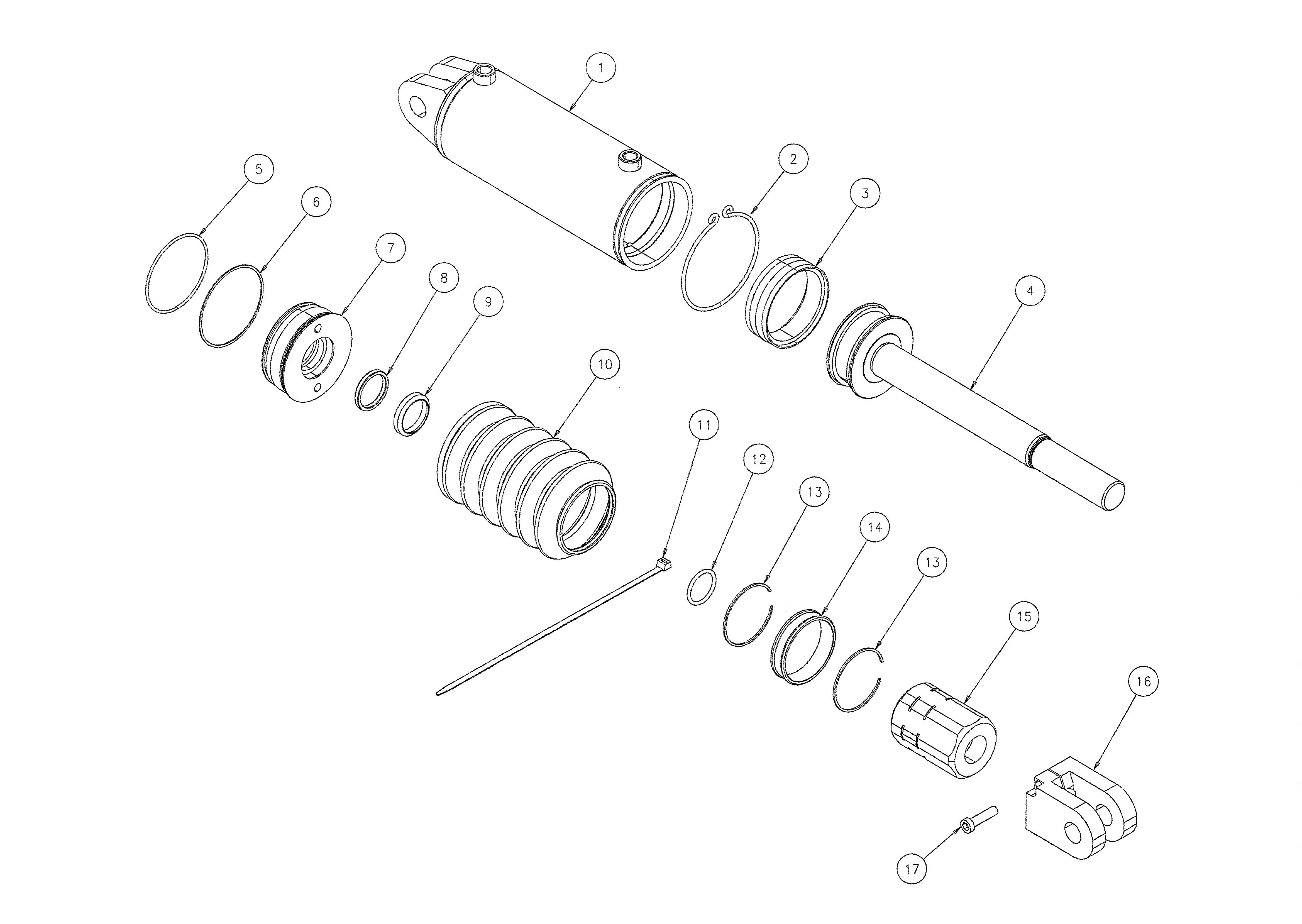

PL/RL / CYLINDER D100X200 + STOP CONTROL
1290
PL/RL / CYLINDER D100X200 + STOP CONTROL
PosNo. Part No. Qty. Description Remark
1 KK354592R CYLINDER TUBE D100X200 2 KK013597 THREAD CLAMP D110 3 KK016581 PISTON PACKING SIMCO320 100-86-22,5 4 KK354593R PISTON ROD D100-D40X200 5 KK011806 O-RING D94X3 70 SHORE OR 6 KK011888 SUPPORT RING 95X2.5X1.3 PTFE 7 KK354594R END CAP D100/D40 8 KK011951 PISTON ROD PACKING 40X48X6 9 KK011912 SCRAPER AS 40X50X7-10 10 KK013595 BELLOW D80-D110 11 KK309029 STRIP 7,5X340 12 KK011865 O-RING D40X4 70 SHORE 13 KK013705 CIRCLIP D75 14 KK013594 RING FOR BELLOW POM 15 KK354595 NUT 16 KK354596R CLEVIS M36X2 D25,5 17 KK032040 CHEESE HEAD SCREW W.INNER HEX M10X40 Not ill. KK354526 CYLINDER D100/D40 X520 + 200 Not ill. KK016580 SEALING KIT FOR D100-D40

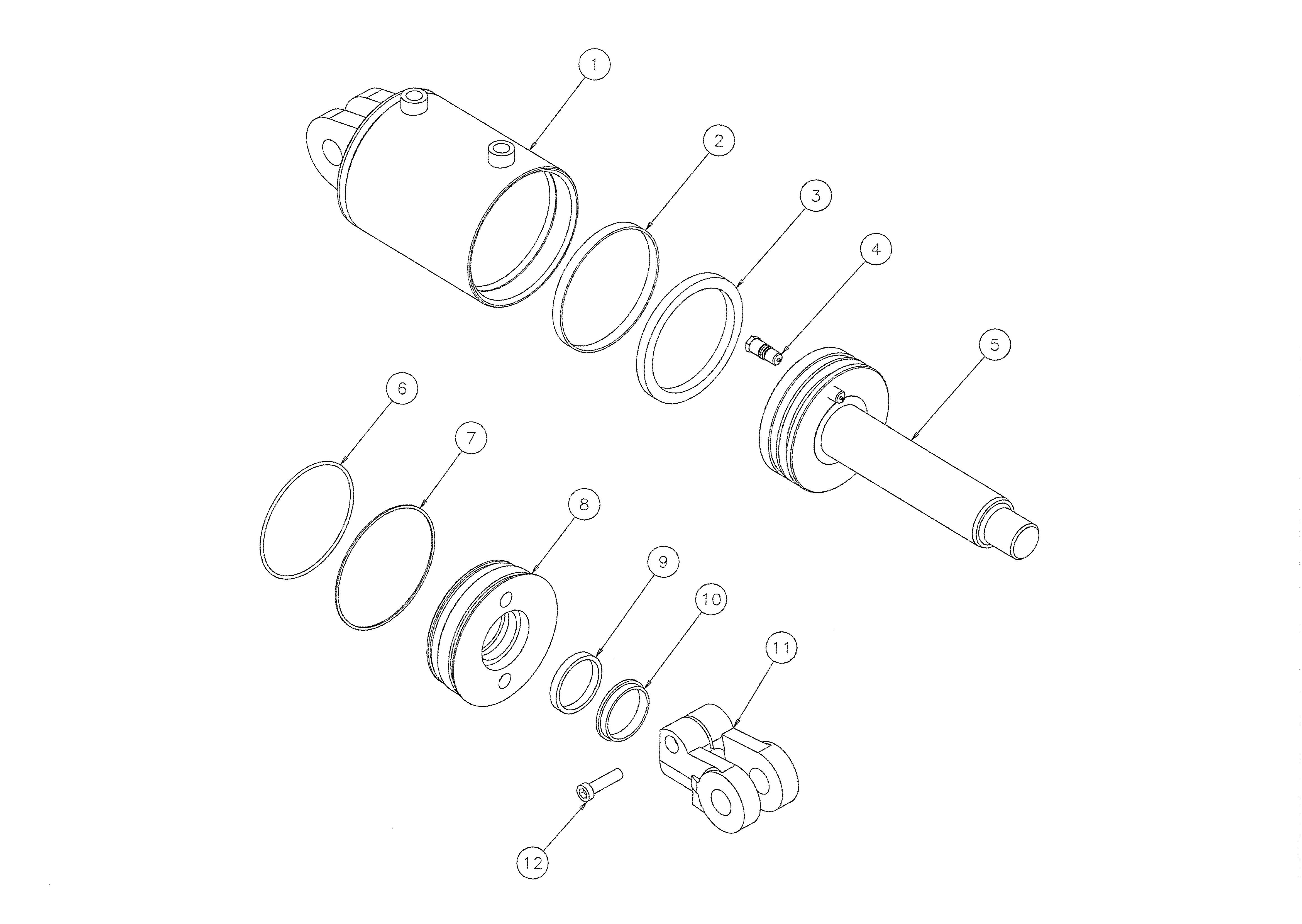

PL/RL / CYLINDER D125X73 (MASTER)
1288
PL/RL / CYLINDER D125X73 (MASTER)
PosNo. Part No. Qty. Description Remark
1 KK353551 CYLINDER TUBE D125 2 KK012636 GUIDE RING D125-120-9,5 HG517 KB 3 KK016506 PISTON SEAL SIMCO 300-125-104-10 4 KK354564 PATRON W/GLUE 5 KK354562 PISTONROD 6 KK012017 O-RING D114.5X3 70 SHORE 7 KK016550 SUPPORT RING D125XD120X1.3 8 KK353553 ROD CAP W.SEAL 9 KK012637 ROD PACKING KI310-50-58X8 10 KK012039 SCRAPER 50X60X7-10 11 KK353392 CLEVIS 12 KK032040 CHEESE HEAD SCREW W.INNER HEX M10X40 Not ill. KK354516 SYLINDER Not ill. KK012635 SEAL KIT D50-D125
PL/RL / CYLINDER D155X73 (SLAVE)
1289
PL/RL / CYLINDER D155X73 (SLAVE)
PosNo. Part No. Qty. Description Remark
1 KK353554 CYLINDER TUBE D115 2 KK012012 PISTON PACKING D90-D115X22.4 3 KK354564 PATRON W/GLUE 4 KK354563 PISTONROD 5 KK011755 O-RING D109.5X3 6 KK011756 SUPPORT RING 110X2.5X1.3 7 KK353556 ROD CAP D115-D40 W. SEAL 8 KK012639 ROD PACKING KI-310-D40/48X8 9 KK011912 SCRAPER AS 40X50X7-10 10 KK015870 NUT M39X1.5 H=24 11 KK077234 SYL.KLAU SLAVESYL. PL100 Not ill. KK354517 SYLINDER Not ill. KK012638 SEAL KIT D40-D115
PL/RL / CYLINDER D40 - D32 X 510 + 215 (KK353907)
SPMKK000213
PL/RL / CYLINDER D40 - D32 X 510 + 215 (KK353907)
PosNo. Part No. Qty. Description Remark
1 KK016404 LOCKING RING 40X2,5 DIN 7993B 2 KK016586 SEAL KIT D40 3 KK353907 CYLINDER D40-D32X510+215 4 KK353947 CYLINDER TUBE D40X215 5 KK353948 PISTON ROD
PL/RL / CYLINDER D90-d35X385+150 (KK353580)
SPMKK000260
PL/RL / CYLINDER D90-d35X385+150 (KK353580)
PosNo. Part No. Qty. Description Remark
1 KG01129300 CIRCLIP-B 55 X 2 2 KK011232 BEARING 3 KK016644 SEALKIT FOR STOPPER D35 4 KK016645 PAKNINGSETT KPL D90-D35X385+150 5 KK016646 PAKNINGSETT FRAMGAVL D90-D35 6 KK029918 GREASE NIPPLE M6 7 KK032002 SET SCREW HEX HOLE M6X10 8 KK032007 SET SCREW M5X6 HEX HOLE 9 KK353580 CYL.D90-D35X385+150 10 KK353592R CYLINDER TUBE D90 11 KK353593R FRAMGAVL F.353580 12 KK353596R ROD HEAD FOR D35 SPHERIC.BEARING 13 KK353597 STOP NUT W.SCRAPER 14 KK359056R PISTON ROD D90-D35X150

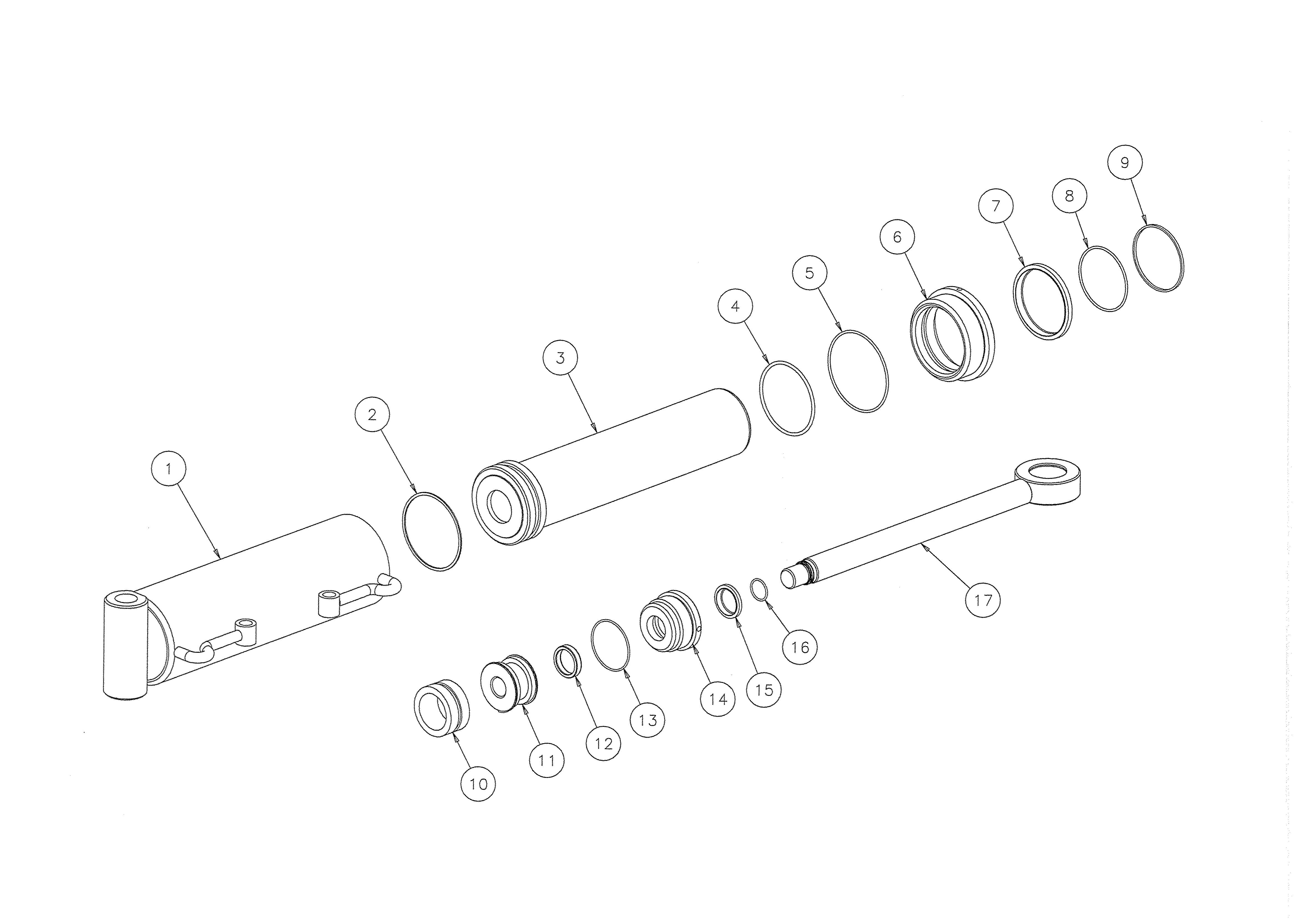

1169
PosNo. Part No. Qty. Description Remark
1 KK353562 CYLINDER TUBE D95 2 KK013080 SUPPORT RING D94.9/88.8X1.5 3 KK353563 ROD TUBE W. PISTON D95-D80 4 KK013078 O-RING D85.32X3.53 5 KK013079 O-RING D94.93X2.62 6 KK353566 ROD CAP D95-D80 W.SEAL 7 KK013076 SCRAPER AS 80X90X7-10 8 KK013077 O-RING D76X2.5 9 KK013081 ROD SEAL D80 MA36-79B 10 KK013075 SIMCO 5X2 60-44-29.8 11 KK353573 PISTON D100 12 KK013068 ROD PACKING KI310 30-38-8 13 KK011793 O-RING D60X2 14 KK353565 ROD CAP D60-D30 W.SEAL 15 KK011962 SCRAPER AS 30X10X5-8 16 KK013070 O-RING D23X2 17 KK353688 ROD W.HEAD FOR SPHERICAL BEARING Not ill. KK012643 SEAL KIT D30-D60 TELESC ( pos. 10, 12, 13, 15 and 16 ) Not ill. KK012644 SEAL KIT D80-D95 TELESC ( pos. 2, 4, 5, 7, 8 and 9 ) Not ill. KK353634 TELESCOPE CYL.D95-D60X457+585

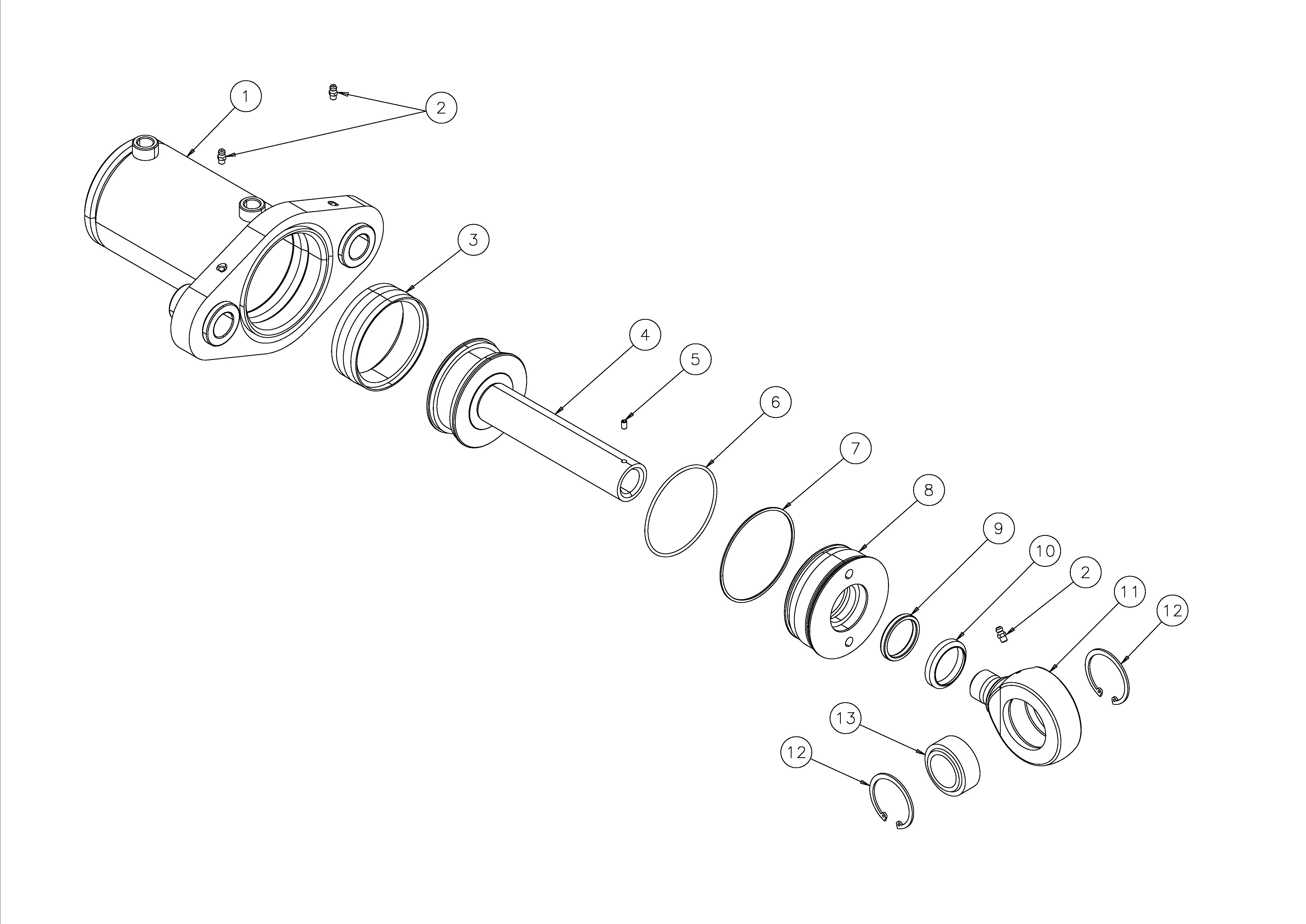

PL/RL / CYLINDER D100 - D40 X 320 +117
1311
PL/RL / CYLINDER D100 - D40 X 320 +117
PosNo. Part No. Qty. Description Remark
1 KK354726R CYL TUBE D100X117 2 KK029918 GREASE NIPPLE M6 3 KK016581 PISTON PACKING SIMCO320 100-86-22,5 4 KK354727R PISTON ROD WITH PISTON D100-D40X117 5 KK032001 SET SCREW HEX HOLE M6X6 6 KK011806 O-RING D94X3 70 SHORE OR 7 KK011888 SUPPORT RING 95X2.5X1.3 PTFE 8 KK354594 END CAP D100/D40 9 KK011951 PISTON ROD PACKING 40X48X6 10 KK011912 SCRAPER AS 40X50X7-10 11 KK353673 ROD HEAD WITHOUT SPHERICAL BEARING 12 KG01129300 CIRCLIP-B 55 X 2 13 KK011223R SPHERICAL BEARING GE 35 DO not ill. KK354722 CYL D100-D40X320+117 not ill. KK016584 SEALKIT D100-D40

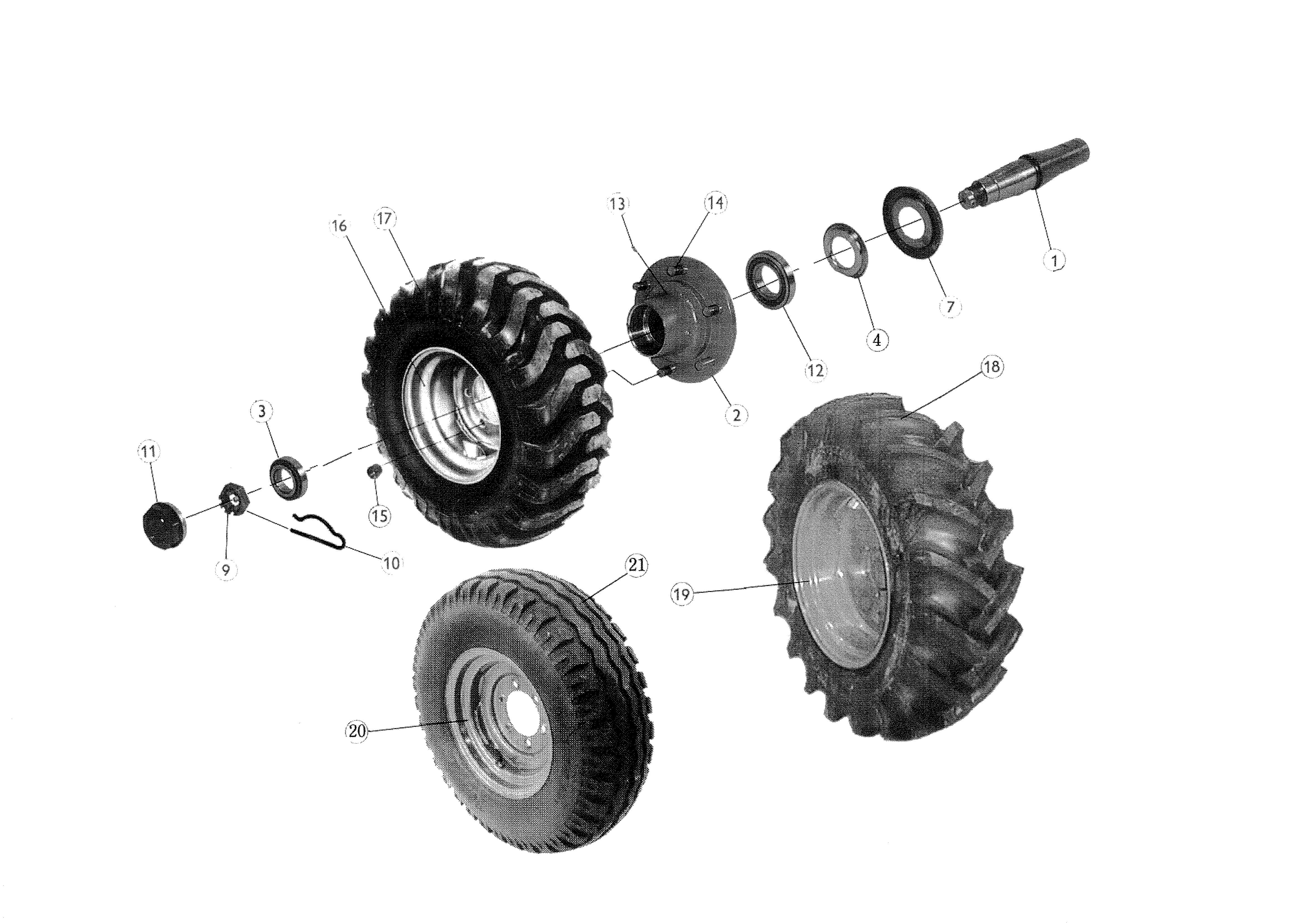

PL/RL / WHEELS (FROM 01.03.97)
527
PL/RL / WHEELS (FROM 01.03.97)
PosNo. Part No. Qty. Description Remark
1 KK011462 WHEELAXLE FOR ADR-65 1 KK011484 AXLE FOR HUB KK011842 ( for DA plough, middle section only ) 2 KK011461 WHEEL HUB CPL.WITHOUT AXLE ADR-65 2 KK011460 WHEEL HUB-65 ADR CPL. W. AXLE 3 KK016201 CONICAL ROLLER BEARING32210 F/ADR-65 4 KK011468 GASKET F/ADR-65 7 KK011466 SEALING PLATE ADR-65 9 KK011465 CROWNNUT ADR-65 10 KK011464 SPLIT PIN ADR-65 11 KK011463 HUB CAP D90 ADR-65 12 KK016203 CONICAL ROLLER BEARING 30213 F.ADR-65 13 KK029920 GREASE NIPPLE M8X1 STRAIGHT 14 KK011479 HUB PIN M18X1.5 15 KK011469 WHEEL NUT M18X1.5 ADR-65 16 KK011344 RIM 13.00-15.5 16 KK011370 RIM 400-22.5 16 KK011453 RIM 16X22.5 FOR 500/45X22.5 17 KK011416 WHEEL RUB.400X1514 PLY ( also for DA plough, middle section ) 17 KK011414 TYRE 400X22.5 14PLY 17 KK011451 TYRE 500/45X22.5 8PLY 17 KK011343 INNER TYRE FOR 400X15.5 17 KK011369 INNER TYRE 400-22.5 17 KK011452 INNER TYRE 500/45X22.5 18 KK011472 TYRE 14.9 X 24 8PLY 18 KK011473 INNER TYRE 14.9X24 19 KK011474 RIM 13X24 FOR 14.9X24 20 KK011457 RIM 9X18 F.12.5/80X18 (12L) 20 KK011417 WHEEL RUB 400X22.5/14 L *SE 21 KK011408 WHEEL RUB 400X22.5/14 L *SE 21 KK011458 INNER TYRE 12.5/80-12/18

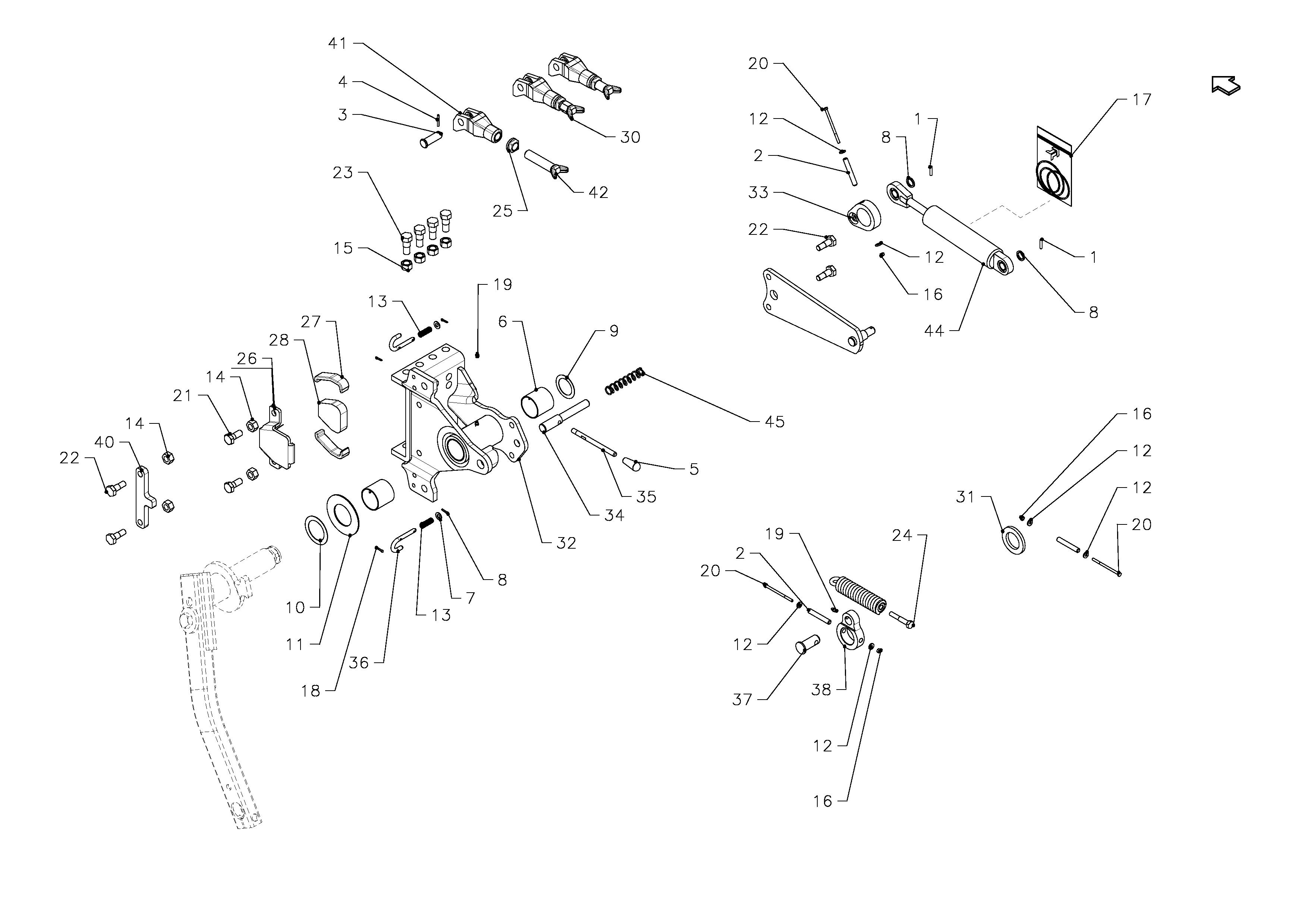

PL/RL / WHEEL 99 - REAR MOUNTED
SPMKK000068
PL/RL / WHEEL 99 - REAR MOUNTED
PosNo. Part No. Qty. Description Remark
1 KG01189400 TENSION PIN 6X30 2 KG01195800 TENSION PIN 12X80 3 KK010260 BOLT W/HEAD D20 X 53.5 HOLE D5 4 KK011002 ROLL PIN D5X36 GALV. 5 KK011122 CAP FOR STICK 12 6 KK011633 SLIDE BEARING PM 6060DX GLACIER 7 KK012916 WASHER D10.5-D21X2 8 KK012931 WASHER D20.5-D28X3.4 9 KK012955 WASHER D50-D70X1 10 KK012956 WASHER D60.0XD85.0X1.00 11 KK013004 WASHER D65-D120X3 12 KK013017 WASHER M6 13 KK013700 PRESS SPRING D1.5-D12.5X40 14 KK015825 NUT M16 15 KK015830 NUT M20 16 KK016018 LOCK NUT M6 17 KK016594 SEAL KIT D50-D20 18 KK029718 SPLIT PIN D4X16 19 KK029920 GREASE NIPPLE M8X1 STRAIGHT 20 KK032391 HEX SCREW M6 X 90 GALV. 21 KK032740 HEX BOLT M16X40 10.9 22 KK032745 HEX BOLT M16X45 10.9 23 KK032845 HEX BOLT M20X45 10.9 24 KK033670 HEX BOLT M12X70 FULL THREAD 25 KK061899 COUNTER NUT M24 26 KK064079R HOLDER FOR DAMPER BLOCK 27 KK064086 GUARD DAMPER PIECE 28 KK064087R ABSORBER 29 KK064089R SPRING 30 KK064206 CLEVIS CPL. COMPETITION 31 KK068251 WASHER D50-D80X8 32 KK074839 WHEEL BRACKET W/SLIDEBEARING 33 KK074867R PIECE SCHOCK ABSORBER 34 KK074873 STOP AXLE. D/T WHEEL 35 KK074874R HANDLE F. STOP AXLE DEPTH WHEEL 36 KK074876 LOCK FOR STOPPER DEPTH TRANSPORT WHEEL 37 KK084040 BOLT W-HEAD D25X60 38 KK084043 CRANK FOR SPRING 39 KK084624 BRACKET 40 KK084636R TURNING LIMITER
PL/RL / WHEEL 99 - REAR MOUNTED
SPMKK000068
PL/RL / WHEEL 99 - REAR MOUNTED
PosNo. Part No. Qty. Description Remark
41 KK088062 STOP FOR DEPTH WHEEL M24 42 KK088063 IMPACT BOLT DEPTH WHEEL M24 43 KK088064 CLEVIS CPL. M24 44 KK354511R SHOCK ABSORBER 45 KK356042R PRESSURE SPRING D2.8-D23.8X125
PL/RL / WHEEL 99 - ARM & AXLE
SPMKK000069
PL/RL / WHEEL 99 - ARM & AXLE
PosNo. Part No. Qty. Description Remark
1 KG01195600 TENSION PIN 12X60 2 KK010700 PIN D12 NS 555 3 KK015825 NUT M16 4 KK015841 NUT M24 GALV. 5 KK016001 LOCK NUT M24 10 GALV. 6 KK016012 FLANGE NUT M20 7 KK016038 FLANGE NUT M12 8 KK029920 GREASE NIPPLE M8X1 STRAIGHT 9 KK032640 HEX BOLT M12X40 10 KK032765 HEX BOLT M16X65 10.9 11 KK032807 HEX BOLT M20X100 10.9 12 KK032975 HEX BOLT M24X75 13 KK032980 HEX BOLT M24X80 S=40+3 14 KK035175 HEX BOLT M20X100 W/FLANGE NUT 15 KK074624 SCRAPER 26X12-12 COMBI WHEEL 16 KK074841R AXLE, SHORT W BRACKET DEPTH W 99 PAINT 17 KK074844 BRACKET FOR SCRAPER 2000 DEPTH/TR. WHEEL 18 KK074856R AXLE D/T WHEEL PAINTED 19 KK074862R AXLE W SUPPORT, DEP.WHEEL PAINTED 20 KK074864 PIECE F. WHEEL ARM DEPTH WHEEL 21 KK074865 WHEELARM DEPTH - TRANSP WHEEL 22 KK074866R WHEELARM FOR DEPTHWHEEL 99 23 KK074875 AXLE FOR CHANGE OVER PIECE 24 KK074893 AXLE FOR SWITCH W/ FIX 25 KK079063 WASHER D26.5-D70X10 26 KK084634R WHEEL ARM HD 27 KK084637R AXLE SHORT 2 HOLES U

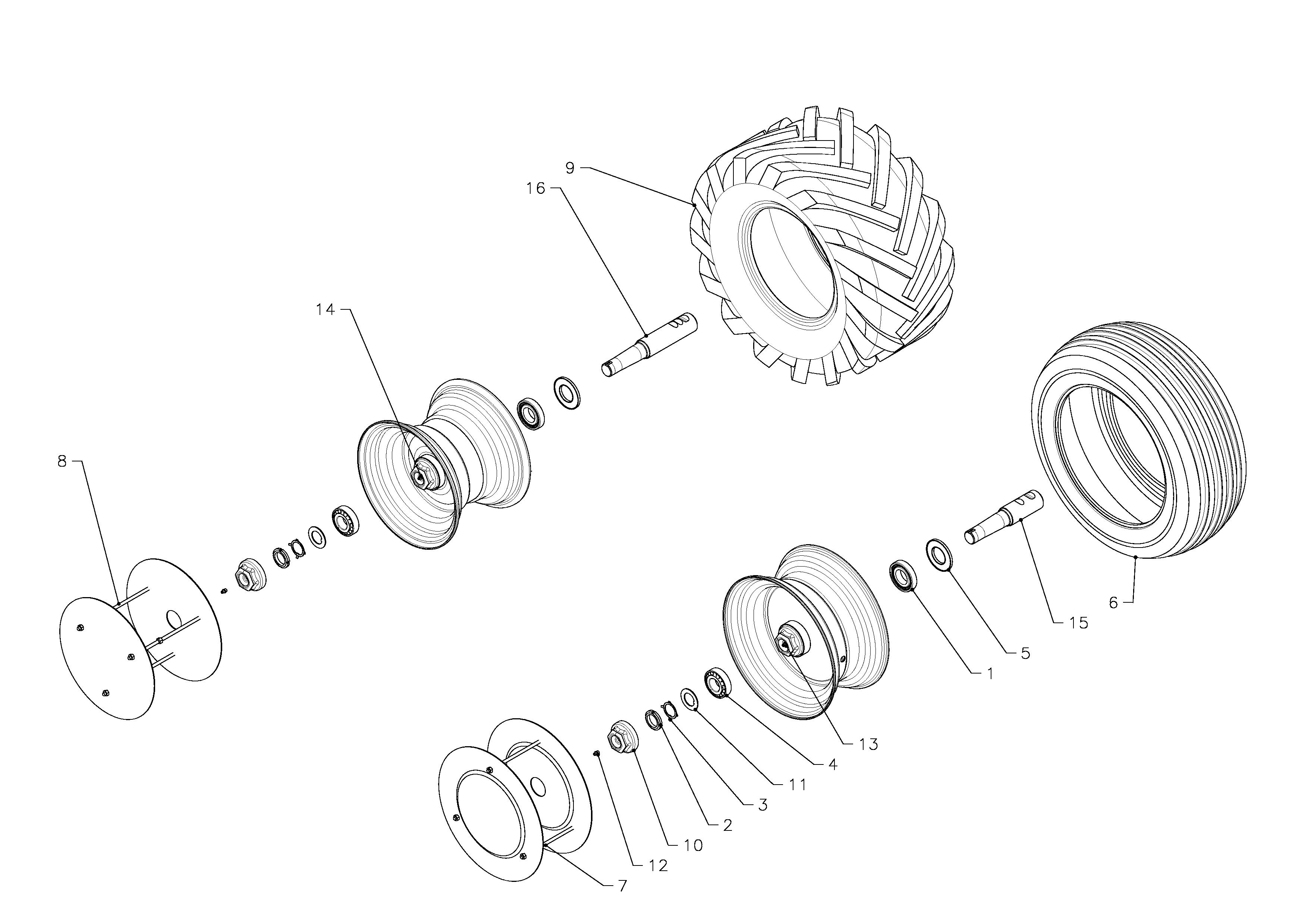

PL/RL / WHEEL 200X14.5 & 26X12-12
SPMKK000070
PL/RL / WHEEL 200X14.5 & 26X12-12
PosNo. Part No. Qty. Description Remark
1 KG01799800 TAPER ROLLER BEARING 30208 2 KG01817500 LOCK NUT M35X1.5 3 KG01828000 LOCKING WASHER 35MM 4 KK010591 CONICAL ROLL. BEAR. D80/35 B=22.75 30307 5 KK011168 Z-LAMEL Z 209 6 KK011303 TYRE LP 200X14.5/10-448 ED-LD-FR 6 KK011305 INNER TYRE 200-14.5 TR-15 FE ED-LD-FR 7 KK011401 COVER KIT FOR (200X14.5) *DK 8 KK011402 COVER KIT FOR (26X12-12) *DK 9 KK013100 RUBBER TYRE 26X12-12 10 PLY 9 KK011349 INNER TYRE FOR 26-12 10 KK013105 HUB CAP D80 WITH NIPPLE 11 KK013110 LOCK WASHER D35-D58X2.5 12 KK029920 GREASE NIPPLE M8X1 STRAIGHT 13 KK084106 RIM W HOUSIN 6.75X14.5X3.0 WO AXLE 14 KK084107 RIM W HOUSING 9.00X12X3.0 WO AXLE 15 KK084110 AXLE D50X238 15 KK084113 AXLE D50X340 ED-LD-FR 16 KK084111 AXLE D50X297 16 KK084112 AXLE D50X282 ED-LD-FR

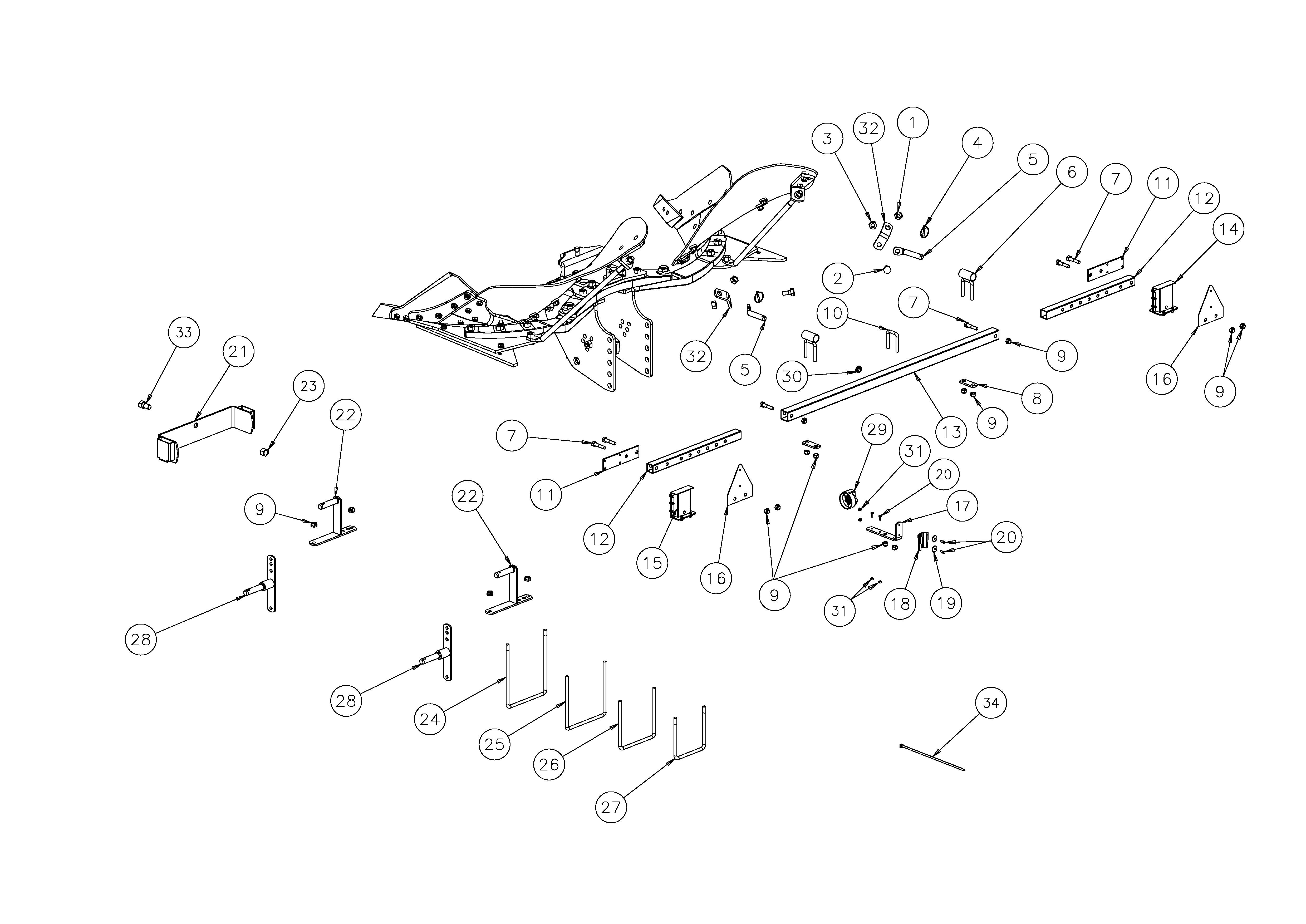

PL/RL / LIGHTS (MOUNTING FRAME)
1279
PL/RL / LIGHTS (MOUNTING FRAME)
PosNo. Part No. Qty. Description Remark
1 KK015834 NUT M20 2 KK032735 HEX BOLT M16X35 10.9 3 KK015825 NUT M16 4 KK010702 PIN D6 NS 555 5 KK354314 FIXING PIN FOR LIGHTS 6 KK354320 CLEVIS WITH BUSHING 7 KK032655 HEX BOLT M12 X 55 8 KK354318 PLATE WITH 2 HOLES 9 KK016008 NYLOC NUT M12 10 KK199788 CLEVIS M12-4SQ41-70 11 KK354008 PLATE FOR PLUG 12 KK354363 TUBE 35X35X2X485 13 KK354315 TUBE FOR LIGHTS 14 KK354347 LIGHT SOCKET RIGHT L = 1500 15 KK354348 LIGHT SOCKET LEFT L = 1500 16 KK354011 PLATE FOR TRIANGLE REFLEX 17 KK354317 FIX FOR TRIANGLE AND SOCKET 18 KK354325 FIXING BRACKET FOR TRIANGLE 19 KK012904 WASHER D6.4-D24X3 20 KK033315 HEX BOLT M6X15 21 KK354310 DOCKING STATION WELDED 22 KK354321 TOP PARKING LIGHTS 23 KK015830 NUT M20 24 KK088169 CLEVIS M12 FOR TUBE 250X200 25 KK071493 CLEVIS M12 FOR TUBE 200X200 26 KK354018 CLEVIS M12 FOR TUBE 180X180 27 KK354017 CLEVIS M12 FOR TUBE 150X150 28 KK354327 SIDE PARKING LIGHTS HOLDER WELDED 29 KK354403 PIN PLUG 7-PINS W/GASKET 30 KK354328 RUBBER PROTECTION 31 KK015806 NUT M6 32 KK354313 FIXING PLATE 33 KK032835 HEX BOLT M20X35 10.9 34 KK012735 STRIP FOR MARKING 5X200 RED

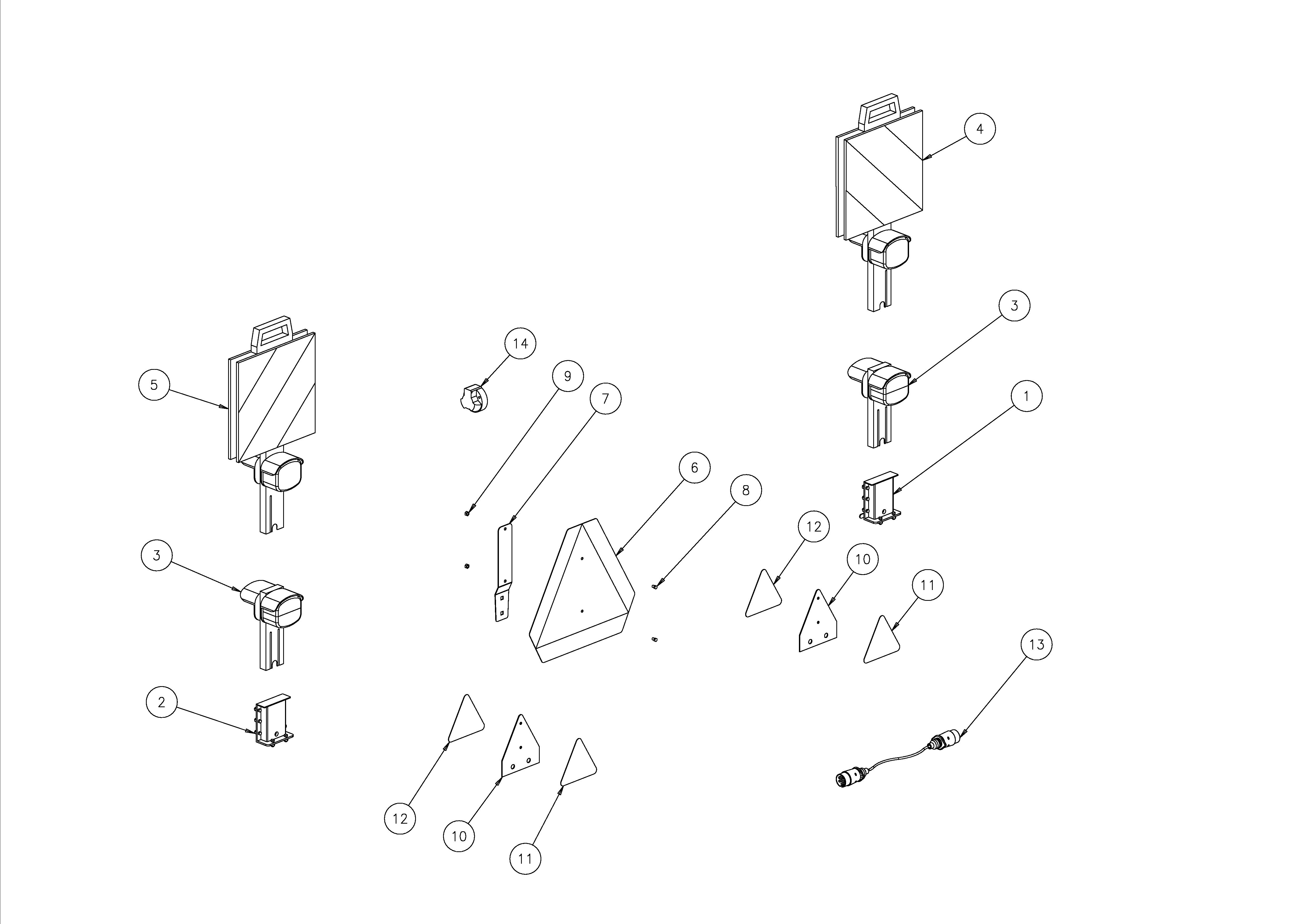

PL/RL / LIGHTS AND REFLEXES
1087
PL/RL / LIGHTS AND REFLEXES
PosNo. Part No. Qty. Description Remark
1 KK354347 LIGHT SOCKET RIGHT L = 1500 2 KK354348 LIGHT SOCKET LEFT L = 1500 3 UH414213 DOUBLE LIGHT KIT ( for Denmark ) 4 UH414216 REAR LIGHT W/DUBLE REFLEX PLATE RH ( for Germany ) 5 UH414217 REAR LIGHT W/DUBLE REFLEX PLATE LH ( for Germany ) 6 KK354040 REFLEX TRIANGLE 7 KK354326 BACK PLATE TO TRIANGLE LIGHTS 8 KK033306 HEX BOLT M6X8 9 KK015806 NUT M6 10 KK354011 PLATE FOR TRIANGLE REFLEX 11 KK709980 KLISTERM.REFLEX VARS.TRK.RØD 12 KK709982 KLISTERMERKE REFLEX HVIT 13 KK354090 CABLE W 2 PLUGS 20M 13 KK354064 CABLE W PLUGS 8 METRES 13 KK354063 CABLE W PLUGS 13 METRES 13 UH440775 CONNECTING WIRE TRACTOR 13 KK354046 CABLE W 2 PLUGS 6M 14 KK354403 PIN PLUG 7-PINS W/GASKET

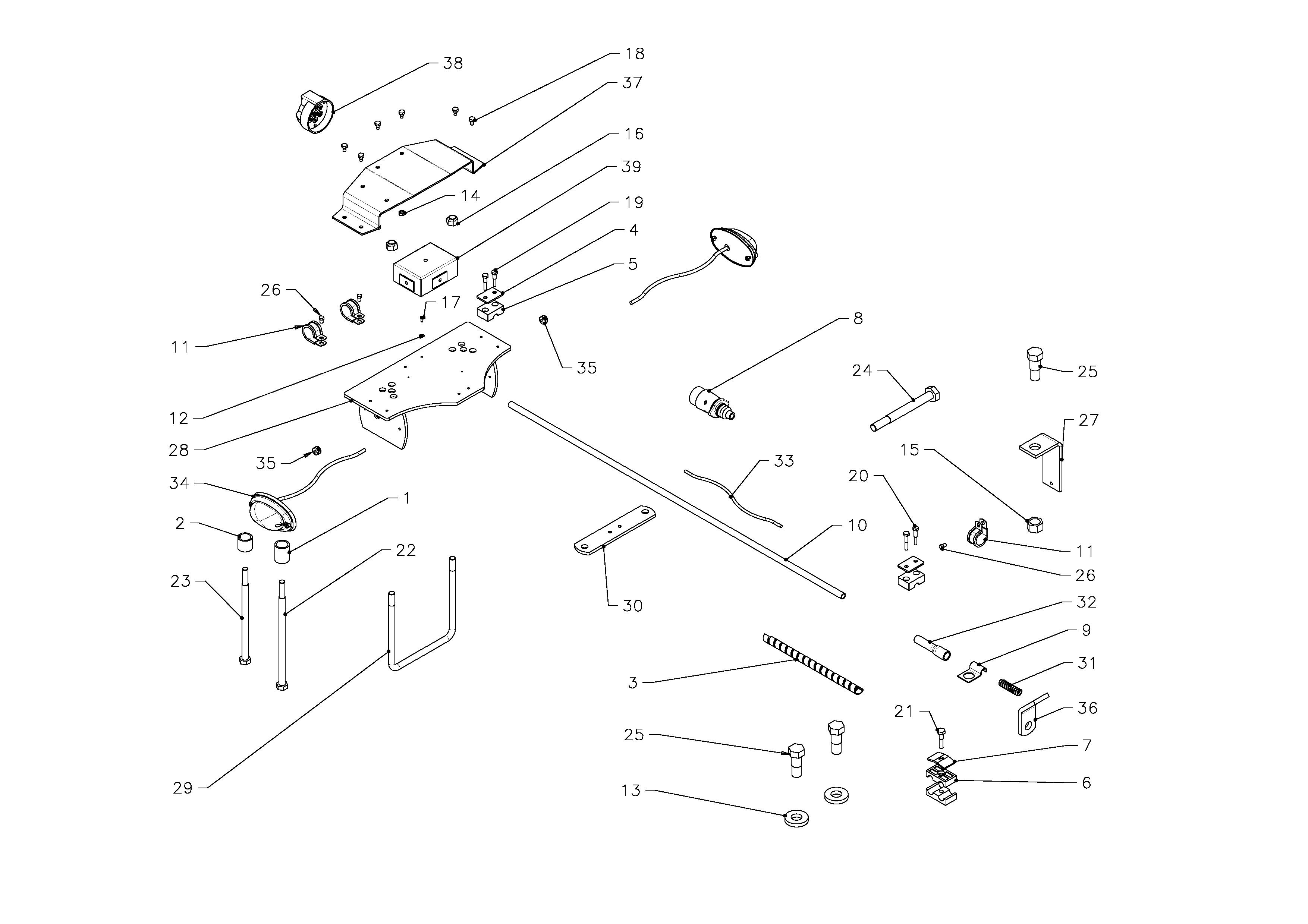

PL/RL / LIGHTS (SIDE MOUNTED)
SPMKK000270
PL/RL / LIGHTS (SIDE MOUNTED)
PosNo. Part No. Qty. Description Remark
1 KK010036 TUBE 2 KK010064 SPACING 3 KK011596 HOSE WRAPPER D12.5X250 4 KK012069 COVER 5 KK012092 PLASTIC PART TUBE CLAMP 6 KK012323 PLASTIC PART TUBE CLAMP 7 KK012324 COVER TUBE CLAMP 8 KK012503 PLUG 7-PINS FOR TRAILER 9 KK012700 CLAMP FOR 1/4HOSE - D20 10 KK012718 OIL TUBE D12X1800 10 KK012719 OIL TUBE D12X900 10 KK068689 OIL TUBE L=1100 10 KK068690 OIL TUBE L=1950 10 KK068691 OIL TUBE L=2800 10 KK078389 OIL TUBE D12X3000 11 KK012737 HOSE CLAMP 1/4 RUBBER/STEEL 12 KK012852 WASHER D4.3-D9.0X0.6 GALV. 13 KK012968 WASHER D21XD45 7.5 GALV. 14 KK015806 NUT M6 15 KK015830 NUT M20 16 KK016008 NYLOC NUT M12 17 KK031019 MACHINE SCREW M4 X 10 DIN 84 18 KK032310 HEX BOLT M6X10 19 KK032330 HEX BOLT M6X30 PARTLY THREAD 20 KK032335 HEX BOLT M6 X 35 PARTLY THREAD 21 KK032435 HEX BOLT 8 X 35 PARTLY THREAD (FOR PL PLOUGH ONLY) 21 KK032460 HEX BOLT M8 X 60 8.8 22 KK032623 HEX BOLT M12 X 240 23 KK032624 HEX BOLT M12 X 210 24 KK032710 HEX BOLTM16X155 25 KK032850 HEX BOLT M20X50 10.9 26 KK033306 HEX BOLT M6X8 27 KK061941 BRACKET FOR 6 HOSES H=70 28 KK354014 BRACKET FOR SIDE LIGHTS 29 KK354017 CLEVIS M12 FOR TUBE 150X150 29 KK354018 CLEVIS M12 FOR TUBE 180X180 29 KK071492 U-BOLT M12-4SQ203-145 29 KK071493 CLEVIS M12 FOR TUBE 200X200 30 KK354029 ORVEL FOR LIGHT TUBE 150X150 30 KK354028 ORVEL FOR LIGHT TUBE 180X180
PL/RL / LIGHTS (SIDE MOUNTED)
SPMKK000270
PL/RL / LIGHTS (SIDE MOUNTED)
PosNo. Part No. Qty. Description Remark
30 KK354030 ORVEL FOR LIGHT TUBE 200X200 31 KK354041 ELEKTROFLEX D10XD14X3700 (3.7 M; PG/RG) 31 KK354092 ELEKTROFLEX 10 X 14.6 X 5M. (5.0 M; PL/RL) 32 KK354042 RUBBER PROTECTION 140332-12 33 KK354048 CABLE 5 X 0.75 X 4500 33 KK354047 CABLE 5 X 0.75 X 6000 33 KK354077 CABLE 2X0.75X8000 33 KK354078 CABLE 2X0.75X10000 33 KK354049 CABEL ÖLFLEX CLASSIC 110 5 X 0.75 X 13M 33 KK354340 CABEL ÖLFLEX CLASSIC 110 5 X 0.75 X 15M 33 KK354091 CABEL ÖLFLEX CLASSIC 110 5X0.75X20M 34 KK354094 SIDE-LIGHT WITH CABLE 35 KK354096 CABLE GLAND D6-D8.5X4 36 KK354313 FIXING PLATE 37 KK354324 COVERPLATE LIGHTS 38 KK354403 PIN PLUG 7-PINS W/GASKET 39 UH333791 JUNCTION BOX

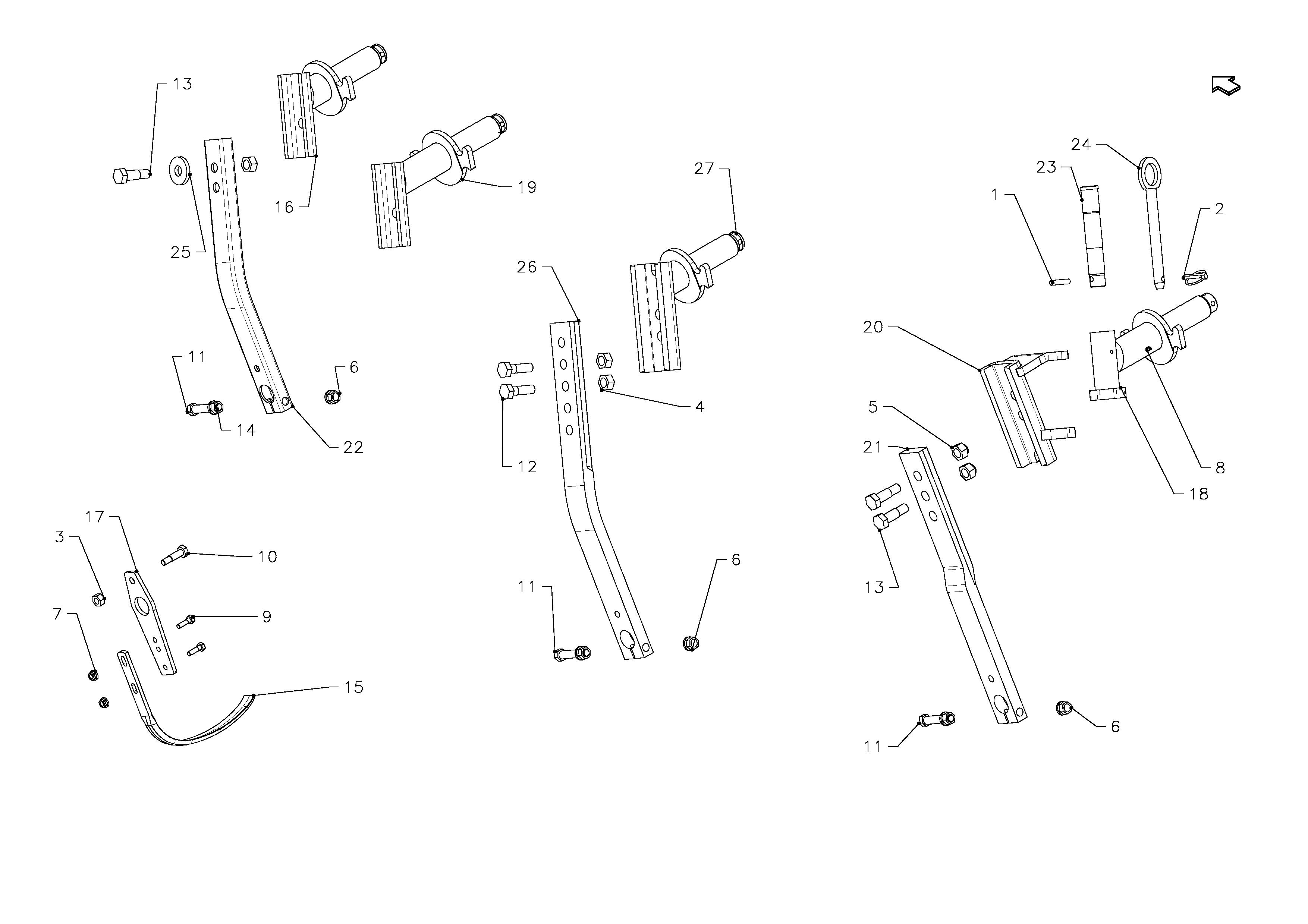

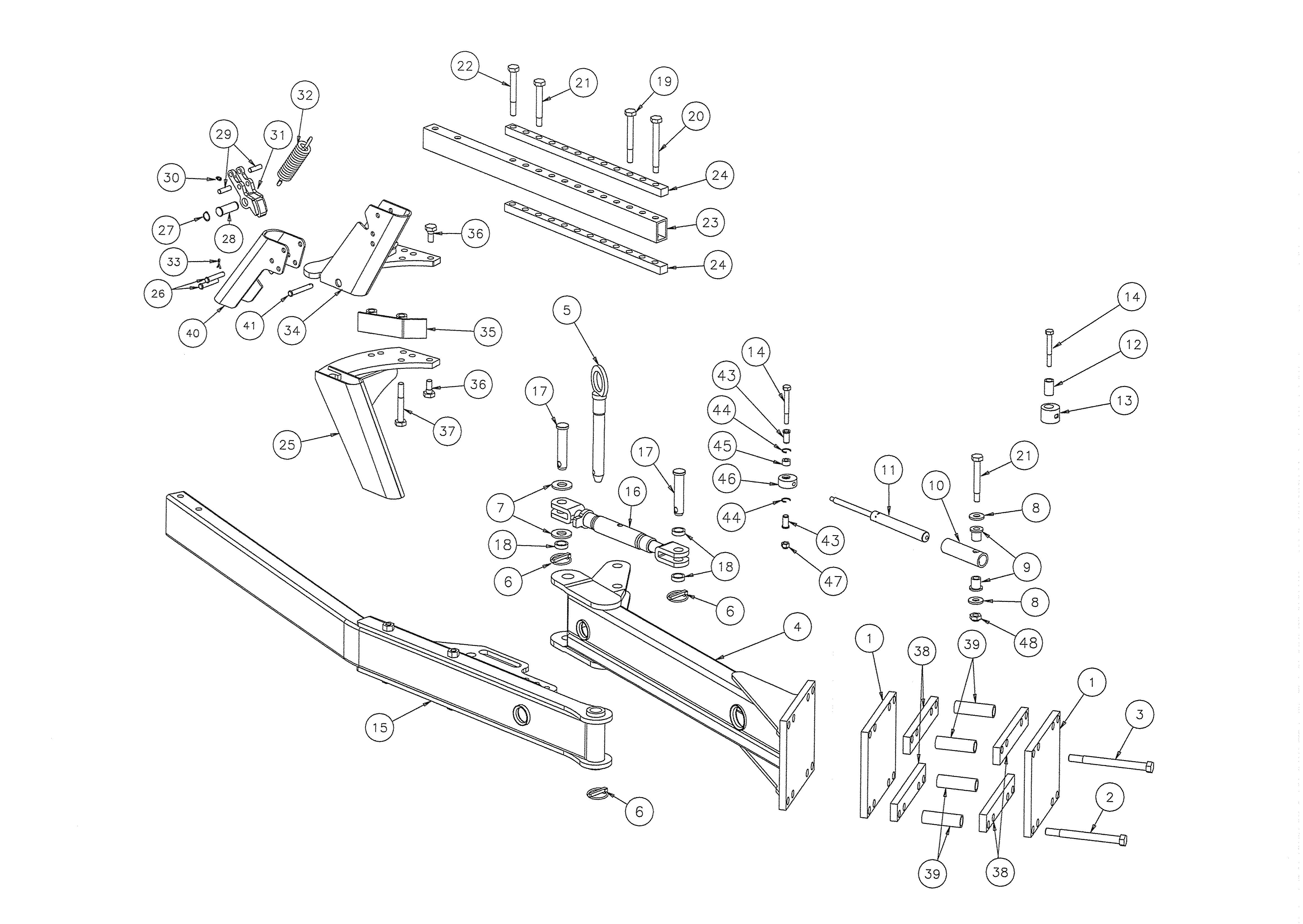

PL/RL / PACKER ARM
892
PL/RL / PACKER ARM
PosNo. Part No. Qty. Description Remark
1 KK077675 FIXING PLATE W/8 HOLES 2 KK032826 HEX BOLT M20 X260 THREAD L=25 ( used with 200 x 200 mm frame tube ) 2 KK032818 HEX BOLT M20X180 10.9 ( used with 120 x 200 mm frame tube ) 2 KK032821 HEX BOLT M20X210 10.9 ( when using RG plough ) ( From 01.09.00 ) 3 KK032842 HEX BOLT M20X270 10.9 ( used with 200 x 200 mm frame tube + hydr. clamp ) 3 KK032822 HEX BOLT M20X190 THREAD L=25 ( used with 120 x 200 mm frame tube + hydr. clamp ) 3 KK032828 HEX BOLT M20X220 ( when using RG plough ) ( From 01.09.00 ) 4 KK077660 FIXING BEAM WELDED PACKOMAT PX 5 KK077587 AXLE FOR QUICK COUPLING 6 KK010700 PIN D12 NS 555 7 KK012940 WASHER D25.4-D55X4.58 8 KK012922 WASHER D17-D40X4.58 ( Before 01.02.00 ) 9 KK010147 BUSHING D20.5-D28X15 ( Before 01.02.00 ) 9 KK011618 BUSHING W/FLANGE D16.5X31-D25.2/27 ( From 01.02.00 ) 10 KK075592 BUSHING D30-D40X140 11 KK572415 GAS CARTR. IN CYL.(AX08056)21111 12 KK075594 BUSHING D16.5-D24.75X40 13 KK075593 END PIECE GAS-CYL. T-LINKAGE 14 KK032695 HEX BOLT M12X95 15 KK076654 PACKERARM 16 KK361133 TURNBUCKLE 390-5200 17 KK010318 BOLT W/HEAD D25.3X103 18 KK010008 BUSHING D25.7-D35X10 19 KK032716 HEX BOLT M16X140 20 KK032708 HEX BOLT M16X150 THREAD L=25 21 KK032704 HEX BOLT M16X120 22 KK032706 HEX BOLT M16X130 23 KK076655 TELESCOPE ARM PACKER 24 KK076656 SHIM TELESCOPE ARM TUBE 25 KK076669 PICKUP ARM LOWER 26 KK076319 BOLT W/HEAD D12X58 27 KK011296 CIRCLIP A 22X1.2 28 KK076318 BOLT W/HEAD D22X58 29 KK076320 AXLE D12X42 30 KK029920 GREASE NIPPLE M8X1 STRAIGHT 31 KK076676 HYDRAULIC LOCK ( Before 01.01.01 ) 31 KK077013 HOOK CONVENT.PACKER.2000 ( From 01.01.01 ) 32 KK071711 STRETCH SPRING D5.5-D24.5X175 ( Before 01.01.01 ) 32 KK013701 STRETCH SPRING D7.5-D40X175 ( From 01.01.01 ) 33 KK029715 SPILT PIN D4X25
PL/RL / PACKER ARM
892
PL/RL / PACKER ARM
PosNo. Part No. Qty. Description Remark
34 KK076668 PICKUP ARM UPPER ( Before 01.01.01 ) 34 KK076711R UPPER PICKUP ARM ( From 01.01.01 ) 35 KK076682 REJECTOR 36 KK032735 HEX BOLT M16X35 10.9 37 KK032702 HEX BOLT M16X110 38 KK076381 RAIL 80X20X290 ( when main tube = 150 x 150 mm ) ( From 01.09.00 ) 39 KK010160 BUSHING D27.7-D38.8X108 ( when main tube = 150 x 150 mm ) ( From 01.09.00 ) 40 KK076650 PROTECTION PICKUP ARM ( Before 01.01.01 ) 40 KK076716 PROTECTION FOR PICKUP ARM ( From 01.01.01 ) 41 KK076319 BOLT W/HEAD D12X58 ( Before 01.01.01 ) 41 KK076652 BOLT W/HEAD D12X72 ( From 01.01.01 ) 43 KK011622 BUSHING D15.8 X D12.5 X 33 44 KK010593 WIRE RING D22/24.3X2 RB22 DIN 7993 45 KK010592 SPHERICAL-BEARING D12/22 GE 12 DO 46 KK075427 BUSHING PART FOR FIX GAS PATRON 47 KK016008 NYLOC NUT M12 48 KK016025 LOCK NUT M16 Not ill. KK076351 PLATE W M16 HOLES Not ill. KK076657 TELESCOPE ARM ASSEMBLED

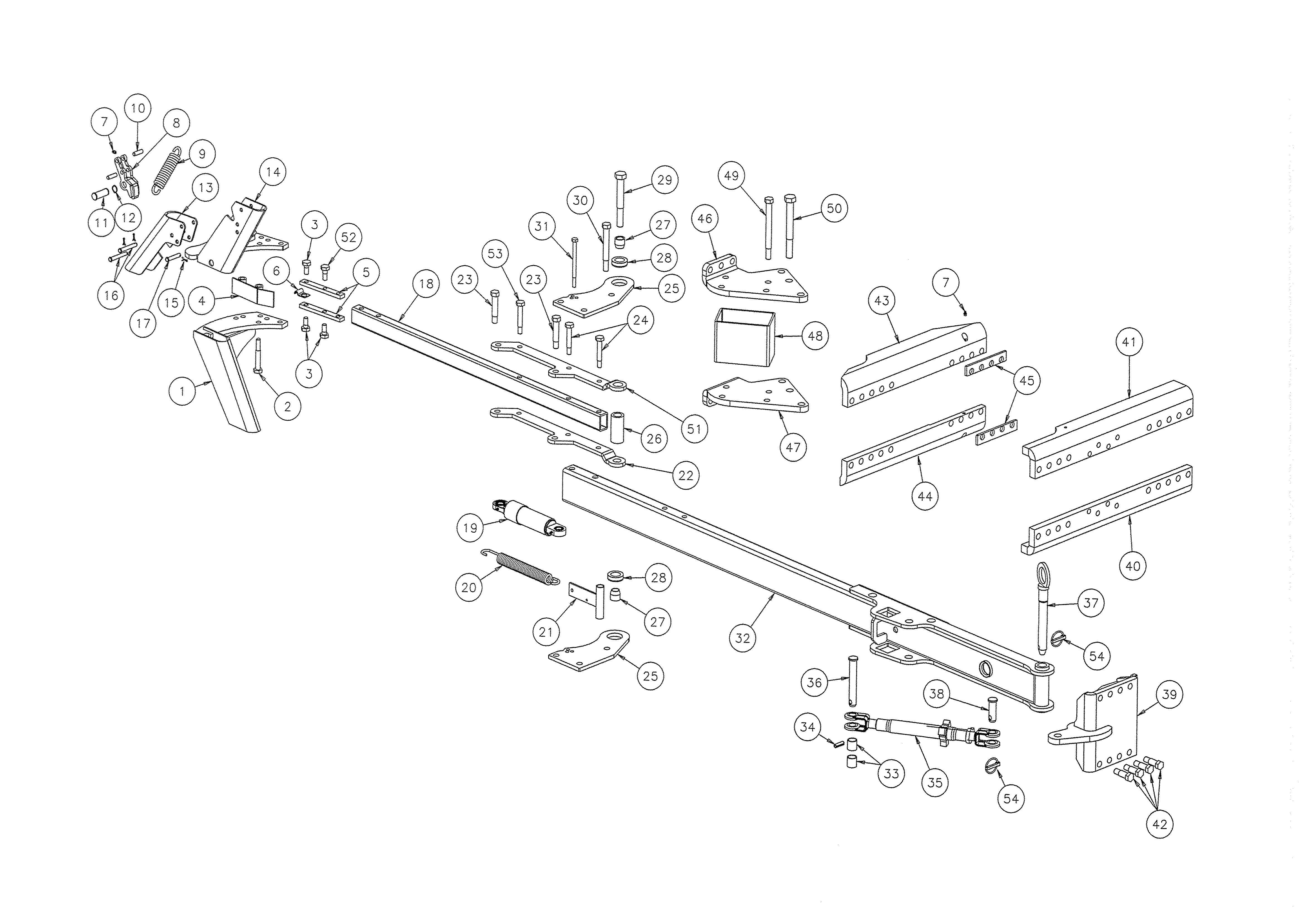

PL/RL / PACKER ARM
1177
PL/RL / PACKER ARM
PosNo. Part No. Qty. Description Remark
1 KK076310R PICKUP ARM LOWER 2 KK032702 HEX BOLT M16X110 3 KK032735 HEX BOLT M16X35 10.9 4 KK076682 REJECTOR 5 KK076351 PLATE W M16 HOLES 6 KK012700 CLAMP FOR 1/4HOSE - D20 7 KK029920 GREASE NIPPLE M8X1 STRAIGHT 8 KK077013 HOOK CONVENT.PACKER.2000 9 KK013701 STRETCH SPRING D7.5-D40X175 10 KK076320 AXLE D12X42 11 KK076318 BOLT W/HEAD D22X58 12 KK011296 CIRCLIP A 22X1.2 13 KK076716 PROTECTION FOR PICKUP ARM 14 KK076711R UPPER PICKUP ARM 15 KK029715 SPILT PIN D4X25 16 KK076652 BOLT W/HEAD D12X72 17 KK076319 BOLT W/HEAD D12X58 18 KK076725 TUBE 19 KK353540 SHOCK ABSORBER D50-D20X287+50 20 AC499986 DRAW SPRING 21 KK076727 SPRING HOLDER PACKOMAT. WELDED 22 KK076728 FIXING BAR LOWER 23 KK032807 HEX BOLT M20X100 10.9 24 KK032700 HEX BOLT M16X100 25 KK076724 BRACKET 26 KK010162 BUSHING D30-D45X95 27 KK074913 CONE D24-D35X33 28 KK011632 SLIDE BEARING D35.35-D55.5X16 29 KK032918 HEX BOLT M24X180 30 KK032808 HEX BOLT M20X160 10.9 THREAD L=25 31 KK032621 HEX BOLT M12 X170 32 KK077570 PACKER ARM WELDED 33 KK077590 BUSHING D27.3-D33.8X33 34 KG01195400 TENSION PIN 12X40 35 KK361116 TURNBUCKLE 520-720 36 KK010335 BOLT W/HEAD D25.3X155 37 KK077587 AXLE FOR QUICK COUPLING 38 KK010315 BOLT W/ HEAD D25.3X60 39 KK082190 FIXING BRACKET 40 KK076720 SUPPORT LOWER ( for PB/RB plough only ) © Kverneland Group PL467, < Mach. ID <= RL161-> Page number: 39
PL/RL / PACKER ARM
1177
PL/RL / PACKER ARM
PosNo. Part No. Qty. Description Remark
41 KK076721 SUPPORT UPPER ( for PB/RB plough only ) 42 KK032865 HEX BOLT M20X65 10.9 43 KK085430 RAIL UPPER F SOIL PACKER ( for PG/RG plough only ) 44 KK085431 RAIL LOWER F SOIL PACKER ( for PG/RG plough only ) 45 KK081389 SLIDE RAIL INNER T=8 4 HOLES D20 ( for PG/RG plough only ) 46 KK077090 UPPER PLATE ( for PL/RL and PM/RM ploughs only ) 47 KK077091 LOWER PLATE ( for PL/RL and PM/RM ploughs only ) 48 KK077092 SPACING TUBE 200X120X6.3X148 ( for PL/RL and PM/RM ploughs only ) 49 KK032821 HEX BOLT M20X210 10.9 50 KK032921 HEX BOLT M24 X210 S=175+3 51 KK076729 FIXING BAR UPPER 52 KK032740 HEX BOLT M16X40 10.9 53 KK032732 HEX BOLT M16X105 54 KK010700 PIN D12 NS 555

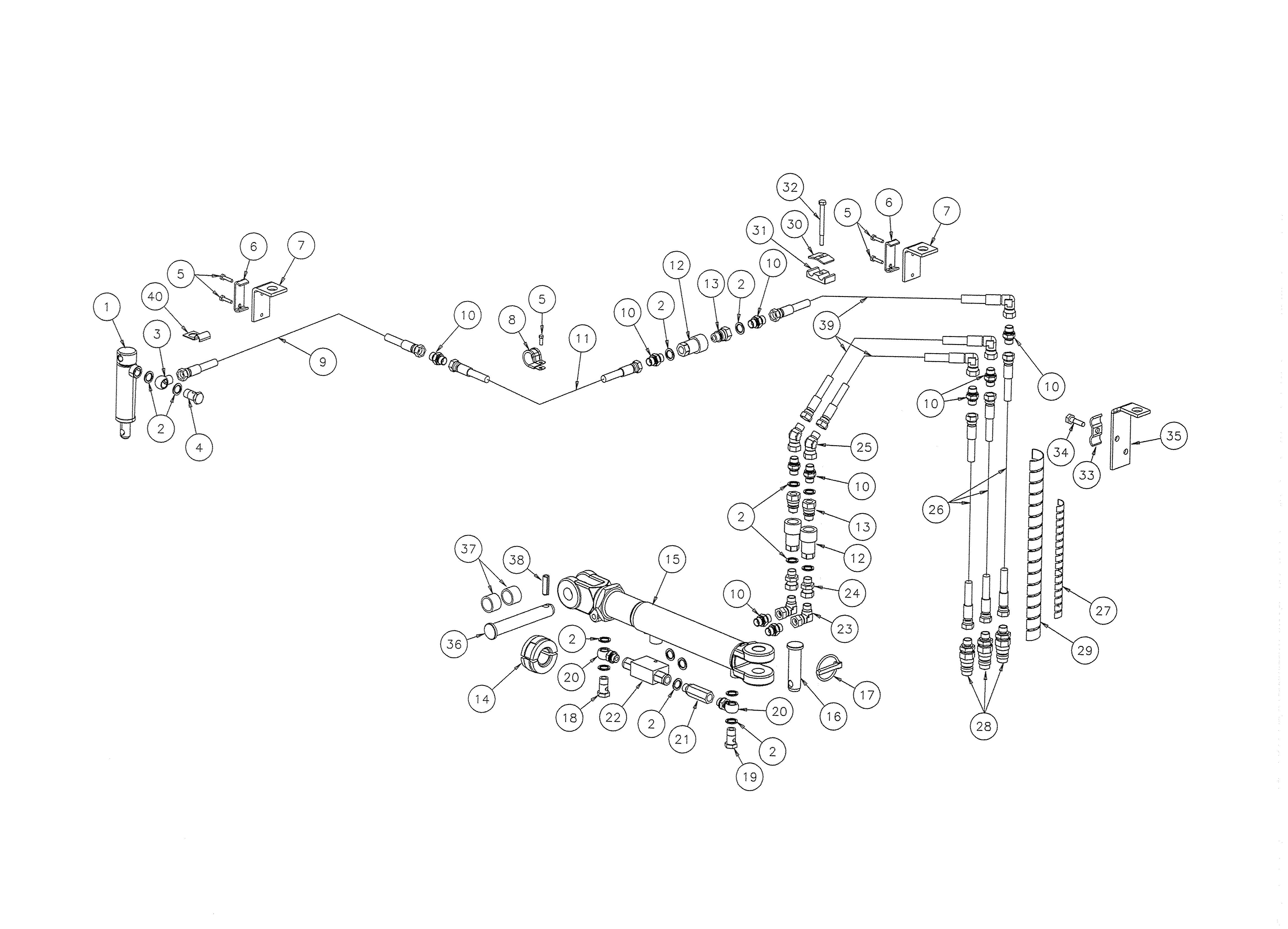

PL/RL / PACKER ARM - HYDRAULICS
1178
PL/RL / PACKER ARM - HYDRAULICS
PosNo. Part No. Qty. Description Remark
1 KK353626 CYL.D32-D20X165+75 PACKERHOOK 2000 ( Before 01.07.04 ) 1 KK354520 CYLINDER D32/D20 X 165 + 75 ( see plate no. 1292 ) ( From 01.07.04 ) 2 KK011585 SEAL RING R 3/8(INNER D17) 3 KK012062 BANJO G3/8- SHORT-H=17 4 KK012059 BANJO BOLT G3/8X31 5 KK033315 HEX BOLT M6X15 6 KK012520 CLAMP FOR 3X1/4-HOSE 7 KK061943 BRACKET FOR 3 HOSES H=55 8 KK012737 HOSE CLAMP 1/4 RUBBER/STEEL 9 KK012784 HOSE 1/4X2000 R-SV/R-SV 10 KK012261 COUPLING 3/8-3/8 11 KK012775 HOSE 1/4X2500 R-SV/R-SV 12 KK012706 QUICK COUPLING 3/8 BASE 13 KK012705 QUICK COUPLING 3/8 PLUGG 14 KK354630 SPACER D35X35 15 KK353902 CYL.D50-D30X520+200 W.STOP NUT ( see plate no. 1192 ) ( From 01.04.01 ) 16 KK010328 BOLT W/HEAD D25.3X78 17 KK010700 PIN D12 NS 555 18 KK012081 BANJOBOLT 3/8X31 D1.0 RESTRICTOR 19 KK012082 BANJO BOLT 3/8X31 D1.4 RESTRICTOR 20 KK012548 BANJO G3/8 WITH ADJUSTABLE END 21 KK012577 COUPLING 3/8OUTER-3/8INNER L59 22 KK013689 LOCK VALVE G3/8 WITHOUT O-RING 23 KK012056 90 DEG MALE-FEMALE G3/8 ADAPTOR 24 KK012319 COUPLING 3/8SWIVEL-3/8 OUTS. 25 KK012526 45 DEG ANGLE 3/8SV/3/8OUTW. 26 KK012367 HOSE 1/4X5000 R-SV/R-SV 27 KK011596 HOSE WRAPPER D12.5X250 28 KK012158 QUICK COUPLING 1/2-3/8 W-COUPL. 29 KK013501 HOSE WRAPPER D32X500 30 KK012324 COVER TUBE CLAMP 31 KK012323 PLASTIC PART TUBE CLAMP 32 KK032490 HEX BOLT M8X90 8.8 33 KK061942 CLAMP FOR 2 HOSES. STEEL 34 KK033535 HEX BOLT M10X35 8.8 FULL THR. GALV 35 KK062397 FIXING BAR FOR OIL HOSE 36 KK010335 BOLT W/HEAD D25.3X155 37 KK124157 BUSHING D27.3-D33.8X24 38 KG01195400 TENSION PIN 12X40 39 KK012761 HOSE 1/4X1600 R-SV/90-SV
PL/RL / PACKER ARM - HYDRAULICS
1178
PL/RL / PACKER ARM - HYDRAULICS
PosNo. Part No. Qty. Description Remark
40 KK012700 CLAMP FOR 1/4HOSE - D20 Not ill. KK012326 STRIP FOR LABELLING 5X200 WHITE Not ill. KK012734 STRIPS FOR MARKING 5X200 BLUE Not ill. KK012735 STRIP FOR MARKING 5X200 RED Not ill. KK309047 STRIP 13.3 X 546 Not ill. KK061970 BRACKET W/CLAMP 3 HOSES H55 ( pos. no. 5, 6 and 7 )

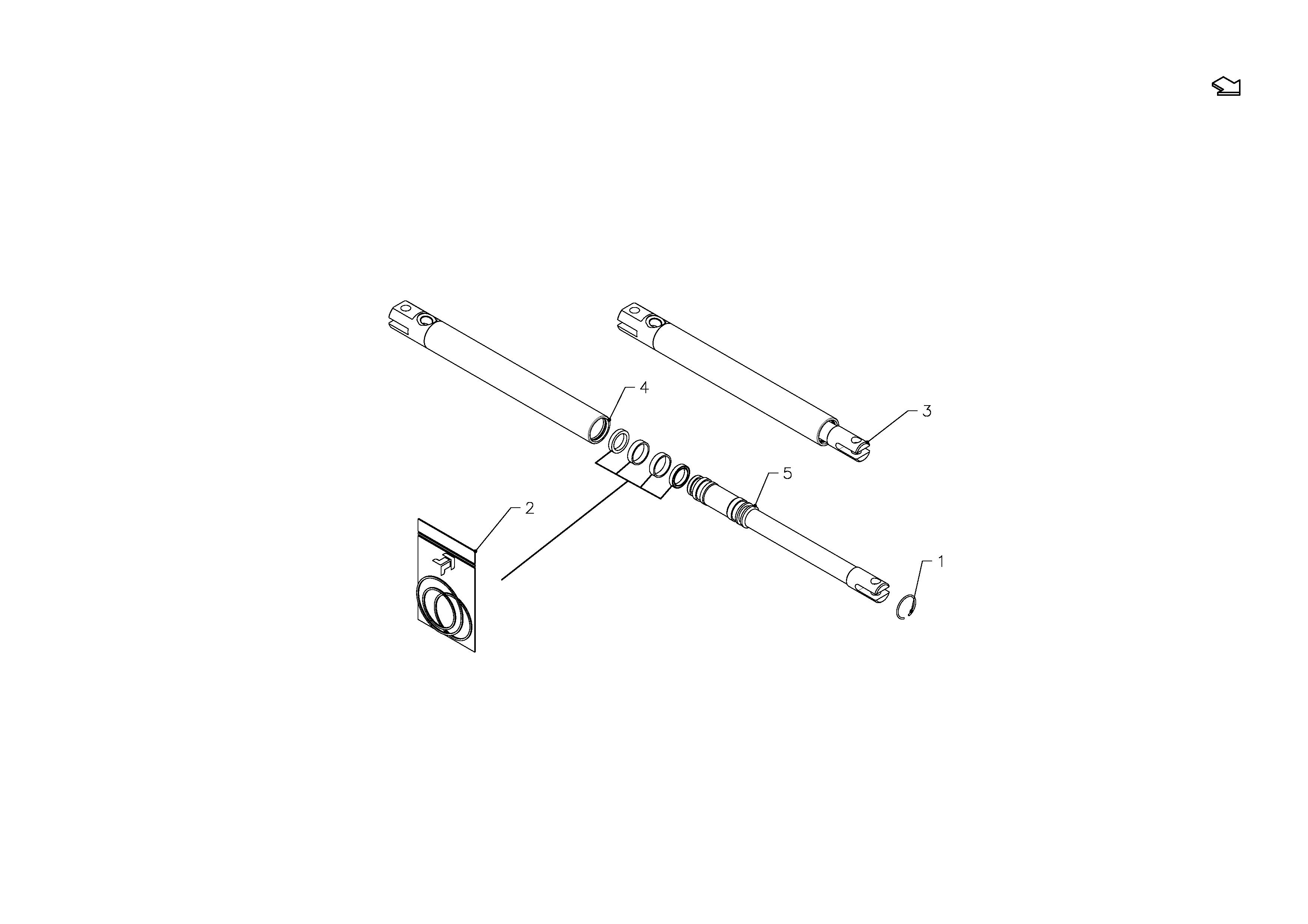

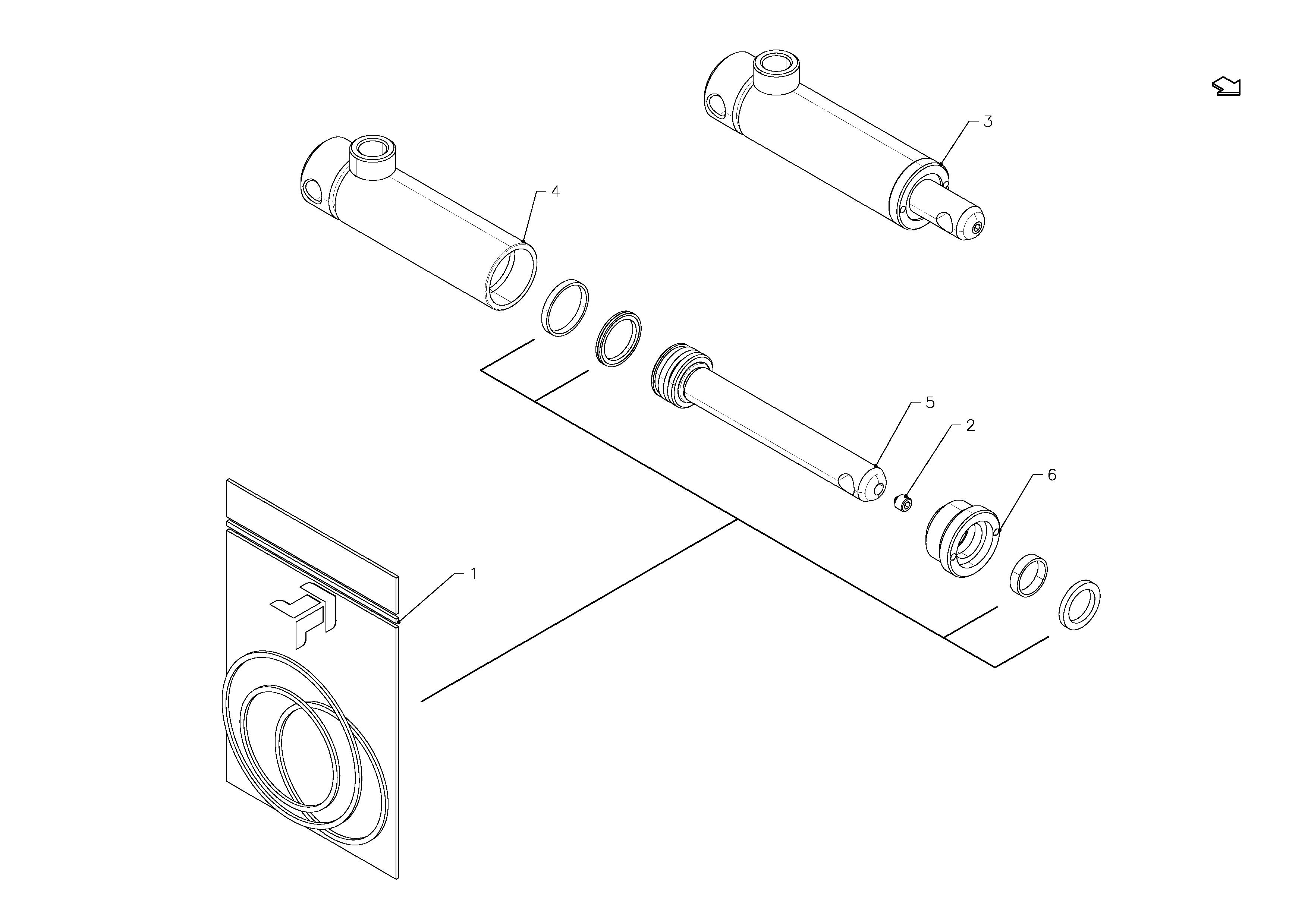

PL/RL / PACER ARM- RELEASER CYLINDER(354220)
SPMKK000153
PL/RL / PACER ARM- RELEASER CYLINDER(354220)
PosNo. Part No. Qty. Description Remark
1 KK016576 SEALING KIT FOR D32-D20 2 KK032110 SET SCREW M8X8 3 KK354520 CYLINDER D32/D20 X 165 + 75 4 KK354587R CYLINDER TUBE 5 KK354588R PISTON ROD 6 KK354589R END CAP

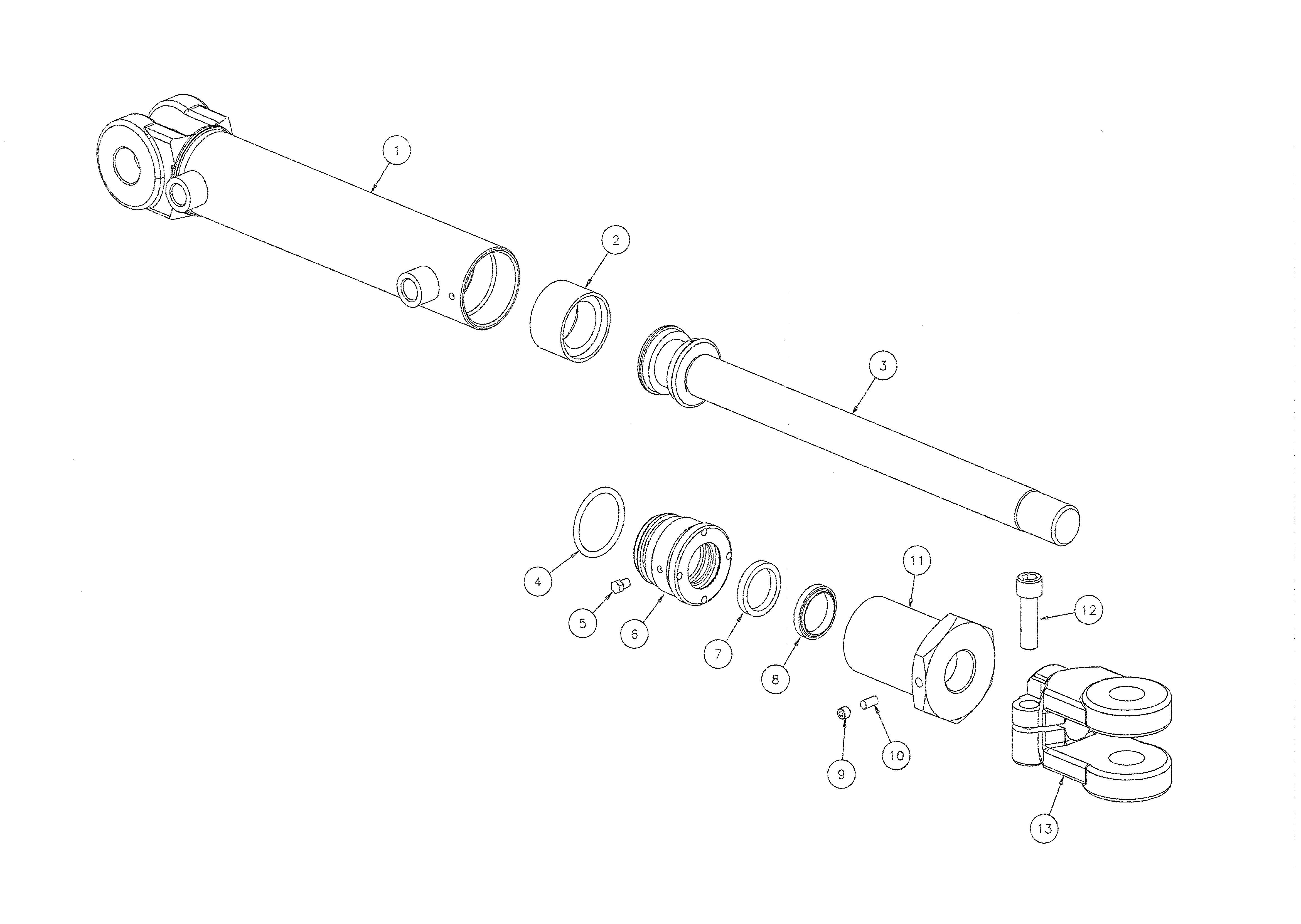

PL/RL / PACKER ARM - CYLINDER
1192
PL/RL / PACKER ARM - CYLINDER
PosNo. Part No. Qty. Description Remark
1 KK353934 CYL INDER TUBE D50 ( for cylinder KK 35 39 01 and KK 35 39 02 ) 1 KK353935 CYLINDER TUBE D50 ANGLED 50 DEG. ( for cylinder KK 35 39 03 ) 2 KK013090 SEAL FOR PISTON D 20 WO, 50-34-18.4 3 KK353936 ROD D30 W.PISTON D50 SHORT THREAD (35MM) ( for cylinder KK 35 39 01 and KK 35 39 03 ) 3 KK353937 ROD D30 LONG THREAD(120MM) W.PISTON D50 ( for cylinder KK 35 39 02 ) 4 KK016517 O-RING D42X4 5 KK033306 HEX BOLT M6X8 6 KK353926 ROD CAP D50-D30 W.SEAL 7 KK013091 PISTON SEALING NI 300. 30-38-6 8 KK013089 SCRAPER A 30X38X7-5 9 KK032110 SET SCREW M8X8 10 KK353946 PLASTIC STOP ( for cylinder KK 35 39 02 ) 11 KK353944 STOP NUT CPL. ( for cylinder KK 35 39 02 ) 12 UH825640 CYLINDER SCREW M12X40-12.9 ( for cylinder KK 35 39 02 ) 13 KK353922 CLEVIS D25.5 FOR D30 ROD Not ill. KK013086 SEAL KIT D30-D50 Not ill. KK353901 CYLINDER D50-D30X520+200 Not ill. KK353902 CYL.D50-D30X520+200 W.STOP NUT Not ill. KK353903 CYL. D50-D30X520+200 OFFSET 90 DEG

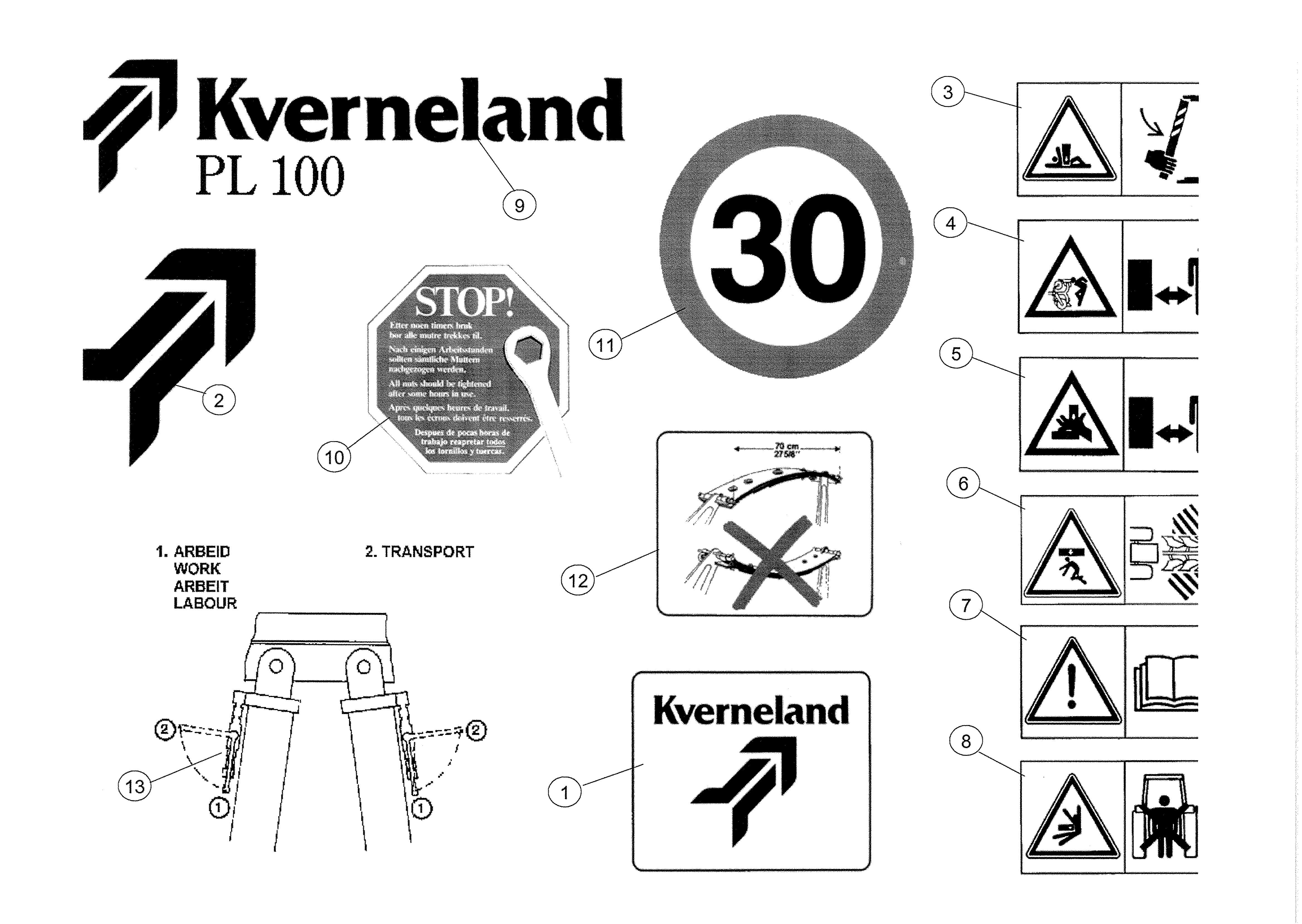

PL/RL / TRANSFERS
862
PL/RL / TRANSFERS
PosNo. Part No. Qty. Description Remark
1 KK709831 TRANSFER 2 KK709737 ARROW 3 KK709843 SAFTY SIGN, PARKING SUPPORT 4 KK709895 SAFTY SIGN, SHARP EDGES 5 KK709823 SAFTY SIGN, CRUSH DANGER 6 KK709842 SAFTY SIGN, REVERSIBLE PLOUGH 7 KK709844 SAFTY SIGN, READ INSTRUCTION MANUAL 8 KK709841 SAFTY SIGN, DANGER, TRACTOR/IMPLEMENT 9 KK709940 KVERNELAND PL-100 9 KK709944 KVERNELAND RL-100 10 KK709479 INFO: NUTS 11 KK709781 INFO., SPEED LIMIT 30KM/H 12 KK709234 TRANSFER 70CM SP 13 KK709304 INFO., LOCK VALVES FOR TRANSPORT Not ill. KK709847 PATENT LABEL Not ill. KK709980 KLISTERM.REFLEX VARS.TRK.RØD Not ill. KK709981 RECTANGULAR REFLEXIVE FOIL
PL/RL / Part No Index
Part No. Page Pos No
AC499986 39 20 AC661262 13 32 KG00017500 6 1 KG00017500 7 1 KG00017500 8 1 KG01108862 6 2 KG01108862 7 2 KG01108862 8 2 KG01129300 28 1 KG01129300 30 12 KG01129800 6 3 KG01129800 7 3 KG01129800 8 3 KG01189400 32 1 KG01195400 11 40 KG01195400 16 19 KG01195400 18 19 KG01195400 19 9 KG01195400 20 24 KG01195400 21 6 KG01195400 22 3 KG01195400 39 34 KG01195400 40 38 KG01195600 33 1 KG01195800 32 2 KG01799800 34 1 KG01817500 34 2 KG01828000 34 3 KK010008 11 43 KK010008 38 18 KK010036 37 1 KK010064 37 2 KK010147 38 9
Part No. Page Pos No
KK010148 10 59 KK010153 11 44 KK010155 1 103 KK010155 2 103 KK010156 1 103 KK010156 2 103 KK010158 10 66 KK010160 38 39 KK010162 39 26 KK010168 11 69 KK010168 12 89 KK010260 32 3 KK010293 10 67 KK010315 11 39 KK010315 39 38 KK010318 12 62 KK010318 19 7 KK010318 20 27 KK010318 38 17 KK010319 11 46 KK010319 16 17 KK010319 18 17 KK010319 20 26 KK010319 21 4 KK010328 40 16 KK010332 19 6 KK010332 20 32 KK010335 11 49 KK010335 21 4 KK010335 21 5 KK010335 22 2 KK010335 39 36 KK010335 40 36
Part No. Page Pos No
KK010337 16 18 KK010337 18 18 KK010337 20 25 KK010566 12 17 KK010572 6 4 KK010572 7 4 KK010572 8 4 KK010591 34 4 KK010592 38 45 KK010593 38 44 KK010606 10 55 KK010650 10 56 KK010655 10 54 KK010700 10 64 KK010700 33 2 KK010700 38 6 KK010700 39 54 KK010700 40 17 KK010702 35 4 KK010867 4 18 KK010967 10 49 KK011002 32 4 KK011021 12 63 KK011037 3 6 KK011037 14 43 KK011042 3 30 KK011052 12 57 KK011059 14 1 KK011122 32 5 KK011168 34 5 KK011223R 30 13 KK011232 28 2 KK011277 12 76
Part No. Page Pos No
KK011277 14 2 KK011296 38 27 KK011296 39 12 KK011303 34 6 KK011305 34 6 KK011343 31 17 KK011344 31 16 KK011349 34 9 KK011369 31 17 KK011370 31 16 KK011401 34 7 KK011402 34 8 KK011408 31 21 KK011414 31 17 KK011416 31 17 KK011417 31 20 KK011451 31 17 KK011452 31 17 KK011453 31 16 KK011457 31 20 KK011458 31 21 KK011460 31 2 KK011461 31 2 KK011462 31 1 KK011463 31 11 KK011464 31 10 KK011465 31 9 KK011466 31 7 KK011468 31 4 KK011469 31 15 KK011472 31 18 KK011473 31 18 KK011474 31 19
PL/RL / Part No Index
Part No. Page Pos No
KK011479 31 14 KK011484 31 1 KK011512 21 11 KK011523 22 4 KK011538 17 2 KK011538 18 24 KK011538 20 23 KK011541 14 21 KK011564 4 50 KK011565 4 32 KK011565 4 44 KK011565 4 8 KK011565 14 32 KK011565 16 2 KK011565 17 7 KK011565 18 2 KK011565 19 19 KK011565 20 2 KK011565 21 16 KK011565 22 12 KK011567 4 21 KK011572 4 34 KK011572 4 Not ill. KK011585 4 49 KK011585 14 3 KK011585 15 4 KK011585 16 13 KK011585 17 5 KK011585 18 13 KK011585 19 11 KK011585 20 7 KK011585 21 8 KK011585 22 5
Part No. Page Pos No
KK011585 40 2 KK011587 4 9 KK011596 17 9 KK011596 19 14 KK011596 20 10 KK011596 21 2 KK011596 37 3 KK011596 40 27 KK011601R 12 28 KK011618 38 9 KK011622 38 43 KK011632 11 20 KK011632 11 65 KK011632 12 35 KK011632 12 72 KK011632 39 28 KK011633 32 6 KK011668 10 46 KK011682 10 10 KK011682 11 5 KK011683 12 4 KK011691R 10 39 KK011691R 13 6 KK011698 12 22 KK011750 6 5 KK011750 7 5 KK011750 8 5 KK011755 26 5 KK011756 26 6 KK011793 29 13 KK011806 24 5 KK011806 30 6 KK011865 24 12
Part No. Page Pos No
KK011866 6 6 KK011866 7 6 KK011866 8 6 KK011888 24 6 KK011888 30 7 KK011890 12 19 KK011891 12 21 KK011895 12 16 KK011896 12 23 KK011912 24 9 KK011912 26 9 KK011912 30 10 KK011951 24 8 KK011951 30 9 KK011962 29 15 KK012012 26 2 KK012017 25 6 KK012039 25 10 KK012050 4 2 KK012056 20 34 KK012056 40 23 KK012058 4 54 KK012059 4 48 KK012059 14 4 KK012059 18 11 KK012059 19 13 KK012059 20 20 KK012059 21 10 KK012059 22 14 KK012059 40 4 KK012060 14 31 KK012060 16 3 KK012060 17 6
Part No. Page Pos No
KK012060 18 3 KK012060 19 20 KK012060 20 3 KK012060 21 15 KK012060 22 13 KK012062 14 5 KK012062 15 6 KK012062 18 12 KK012062 19 12 KK012062 20 21 KK012062 21 9 KK012062 22 6 KK012062 40 3 KK012065 4 6 KK012068 14 6 KK012068 16 6 KK012068 18 6 KK012069 14 7 KK012069 16 7 KK012069 18 7 KK012069 37 4 KK012081 40 18 KK012082 40 19 KK012084 14 4 KK012085 14 4 KK012090 4 1 KK012092 37 5 KK012120 16 5 KK012120 20 17 KK012123 18 5 KK012128 4 33 KK012157 4 20 KK012158 4 46
PL/RL / Part No Index
Part No. Page Pos No
KK012158 14 12 KK012158 16 1 KK012158 17 8 KK012158 18 1 KK012158 19 10 KK012158 20 1 KK012158 21 17 KK012158 22 11 KK012158 40 28 KK012185 10 14 KK012208 16 10 KK012212 17 3 KK012212 18 25 KK012212 20 22 KK012247 4 28 KK012248 4 22 KK012248 4 28 KK012261 14 28 KK012261 16 14 KK012261 17 13 KK012261 18 14 KK012261 19 17 KK012261 20 8 KK012261 40 10 KK012264 4 10 KK012267 4 45 KK012269 4 17 KK012284 4 11 KK012284 4 25 KK012285 4 36 KK012286 4 35 KK012287 4 13 KK012288 4 12
Part No. Page Pos No
KK012293 4 42 KK012298 4 38 KK012299 4 26 KK012307 14 9 KK012307 15 5 KK012310 4 7 KK012319 20 16 KK012319 40 24 KK012323 37 6 KK012323 40 31 KK012324 4 40 KK012324 14 26 KK012324 17 11 KK012324 18 21 KK012324 19 16 KK012324 20 12 KK012324 21 13 KK012324 22 7 KK012324 37 7 KK012324 40 30 KK012325 15 2 KK012326 40 Not ill. KK012339 14 20 KK012353 4 Not ill. KK012363 19 4 KK012363 20 29 KK012367 4 19 KK012367 40 26 KK012503 20 41 KK012503 37 8 KK012505 20 37 KK012517 20 40 KK012520 40 6
Part No. Page Pos No
KK012522 4 41 KK012522 14 25 KK012522 17 10 KK012522 18 20 KK012522 19 15 KK012522 20 11 KK012522 21 12 KK012522 22 8 KK012526 20 33 KK012526 40 25 KK012533 20 Not ill. KK012536 20 Not ill. KK012543 20 15 KK012547 4 47 KK012548 14 10 KK012548 40 20 KK012551 14 34 KK012554 20 38 KK012555 20 39 KK012570 14 33 KK012577 40 21 KK012635 25 Not ill. KK012636 25 2 KK012637 25 9 KK012638 26 Not ill. KK012639 26 8 KK012643 29 Not ill. KK012644 29 Not ill. KK012652 18 9 KK012652 20 19 KK012655 14 11 KK012655 15 1 KK012656 16 9
Part No. Page Pos No
KK012659 19 5 KK012659 20 30 KK012670 18 10 KK012670 20 18 KK012700 14 37 KK012700 37 9 KK012700 39 6 KK012700 40 40 KK012705 40 13 KK012706 40 12 KK012717 4 38 KK012718 37 10 KK012719 37 10 KK012723 14 18 KK012730 14 38 KK012734 40 Not ill. KK012735 35 34 KK012735 40 Not ill. KK012737 37 11 KK012737 40 8 KK012750 4 14 KK012761 40 39 KK012773 14 22 KK012775 40 11 KK012778 14 23 KK012778 20 14 KK012779 16 4 KK012779 18 4 KK012779 20 14 KK012780 16 4 KK012780 18 4 KK012780 20 14 KK012781 16 4
PL/RL / Part No Index
Part No. Page Pos No
KK012781 17 4 KK012781 18 4 KK012781 19 3 KK012781 20 14 KK012784 40 9 KK012795 20 31 KK012796 14 24 KK012852 37 12 KK012904 35 19 KK012906 9 1 KK012913 3 32 KK012916 32 7 KK012919 1 15 KK012922 1 36 KK012922 2 31 KK012922 11 57 KK012922 38 8 KK012927 4 53 KK012929 1 107 KK012929 2 107 KK012931 32 8 KK012940 38 7 KK012942 10 65 KK012955 32 9 KK012956 32 10 KK012960 8 7 KK012963 11 77 KK012968 37 13 KK012971 12 56 KK012979 12 18 KK012980 14 39 KK012994 20 43 KK013000 21 22
Part No. Page Pos No
KK013004 32 11 KK013005 12 87 KK013017 32 12 KK013068 29 12 KK013070 29 16 KK013075 29 10 KK013076 29 7 KK013077 29 8 KK013078 29 4 KK013079 29 5 KK013080 29 2 KK013081 29 9 KK013086 42 Not ill. KK013089 42 8 KK013090 42 2 KK013091 42 7 KK013100 34 9 KK013105 34 10 KK013110 34 11 KK013228R 1 10 KK013228R 1 101 KK013228R 2 101 KK013228R 2 17 KK013234R 1 11 KK013332 1 1 KK013332 1 45 KK013332 2 4 KK013333 1 39 KK013334 1 44 KK013334 2 38 KK013346 1 105 KK013346 2 105 KK013361 1 105
Part No. Page Pos No
KK013361 2 105 KK013385 1 105 KK013385 2 105 KK013501 40 29 KK013502 4 3 KK013517 15 3 KK013518 14 35 KK013519 15 7 KK013522 14 36 KK013560 20 Not ill. KK013563 20 Not ill. KK013570 20 Not ill. KK013571 20 42 KK013587 4 37 KK013588 4 43 KK013594 24 14 KK013595 24 10 KK013597 24 2 KK013598 4 37 KK013599 4 37 KK013630 4 23 KK013636 4 51 KK013637 4 16 KK013638 4 52 KK013639 4 15 KK013644 4 38 KK013689 40 22 KK013700 32 13 KK013701 38 32 KK013701 39 9 KK013705 24 13 KK015806 35 31 KK015806 36 9
Part No. Page Pos No
KK015806 37 14 KK015811 14 29 KK015813 2 22 KK015813 2 22 KK015813 9 2 KK015813 12 85 KK015817 2 101 KK015817 2 17 KK015817 2 7 KK015817 2 7 KK015817 2 8 KK015817 2 8 KK015817 6 7 KK015825 1 47 KK015825 2 104 KK015825 2 104 KK015825 2 104 KK015825 2 13 KK015825 2 41 KK015825 7 7 KK015825 8 8 KK015825 9 3 KK015825 11 74 KK015825 32 14 KK015825 33 3 KK015825 35 3 KK015830 5 1 KK015830 11 75 KK015830 32 15 KK015830 35 23 KK015830 37 15 KK015834 1 19 KK015834 35 1
PL/RL / Part No Index
Part No. Page Pos No
KK015841 11 72 KK015841 12 65 KK015841 33 4 KK015870 26 10 KK016001 33 5 KK016004 6 8 KK016004 7 8 KK016004 8 9 KK016008 35 9 KK016008 37 16 KK016008 38 47 KK016012 7 9 KK016012 13 27 KK016012 33 6 KK016013 2 4 KK016015 1 106 KK016015 2 106 KK016018 32 16 KK016022 5 2 KK016025 38 48 KK016031 6 9 KK016031 7 10 KK016038 33 7 KK016045 5 3 KK016049 5 4 KK016201 31 3 KK016203 31 12 KK016404 27 1 KK016506 25 3 KK016517 42 4 KK016550 25 7 KK016576 41 1 KK016580 24 Not ill.
Part No. Page Pos No
KK016581 24 3 KK016581 30 3 KK016584 30 not ill. KK016586 27 2 KK016592 23 1 KK016594 32 17 KK016601 23 2 KK016644 28 3 KK016645 28 4 KK016646 28 5 KK029715 38 33 KK029715 39 15 KK029718 32 18 KK029727 3 14 KK029727 3 37 KK029727 4 31 KK029770 10 32 KK029918 12 82 KK029918 28 6 KK029918 30 2 KK029920 3 4 KK029920 6 10 KK029920 7 11 KK029920 8 10 KK029920 10 8 KK029920 11 27 KK029920 12 7 KK029920 13 8 KK029920 31 13 KK029920 32 19 KK029920 33 8 KK029920 34 12 KK029920 38 30
Part No. Page Pos No
KK029920 39 7 KK029922 12 3 KK029922 12 75 KK029927 10 9 KK029927 12 3 KK030970 12 13 KK031019 37 17 KK032001 30 5 KK032002 28 7 KK032007 28 8 KK032040 23 3 KK032040 24 17 KK032040 25 12 KK032110 41 2 KK032110 42 9 KK032151 11 67 KK032310 37 18 KK032330 37 19 KK032335 14 17 KK032335 37 20 KK032380 16 8 KK032380 18 8 KK032391 32 20 KK032403 10 16 KK032435 17 12 KK032435 18 22 KK032435 19 18 KK032435 20 13 KK032435 37 21 KK032440 12 77 KK032445 21 14 KK032445 22 9 KK032460 37 21
Part No. Page Pos No
KK032465 14 27 KK032465 20 13 KK032470 17 12 KK032470 18 22 KK032470 19 18 KK032475 10 17 KK032490 40 32 KK032590 4 5 KK032621 39 31 KK032623 37 22 KK032624 37 23 KK032640 33 9 KK032655 3 33 KK032655 11 56 KK032655 35 7 KK032665 3 16 KK032695 38 14 KK032700 39 24 KK032702 7 12 KK032702 8 11 KK032702 38 37 KK032702 39 2 KK032704 38 21 KK032705 13 15 KK032706 38 22 KK032708 38 20 KK032710 37 24 KK032716 13 13 KK032716 38 19 KK032720 11 42 KK032725 10 18 KK032725 11 28 KK032725 11 58
PL/RL / Part No Index
Part No. Page Pos No
KK032725 12 26 KK032730 1 31 KK032730 10 11 KK032732 39 53 KK032735 1 22 KK032735 35 2 KK032735 38 36 KK032735 39 3 KK032740 1 104 KK032740 2 104 KK032740 32 21 KK032740 39 52 KK032745 11 24 KK032745 12 37 KK032745 32 22 KK032750 1 104 KK032750 2 104 KK032750 2 13 KK032750 10 36 KK032750 13 3 KK032754 11 51 KK032754 12 54 KK032755 11 59 KK032762 5 5 KK032765 1 104 KK032765 2 104 KK032765 33 10 KK032775 1 104 KK032775 2 104 KK032775 8 12 KK032785 8 13 KK032794 11 70 KK032794 12 90
Part No. Page Pos No
KK032795 9 4 KK032795 11 18 KK032795 11 25 KK032795 12 55 KK032807 5 6 KK032807 33 11 KK032807 39 23 KK032808 39 30 KK032816 13 28 KK032818 11 66 KK032818 12 8 KK032818 38 2 KK032820 10 23 KK032820 12 74 KK032821 10 51 KK032821 38 2 KK032821 39 49 KK032822 10 69 KK032822 11 16 KK032822 38 3 KK032826 38 2 KK032828 10 70 KK032828 38 3 KK032830 6 11 KK032830 11 78 KK032835 35 33 KK032837 10 30 KK032840 3 26 KK032840 6 12 KK032840 8 14 KK032842 38 3 KK032843 10 29 KK032845 5 7
Part No. Page Pos No
KK032845 10 26 KK032845 12 81 KK032845 32 23 KK032850 8 15 KK032850 11 73 KK032850 12 24 KK032850 13 12 KK032850 37 25 KK032855 3 31 KK032855 12 52 KK032860 3 8 KK032860 10 3 KK032865 5 8 KK032865 39 42 KK032885 11 6 KK032885 12 51 KK032908 13 26 KK032918 39 29 KK032921 39 50 KK032926 10 60 KK032975 33 12 KK032980 33 13 KK033004 1 26 KK033006 9 5 KK033006R 2 22 KK033016 2 22 KK033100R 1 12 KK033107R 2 7 KK033111 2 8 KK033116 2 7 KK033117 2 8 KK033118 1 6 KK033119 1 7
Part No. Page Pos No
KK033175 1 35 KK033175 2 29 KK033256 1 34 KK033256 1 34 KK033256 2 30 KK033256 2 30 KK033295 1 46 KK033295 2 40 KK033306 36 8 KK033306 37 26 KK033306 42 5 KK033315 35 20 KK033315 40 5 KK033420 20 35 KK033525 4 27 KK033535 4 39 KK033535 12 84 KK033535 21 21 KK033535 40 34 KK033670 32 24 KK034225 9 6 KK034228 9 7 KK034250 9 8 KK035020 3 2 KK035021 3 29 KK035031R 6 13 KK035060R 5 9 KK035072R 5 10 KK035088 10 42 KK035088 11 11 KK035109 10 47 KK035114 6 14 KK035114 7 13
PL/RL / Part No Index
Part No. Page Pos No
KK035114 8 16 KK035165 3 28 KK035175 7 14 KK035175 33 14 KK035179 13 19 KK035197 11 31 KK035197 12 53 KK035209 3 25 KK035215 5 11 KK035219 11 31 KK035219 12 53 KK035235 10 13 KK035236 10 53 KK035239 11 14 KK050706 3 Not ill. KK053090 1 100 KK053090 1 3 KK053090 2 100 KK053090 2 16 KK053387R 1 29 KK056873R 9 9 KK057063 3 17 KK057064 3 20 KK057065 3 22 KK057066 3 3 KK057067 3 1 KK057068 3 23 KK057089 3 13 KK060108 3 27 KK060109 3 27 KK060119 3 Not ill. KK060657 9 10 KK060703 3 Not ill.
Part No. Page Pos No
KK061280R 3 24 KK061291 3 38 KK061515 5 12 KK061637R 11 33 KK061637R 12 43 KK061899 32 25 KK061941 37 27 KK061942 21 20 KK061942 40 33 KK061943 40 7 KK061970 40 Not ill. KK062020 5 13 KK062025 1 32 KK062397 40 35 KK062458 10 58 KK062500R 10 57 KK062505 10 12 KK062506 10 15 KK063090 1 3 KK063090 2 16 KK063090R 1 100 KK063090R 2 100 KK063091 2 18 KK063092 2 18 KK063388R 1 29 KK064079R 32 26 KK064086 32 27 KK064087R 32 28 KK064089R 32 29 KK064206 32 30 KK064317R 10 4 KK064321 10 1 KK064360 10 2
Part No. Page Pos No
KK066175R 6 16 KK066175R 7 15 KK066178 6 17 KK066178 8 17 KK066182 6 18 KK066185 6 15 KK066189 6 18 KK066190R 6 19 KK066811 9 11 KK066812 9 11 KK066860 9 12 KK066868R 9 13 KK066869R 9 13 KK066873R 9 9 KK066880R 9 14 KK066881R 9 14 KK067016R 3 7 KK067016R 14 42 KK067025 3 10 KK067026R 3 19 KK067031R 3 21 KK067039R 3 12 KK067040 3 10 KK067051 3 9 KK067057 3 7 KK067059R 3 5 KK067060 3 18 KK067068 3 11 KK067070 3 19 KK067075 3 35 KK067076 3 36 KK067077 3 34 KK067080 3 15
Part No. Page Pos No
KK067083 4 30 KK067088 4 24 KK067090R 3 18 KK067092 3 11 KK068251 32 31 KK068689 37 10 KK068690 37 10 KK068691 37 10 KK071256 11 2 KK071256 12 33 KK071259 11 81 KK071259 12 91 KK071270R 5 14 KK071271R 5 15 KK071272R 5 16 KK071273R 5 17 KK071274 5 18 KK071275 5 19 KK071492 37 29 KK071493 35 25 KK071493 37 29 KK071608 11 26 KK071650 13 2 KK071664 11 23 KK071664 12 36 KK071711 38 32 KK071734 10 61 KK071794 12 67 KK071904 12 20 KK071942 12 50 KK072421 12 15 KK072526 12 14 KK072617 12 48
PL/RL / Part No Index
Part No. Page Pos No
KK072618 12 49 KK073002 2 19 KK073003 2 19 KK073004 2 19 KK073005 2 19 KK073006 2 19 KK073007 2 19 KK073030 2 33 KK073031R 2 33 KK073042 2 32 KK073043 2 32 KK073044 2 32 KK073045 2 32 KK073054 1 2 KK073054 2 19 KK073055 1 2 KK073055 2 19 KK073056 1 2 KK073056 2 19 KK073057 1 2 KK073057 2 19 KK073062 1 5 KK073062 2 23 KK073063 1 5 KK073063 2 23 KK073064 1 5 KK073064 2 23 KK073065 1 5 KK073065 2 23 KK073080 1 2 KK073080 2 19 KK073081 1 2 KK073081 2 19
Part No. Page Pos No
KK073091 1 4 KK073091 2 18 KK073092 1 4 KK073092 2 18 KK073230R 2 21 KK073231R 2 21 KK073256R 2 21 KK073257R 2 21 KK073272R 1 13 KK073273R 1 13 KK073275 1 16 KK073276 1 16 KK073278R 1 8 KK073279R 1 8 KK073300R 2 1 KK073301R 2 1 KK073328 1 20 KK073329 1 20 KK073338 1 17 KK073339 1 17 KK073350R 1 27 KK073351R 1 27 KK073352 1 28 KK073353 1 28 KK073354 1 37 KK073464 1 9 KK073465 1 9 KK073470 1 9 KK073471 1 9 KK073608 1 23 KK073608 2 12 KK073609 1 24 KK073609 2 5
Part No. Page Pos No
KK073614R 1 38 KK073614R 2 14 KK073615R 1 25 KK073615R 2 3 KK073616R 1 25 KK073616R 2 3 KK073634 1 102 KK073634 2 102 KK073635 1 102 KK073635 2 102 KK073800 1 18 KK073801 1 18 KK073826 1 21 KK073829 1 21 KK074389 10 1 KK074624 33 15 KK074744 12 32 KK074762 12 32 KK074763 12 83 KK074765 12 83 KK074839 32 32 KK074841R 33 16 KK074844 33 17 KK074856R 33 18 KK074862R 33 19 KK074864 33 20 KK074865 33 21 KK074866R 33 22 KK074867R 32 33 KK074873 32 34 KK074874R 32 35 KK074875 33 23 KK074876 32 36
Part No. Page Pos No
KK074893 33 24 KK074902 11 64 KK074902 12 71 KK074903 12 83 KK074910R 5 20 KK074911R 5 21 KK074912 12 73 KK074913 11 21 KK074913 12 39 KK074913 39 27 KK074919 11 50 KK074930 8 18 KK074931 8 19 KK074936 8 20 KK074937 8 21 KK074938 8 22 KK074939 8 23 KK075427 38 46 KK075592 38 10 KK075593 38 13 KK075594 38 12 KK075807 12 32 KK075869 12 44 KK075871 12 30 KK075872 11 22 KK075872 12 42 KK075880 11 12 KK075880 12 41 KK075881 11 20 KK075881 12 35 KK075887 11 21 KK075887 12 39 KK075889 12 40
PL/RL / Part No Index
Part No. Page Pos No
KK075903 11 55 KK075904 11 52 KK075905 11 50 KK075906 11 54 KK076023 12 68 KK076063 7 16 KK076294R 8 26 KK076295R 8 27 KK076310R 39 1 KK076318 38 28 KK076318 39 11 KK076319 38 26 KK076319 38 41 KK076319 39 17 KK076320 38 29 KK076320 39 10 KK076351 38 Not ill. KK076351 39 5 KK076381 38 38 KK076400R 7 17 KK076400R 8 24 KK076406R 6 20 KK076406R 7 18 KK076406R 8 25 KK076407R 6 21 KK076407R 7 19 KK076407R 8 26 KK076409R 6 22 KK076409R 8 27 KK076410R 6 22 KK076410R 7 20 KK076410R 8 27 KK076499R 6 23
Part No. Page Pos No
KK076499R 7 21 KK076499R 8 28 KK076515 8 29 KK076527R 8 30 KK076650 38 40 KK076652 38 41 KK076652 39 16 KK076654 38 15 KK076655 38 23 KK076656 38 24 KK076657 38 Not ill. KK076668 38 34 KK076669 38 25 KK076676 38 31 KK076682 38 35 KK076682 39 4 KK076711R 38 34 KK076711R 39 14 KK076716 38 40 KK076716 39 13 KK076720 39 40 KK076721 39 41 KK076724 39 25 KK076725 39 18 KK076727 39 21 KK076728 39 22 KK076729 39 51 KK076812R 9 15 KK076817 9 16 KK076818 9 16 KK076825 9 16 KK076826 9 16 KK076829 9 17
Part No. Page Pos No
KK076858 9 11 KK076859 9 11 KK076872 9 18 KK076943 9 14 KK076944 9 14 KK077013 38 31 KK077013 39 8 KK077017 11 9 KK077025 11 80 KK077026 21 18 KK077026 21 19 KK077026 21 24 KK077027 21 23 KK077027 21 3 KK077027 21 7 KK077028 21 18 KK077029 21 3 KK077030 10 52 KK077031 10 52 KK077032 12 34 KK077035 12 79 KK077038 12 78 KK077039 10 52 KK077050 12 69 KK077055 12 70 KK077057 11 76 KK077058 11 29 KK077059 11 30 KK077060 11 60 KK077063 11 61 KK077065 11 62 KK077067 11 63 KK077080 10 20
Part No. Page Pos No
KK077081 10 20 KK077082 10 20 KK077085 12 66 KK077090 39 46 KK077091 39 47 KK077092 39 48 KK077102 11 1 KK077104 11 4 KK077106 13 1 KK077107 12 Not ill. KK077108 12 15 KK077110 11 7 KK077111 11 7 KK077112 11 7 KK077113 12 31 KK077115 11 17 KK077116 11 17 KK077117 11 17 KK077118 12 29 KK077128R 11 41 KK077130 11 8 KK077133 11 10 KK077137 10 37 KK077150 13 24 KK077165 12 12 KK077167 11 15 KK077170 10 40 KK077171 10 41 KK077172 13 21 KK077191 10 19 KK077195 12 11 KK077200 10 44 KK077201 12 27
PL/RL / Part No Index
Part No. Page Pos No
KK077202 12 1 KK077207 10 52 KK077208 10 38 KK077209 10 43 KK077210 12 10 KK077212 12 2 KK077213 12 6 KK077214 12 5 KK077216 12 9 KK077226 20 6 KK077230 10 27 KK077231 10 31 KK077234 26 11 KK077236 12 25 KK077248 11 29 KK077249 11 30 KK077250 13 18 KK077251 13 5 KK077252 13 4 KK077256 12 Not ill. KK077257 12 58 KK077264 14 8 KK077266 10 24 KK077267 10 25 KK077269 12 47 KK077270 12 46 KK077271 12 45 KK077272 13 7 KK077274 13 14 KK077275 13 9 KK077276 13 10 KK077280 10 34 KK077281 10 33
Part No. Page Pos No
KK077282 12 64 KK077283 13 11 KK077286 10 48 KK077291 13 25 KK077295 11 79 KK077570 39 32 KK077587 38 5 KK077587 39 37 KK077590 39 33 KK077660 38 4 KK077675 38 1 KK077682 14 30 KK078225 4 24 KK078389 37 10 KK078546 10 37 KK078550 10 35 KK078564 10 21 KK078583 14 13 KK078898 10 6 KK078898 13 20 KK079063 33 25 KK079153 10 45 KK079724 14 14 KK079765 10 7 KK080080 10 19 KK080568 10 63 KK081044 10 28 KK081098 10 22 KK081100 12 Not ill. KK081134 12 2 KK081135 12 1 KK081136 12 86 KK081137 12 88
Part No. Page Pos No
KK081150 10 5 KK081160 12 Not ill. KK081161 12 58 KK081163 12 61 KK081165 12 60 KK081190 13 25 KK081192 13 22 KK081193 13 16 KK081194 13 23 KK081197 13 22 KK081198 13 16 KK081270 13 24 KK081369R 12 80 KK081389 39 45 KK082100 11 4 KK082127 11 68 KK082135 11 7 KK082136 11 17 KK082137 10 20 KK082171 14 41 KK082177 10 62 KK082190 39 39 KK083012R 1 42 KK083012R 2 37 KK083013R 1 42 KK083013R 2 37 KK083016R 1 43 KK083016R 2 39 KK083017R 1 43 KK083017R 2 39 KK083018R 1 43 KK083018R 2 39 KK083019R 1 43
Part No. Page Pos No
KK083019R 2 39 KK083020R 2 39 KK083021R 2 39 KK083022R 2 39 KK083023R 2 39 KK083090R 1 41 KK083090R 2 36 KK083091 1 40 KK083091 2 35 KK083210 2 9 KK083211R 2 24 KK083212R 2 25 KK083213R 2 26 KK083214R 2 27 KK083215R 2 20 KK083216R 2 20 KK083217R 2 20 KK083218 2 20 KK083220 2 9 KK083221 2 24 KK083222R 2 25 KK083223 2 26 KK083224R 2 27 KK083235R 2 34 KK083300 2 2 KK083301 2 2 KK083406 2 15 KK083407 2 15 KK083408 2 6 KK083409 2 6 KK083415 2 15 KK083416 2 15 KK083417 2 6
PL/RL / Part No Index
Part No. Page Pos No
KK083418 2 6 KK083802 2 11 KK083803 2 10 KK083804 2 11 KK083805R 2 11 KK083806R 2 11 KK083807 2 11 KK083808 2 11 KK084040 32 37 KK084043 32 38 KK084106 34 13 KK084107 34 14 KK084110 34 15 KK084111 34 16 KK084112 34 16 KK084113 34 15 KK084320R 1 33 KK084320R 2 28 KK084321R 1 33 KK084321R 2 28 KK084624 32 39 KK084634R 33 26 KK084636R 32 40 KK084637R 33 27 KK085430 39 43 KK085431 39 44 KK086081 6 25 KK086084BOM 6 24 KK086085BOM 6 25 KK086087R 6 26 KK086087R 7 22 KK086087R 8 31 KK086091 7 23
Part No. Page Pos No
KK086091 8 32 KK086092 6 24 KK086093 6 24 KK086100 6 27 KK086100 7 24 KK086100 8 33 KK086101R 6 28 KK086101R 7 25 KK086101R 8 34 KK086103R 7 26 KK086166 8 32 KK086167 7 27 KK086167 8 35 KK086168 8 35 KK086170 6 29 KK086171 6 30 KK086172 6 29 KK086173 6 30 KK086174 6 29 KK086175 6 30 KK086190 6 24 KK086191 6 25 KK086801 9 19 KK088056 13 Not ill. KK088057 13 30 KK088058 13 29 KK088062 32 41 KK088063 32 42 KK088064 32 43 KK088169 35 24 KK088866 11 13 KK088897 11 19 KK088897 12 38
Part No. Page Pos No
KK124157 11 44 KK124157 22 1 KK124157 40 37 KK126095 12 64 KK126095 21 4 KK195415 13 17 KK199788 35 10 KK309029 24 11 KK309047 40 Not ill. KK351139 11 45 KK351140 11 48 KK351144 11 47 KK351148 11 35 KK351148 12 59 KK351170 11 36 KK351170 12 60 KK351172 11 34 KK351173 11 38 KK351173 12 61 KK351192 12 59 KK352238 16 16 KK352238 18 16 KK352238 20 28 KK352246 14 40 KK352247 16 16 KK352247 18 16 KK352247 20 28 KK352404 4 29 KK352405 4 4 KK352478 4 4 KK352777 14 16 KK352779 14 15 KK352782 17 1
Part No. Page Pos No
KK352782 18 23 KK352782 20 5 KK352787 14 15 KK353370 16 15 KK353370 18 15 KK353370 20 36 KK353392 25 11 KK353534 22 10 KK353535 19 1 KK353535 20 4 KK353536 19 2 KK353536 20 9 KK353540 39 19 KK353551 25 1 KK353553 25 8 KK353554 26 1 KK353556 26 7 KK353559R 23 4 KK353562 29 1 KK353563 29 3 KK353565 29 14 KK353566 29 6 KK353573 29 11 KK353580 21 1 KK353580 28 9 KK353592R 28 10 KK353593R 28 11 KK353596R 28 12 KK353597 28 13 KK353626 40 1 KK353634 22 10 KK353634 29 Not ill. KK353673 30 11
PL/RL / Part No Index
Part No. Page Pos No
KK353688 29 17 KK353706 14 16 KK353813 14 15 KK353834 14 15 KK353837 16 15 KK353837 18 15 KK353837 20 36 KK353901 42 Not ill. KK353902 40 15 KK353902 42 Not ill. KK353903 42 Not ill. KK353907 4 29 KK353907 27 3 KK353922 42 13 KK353926 42 6 KK353934 42 1 KK353935 42 1 KK353936 42 3 KK353937 42 3 KK353944 42 11 KK353946 42 10 KK353947 27 4 KK353948 27 5 KK354008 35 11 KK354011 35 16 KK354011 36 10 KK354014 37 28 KK354017 35 27 KK354017 37 29 KK354018 35 26 KK354018 37 29 KK354026 13 31 KK354028 37 30
Part No. Page Pos No
KK354029 37 30 KK354030 37 30 KK354040 36 6 KK354041 37 31 KK354042 37 32 KK354046 36 13 KK354047 37 33 KK354048 37 33 KK354049 37 33 KK354063 36 13 KK354064 36 13 KK354077 37 33 KK354078 37 33 KK354090 36 13 KK354091 37 33 KK354092 37 31 KK354094 37 34 KK354096 37 35 KK354310 35 21 KK354313 35 32 KK354313 37 36 KK354314 35 5 KK354315 35 13 KK354317 35 17 KK354318 35 8 KK354320 35 6 KK354321 35 22 KK354324 37 37 KK354325 35 18 KK354326 36 7 KK354327 35 28 KK354328 35 30 KK354340 37 33
Part No. Page Pos No
KK354347 35 14 KK354347 36 1 KK354348 35 15 KK354348 36 2 KK354363 35 12 KK354403 35 29 KK354403 36 14 KK354403 37 38 KK354511R 32 44 KK354516 19 1 KK354516 20 4 KK354516 25 Not ill. KK354517 19 2 KK354517 20 9 KK354517 26 Not ill. KK354520 40 1 KK354520 41 3 KK354523 14 15 KK354524 14 16 KK354526 16 15 KK354526 18 15 KK354526 20 36 KK354526 24 Not ill. KK354562 25 5 KK354563 26 4 KK354564 25 4 KK354564 26 3 KK354586R 23 5 KK354587R 41 4 KK354588R 41 5 KK354589R 41 6 KK354592R 24 1 KK354593R 24 4
Part No. Page Pos No
KK354594 30 8 KK354594R 24 7 KK354595 24 15 KK354596R 24 16 KK354600 14 15 KK354630 40 14 KK354711 23 6 KK354712 14 15 KK354722 17 1 KK354722 18 23 KK354722 20 5 KK354722 30 not ill. KK354726R 30 1 KK354727R 30 4 KK354760R 23 7 KK354761R 23 8 KK356042R 32 45 KK359056R 28 14 KK361116 11 48 KK361116 39 35 KK361120 11 38 KK361120 11 48 KK361133 38 16 KK572415 38 11 KK709234 43 12 KK709304 43 13 KK709479 43 10 KK709737 43 2 KK709781 43 11 KK709823 43 5 KK709831 43 1 KK709841 43 8 KK709842 43 6
PL/RL / Part No Index
Part No. Page Pos No
KK709843 43 3 KK709844 43 7 KK709847 43 Not ill. KK709895 43 4 KK709940 43 9 KK709944 43 9 KK709980 36 11 KK709980 43 Not ill. KK709981 43 Not ill. KK709982 36 12 UH333791 37 39 UH414213 36 3 UH414216 36 4 UH414217 36 5 UH440775 36 13 UH825640 42 12
