DRAWBAR 4

4336LR / Table of Contents

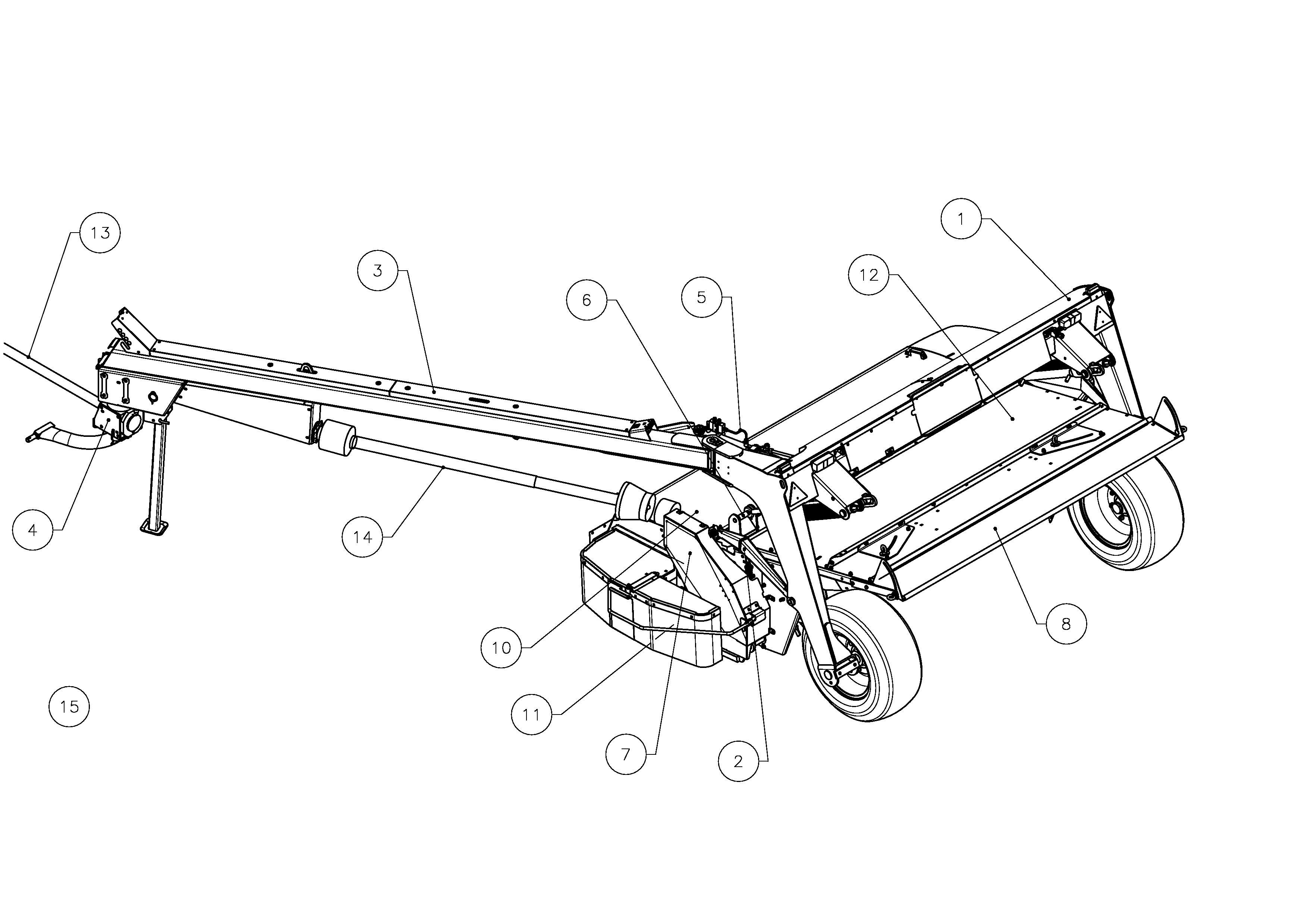

PosNo. Assembly group Page 1 PRIMARY FRAME, WHEEL 1 1 LIGHTING KIT 25 2 CONNECTING ARM 2 3 DRAWBAR 4 4 SWIVEL GEAR 5 4 SWIVEL GEAR, COMPLETE 6 5 HYDRAULIC 7 5 HYDRAULIC, DRAWBAR 8 6 SPRING, HYDRAULIC CYLINDER 3 6 SECONDARY FRAME 9 7 TRANSMISSION 10 8 REAR END & DEFLECTOR PLATE 21 9 TRANSMISSION, ROLLER 11 9 TRANSMISSION, ROLLER 12 9 ROLLER 13 10 MAIN GEAR BOX 14 11 CUTTERBAR, COMPLETE 15 11 CUTTERBAR, SPARE PARTS SET 16 11 TRANSMISSION, CUTTERBAR 17 11 TRANSMISSION, CUTTERBAR + PROFIT 18 12 GUARD 19 12 GUARD 20 13 PTO SHAFT 22 14 PTO SHAFT 23 14 FRICTION CLUTCH 24 15 OPTIONAL EQUIPMENT 26 15 OPTIONAL EQUIPMENT 27 15 OPTIONAL EQUIPMENT 28

© Kverneland Group KT 422.984 < Mach. ID <= Page number: a
