VHMS controller initial setting procedure 1

a Equipment used for VHMS controller initial setting

SymbolPart No.

1

Part name

1.Confirmation of machine information, engine information, transmission controller information and controller information

W

799-608-3211Diskette

799-608-3220Wiring harness

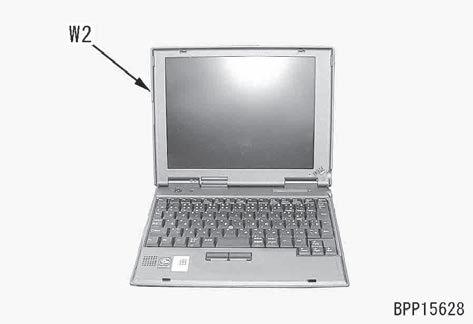

2 Commercially available Note type PC (Windows 98/2000/Me/XP), with RS232C terminal a Initial setting of VHMS controller shall be done according to the following procedure. This operation is needed prior to a full-scale operation of a machine being delivered and assembled in the field, or prior to resumption of its operation after a long time of storage. a Machine data collected with VHMS controller are stored and managed on WebCARE database. In order to endure smooth data processing on WebCARE, consistency must be provided among the settings done on VHMS controller. Inconsistencies in the settings obstruct loading of data to WebCARE, hampering appropriate use of VHMS data. The initial setting, therefore, is a must. a For the installation procedure of the VHMS initial setting program to a PC, refer to the operation and maintenance manual being bundled with the service kit W1 a In the procedure, service menus of the machine monitor are used. Thus, it is advisable to reference the information contained in the “Special functions of machine monitor” to understand their procedure beforehand. a The initial setting procedure is described in the “ORBCOMM installation specification” and the “ORBCOMM-less specification”. When using the “ORBCOMM installation specification”, implement the procedures needed for VHMS alone, bypassing those prepared only for ORBCOMM installation specification. a Check each step of the setting work referencing the “VHMS initial setting work check sheet”. a Information such as models shown in the figures may not be identical with actual ones. a This confirmation procedure is targeted at the entire machine. Confirm and record the machine information, engine information, VHMS controller information and ORBCOMM terminal information.

No. Information to be confirmed

1Model name

2Machine serial No.

3Current service meter hour

4Engine serial No.

5VHMS controller serial No.

6 ORBCOM terminal serial No. [Only for machines equipped with ORBCOMM] a VHMS controller (1) and ORBCOMM terminal (2) are installed in the cab base inner the distribution board.

2.Connecting a PC a This work is done inside the cab. k Before connecting or disconnecting a PC, be sure to turn off the starting switch. a It can be checked with monitoring function of the machine monitor, too.

1)Make sure the starting switch is at OFF position.

2)Using harness [1] of service kit W1, connect the PC W2 and download connector C53. a Then connect the PC to RS232C terminal.

3.Confirming VHMS controller operation and confirming satellite capturing state a This work is done inside the cab. a Confirmation of capturing of the satellite is done for [ORBCOMM installation specification].

1)Turn the starting switch ON.

2)Check the controller for normal operation referencing 7-segment LED of VHMS controller. a VHMS controller is fed with switch power supply. Thus, its operation is judged normal if its 7-segment LED starts flashing while rotating as the starting switch is turned on and then if the controller starts counting in the ascending order.

3)Among the 7-segment LED situated in the right side of VHMS controller, refer to the one that represents the decimal point to check whether or not ORBCOMM controller has captured the communication satellite. [ORBCOMM installation specification] a Check whether or not ORBCOMM controller is capturing the communication satellite from VHMS controller. a It is successfully capturing the satellite when the LED representing the decimal point in the right side 7-segment LED is flashing.

4.Starting the VHMS initial setting tool a This work is done inside the cab (from PC).

1)Turn on the PC power and start the OS.

2)Operating [VHMS initial setting tool] icon on the PC, start up the VHMS initial setting tool.

Important a Appearance of the setup screen of the VHMS setting tool depends its tool. a When using Ver.3.5.2.1 or older version (CD-ROM), the setting procedure shall conform to that described in Section 5. a When using an update version (Ver.3.5.2.1 or after), the procedure in Section 6 shall be used. a It is recommended to download the latest VHMS version from WebCARE to update the currently used version. (Related material: PARTS & SERVICE OPERATION TIPS SEKN5052)

3)Enter the 10-digit service ID to [Service ID]. a Service ID: 7826117000

4)Select [Data clear and Set up] from [Select Function] item.

5)Click [OK] button to proceed to the setup screen.

5.Initial setting of VHMS controller (Ver. 3. 5. 2.1 or older version) a This work is done inside the cab (from PC). a It is prohibited in the initial setting to modify the data of service meter [SMR]. [Machine Information] a [Data clear and Set up] menu displays [Machine Information] tab first. a As [Apply] button is pressed, a message confirming above setting will appear on the screen. Check the setting again and, if the setting is correct, press [OK] button. a ORBCOMM installation specification requires the settlement operation after [Communication Setting] is completed.

1)Open [Machine Information] tab.

2)Check every data for correctness.

3)When [Date/Time] information is not appropriate, correct it in the following manner.

1]Press [Edit] button in the lower right side of [Date/Time] box to display the correction screen.

2]After correcting it to the correct information, press [OK] button.

5)As every data in [Machine Information] has been checked and corrected, press [Apply] button to settle the setting.

4)When [Machine Information] information is not appropriate, correct it in the following manner.

1]Press [Edit] button in the lower right side of [Machine Information] dialog box to display the correction screen.

2]After correcting it to the correct information, press [OK] button.

[Communication Setting] [ORBCOMM installation specification only] a This setting shall be implemented after the request for station opening has been made and station of ORBCOMM has been opened. q Maintenance information initialization procedure q Switch operations: While pressing [4], perform [4] + [1] o [2] o [3] in order. a This operation of the switches is accepted only while the ordinary screen is displayed.

6)Open [Communication Setting] tab.

7)Check every data for correctness.

8)When modifying the setting of [SHORT FAULT HISTORY], employ the following procedure.

1]Select [SHORT FAULT HISTORY] from the screen and then press [Edit] button in the lower left side of [File Transfer Setting] block to display the setup screen.

2]Correct the setting and, as it is completed, press [OK] button. a In the initial setting, select [Occurrence] from [Timing] item and then set the function to ON.

10)When modifying the setting of [Satellite Setting], employ the following procedure.

1]Press [Edit] button in the [Satellite Setting] block to display the correction screen.

2]Set the GCC code to the region applied and, as setting is completed, press [OK] button.

9)When modifying the setting of [SHORT TREND ANALYSIS], employ the following procedure.

1]Select [SHORT TREND ANALYSIS] from the screen and then press [Edit] button in the lower left side of [File Transfer Setting] block to display the setup screen.

2]Correct the setting and, as it is completed, press [OK] button. a In the initial setting, enter [20h] to [SMR] and then set the function to ON.

11)As every data in [Communication Setting] has been checked and corrected, press [Apply] button to settle the setting. a As [Apply] button is pressed, a message confirming above setting will appear on the screen. Check the setting again and, if the setting is correct, press [OK] button.

12)As every data in [Machine Information] and [Communication Setting] has been checked and corrected, press [Exit] button to end [VHMS initial setting tool].

13)After the initial setting of the VHMS controller is completed, initialize the machine monitor maintenance information, too.

1]While the ordinary screen is displayed, perform the following operation with the numeral input switches.

2]When the service menu screen appears, move the yellow cursor onto "04 Maintenance Mode Change" using [F3] or [F4] and then press [F6].

3]When the maintenance mode change screen appears, move the yellow cursor onto "99 Use Default Value" using [F3] or [F4] and then press [F6].

6.Initial setting of VHMS controller (Ver. 3. 5. 2.1 or later version) a This work is done inside the cab (from PC). a It is prohibited in the initial setting to modify the data of service meter [SMR]. a Selecting DST advances the clock by an hour. Thus, correction of the time is needed again. a When VHMS has been installed later, it is required to enter the information such as [Serial No.].

1)Select [VHMS Setting] and then press [Next] button.

4]The maintenance information is initialized.

2)Select [Set up & All clear] and press [Next] button.

3)Confirm the machine information and, if they are correct, press [Next] button.

4)Select the time zone.

5)Enter the local time.

6)When DST (Daylight Saving Time) (or summer time) is currently used, press [Next] button.

7)Set the GCC code to the target region of application and, as setting is completed, press [Next] button. GCC

8)If there is no problem in the setting displayed last, press [Apply] button.

7.Performing Quick Pm a Perform the following procedure in the cab. a The Quick Pm means the Pm clinic performed by using the snap shot (manual) function of the machine monitor. q Swing the boom 90° to right (with the idler on the front side). q Set the arm vertically. q Lower the bucket bottom to the ground and set it horizontally. q Working mode switch: P-mode q Heavy lift switch: ON q Auto-decelerator switch: ON q Swing lock switch: OFF q PCC lock lever: Free a For the operating method, see “Special function of machine monitor”. a Before starting the snap shot operation, understand the operating procedure for the Quick Pm by referring to “Operating procedure for Quick Pm”. a The data of 48 items are recorded and saved for 7 minutes 30 seconds after the [F1] switch on the machine monitor is pressed. a The data are recorded at the intervals of 10 seconds for the first 5 minutes and at the intervals of 1 second for the 2 minutes 20 seconds after the 5 minutes. a To interrupt the snap shot operation, press the “” switch. a If the snap shot operation is interrupted, the data collected up to now are not recorded. In this case, repeat the operation from the first. a The elapsed time is displayed on the machine monitor. k Since the operator must operate the work equipment, swing the boom, and drive the machine actually for the Quick Pm, take extreme care of safety around the machine during the work.

1)Run the engine at low idle and set the machine in the following position.

2)Set the switches and lever in the following positions.

9)A screen message will confirm whether or not the data before the setting is to be saved. If the data is not necessary, select [NO].

3)Set the machine monitor to display the service menu.

10)As correction of the first setting is completed, press [OK] button to end the program.

5)Press the [F1] switch to start the snap shot operation.

6)Operate the fuel dial, swing lock switch, both work equipment control levers, and both travel levers according to the “Operating procedure for Quick Pm” and elapsed time.

7)After 5 seconds passes since the bar graph is completed (7 minutes 30 seconds passes after the snap shot is starts), the initial screen of the service menu is displayed again.

*: Operation mode (P)

Operating procedure for Quick Pm

Note:To turn off the decelerator and set the engine speed to high idle, move one of both work equipment control levers and both travel levers to a degree that the work equipment does not move or the machine does not swing or travel. (If the PPC oil pressure switch is turned ON, the auto-decelerator is turned OFF.)

Snap shot item table

No. Item Unit

Sampling time sec

1Engine speed rpm

2Fuel injection rate mm3/st

3Blow-by pressurekPa

4Left-bank front exhaust temperature°C

5Left-bank rear exhaust temperature°C

6Right-bank front exhaust temperature°C

7Right-bank rear exhaust temperature°C

8Engine oil pressureMPa

9engine oil temperature°C

10Engine coolant temperature°C

11Intake air pressurekPa

12Intake air temperature°C

13Ambient temperature°C

14Pump 1F oil pressureMPa

15Pump 1R oil pressureMPa

16Pump 2F oil pressureMPa

17Pump 2R oil pressureMPa

18Fan pump F pressureMPa

19Fan pump R pressureMPa

20Hydraulic oil temperature°C

21Pump 1F control currentmA

22Pump 1R control currentmA

23Pump 2F control currentmA

24Pump 2R control currentmA

25Engine speed command valueV

26Auto-deceleration command valueV

27Fuel injection timingdeg

28Fuel injection pressureMPa

29PTO oil temperature°C

30Boom raise oil pressureMPa

31Boom lower oil pressureMPa

32Arm in oil pressureMPa

33Arm out oil pressureMPa

34Bucket curl oil pressureMPa

35Bucket dump oil pressureMPa

36Right travel oil pressure switch—

37Left travel oil pressure switch—

38Right swing oil pressureMPa

39Left swing oil pressureMPa

40Service valve pressure switch—

41Straight travel valve—

422-stage main relief signal—

No. Item Unit

43Arm throttle selector valve L

44Arm throttle selector valve R

45Swing brake valve

46Swing priority selector valve

47Travel back pressure valve

48Swing back pressure valve

8.Download of setting data

1)Using harness [1] of service kit W1, connect PC W2 to download connector C53 in the cab or download connector VDL on the ground.

a Enter [User Name] and [Password].

a For the operating procedure, see the VHMS analysis tool operation and maintenance manual.

2)Operating [VHMS analysis tool] on PC, start up the VHMS analysis tool.

3)Using [Download] function, download the data currently recorded on VHMS to PC.

a For the operating procedure, see the VHMS analysis tool operation and maintenance manual.

a After making sure the download is complete, proceed to the next step.

9.Confirmation of download data

1)Check the setting data using [View] function.

a For the operating procedure, see the VHMS analysis tool operation and maintenance manual.

a Make sure that [MFA0] code, which was used in the quick snapshot, is indicated in [Fault History].

a Make sure the snap shot data are recorded.

2)As check of the setting data is finished, end [VHMS analysis tool].

10.Disconnecting the PC

1)Make sure the starting switch is at OFF position.

k Before connecting or disconnecting a PC, be sure to turn off the starting switch.

2)End the OS of PC W2 and then turn off the PC power.

11.Report to Komatsu

As steps 1 – 9 are completed, send VHMS/ WebCARE setting report to VHMS/WebCARE Support Center in Komatsu Headquarters. a This report is a must since setting on the receiving end in the satellite communication must be done by Komatsu. a In this case, send VHMS data via Notes (LAN) or E-mail (WAN).

Komatsu VHMS/WebCARE Support Center

2-3-6, Akasaka Minato-Ku Tokyo, Japan

FAX: 81-3-5561-4766 (from outside of Japan)

FAX: 03-5561-4766 (Domestic user)

E-mail: webcare@komatsu.co.jp

3)When the data was download into the cab, disconnect harness [1] of service kit W1 from download connector C53.

[For storage]

VHMS initial setting work check sheet

1 Confirmation of machine body and component nameplates

Date of setting: DB/branch office name

Data entered by:

Model name Serial No. Engine serial No. VHMS controller serial No.

2 Connection between PC and VHMS controller Is the connection secure?yesno

3 VHMS controller check for normal operation

4Starting of VHMS initial setting tool

5

Initial setting of VHMS controller (Setting of machine body information)

In this step, basic machine body information are set on VHMS controller

Is it operating normally? (Displays counting in ascending-order succeeding to rotation) yesno

Is “Data Clear and Set up” selected for the setting tool mode? yesno

Is model name identical with machine body?yesno

Is machine body serial No. correctly entered?yesno

Is engine serial No. correctly entered?yesno

Is today's date entered?yesno

Is current time entered?yesno

Is SMR correctly entered?yesno 6Saving of settingsIs LED (7-segment) turned off?yesno 7Confirmation of VHMS functionIs LED operation

Is service mode “SNAPSHOT” turned on and is the switch hit? yesno 9Data storing operation on VHMSIs LED (7-segment) turned off?yesno 10DownloadIs LED operation normal?yesno

Are all files downloaded?yesno

The time downloaded (Reference wrist watch) Hour, minute: [Confirmation of data]

11Confirmation of download data

Is [MFA0] error present in Fault History?yesno

Are SMR and time in Fault History consistent with settings? yesno

Is any data missing in Snap Shot0?yesno

12Data storing operation on VHMSIs LED (7-segment) turned off?yesno

[For storage]

ORBCOMM station opening work check sheet

1 Confirmation of machine body and component nameplates

Date of setting: DB/branch office name

Data entered by:

Model name Serial No. Engine serial No. VHMS controller serial No. ORBCOMM terminal serial No.

2 Connection between PC and VHMS controller Is the connection secure? yesno

3 VHMS controller check for normal operation Is it operating normally? (Displays counting in ascending-order succeeding to rotation) yesno

4Starting of VHMS initial setting toolIs “Set up” selected for the setting tool mode? yesno

Entry of setting to S.Fault History

5

Initial setting of VHMS controller

1.Setting of communication (Setting of machine body information and PLM are completed)

Presence/absence of communication

Number of cases (Default is 8 cases)

Entry of setting of S.Trend Analysis setting

Presence/absence of communication

Interval (Default is 20H)

Entry of setting of S.Payload data

Presence/absence of communication

Tabulation start time

Interval of tabulation (in days)

2.Setting for start of communication Is GCC code set? (130 for Japan) yesno

6Saving of settings Is LED (7-segment) turned off after data was stored?yesno

7 ORBCOMM controller performance check How is decimal point display in VHMS monitor (7-segment)? (OFF, ON, long/short flashing) yesno
