SPECIFICATIONS

Item Unit Reinforced Sigma dozer + Multi ripper Reinforced Semi-U + Giant ripper Operating weight (excluding operator’s weight)kg41,40040,320 Blade weight (reinforced) (including cylinders)kg5,6375,695 Ripper weight (including cylinders)kg3,3922,405 Engine model–KOMATSU SAA6D140E-6 Rated engine outputkW/rpm × {HP/rpm}264/1,900 {353/1,900}* Length of track on groundmm3,275 Width of gaugemm2,140 Overall lengthmm8,3258,375 Overall height (with ROPS, cab)mm3,310aa

Overall width (width of blade) mm 4,060

Travel speed (1st / 2nd / 3rd (Low) / 3rd) Forward Reverse km/h km/h 3.5/5.6 / 7.5/11.6 4.3/6.8 / 9.2/14.0 4,130

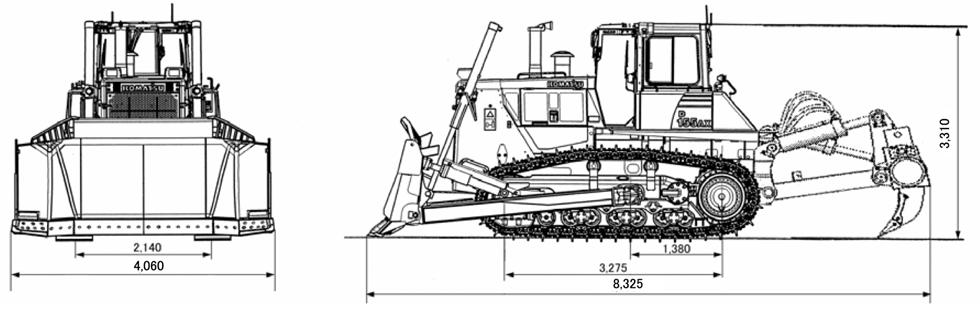

Reinforced Sigma dozer + Variable multi ripper

It shows at min. fan speed. At max. fan speed, it is 239 kW {320 HP}. aa Height above GL. excluding grouser (80 mm).

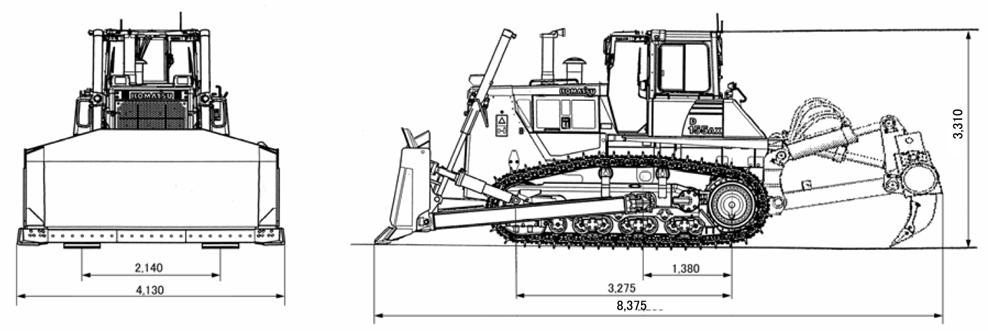

Reinforced Semi-U dozer + Giant ripper
