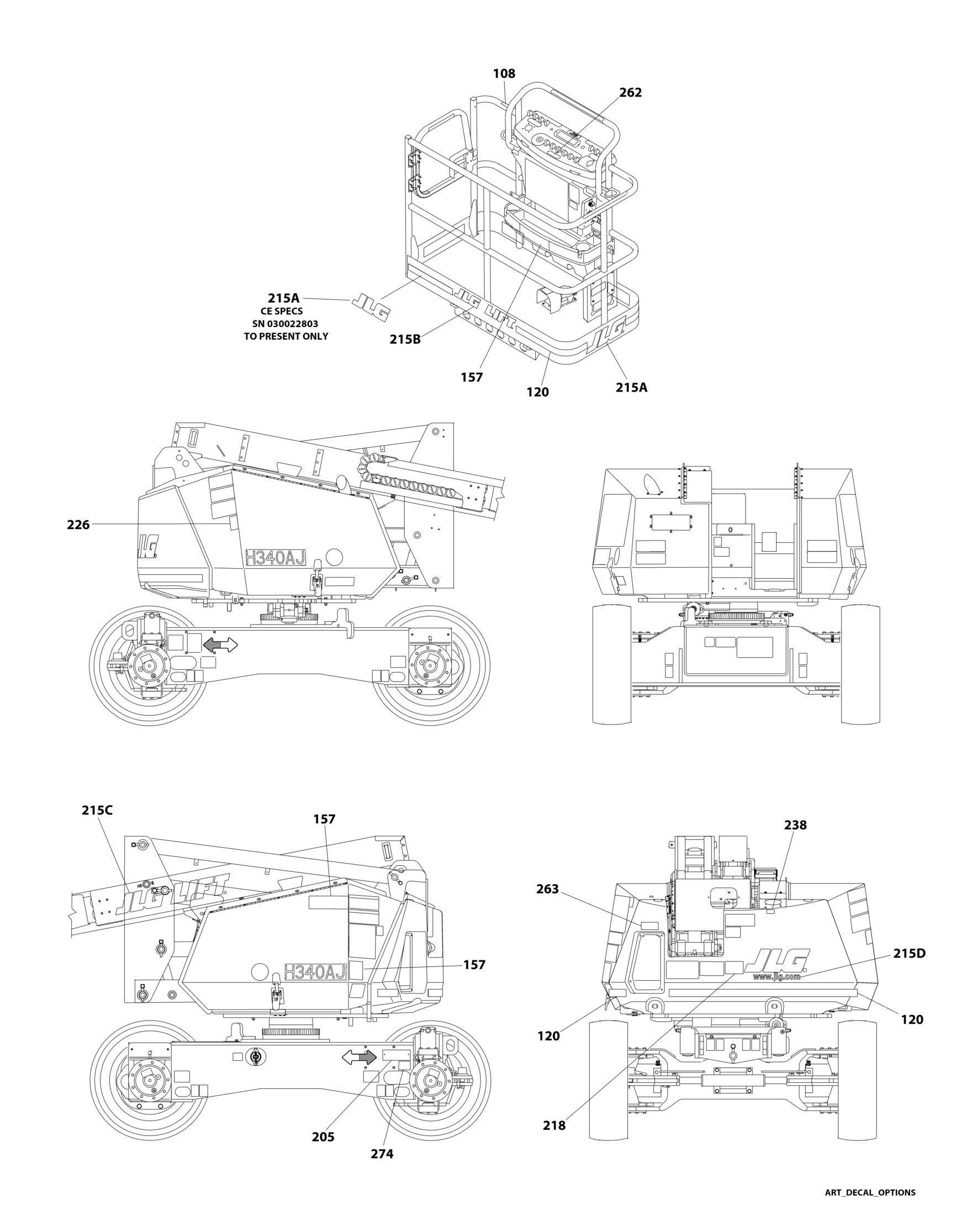

FIGURE 9 10. OPTIONAL DECALS INSTALLATION

FIGURE 9-10. OPTIONAL DECALS INSTALLATION

FIGURE 9-10. OPTIONAL DECALS INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

Ref OPTIONAL DECALS INSTALLATION 108 1702962 1 Decal - Warning Proposition 65 (ANSI Spec) (Prior to SN

0300271932)

108 1001231801 1 Decal - Warning Proposition 65 (ANSI Spec) (SN 0300271932

through 0300272288)

120 4420051 AR Tape, Safety 157 1704286 2 Decal - Generator Warning (ANSI & ANSI Export Specs) 157 1001093687 2 Decal - Generator Warning (Australian & CE Specs) 157 1704373 2 Decal - Generator Warning (Brazil Specs) 157 1704368 2 Decal - Generator Warning (CSA Specs) 157 1704372 2 Decal - Generator Warning (Chinese Specs) 157 1704369 2 Decal - Generator Warning (Japanese Specs) 157 1704370 2 Decal - Generator Warning (Korean Specs) 157 1704371 2 Decal - Generator Warning (Latin America Specs) 205 See Note 1 Nameplate - Manufacturers Serial Number (Note: Not Available for Purchase) 215 1001110613 Ref JLG Logo Installation 215A 1702773 1 Decal - JLG 215B 1702774 1 Decal - JLG Lift (3in) (All Specs except CE Specs) 215B 1702774 1 Decal - JLG Lift (3in) (CE Specs) (SN 0300228036 through

0300272288)

215C 1702860 1 Decal - JLG Lift (5in) 215D 1704885 1 Decal - Website 218 3251813 1 Decal - USA (ANSI, ANSI Export & CSA Specs) 226 1704972 1 Decal - Warning Explosion/Fire (ANSI Spec) 226 1706098 1 Decal - Warning Explosion/Fire (Australian & CE Spec) 226 1706059 1 Decal - Warning Explosion/Fire (Brazil Spec) 226 1706064 1 Decal - Warning Explosion/Fire (CSA Spec) 226 1706060 1 Decal - Warning Explosion/Fire (Chinese Spec) 226 1706062 1 Decal - Warning Explosion/Fire (Japanese Spec) 226 1706061 1 Decal - Warning Explosion/Fire (Korean Spec) 226 1706063 1 Decal - Warning Explosion/Fire (Latin America Spec) 238 1001108923 1 Decal - Low Sulfer Fuel Spec (ANSI & CSA Specs Only) 262 1001141300 1 Decal - SkyGuard Override 263 1001189882 1 Decal - MSSO 274 1001214029 Ref EAC Decal Installation (Russia/CIS Specs) 274 1001173703 1 Decal - EAC

REV

B
