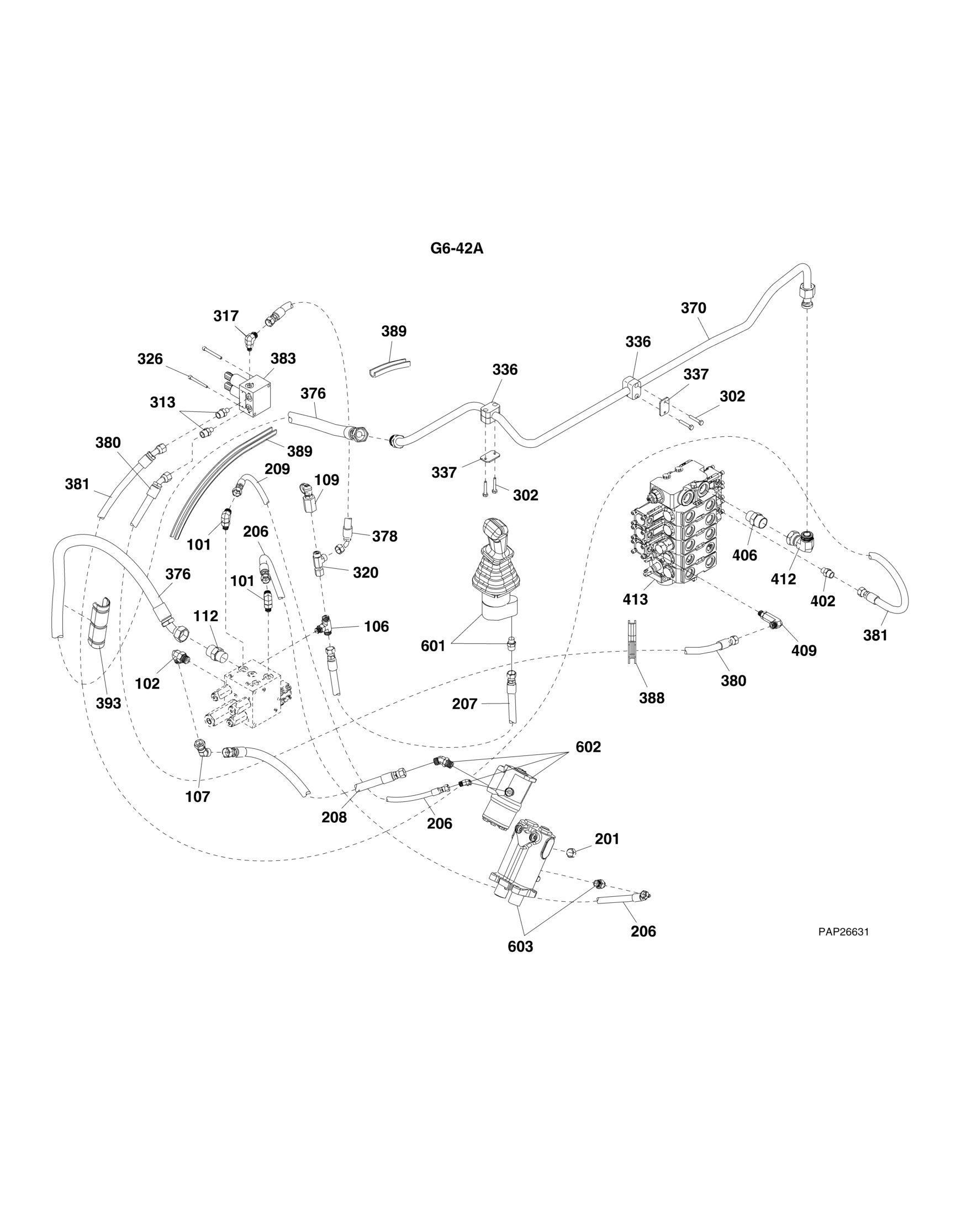

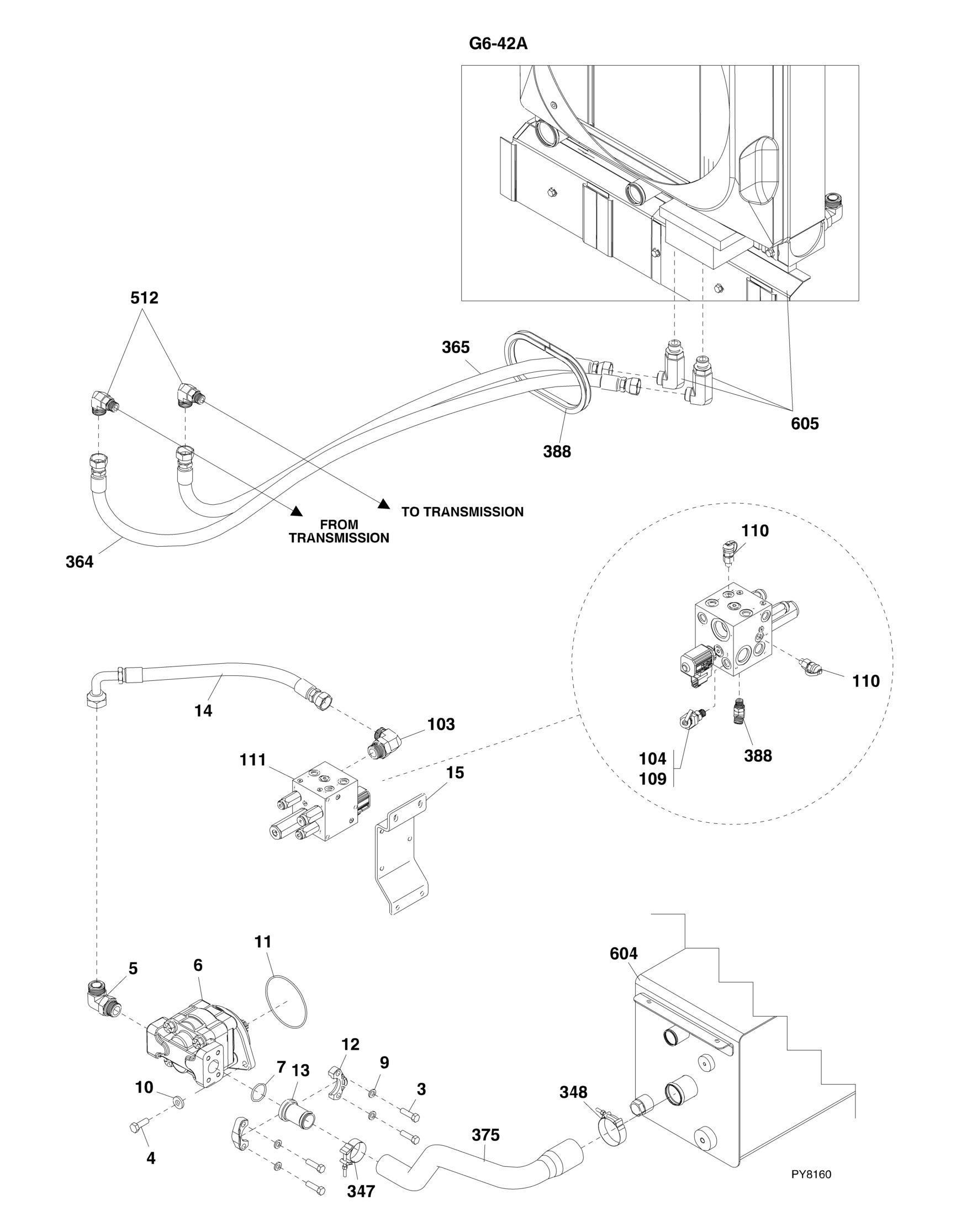

FIGURE 8 1. SUPPLY CIRCUIT G6 42A
FIGURE 8-1. SUPPLY CIRCUIT G6-42A
FIGURE 8-1. SUPPLY CIRCUIT G6-42A
ITEM PART NUMBER QTY
DESCRIPTION
3 0681712 4 HEX HD CAPSCREW, 7/16-14X1-1/2, GR8, (torque to 50 lb-ft/68 Nm) 4 0701215 3 HEX HD CAPSCREW, M12X35, GR8.8, (torque to 64.9 lb-ft/88 Nm) 5 2131616 1 ADAPTER, 90, (includes o-ring) 6 Ref HYDRAULIC PUMP, (See HYDRAULIC COMPONENTS SECTION for Breakdown) 7 3790222 1 O-RING 9 4761700 4 WASHER, 7/16 10 4891800 3 WASHER, 1/2 11 8630019 1 O-RING 12 84711334 2 HALF FLANGE 13 1001103997 1 TUBE ADAPTER 14 1001134948 1 HOSE ASSEMBLY 15 Ref BRACKET, (See DUMP CIRCUIT for Breakdown) 101 2130606 3 ADAPTER, 90, (includes o-ring) 102 2130808 1 ADAPTER, 90, (includes o-ring) 103 2131216 1 ADAPTER, 90, (includes o-ring) 104 2150606 2 ADAPTER, 45, (includes o-ring) 106 2170406 1 TEE FITTING, (includes o-ring) 107 2221231 1 ADAPTER, 45, (includes o-ring) 109 88662546 1 DIAGNOSTIC ADAPTER 110 91053020 2 TEST PORT 111 Ref PRIORITY VALVE, (See HYDRAULIC COMPONENTS SECTION for Breakdown) 112 2111212 1 STRAIGHT FITTING, (includes o-ring) 201 2170906 1 CAP 206 1001134975 1 HOSE ASSEMBLY 207 1001134977 1 HOSE ASSEMBLY 208 1001134978 1 HOSE ASSEMBLY 209 1001134985 1 HOSE ASSEMBLY 302 0641412 4 HEX HD CAPSCREW, 1/4-20X1-1/2, GR5 313 2110604 2 STRAIGHT FITTING, (if equipped with tilt on joystick), (includes oring) 317 2130604 1 ADAPTER, 90, (if equipped with tilt on joystick), (includes o-ring) 320 2170706 1 ADAPTER, RUN TEE, (if equipped with tilt on joystick), (includes oring) 326 3931436 2 SOCKET HD CAPSCREW, 1/4-20X2-1/4, (if equipped with tilt on joystick) 336 8769152 2 CLAMP SET 337 8769153 2 COVER PLATE 347 90028695 1 HEAVY DUTY BAND CLAMP 348 90028720 1 HEAVY DUTY BAND CLAMP, (torque to 40-50 lb-in/4.51-5.64 Nm) 364 1001125119 1 HOSE ASSY 365 1001125128 1 HOSE ASSY 370 1001142649 1 TUBE ASSY 375 1001134947 1 HOSE ASSY 376 1001134968 1 HOSE ASSY 378 1001135864 1 HOSE ASSEMBLY, (if equipped with tilt on joystick) 380 1001135932 1 HOSE ASSY, (if equipped with tilt on joystick) 381 1001135934 1 HOSE ASSY, (if equipped with tilt on joystick) 383 Ref TILT VALVE SOLENOID, (if equipped with tilt on joystick), (See
REV
ITEM PART NUMBER QTY
DESCRIPTION
HYDRAULIC COMPONENTS SECTION for Breakdown) 388 90206203 57 in TRIM-LOK 389 91143220 23 in PVC VINYL TRIM 389 91143220 30 in PVC VINYL TRIM, (if equipped with tilt on joystick) 393 7301536 1 HOSE GUARD 402 2110606 1 ADAPTER, CONNECTOR, (includes o-ring) 406 2111212 1 ADAPTER, CONNECTOR, (includes o-ring) 409 2170206 1 ADAPTER, 90, (long), (includes o-ring) 412 2172112 1 ADAPTER, 90, (includes o-ring) 413 Ref MAIN CONTROL VALVE, (See HYDRAULIC COMPONENTS SECTION for Breakdown)
512 Ref ADAPTER, 90, (See ENGINE AND ATTACHING PARTS SECTION for Breakdown)
601 Ref BOOM JOYSTICK, (See CONTROLS SECTION for Breakdown)
602
603 Ref STEERING CONTROL VALVE, (See CONTROLS SECTION for Breakdown) Ref BRAKE VALVE, (See CONTROLS SECTION for Breakdown)
604 Ref HYDRAULIC TANK, (See HYDRAULIC COMPONENTS SECTION for Breakdown)
605 Ref RADIATOR, (See ENGINE AND ATTACHING PARTS SECTION for Breakdown)
