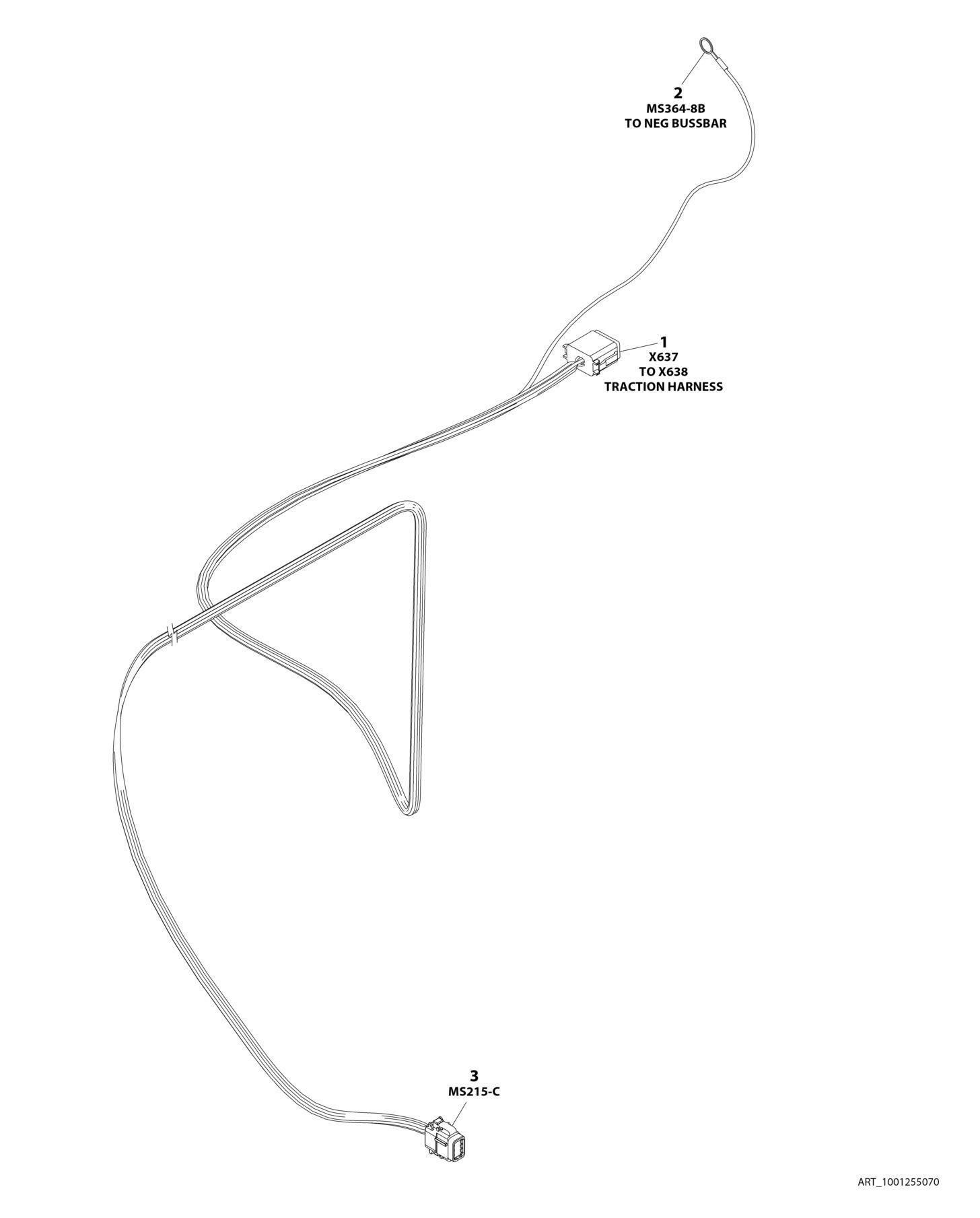

FIGURE 7-13. DRIVE MOTOR HARNESS (LEFT REAR
FIGURE 7-13. DRIVE MOTOR HARNESS (LEFT REAR)
FIGURE 7-13. DRIVE MOTOR HARNESS (LEFT REAR)
ITEM PART NUMBER QTY
DESCRIPTION
1001255070 Ref DRIVE MOTOR HARNESS (LEFT REAR) 1 4460930 1 Connector - 8 Position 1 4460465 8 Socket, Female 2 4460703 1 Terminal, Ring 3 1001190577 1 Connector - 8 Position 3 1001126008 8 Socket, Female
REV
A
