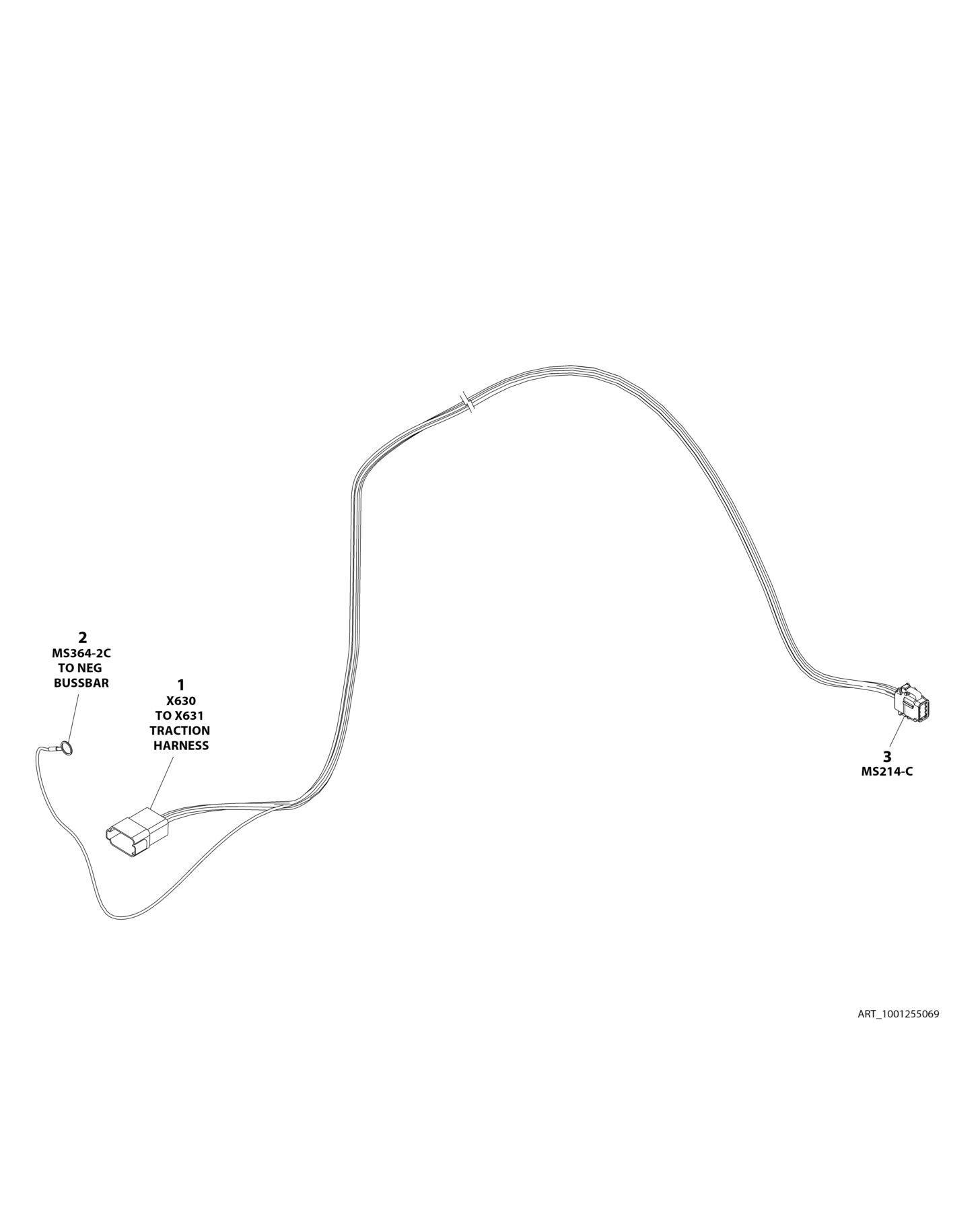

FIGURE 7-12. DRIVE MOTOR HARNESS (RIGHT REAR
FIGURE 7-12. DRIVE MOTOR HARNESS (RIGHT REAR)
FIGURE 7-12. DRIVE MOTOR HARNESS (RIGHT REAR)
ITEM PART NUMBER QTY
DESCRIPTION
1001255069 Ref DRIVE MOTOR HARNESS (RIGHT REAR) 1 4460931 1 Connector - 8 Position 1 4460464 8 Pin, Male 2 4460703 1 Terminal, Ring 3 1001190577 1 Connector - 8 Position 3 1001126008 8 Socket, Female
REV
A
