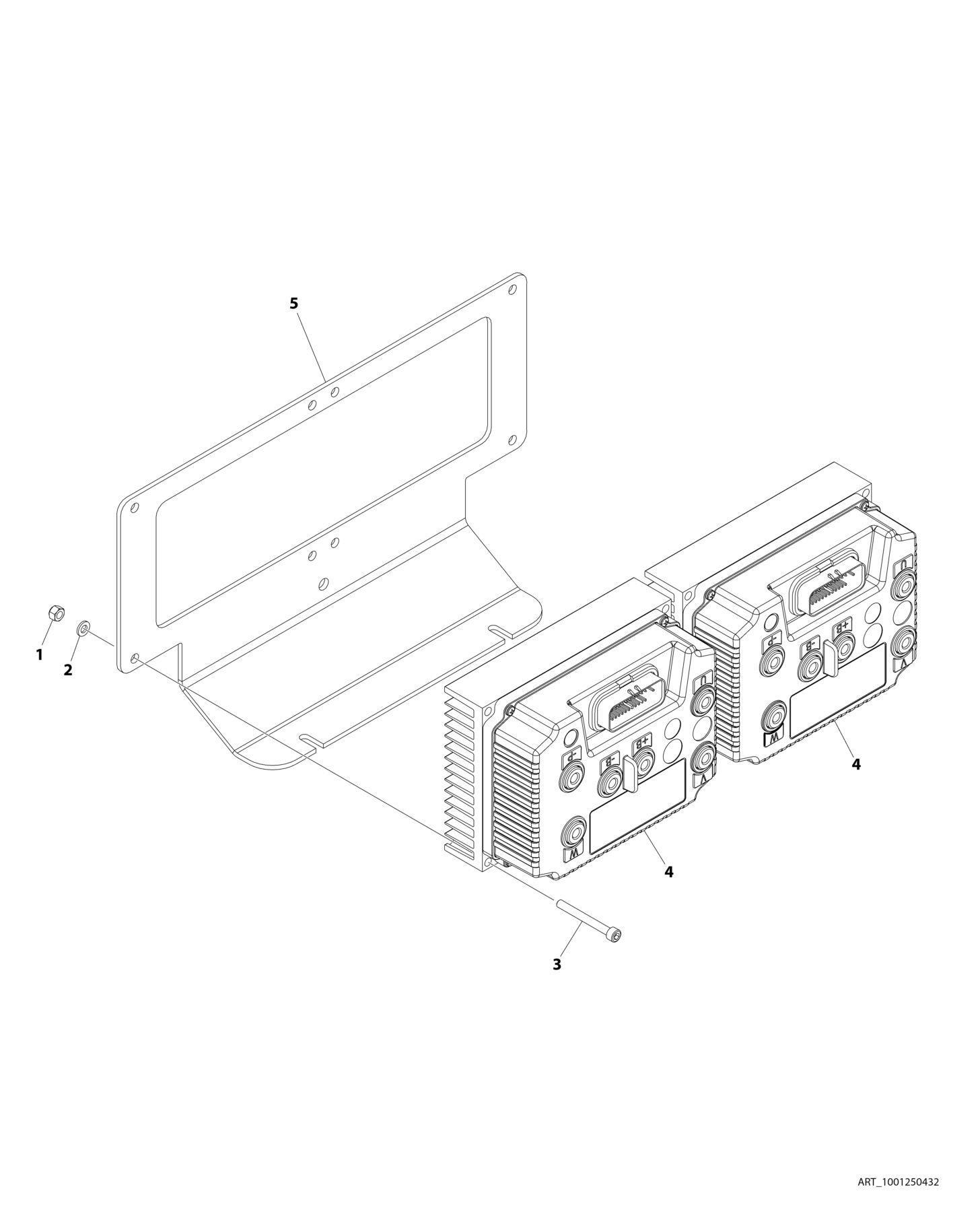

FIGURE 7-11. CONTROLLER BRACKET ASSEMBLY
FIGURE 7-11. CONTROLLER BRACKET ASSEMBLY
FIGURE 7-11. CONTROLLER BRACKET ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1001250432 Ref CONTROLLER BRACKET ASSEMBLY 1 3290605 8 Nut M6 2 4811700 8 Washer M6 3 1001118878 8 Bolt M6 x 55 4 1001170140 2 Controller, Drive 5 1001209640 1 Bracket
