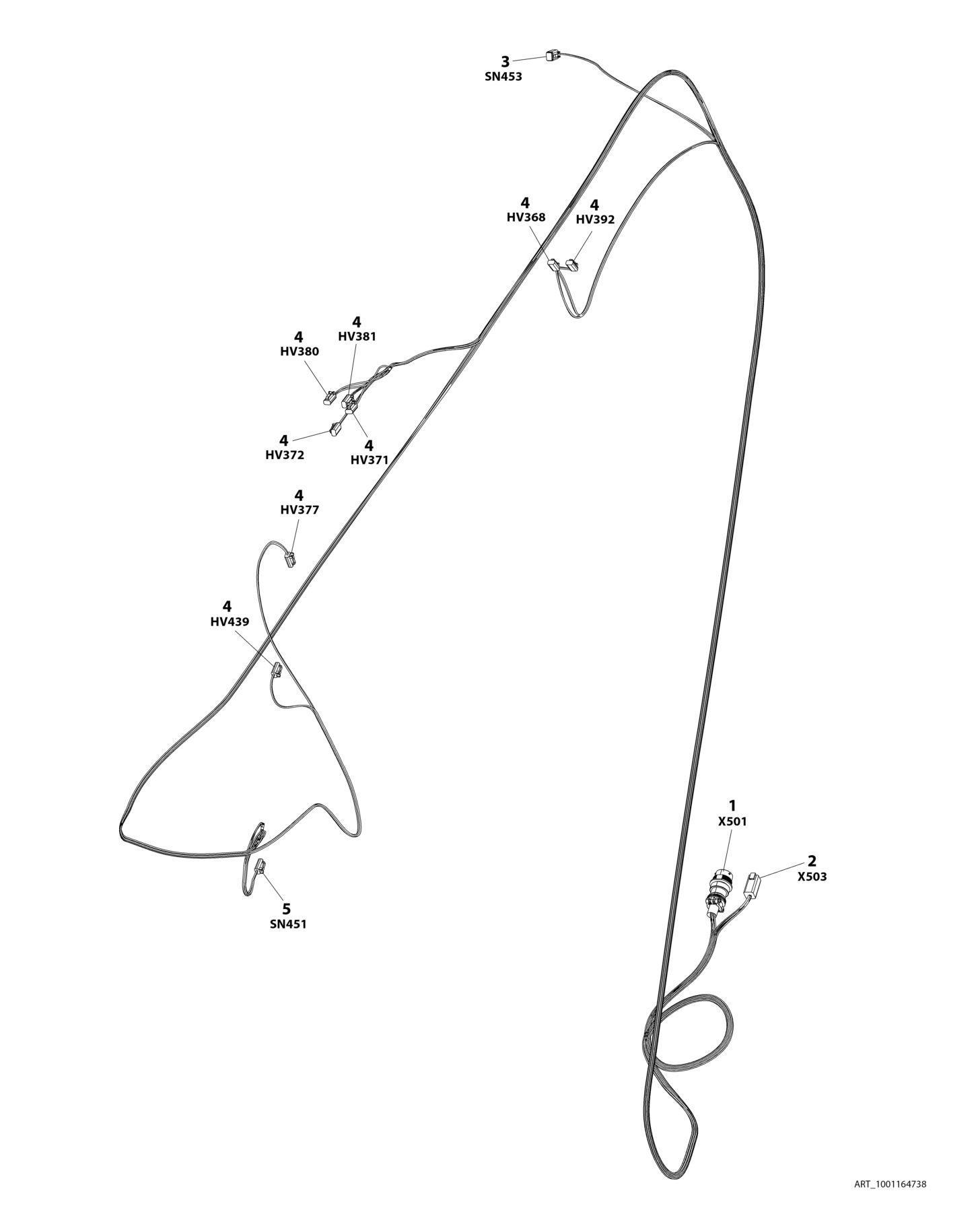

FIGURE 7-8. BOOM VALVE HARNESS

FIGURE 7-8. BOOM VALVE HARNESS

FIGURE 7-8. BOOM VALVE HARNESS

ITEM PART NUMBER QTY DESCRIPTION

1001164738 Ref BOOM VALVE HARNESS 1 1001156541 1 Connector - 19 Position 1 4460464 13 Pin, Male 1 4460466 1 Plug, Terminal 2 4460899 1 Connector - 6 Position 2 4460464 6 Pin, Male 3 4460884 1 Plug, Male - 4 Position 3 4460465 2 Socket, Female 3 4460466 2 Plug, Terminal 4 4460891 8 Plug, Male - 2 Position 4 4460465 16 Socket, Female 5 1001230931 1 Plug, Male - 6 Position 5 1001116748 6 Terminal

REV

H
