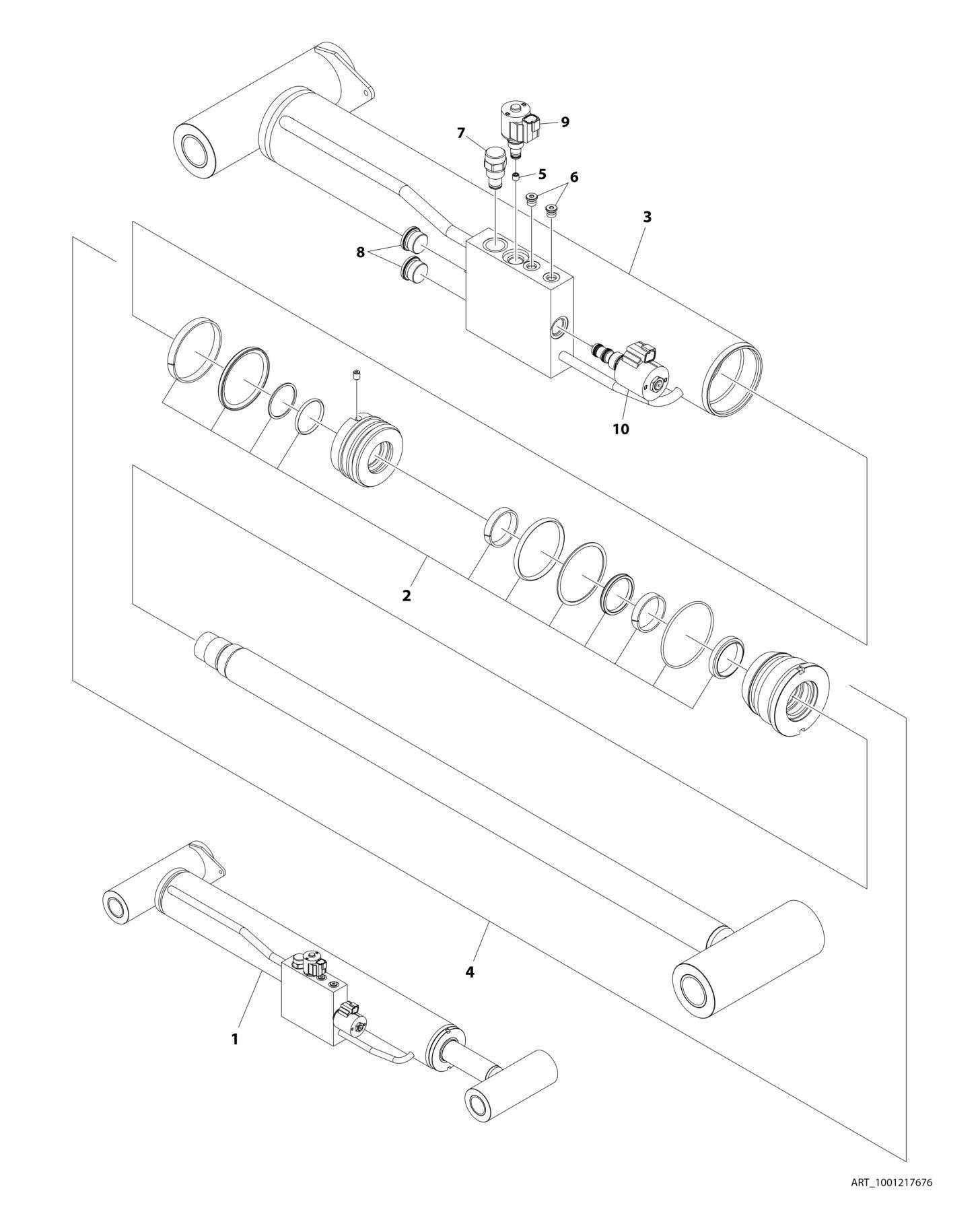

FIGURE 5-4. LIFT CYLINDER ASSEMBLY - MAIN BOOM

FIGURE 5-4. LIFT CYLINDER ASSEMBLY - MAIN BOOM

FIGURE 5-4. LIFT CYLINDER ASSEMBLY - MAIN BOOM

ITEM PART NUMBER QTY

DESCRIPTION

1 1001217676 Ref LIFT CYLINDER ASSEMBLY - MAIN BOOM 2 70004963 1 Seal Kit - 1001217676 Cylinder (Part of Item 4) 3 70004962 NSS Barrel (Includes Bushings) (Note: Not Available for Purchase) 3 0961948 2 Bushing 4 70004961 1 Rod Assembly (Includes Seal Kit and Bushings) 4 0961948 2 Bushing 5 2180736 1 Orifice 6 2220883 3 Plug #4 7 4641390 1 Cartridge, Check Valve 7 7017496 1 Seal Kit - 4641390 Valve 8 See Note NSS Plug, Shipping (Note: Not Available for Purchase) 9 1001164709 1 Cartridge, Solenoid Valve (Includes Coil) 9 7017467 1 Cartridge, Solenoid Valve Less Coil 9 7012998 1 Seal Kit - 1001164709 & 7017467 Valve 9 70002386 1 Coil 10 1001206625 1 Cartridge, Solenoid Valve (Includes Coil) 10 70006104 1 Cartridge, Solenoid Valve Less Coil 10 70006105 1 Seal Kit - 1001206625 & 70006104 Valves 10 70003788 1 Coil 10 7022390 1 Nut, Coil

REV

C
