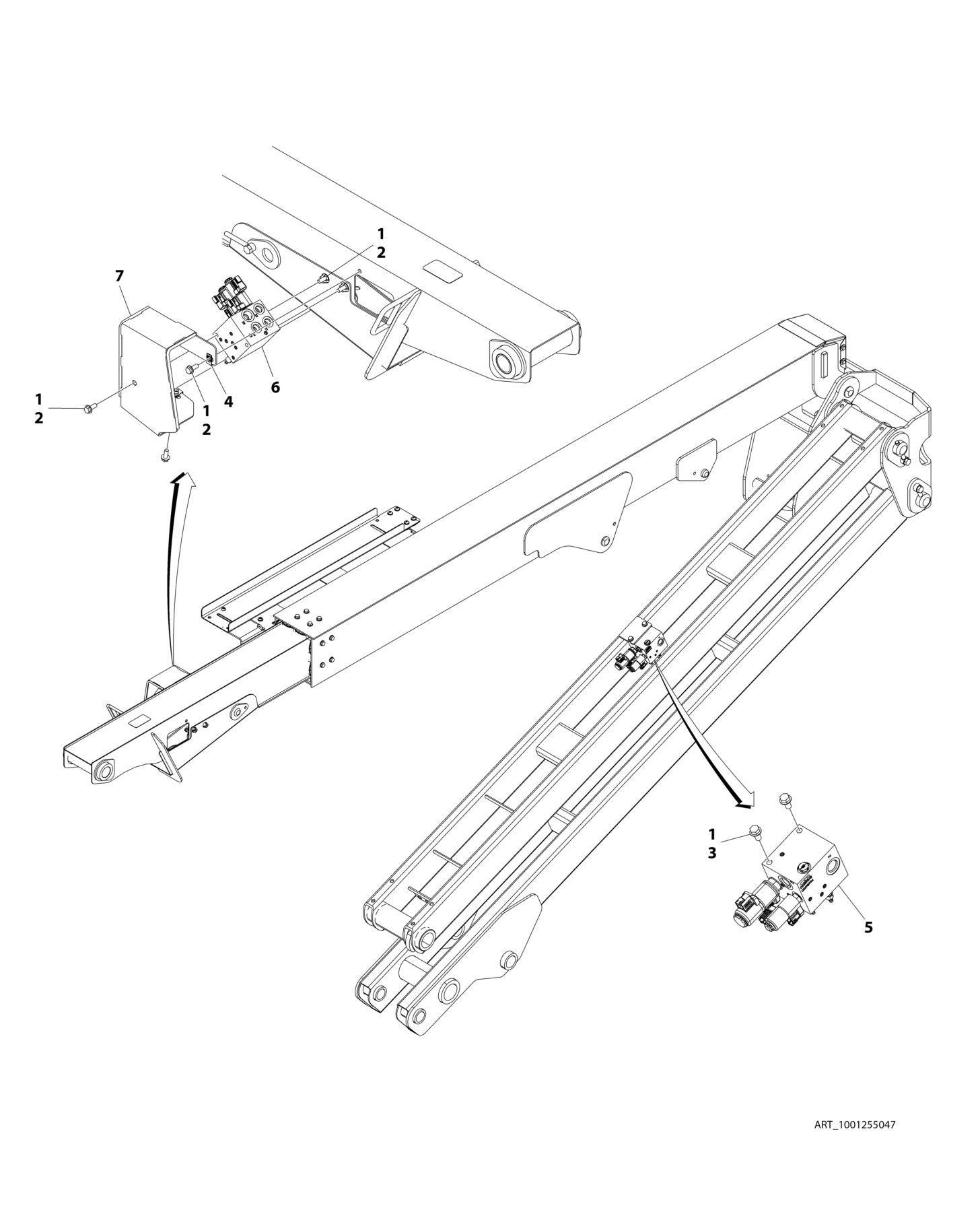

FIGURE 3-12. BOOM VALVES INSTALLATION
FIGURE 3-12. BOOM VALVES INSTALLATION
FIGURE 3-12. BOOM VALVES INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
1001255047 Ref BOOM VALVES INSTALLATION 1 0100011 AR Compound, Locking 2 5250810 5 Bolt M8 x 20 3 5251010 2 Bolt M10 x 20 4 1001118274 2 Nut M8 5 1001162535 1 Upright Valve Assembly (See Separate Breakdown in this Section) 6 1001162536 1 Boom Valve Assembly (See Separate Breakdown in this Section) 7 1001170375 1 Shield
REV
A
