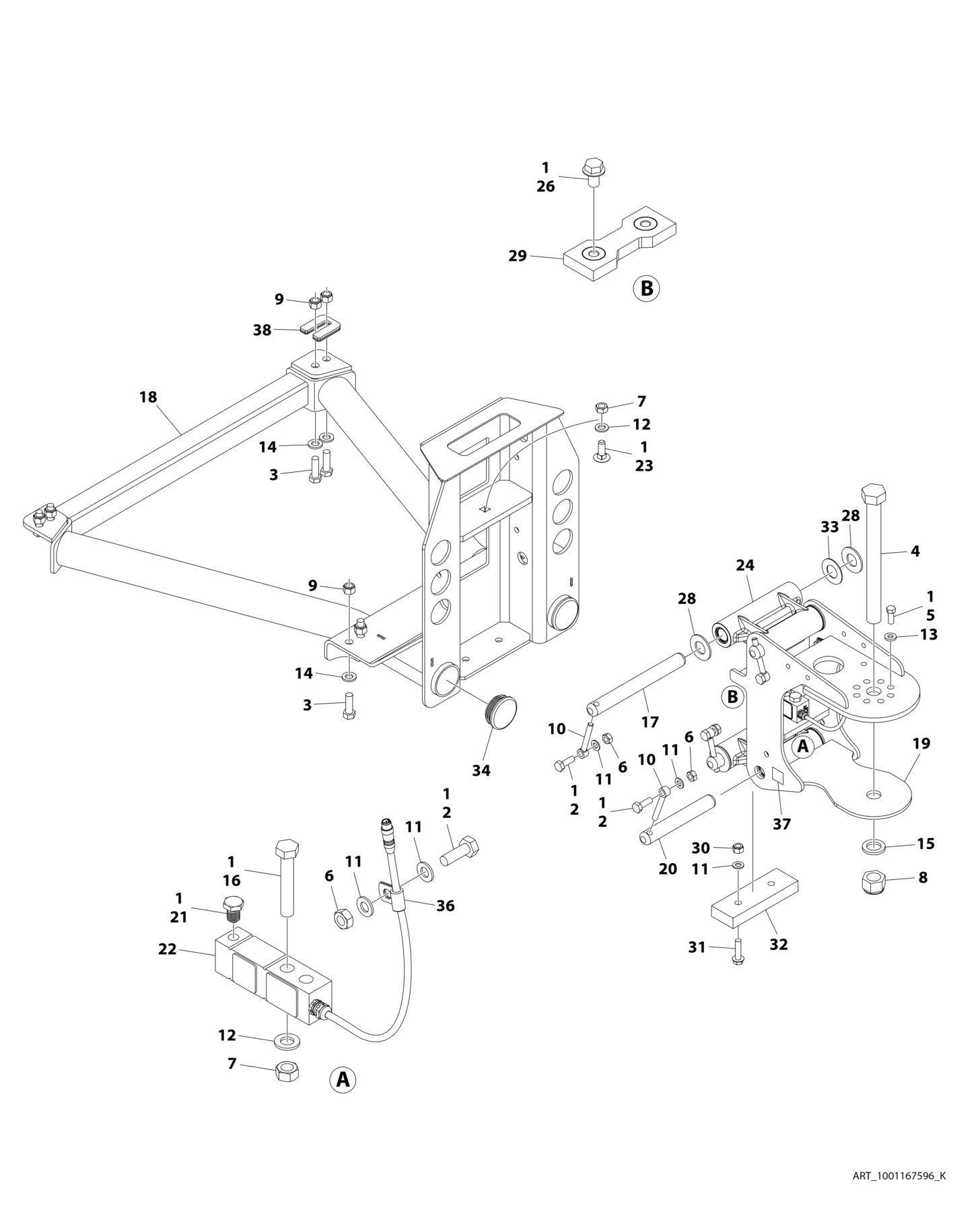

FIGURE 3-11. PLATFORM SUPPORT INSTALLATION - WITH 1 CELL LSS
ITEM PART NUMBER QTY
DESCRIPTION
1001167596 Ref PLATFORM SUPPORT INSTALLATION 1 0100011 AR Compound, Locking 2 0761014 5 Bolt M10 x 30 3 0761216 8 Bolt M12 x 40 4 0642684 1 Bolt 1 x 10-1/2 5 0681608 8 Bolt 3/8 x 1 6 3291001 5 Nut M10 7 3291201 3 Nut M12 8 3300243 1 Nut 1 9 3291205 8 Nut M12 10 3841143 4 Keeper, Pin 11 4812000 8 Washer M10 12 4812100 3 Washer M12 13 4891600 8 Washer 3/8 14 5241200 8 Washer M12 15 4892600 1 Washer 1 16 1001098828 2 Bolt M12 x 70 Grade 10.9 17 1001167565 2 Pin 18 1001200494 1 Support, Platform 19 1001167567 1 Support, Rotator 20 1001168402 2 Pin 21 1001188622 1 Screw 22 1001172663 1 Gauge, Load Sensing 23 1001188844 1 Bolt M12 x 35 24 1001201351 2 Link 24 1001187382 4 Bearing 24 1001187383 4 Seal 26 5251008 2 Bolt M10 x 16 28 1001189002 8 Bearing 29 1001190985 1 Pad, Wear 30 3291005 2 Nut M10 31 5251016 2 Bolt M10 x 40 32 1001200491 1 Pad, Wear 33 1001189001 4 Bearing 34 1001204725 2 Plug 36 91203039 1 Clamp 37 1001216630 2 Decal - Tie Down/No Lift 38 1001238421 Ref Kit, Platform Leveling (Not Shown)
REV
K
