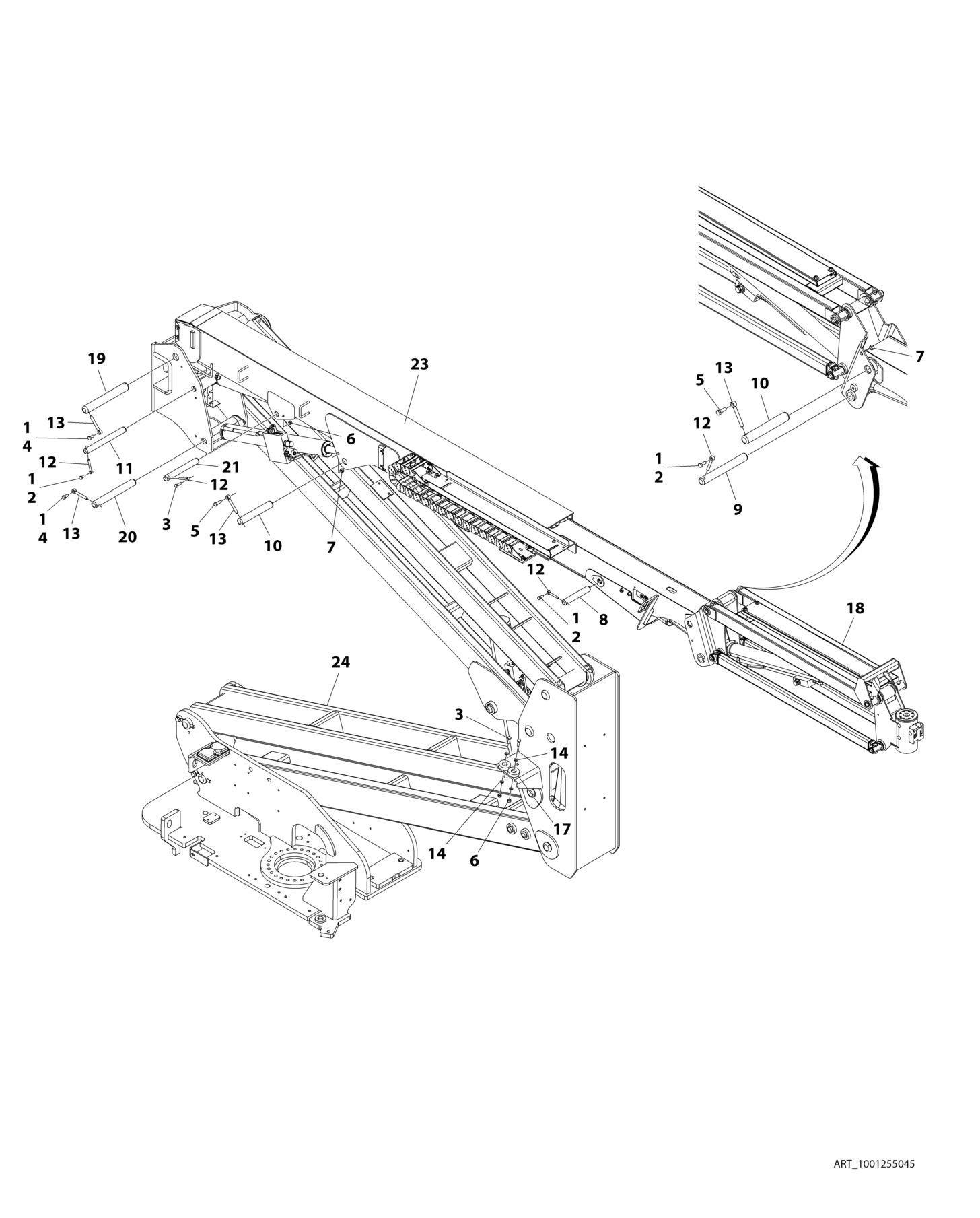

FIGURE 3-6. MAIN BOOM INSTALLATION

FIGURE 3-6. MAIN BOOM INSTALLATION

FIGURE 3-6. MAIN BOOM INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001255045 Ref MAIN BOOM INSTALLATION 1 0100011 AR Compound, Locking 2 0761012 3 Bolt M10 x 25 3 0761015 3 Bolt M10 x 35 4 0761212 2 Bolt M12 x 25 5 0761215 3 Bolt M12 x 35 6 3291005 3 Nut M10 7 3291205 2 Nut M12 8 3422755 1 Pin 9 3422792 1 Pin 10 3422793 2 Pin 11 3422806 1 Pin 12 3841143 4 Keeper, Pin 13 3841203 4 Keeper, Pin 14 4812000 4 Washer M10 17 1001112607 2 Block, Boom Rest 18 1001164017 1 Jib Installation (See Separate Breakdown in This Section) 19 1001169246 1 Pin 20 1001169247 1 Pin 21 3423038 1 Pin 23 1001178636 1 Main Boom Assembly (See Separate Breakdown in This Section) 24 1001255053 1 Tower Boom Assembly (See Separate Breakdown in This Section)

REV

A
