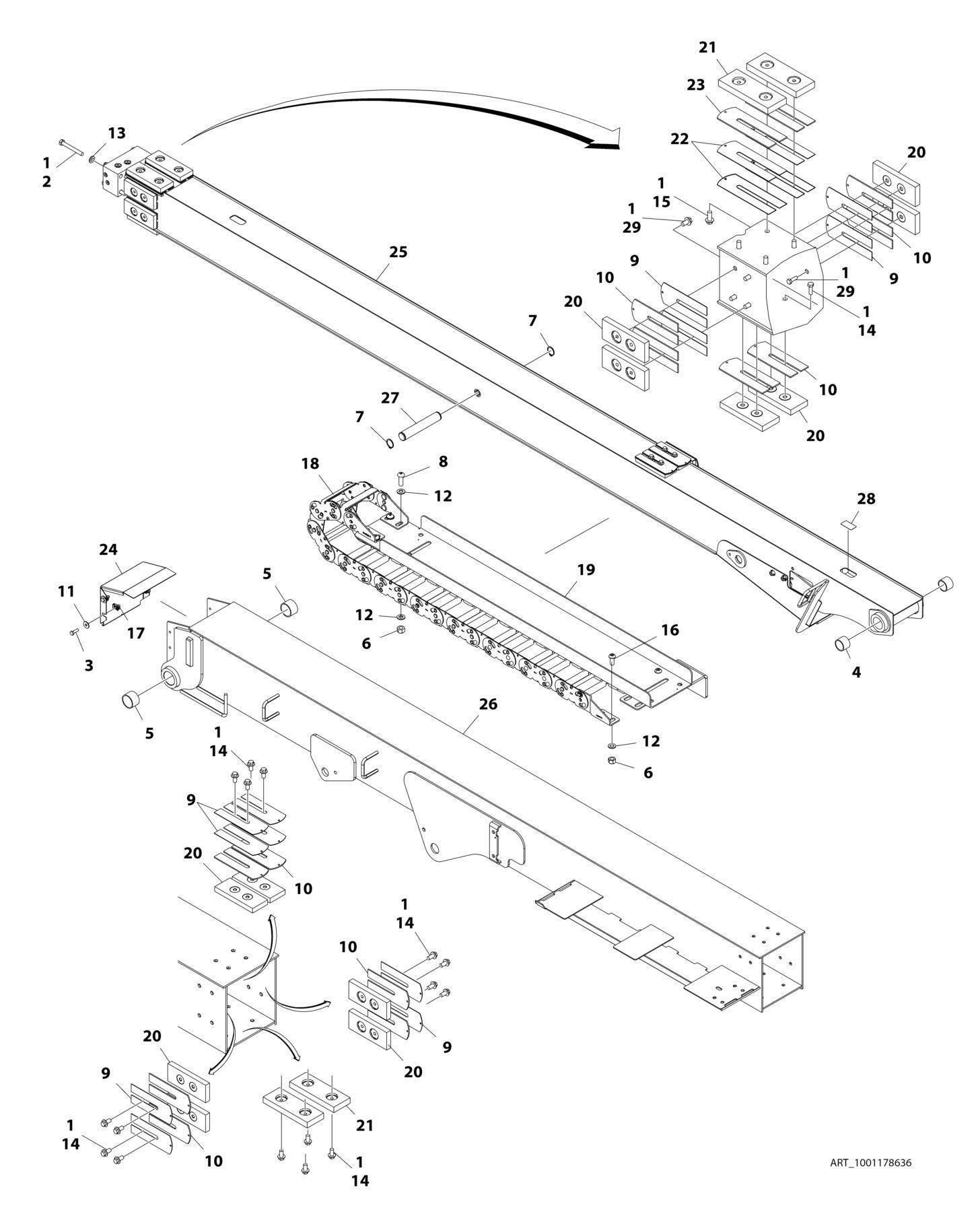

FIGURE 3-7. MAIN BOOM ASSEMBLY
FIGURE 3-7. MAIN BOOM ASSEMBLY
FIGURE 3-7. MAIN BOOM ASSEMBLY
Advertisement
ITEM PART NUMBER QTY DESCRIPTION
1001178636 Ref MAIN BOOM ASSEMBLY 1 0100011 AR Compound, Locking 2 0711227 4 Bolt M12 x 100 3 0760812 4 Bolt M8 x 25 4 0961948 2 Bearing 5 0961949 2 Bearing 6 3291005 10 Nut M10 7 3760115 2 Ring, Retaining 8 3900351 4 Screw M10 x 30 9 4070897 12 Shim 10 4070898 12 Shim 11 4811902 4 Washer M8 12 4812000 18 Washer M10 13 5241200 4 Washer M12 14 5251010 20 Bolt M10 x 20 15 5251012 4 Bolt M10 x 25 16 8310668 6 Screw M10 x 25 17 1001118274 4 Nut M8 18 1001224889 1 Powertrack Assembly 18 70006256 1 Link, Repair 18 70006271 1 Feet, Mounting 19 1001166651 1 Tube, Carrier 20 1001169304 12 Pad, Wear 21 1001169305 4 Pad, Wear 22 1001169402 4 Shim 23 1001169403 2 Shim 24 1001170226 1 Cover, Boom End 25 1001177896 1 Fly, Boom 26 1001177897 1 Base, Boom 27 1001180540 1 Pin 28 1670836 1 Cover 29 5251009 8 Bolt M10 x 18
REV
C
