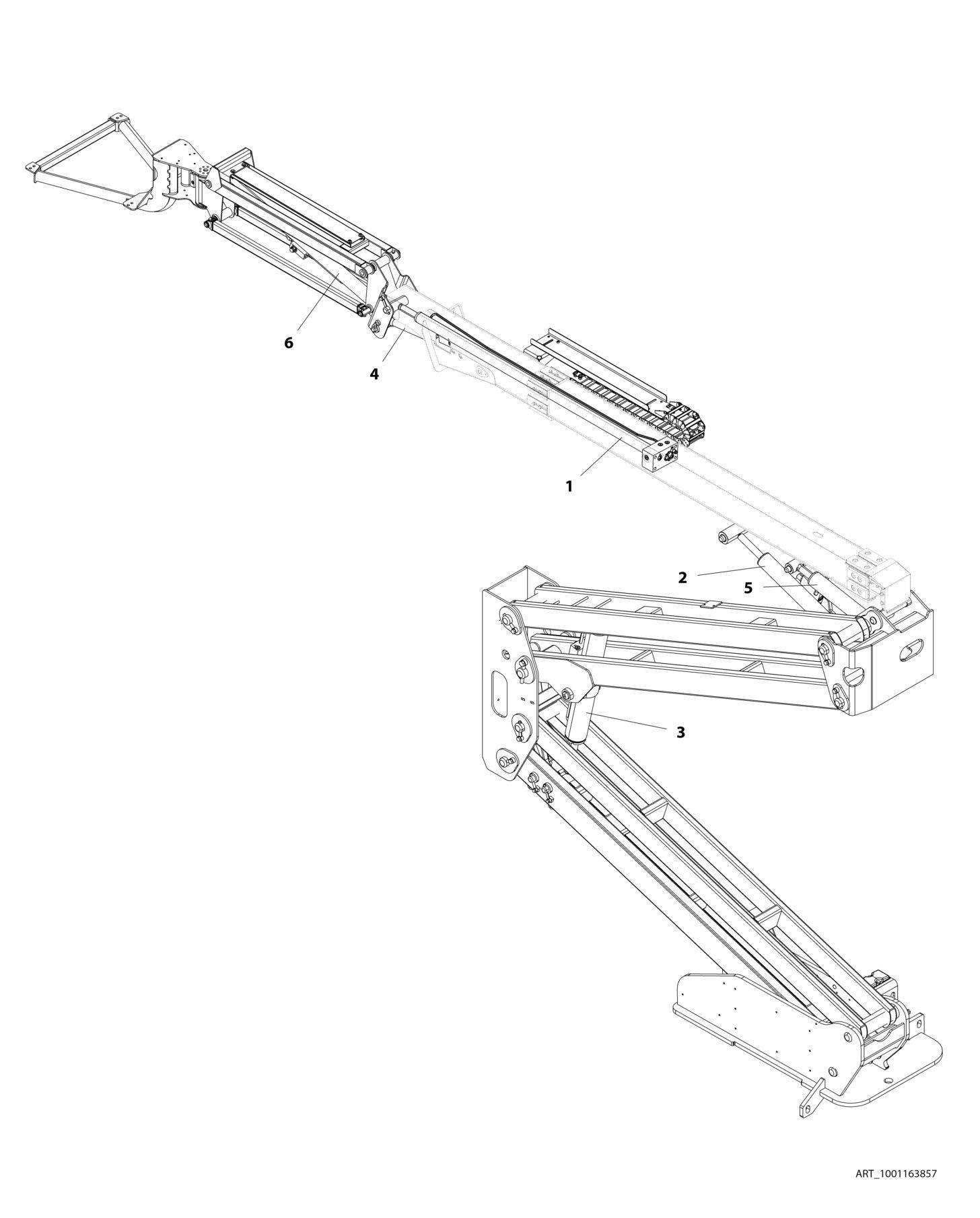

FIGURE 3-1. CYLINDERS INSTALLATION

FIGURE 3-1. CYLINDERS INSTALLATION

FIGURE 3-1. CYLINDERS INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001163857 Ref CYLINDERS INSTALLATION 1 1001161713 1 Telescope Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 2 1001217676 1 Lift Cylinder Assembly - Main Boom (See Separate Breakdown in CYLINDER SECTION) 3 1001161715 1 Lift Cylinder Assembly - Tower Boom (See Separate Breakdown in CYLINDER SECTION) 4 1001161716 1 Level (Platform Slave) Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 5 1001161717 1 Master Cylinder Assembly (See Separate Breakdown in CYLINDER SECTION) 6 1001163767 1 Lift Cylinder Assembly - Jib (See Separate Breakdown in CYLINDER SECTION)

REV

C
