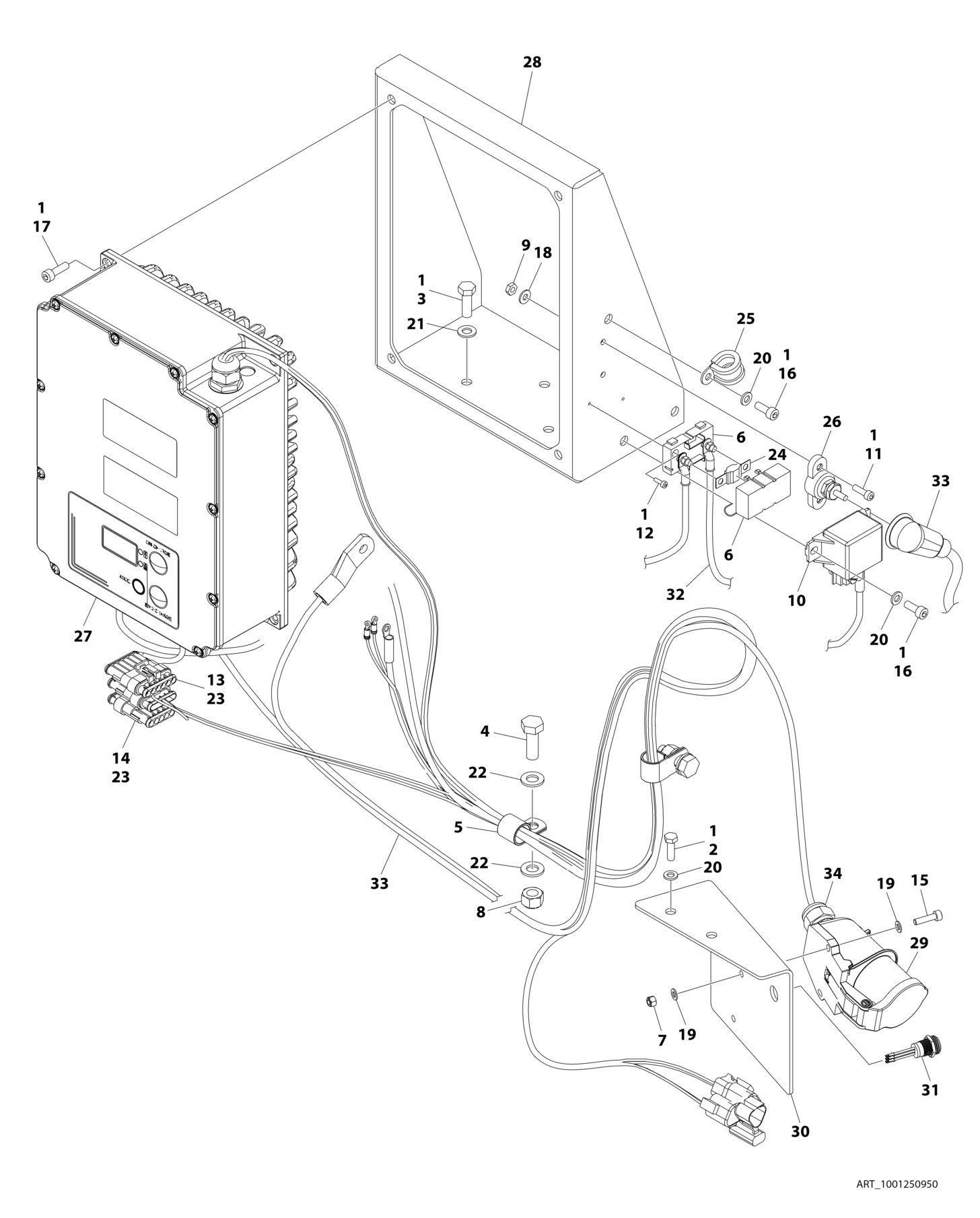

FIGURE 2-16. BATTERY CHARGER INSTALLATION

FIGURE 2-16. BATTERY CHARGER INSTALLATION

FIGURE 2-16. BATTERY CHARGER INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001250950 Ref BATTERY CHARGER INSTALLATION 1 0100011 AR Compound, Locking 2 0760610 2 Bolt M6 x 20 3 0760812 3 Bolt M8 x 25 4 0761014 2 Bolt M10 x 30 5 1320061 2 Clamp 6 2400073 1 Fuse Holder 7 3290505 2 Nut M5 8 3291005 2 Nut M10 9 3311001 2 Nut #10 10 3740112 1 Relay 11 3931010 2 Capscrew 10 x 5/8 12 4031205 2 Bolt M3 x 10 13 4461117 1 Connector - 6 Position 14 4461229 1 Connector - 5 Position 15 4031608 2 Bolt M5 x 20 16 4031707 3 Bolt M6 x 16 17 4031708 4 Bolt M6 x 20 18 4711000 2 Washer #10 19 4811600 4 Washer M5 20 4811700 5 Washer M6 21 4811900 3 Washer M8 22 4812000 4 Washer M10 23 1001116698 11 Plug, Terminal 24 1001126833 1 Fuse 80 Amp 25 1001170231 1 Clamp 26 1001241501 1 Terminal 27 1001247270 1 Charger, Battery 28 1001247677 1 Bracket 29 1001249236 1 Connector 30 1001251130 1 Bracket 31 1001251486 1 Light, Indicator 32 1001254957 1 Relay Cable 33 1001255078 1 Harness, Charger (See Separate Breakdown in ELECTRICAL SECTION) 34 E900051 1 Connector, Strain Relief

REV

A
