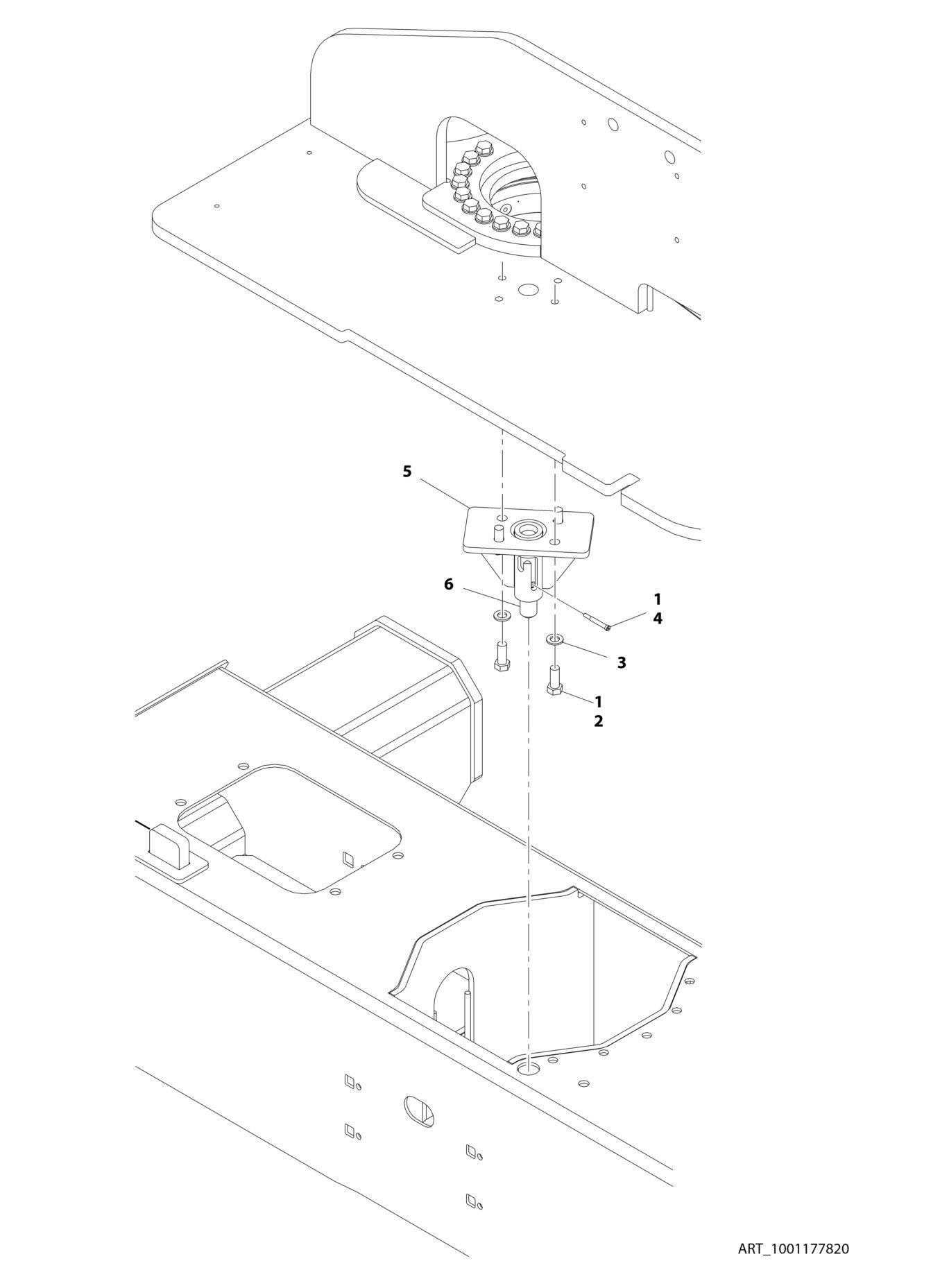

FIGURE 2-9. TURNTABLE LOCK INSTALLATION
FIGURE 2-9. TURNTABLE LOCK INSTALLATION
FIGURE 2-9. TURNTABLE LOCK INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
1001177820 Ref TURNTABLE LOCK INSTALLATION 1 0100011 AR Compound, Locking 2 0701616 4 Bolt M16 x 40 3 4812300 4 Washer M16 4 1001157466 1 Bolt M10 x 30 5 1001177821 1 Support, Lock 6 1001177834 1 Pin, Lock 7 1001223118 1 Decal – Lift Diagram (Not Shown)
REV
B
