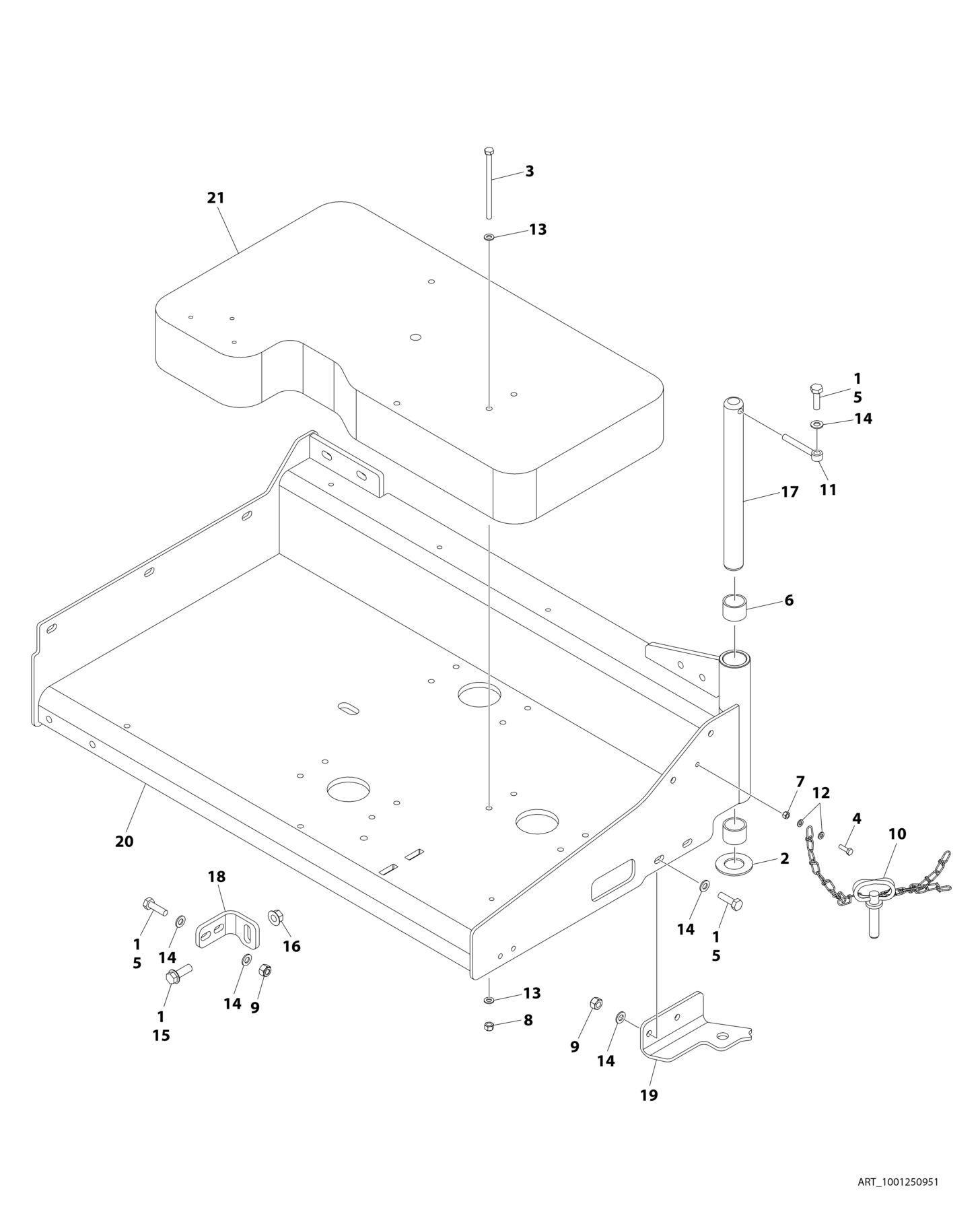

FIGURE 2-4. ENCLOSURE INSTALLATION
FIGURE 2-4. ENCLOSURE INSTALLATION
FIGURE 2-4. ENCLOSURE INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
1001250951 Ref ENCLOSURE INSTALLATION 1 0100011 AR Compound, Locking 2 0440162 1 Bearing 3 0700830 4 Bolt M8 x 130 4 0760610 1 Bolt M6 x 20 5 0761015 5 Bolt M10 x 35 6 0961951 2 Bushing 7 3290605 1 Nut M6 8 3290805 4 Nut M8 9 3291005 4 Nut M10 10 3422532 1 Pin 11 3841143 1 Keeper, Pin 12 4811700 2 Washer M6 13 4811900 8 Washer M8 14 4812000 9 Washer M10 15 5251215 1 Bolt M12 x 35 16 5261200 1 Nut M12 17 1001135196 1 Pin 18 1001167512 1 Bracket 19 1001169823 1 Plate 20 1001176699 1 Support 21 1001250967 1 Weight, Ballast
