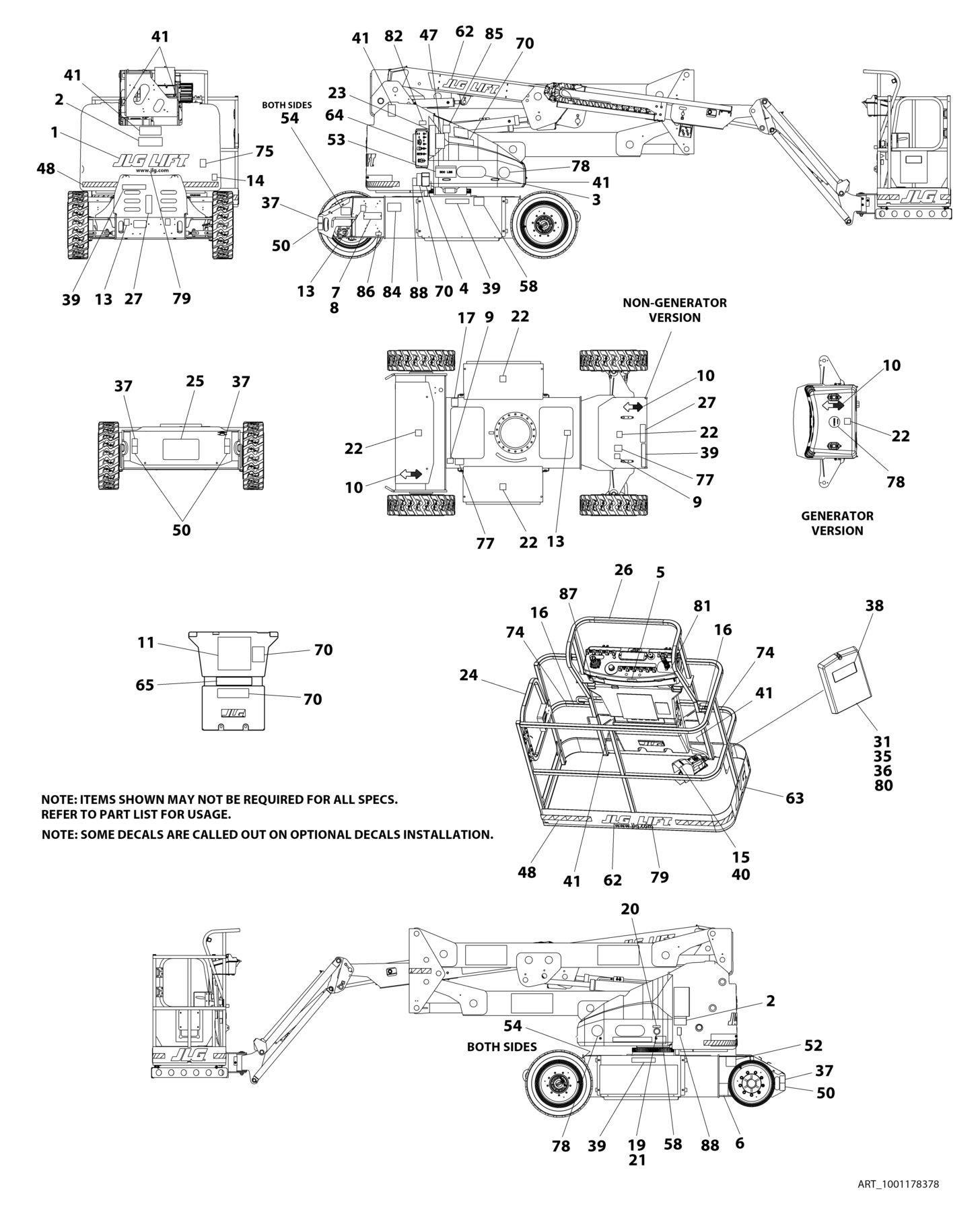

FIGURE 9 3. DECAL INSTALLATION AUSTRALIAN SPEC E450AJ
ITEM PART NUMBER QTY
DESCRIPTION
1001248659 Ref DECAL INSTALLATION - REFERENCE CHART 1001178378 Ref DECAL INSTALLATION 4 1705822 1 Decal - Danger/Caution 8 3820001 2 Rivet 9 1701504 1 Decal - Hydraulic Oil 10 1701642 2 Decal - Arrow 11 1705921 1 Decal - Danger/Caution 13 1701644 2 Decal - Charger 15 1705828 1 Decal - Footswitch 16 1704277 2 Decal - Attach Lanyard 19 0961127 1 Bushing, Snap 21 0100010 AR Adhesive 22 1701691 4 Decal - No Step 23 1001104864 1 Decal - Manual Descent 25 1001193949 1 Decal - Cable Routing 27 1706378 1 Decal - Charging Instructions 31 0860520 1 Box, Manual Storage 35 4751400 4 Washer 1/4 36 3311405 4 Nut 1/4 37 1703811 4 Decal - Lift 38 1701509 1 Decal - Manual 39 1705670 AR Decal - Explosion Warning 41 1701518 6 Decal - Crushing Hazard 47 1705977 1 Decal - Upright Level Over-Ride 50 1703814 4 Decal - Tie Down 52 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 53 1705978 1 Decal - Capacity 65 1705978 1 Decal - Capacity 77 1704412 1 Decal - Oil Type 79 1704885 2 Decal - Website 80 0641406 4 Bolt 1/4 x 3/4 85 1001222801 1 Decal - Manual Jib Pump
