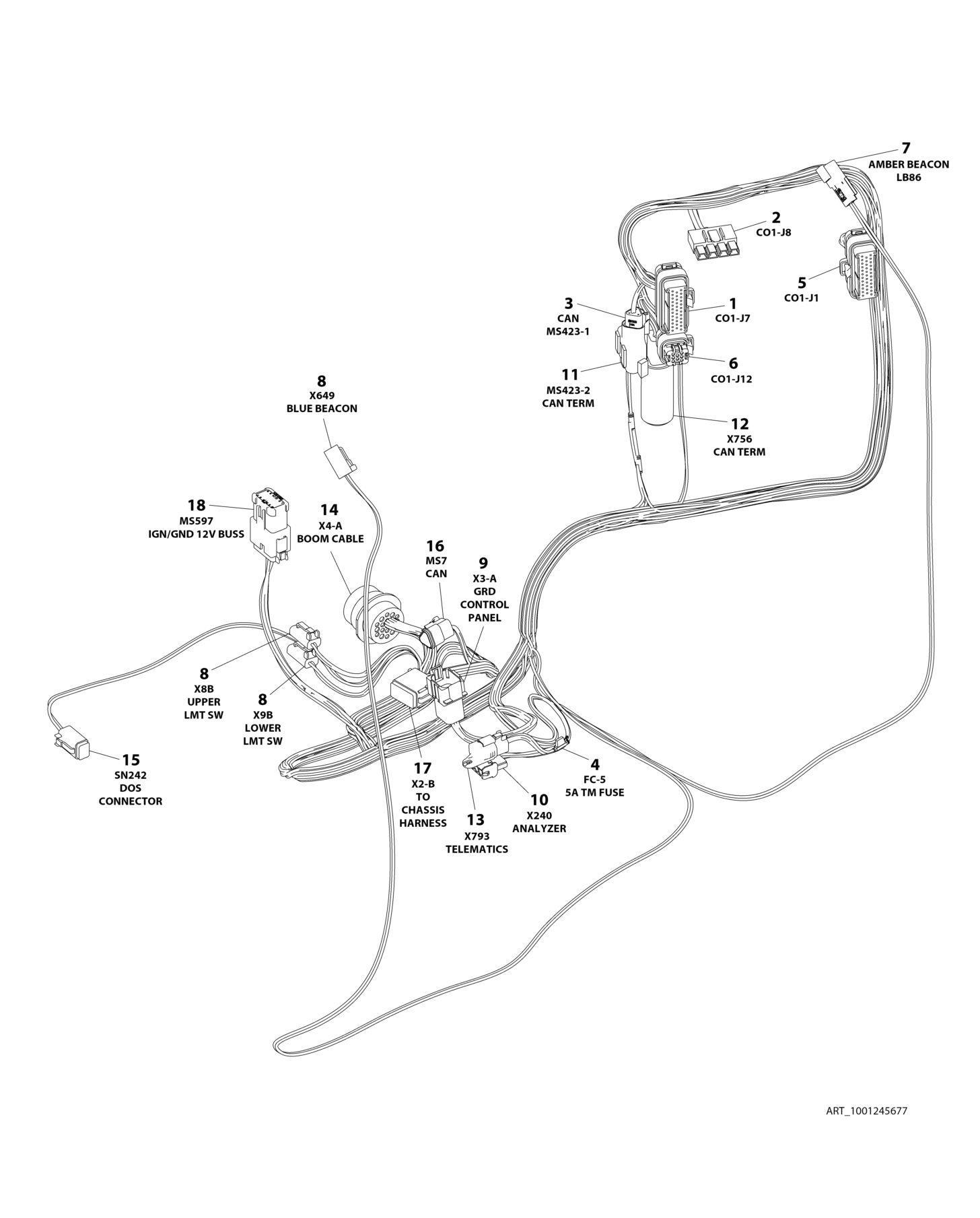

FIGURE 8 50. TURNTABLE HARNESS
FIGURE 8-50. TURNTABLE HARNESS
FIGURE 8-50. TURNTABLE HARNESS
ITEM PART NUMBER QTY
1001245677 Ref TURNTABLE HARNESS
DESCRIPTION
1 4460873 1 Connector - 35 Position 1 4460871 16 Socket, Female 1 4460905 19 Plug, Terminal 2 4460878 1 Connector - 4 Position 2 4460887 4 Terminal 3 1001116812 1 Plug, Male -3 Position 3 4460944 2 Socket, Female 3 4460466 1 Plug, Terminal 3 4460945 1 Receptacle, 3 Way 4 2400060 1 Fuseholder with Cover 4 8229242 1 Fuse - 5Amp 5 4460874 1 Connector - 35 Position 5 4460871 9 Socket, Female 5 4460905 26 Plug, Terminal 6 1001113961 1 Plug, Male - 8 Position 6 4460871 3 Socket, Female 6 4460905 5 Plug, Terminal 7 4460897 1 Receptacle, Female - 2 Position 7 4460464 2 Pin, Male 8 4460891 3 Plug, Male - 2 Position 8 4460465 6 Socket, Female 9 1001116813 1 Receptacle, Female - 8 Position 9 1001116693 5 Pin, Male 9 1001157891 2 Terminal 9 4460466 1 Plug, Terminal 10 4460761 1 Connector - 4 Position 10 4460227 4 Pin, Male 11 4460539 1 Plug, Male - 3 Position 11 4460944 2 Socket, Female 11 4460466 1 Plug, Terminal 12 4460884 1 Plug, Male - 4 Position 12 4460465 4 Socket, Female 12 1001186231 1 Connector, Fuse/Diode Can 13 4460884 1 Plug, Male - 4 Position 13 4460465 3 Socket, Female 13 4460942 1 Socket, Female 13 1001192401 1 Connector, Dust Cap 14 4460866 1 Connector - 19 Position 14 4460943 2 Pin, Male 14 4460508 4 Pin, Male 14 4460464 7 Pin, Male 14 4460466 6 Plug, Terminal 15 4460884 1 Connector - 4 Position 15 4460465 2 Socket, Female 15 4460466 2 Plug, Terminal 16 1001116812 1 Plug, Male -3 Position 16 4460944 3 Socket, Female 17 4460836 1 Plug, Male - 12 Position 17 1001157890 5 Socket, Female
REV
A
ITEM PART NUMBER QTY
17 4460944 2 Socket, Female 17 1001116692 5 Socket, Female 18 4460933 1 Plug, Male - 12 Position 18 4460942 4 Socket, Female 18 4460465 2 Socket, Female 18 4460466 6 Plug, Terminal 18 1001125677 1 Buss Bar
