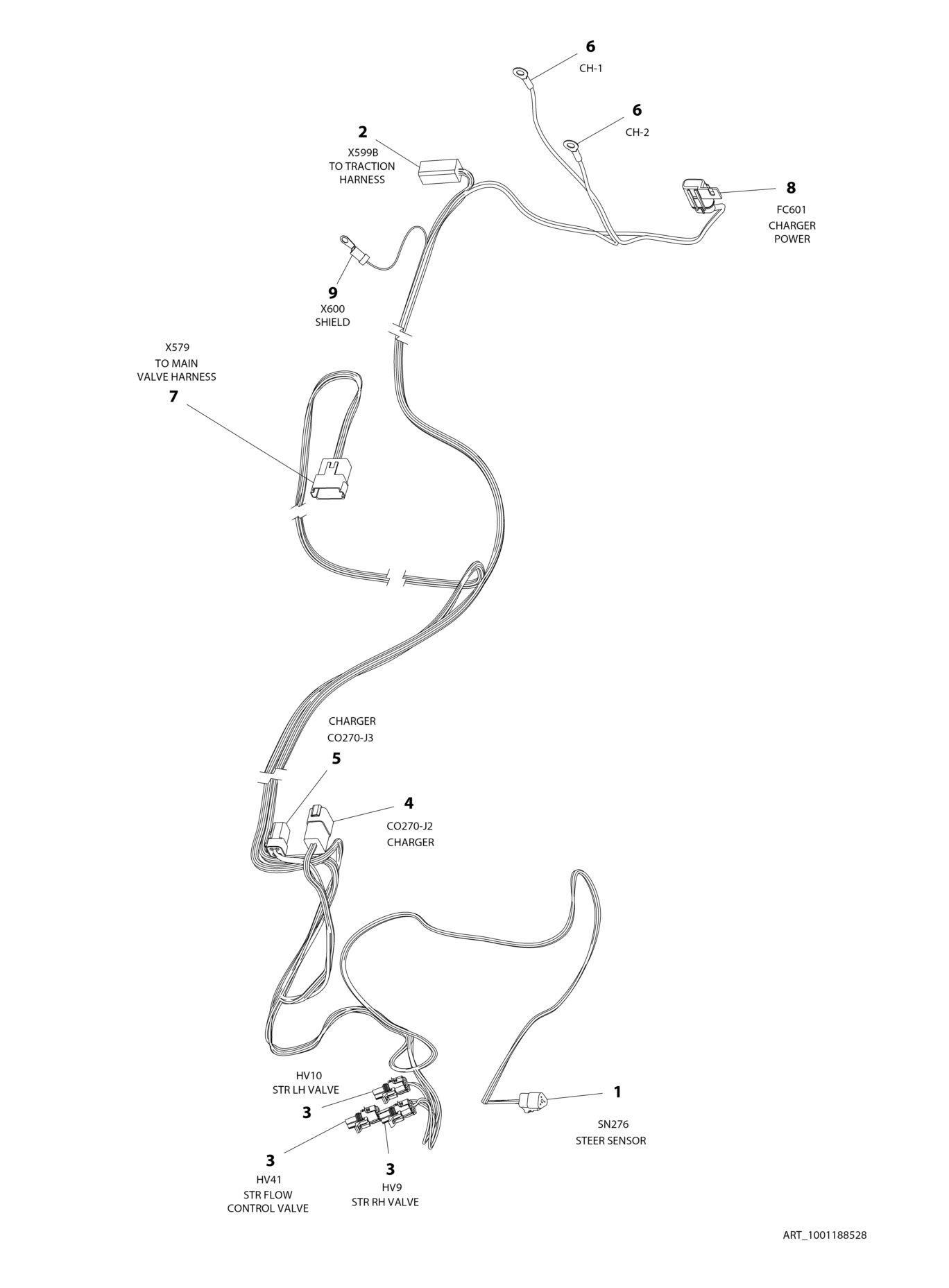

FIGURE 8 48. STEER/BRAKE HARNESS

FIGURE 8-48. STEER/BRAKE HARNESS

FIGURE 8-48. STEER/BRAKE HARNESS

ITEM PART NUMBER QTY

DESCRIPTION

1001188528 Ref STEER/BRAKE HARNESS 1 4460539 1 Plug, Male - 4 Position 1 4460465 3 Socket, Female 2 4460899 1 Receptacle, Female - 6 Position 2 4460464 5 Pin, Male 2 4460466 1 Plug, Terminal 3 4460742 3 Plug, Male - 2 Position 3 4460743 6 Socket, Female 4 4460931 1 Receptacle, Female - 8 Position 4 4460464 6 Pin, Male 4 4460466 2 Plug, Terminal 5 1001116810 1 Plug, Male - 4 Position 5 4460509 2 Terminal 5 4460466 2 Plug, Terminal 6 8220045 2 Ring, Terminal 7 4460970 1 Receptacle, Female - 12 Position 7 4460464 9 Pin, Male 7 4460466 3 Plug, Terminal 8 1001217844 1 Fuseholder 8 1001217842 1 Cover 8 8229236 1 Fuse - 30Amp 8 1001116734 2 Terminal, Female 9 4460142 1 Terminal, Ring

REV

H
